6 IN X 6FT Linear Flat Panel Lay In- 2 Pack
Image not exact

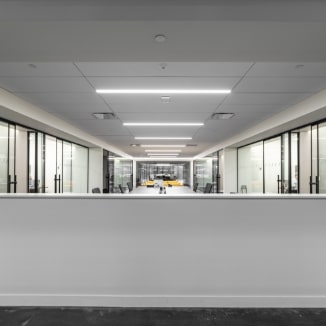

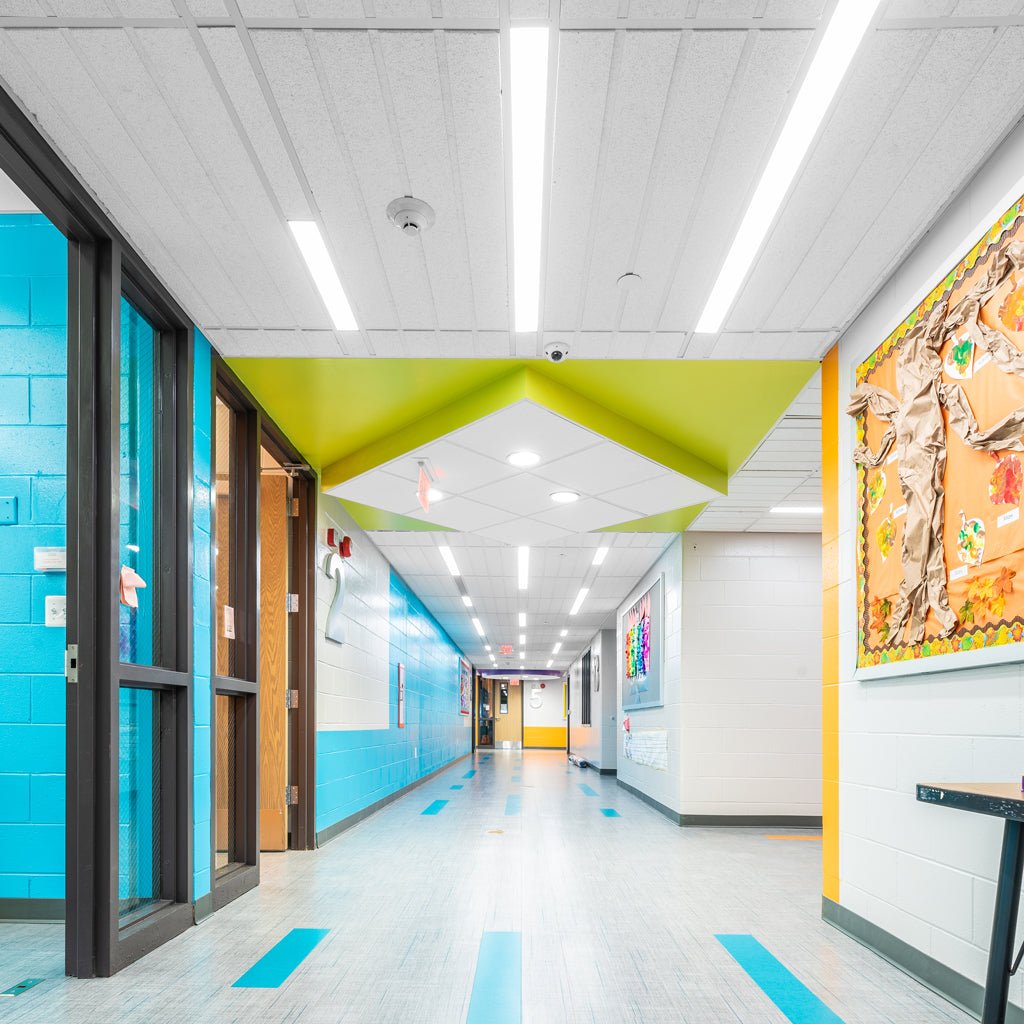

Traditional linear panels have been completely revamped in this sleek, modern style. The super-narrow frames, shallow profile, and greater surface area result in smoother, more luminous output. The linear flat panel provides a sleek modern linear light with edge-lit construction to provide a soft glare-free solution. It is designed for grid/T-bar ceiling and can be used in many lighting applications. Uses include schools, offices, retail, healthcare and other commercial spaces

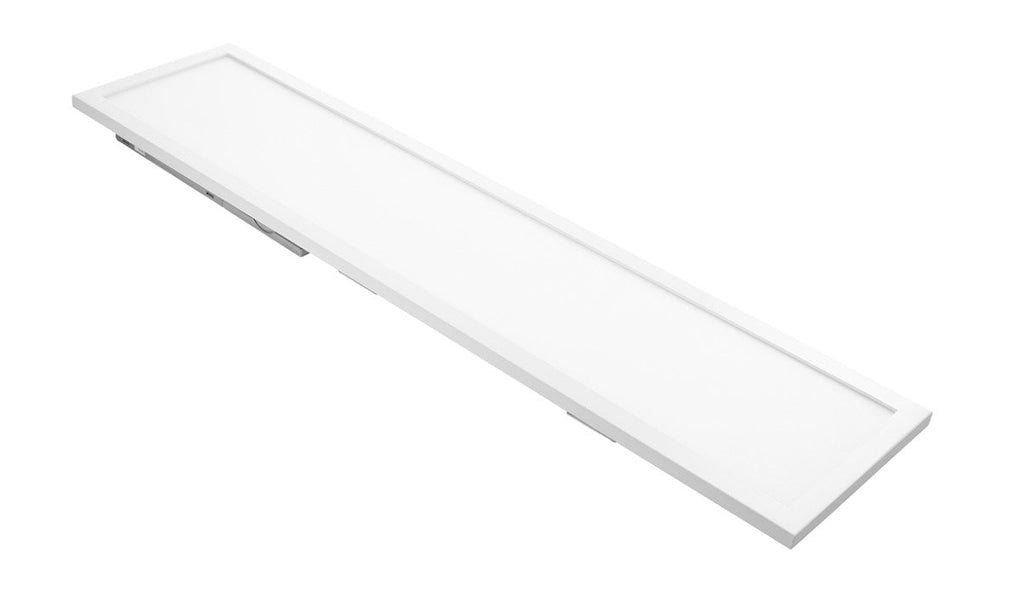

- Barely visible frames integrate beautifully with updated decor and create more surface area.
- Less than 2” deep, this fixture still provides identical lumens per SF as the original linear flats.
- Edge-lit construction results in smooth, even illumination across the panel.
- Diffusers are made of durable PMMA which ensures uniform light output, with no glare, staining or yellowing
over time.
- Available in 3500K, 4000K and 5000K color temperature with a minimum of 80 CRI.

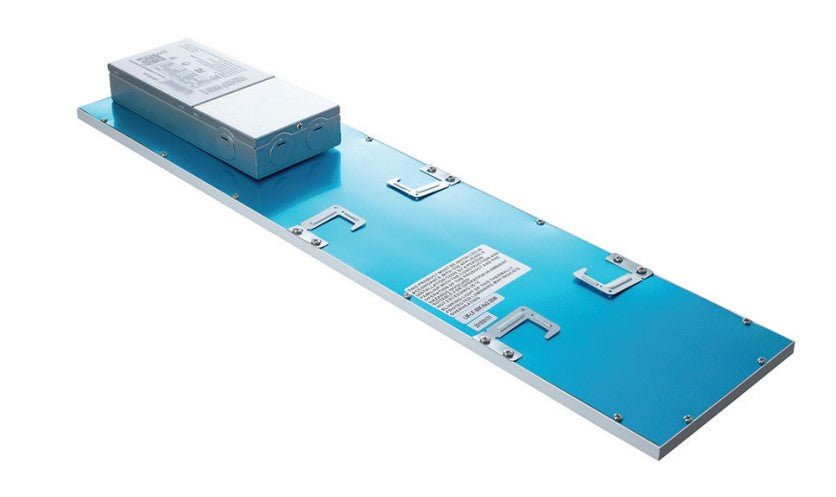

- The back plate includes integral T-bar clips for installation in grid ceilings.
- Due to Manufacturers conditions these are sold in packs of 2
Spec Sheet
Info
Dimensions
| Length (In.)
|
71.73" |
| Width (In.)
|
5.75" |
| Height (In.) (Max) |
2.125" |
|
| Wattage |
40W
|
| Lumen |
4641-4735 |
| Color Temp. |
3500K-5000K |
| Efficacy |
123 lm/W |
| CRI |
>80 |
Dimming
|
0-10V |
| Mounting |
Back plate includes integral T-bar clips for installation in grid ceilings |
Warranty
|
5 Year |
