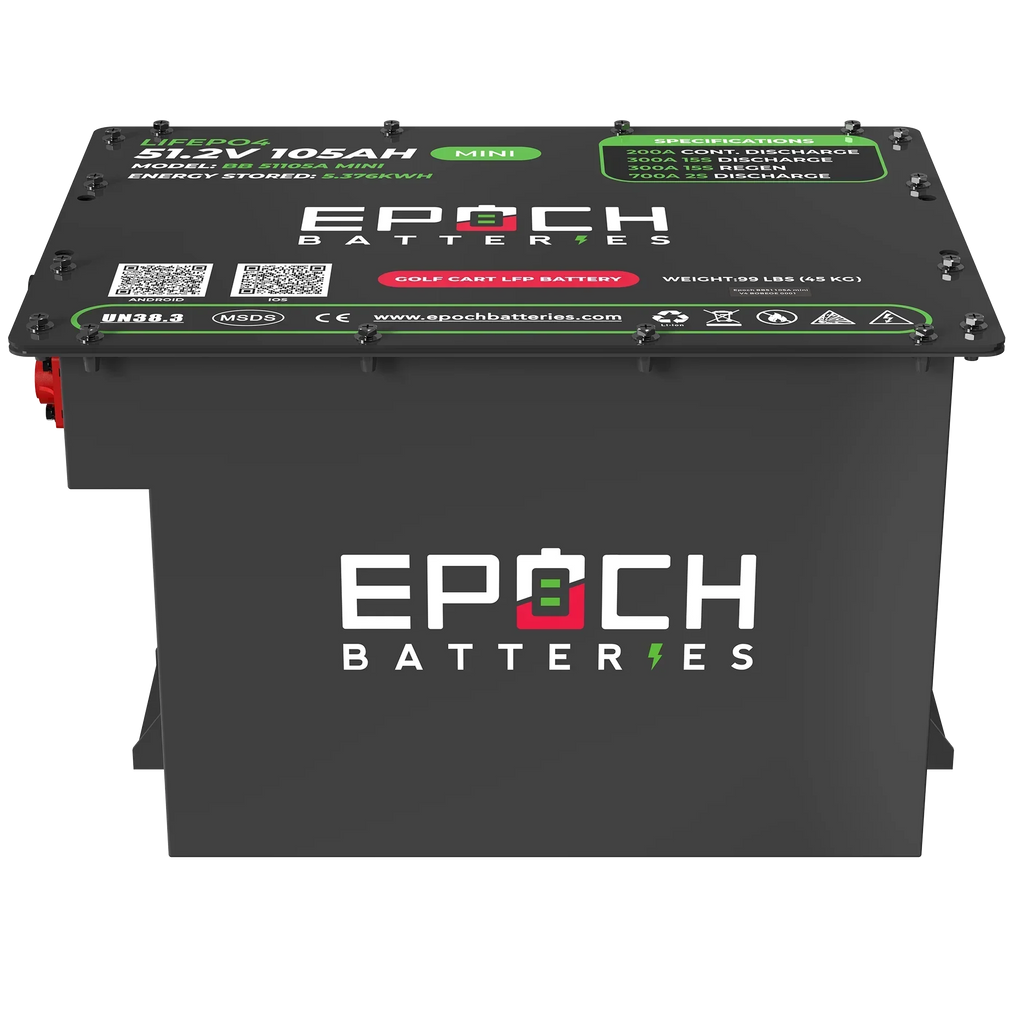

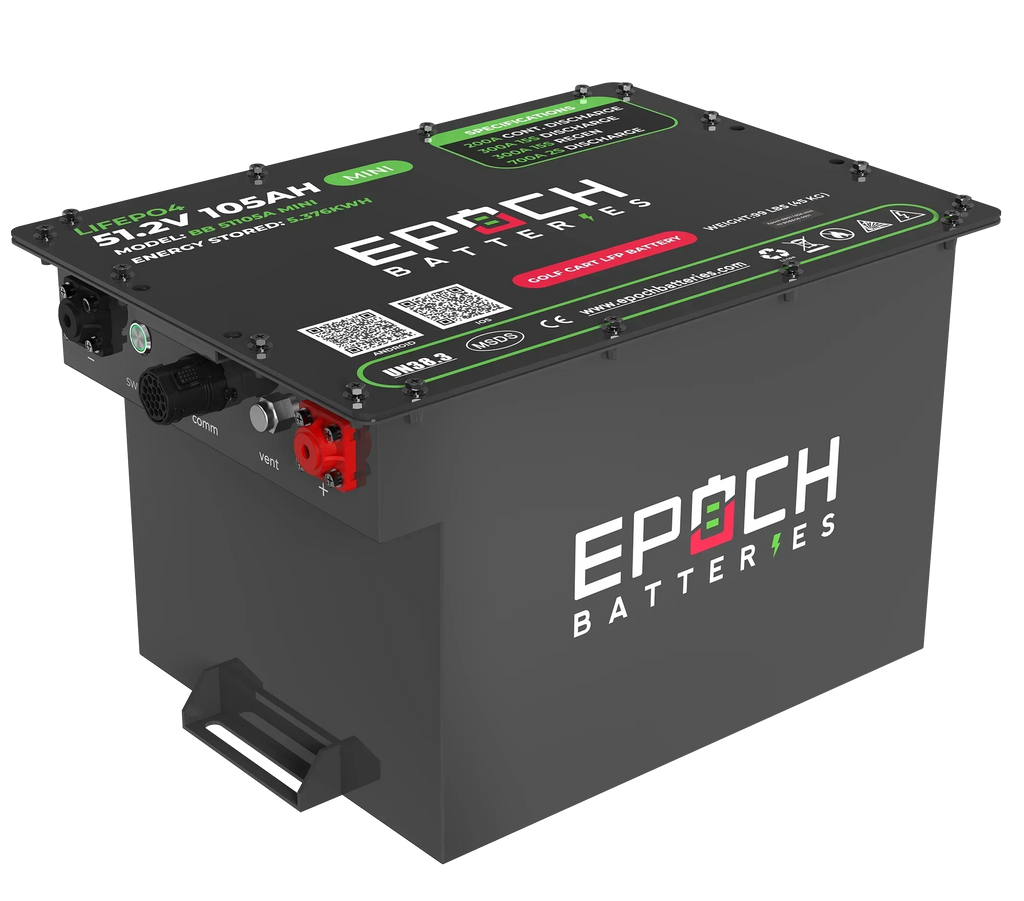

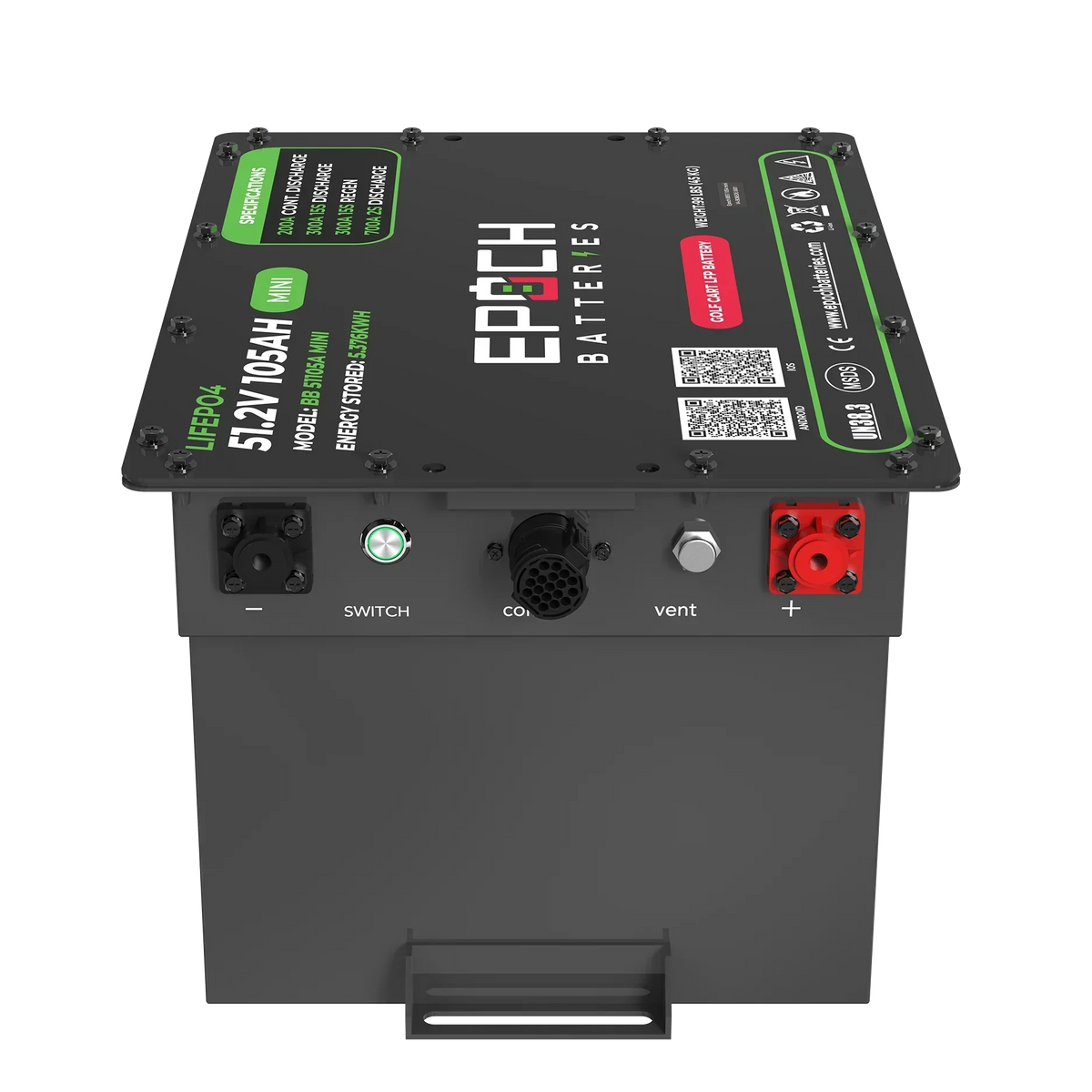

Epoch Batteries 48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
- Complete Lithium Conversion Kit
- 48V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
- Cart Specific Mounting Brackets INCLUDED
- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 200A Max Continuous Discharge
- 300A @ 15s, 700A @ 2s Peak Discharge
- 100A Max Continuous Charge
- 300A @ 15s Peak Charge/Regen
- 3,500 Cycle Life
- 11 Year Warranty
Tech Specs
Configuration
Cell Configuration: 1P16S
Chemistry: LiFePO4
Current
Ah Capacity: 105Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 100A Continuous, 300A @ 15s
Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 99 (LBS)

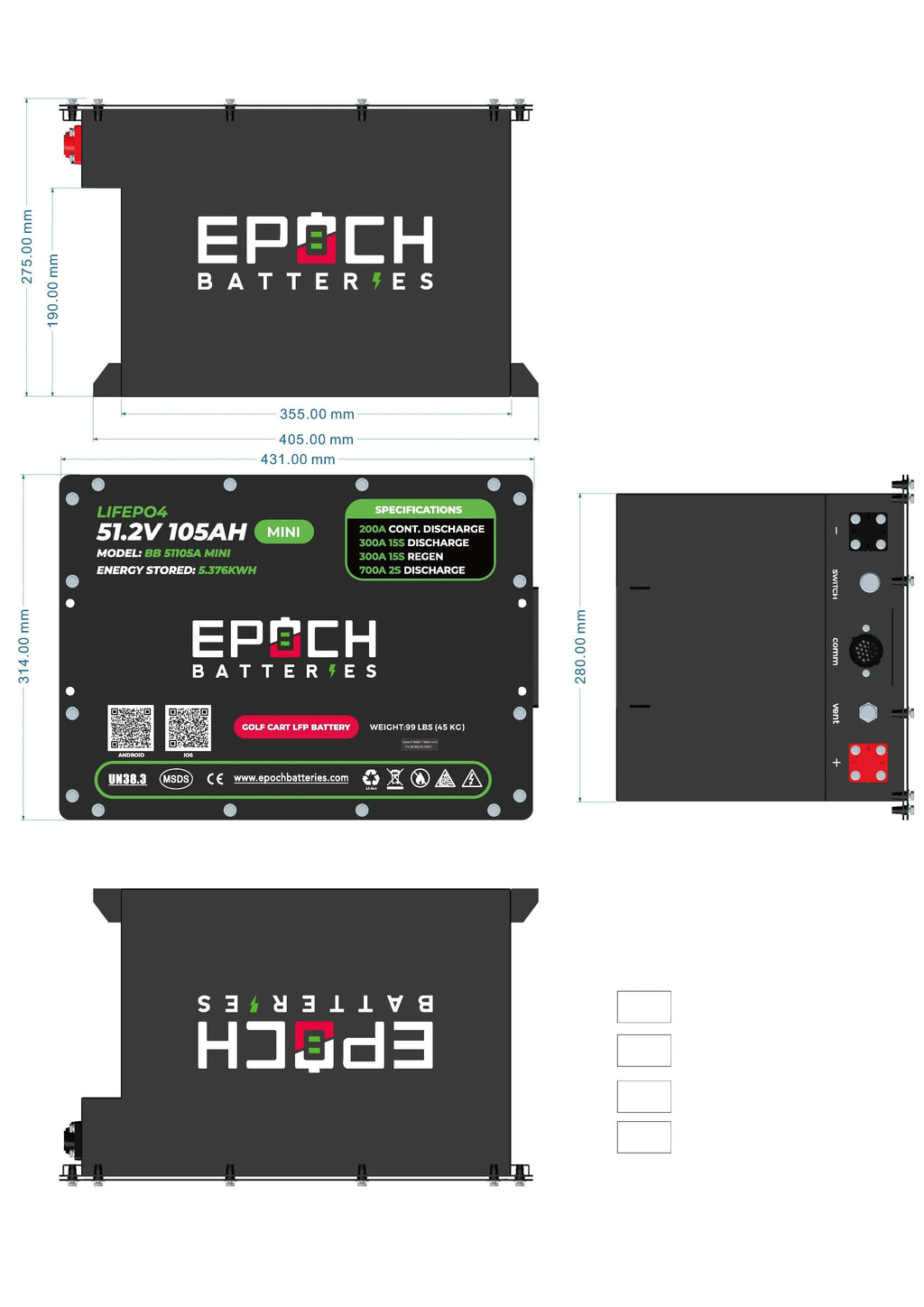

Dimensions
Length: 15.8 (inches)
Width: 11.1 (inches)
Height: 10.9 (inches)
