3" 12W Trimless Retractable Downlight Selectable CCT + Beam Angle

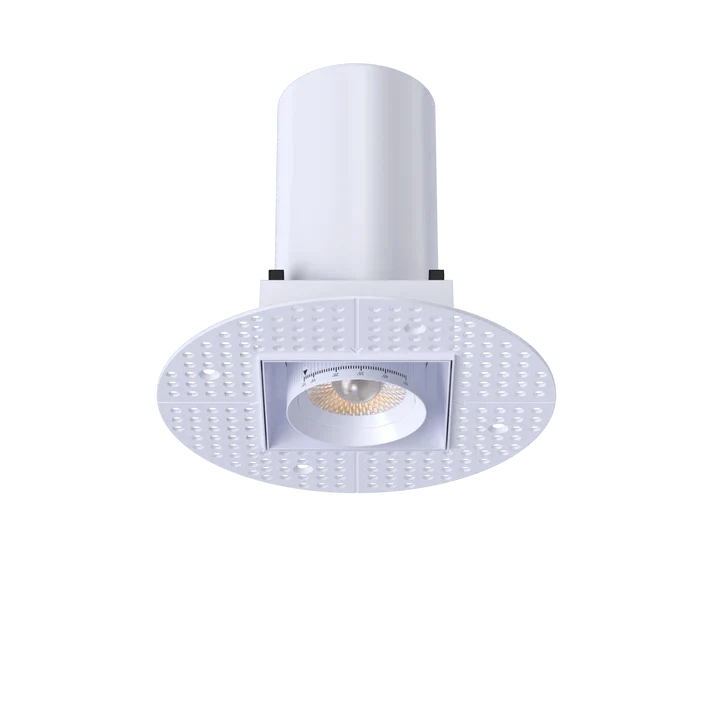

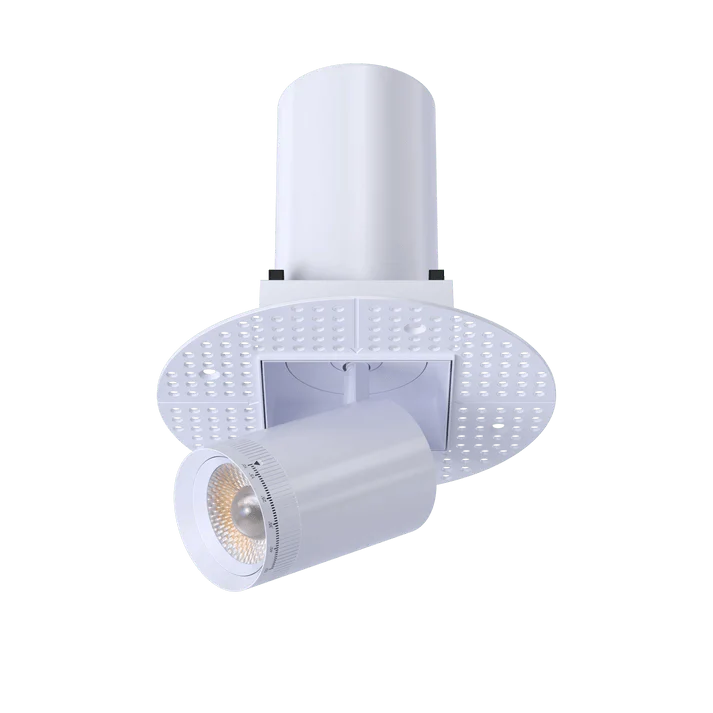

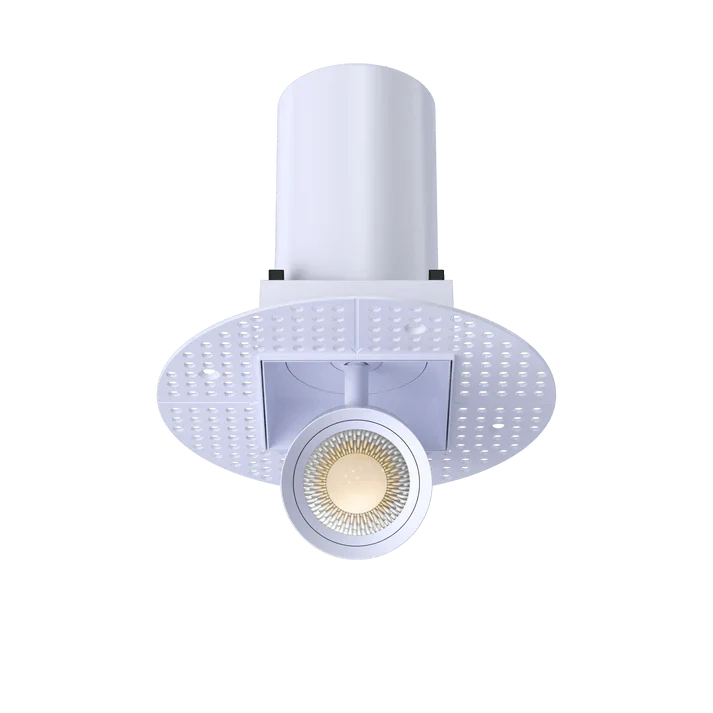

The G-32521 Pulsar Trimless LED Downlight delivers a clean architectural look with the flexibility and performance designers demand. Featuring a fully retractable gimbal design, this fixture allows precise aiming while maintaining a seamless, trimless ceiling appearance once installed.
Built for versatility, the G-32521 includes an adjustable beam angle, enabling you to fine-tune light distribution for accent, wall wash, or general illumination applications. High-output LEDs provide excellent brightness with smooth dimming and consistent color quality, making it ideal for residential, hospitality, retail, and gallery spaces.
Designed for new construction and remodel applications where a modern, plaster-in finish is desired, the Pulsar G-32521 blends performance, adjustability, and minimalist aesthetics into one professional-grade solution.
- Fully retractable gimbal-style downlight
- Trimless (plaster-in) design for a seamless ceiling finish
- Adjustable beam angle for precise light control
- High-performance LED with excellent color quality
- Smooth dimming compatibility
- Ideal for architectural, residential, and commercial spaces
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Info
| Wattage | 12W |
| Lumen | 1000L |
| CCT (Kelvin) | Selectable CCT |
| Color Temp. | 27K-50K |
| CRI | >90 |
| Input Voltage | 120-277V |
| Beam Angle | Adjustable 20°-55° |
| Gimbal | 90° |
| Rotation | 360° |
| Dimmable | Triac, 0-10V |
| Cutout | RD 5.00" SQ 3.60" |
| Width | 7.28" |
| Height | 6.61" |
Additional Info
| Location Rating | Wet Location |
| Warranty | 3 Years |
| IC Rated | Yes |
| Listings | ETL, Title24 Listed |
| Plenum Rating | FT6 |
