Description
Usage

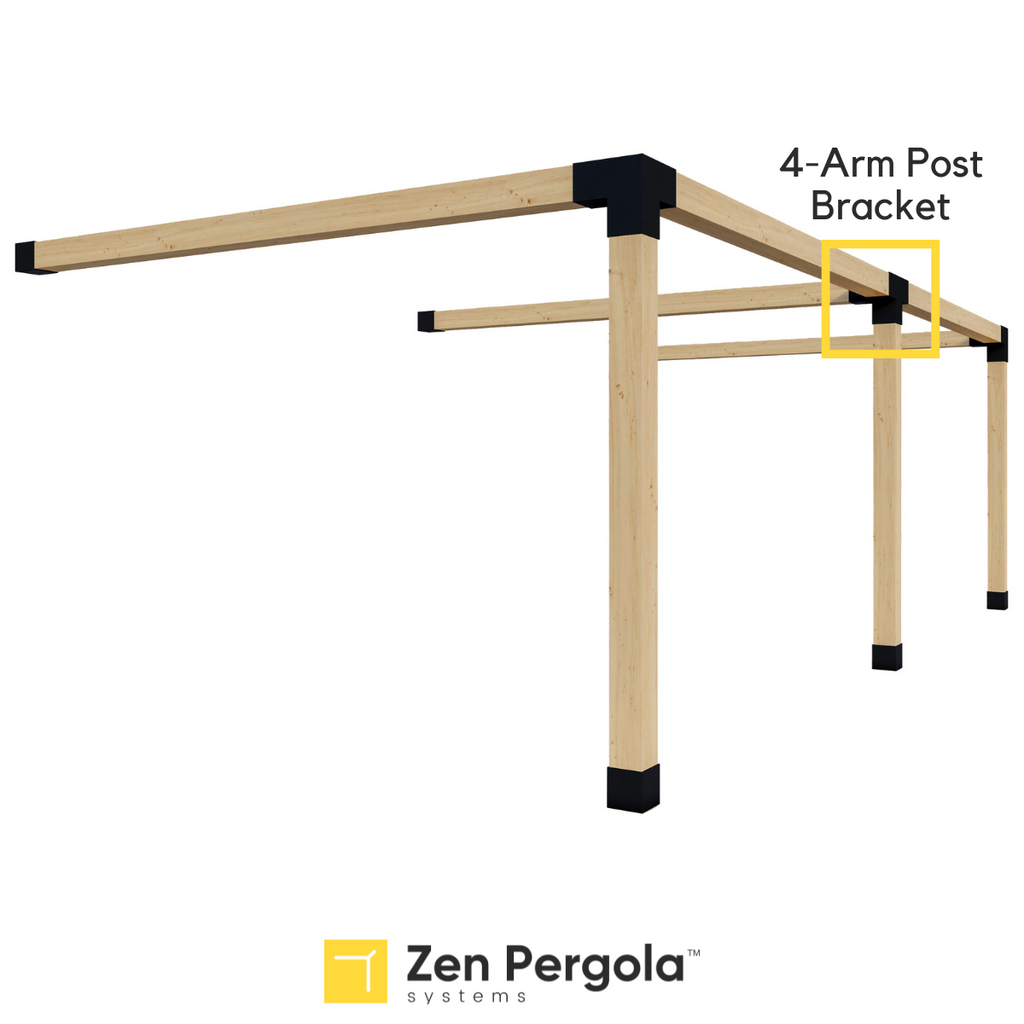

4-arm post brackets are used to connect 2 sections of extra-wide and/or extra-deep pergolas. If the width OR depth of your pergola exceeds 12 feet, you will need at least 1 4-arm post bracket. Freestanding pergola kits typically require more of these brackets than attached pergola kits.

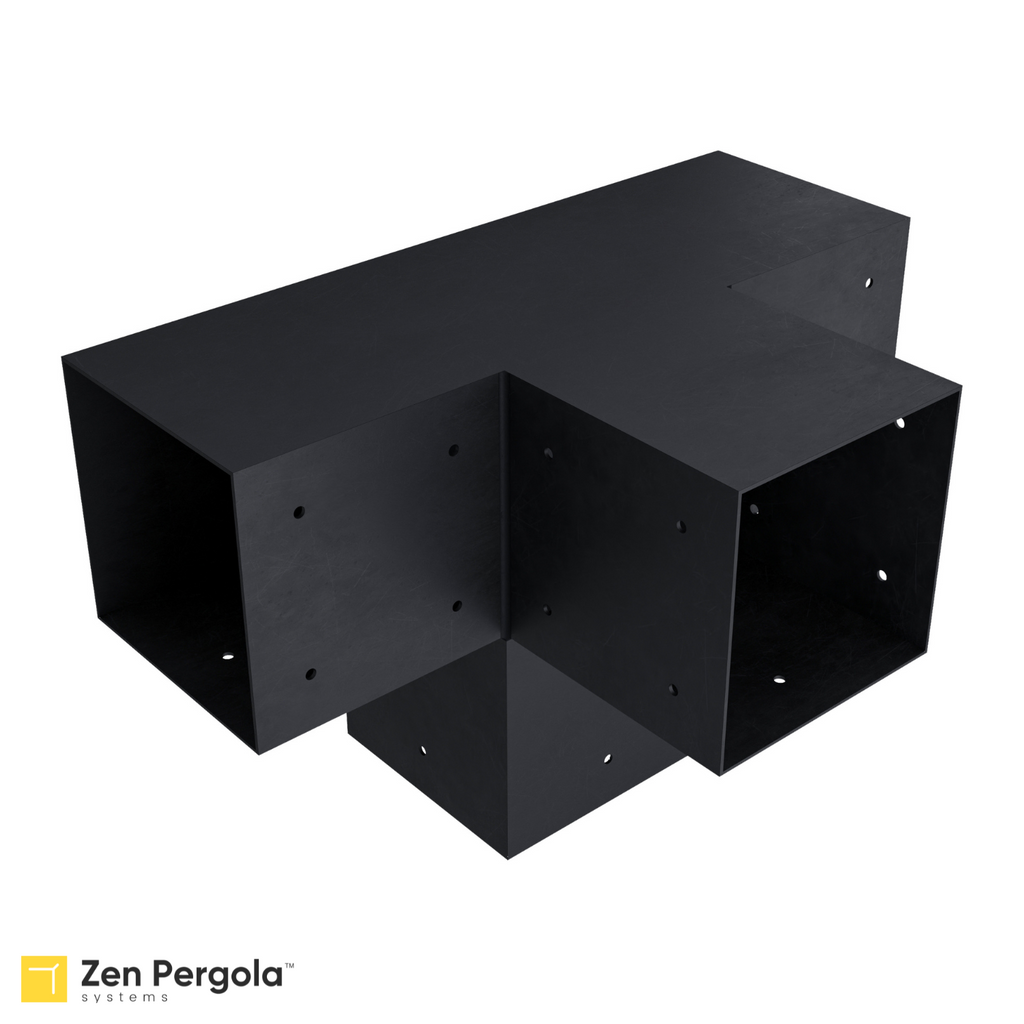

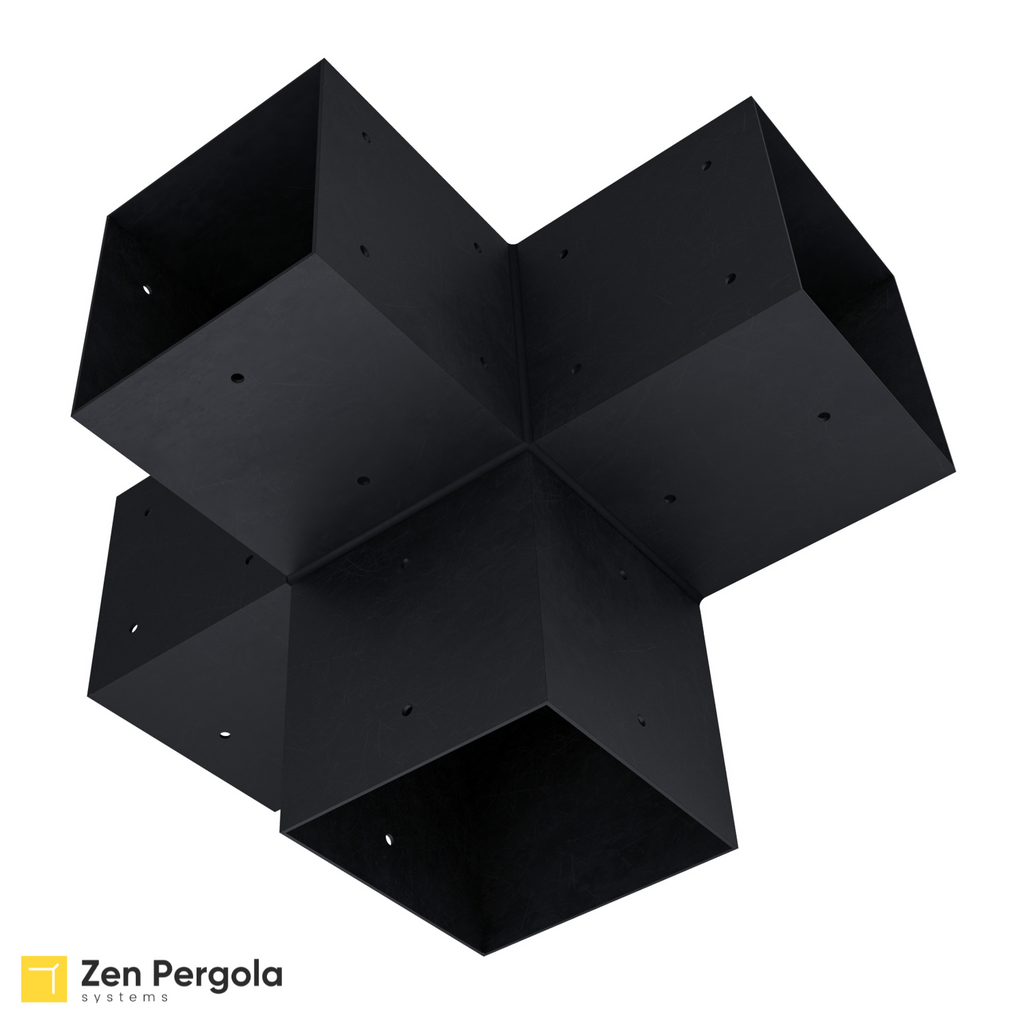

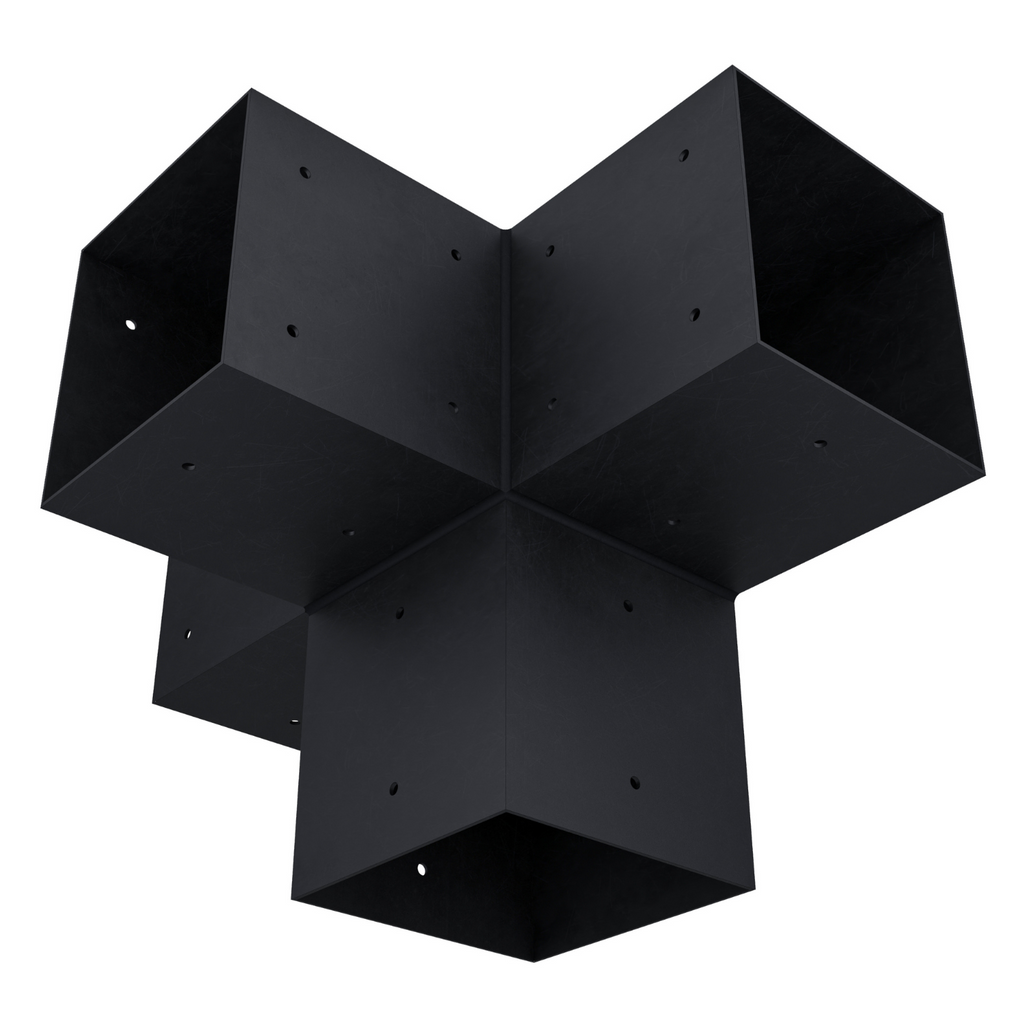

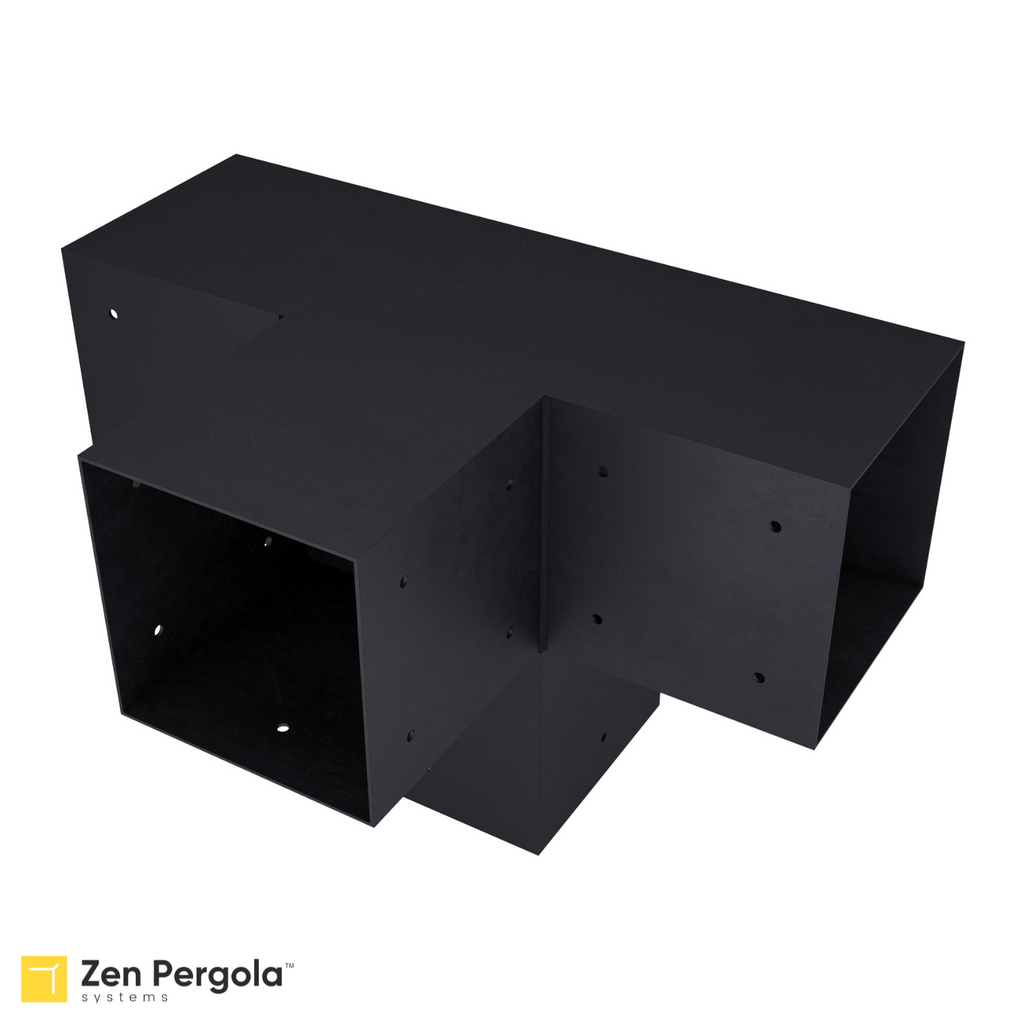

6x6 Pergola Bracket Features
- Made with premium quality steel
- 12-gauge steel (~2.6mm thick)
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width: 17.5 inches (444 mm)
- Depth: 11.65 inches (296 mm)
- Height: 11.65 inches (296 mm)
- Number of arms: 4 (1 vertical + 3 horizontal)
- Inner dimensions of each arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
- Holes on vertical arm (to ground): 6 (2 holes on each of the 3 sides facing inward)
- Holes on each of the 2 outside horizontal arms (for beams): 6 (2 holes on the side facing down + 4 holes on the side facing inward)
- Holes on the perpendicular horizontal arm: 10 (2 holes on the side facing down + 4 holes on each of the 2 sides facing inward)
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 17.0 pounds
- Not included: wood posts
