Overview
Summary:

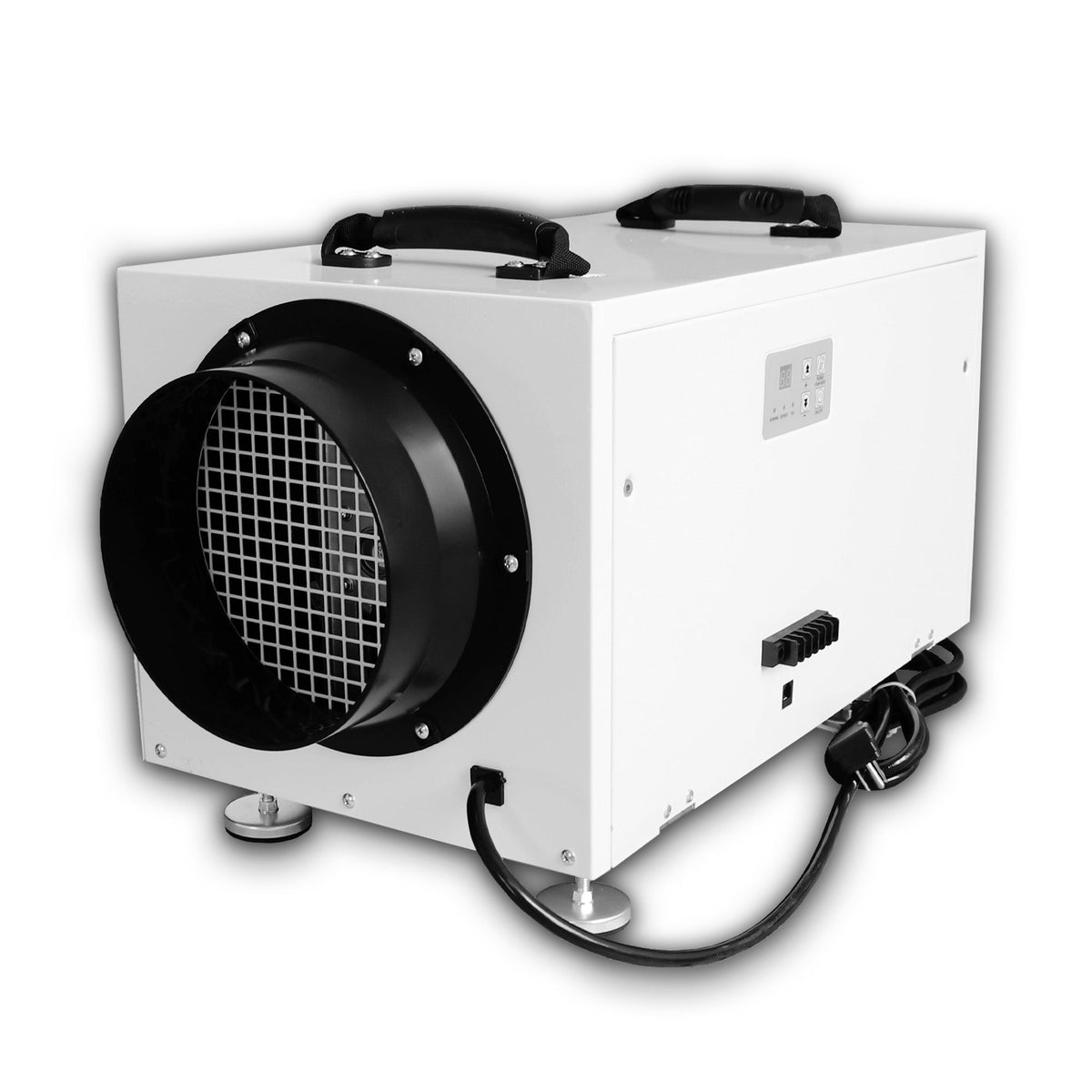

Maintain optimal indoor air quality with the QHD070AUDH26WH Whole House Ducted Dehumidifier, engineered to deliver powerful and efficient moisture control for your entire home. Perfect for high-performance applications, this plug-in unit offers reliable dehumidification with advanced features for superior comfort and convenience.
Key Features:
- High Moisture Removal: Rated for 70 pints per day at standard conditions (80°F, 60% RH), ensuring effective humidity control in large spaces.
- Efficient Airflow: Provides a nominal airflow of 280 CFM, with an optional boost speed of 35 CFM for enhanced performance during peak demand.
-

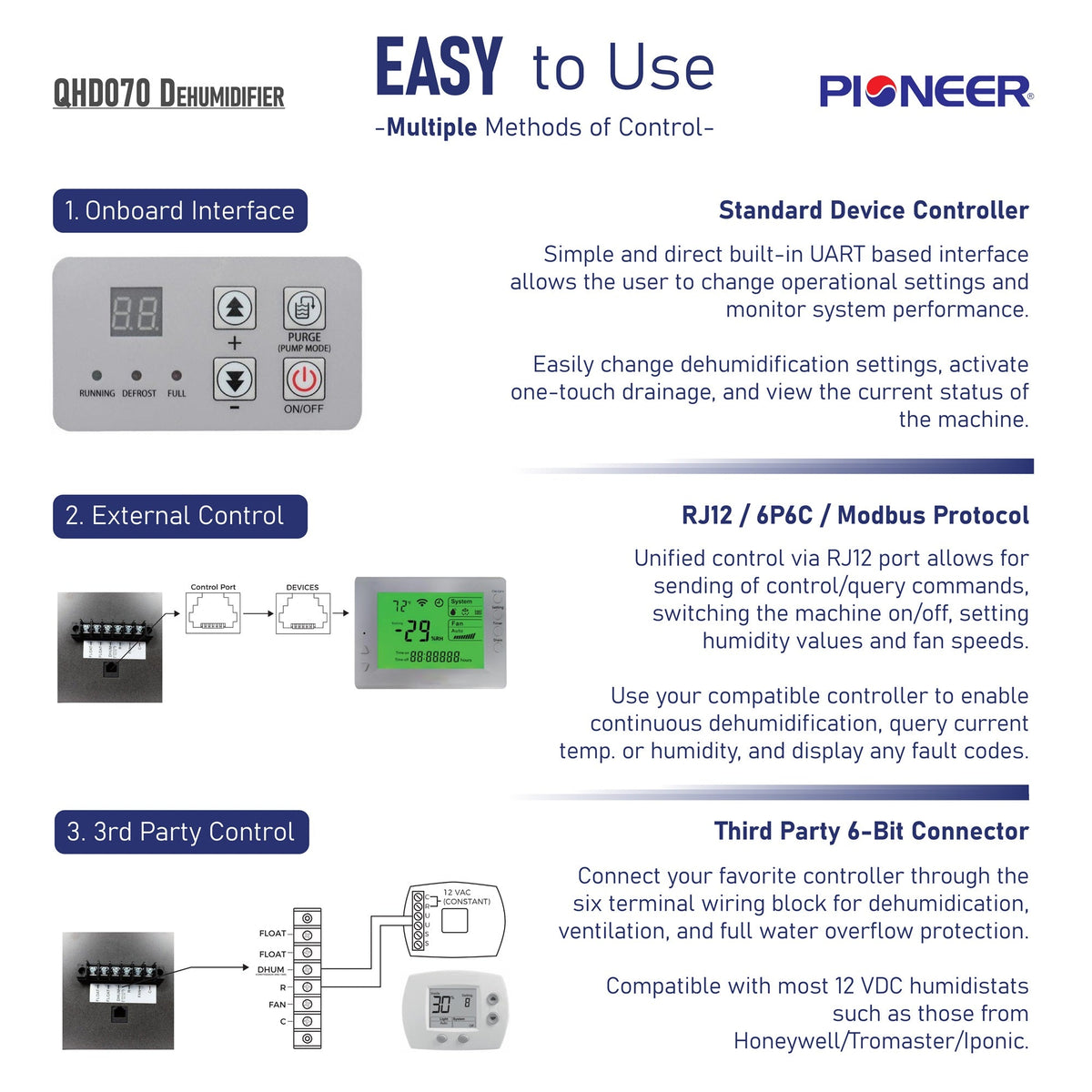

Flexible Control Options:
- Built-in digital controller for on-unit adjustments.
- Optional digital proprietary remote wall controller for added flexibility.
- Compatible with standard 3rd party humidity controllers and Modbus communication for seamless integration.
- Convenient Drainage: Features a default manual drain option for hassle-free operation, plus a reserved control board terminal for optional water pump for added versatility.
- Durable Filtration: Equipped with a washable 304 grade stainless steel filter for long-lasting use and easy maintenance.
- Smart Protection & Adaptability: Includes a compressor protection timer delay and automatic defrost mode to ensure reliable operation in ambient temperatures ranging from 41°F to 104°F.
Specifications and Product Details:
- Power Supply: 110/120VAC (comes ready to plug in)
- Dimensions (WDH): 12-5/8 x 27-3/4 x 11-3/4 inches
- Power Cord Length: 10-1/2 Feet
- Refrigerant: R32
-
Moisture Removal Capacities:
- 70 PPD @ 80°F/60%RH
- 100 PPD @ 86°F/80%RH
- 135 PPD @ 90°F/90%RH
- Rated Power Input: 747W
- Rated Power Current: 6.5A
- Nominal Air Volume: 280 CFM
- Energy Efficiency: 4.44 Pints Removal per kWh
- Product Weight: 60 lbs
- Warranty: 3 Years on Parts/Compressor
