Summary

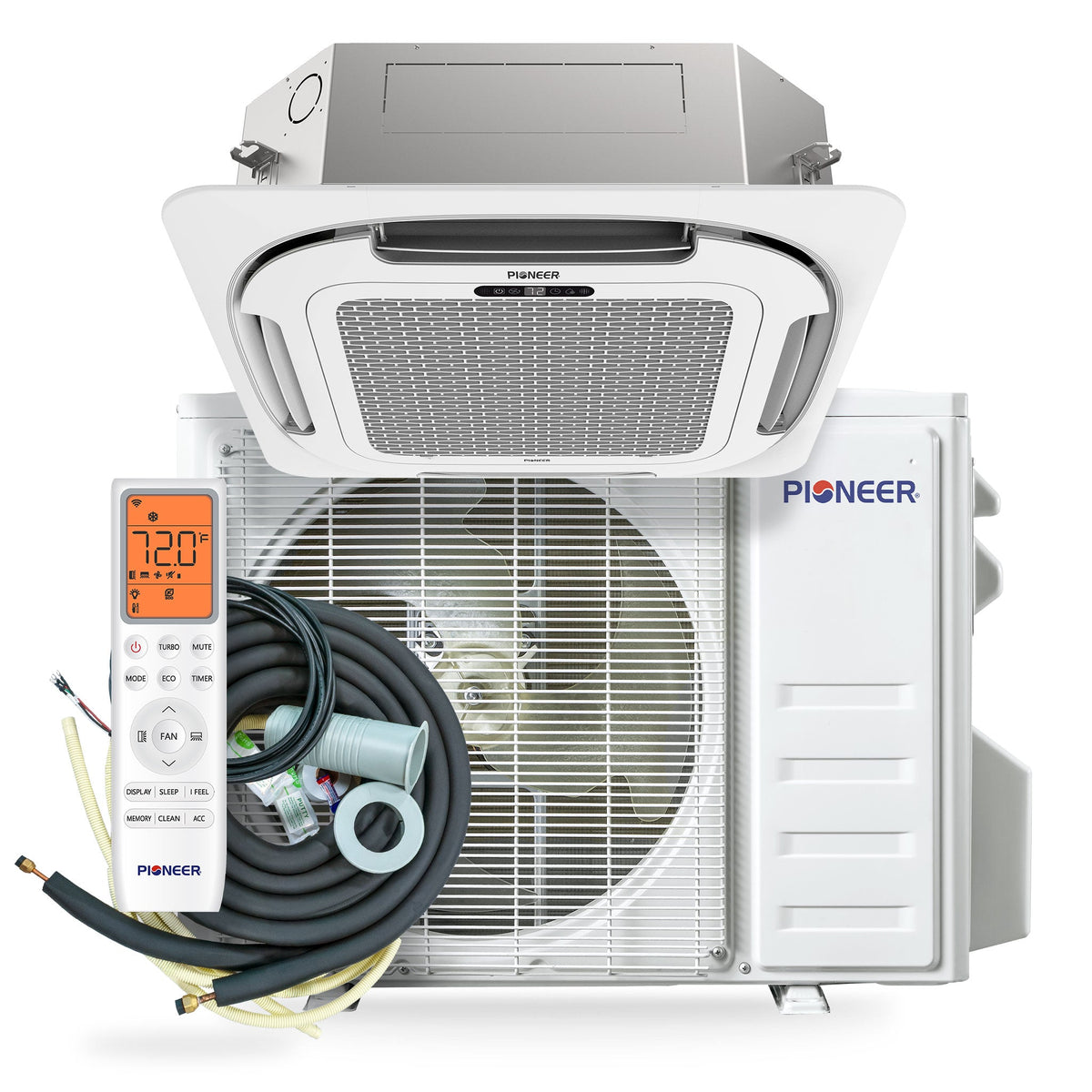

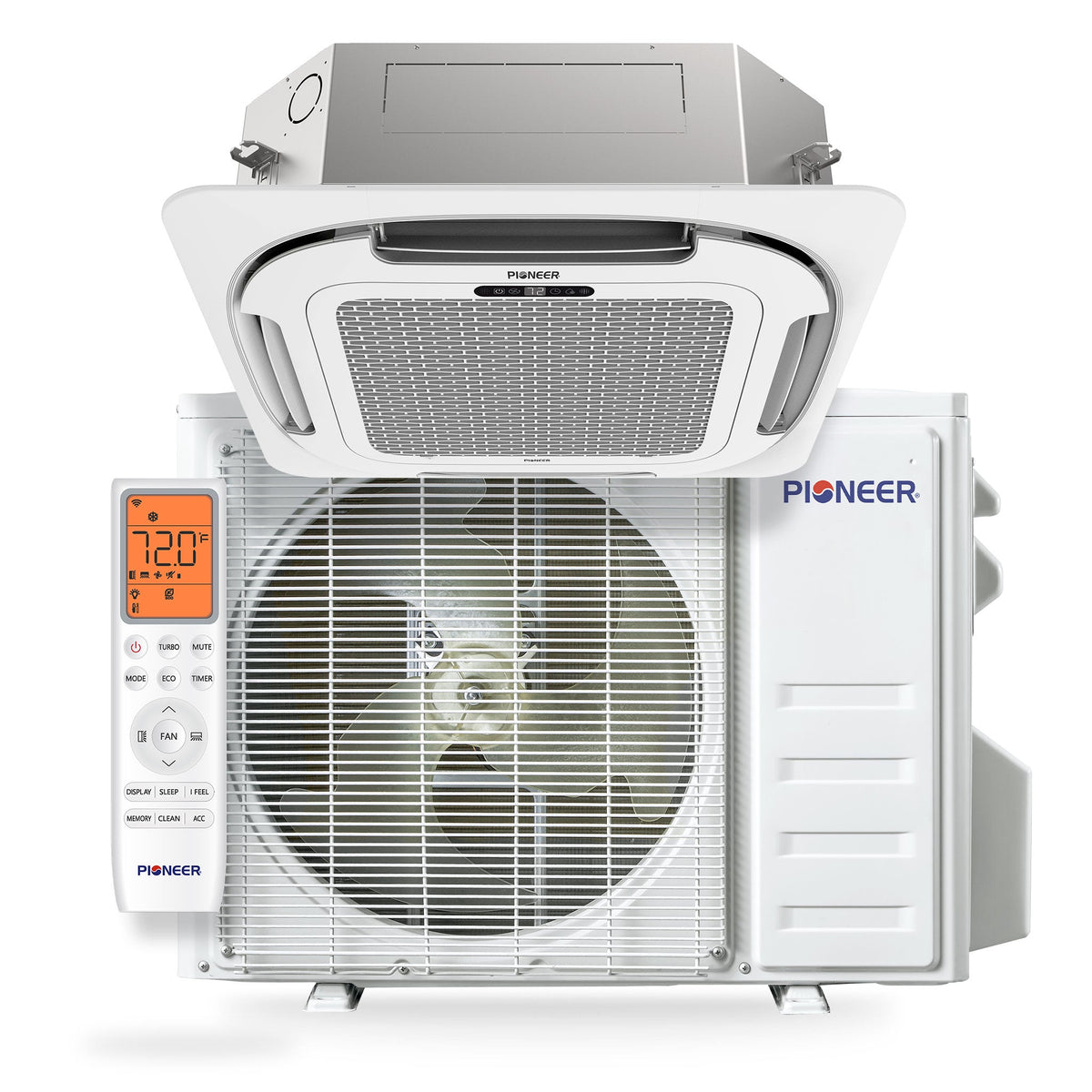

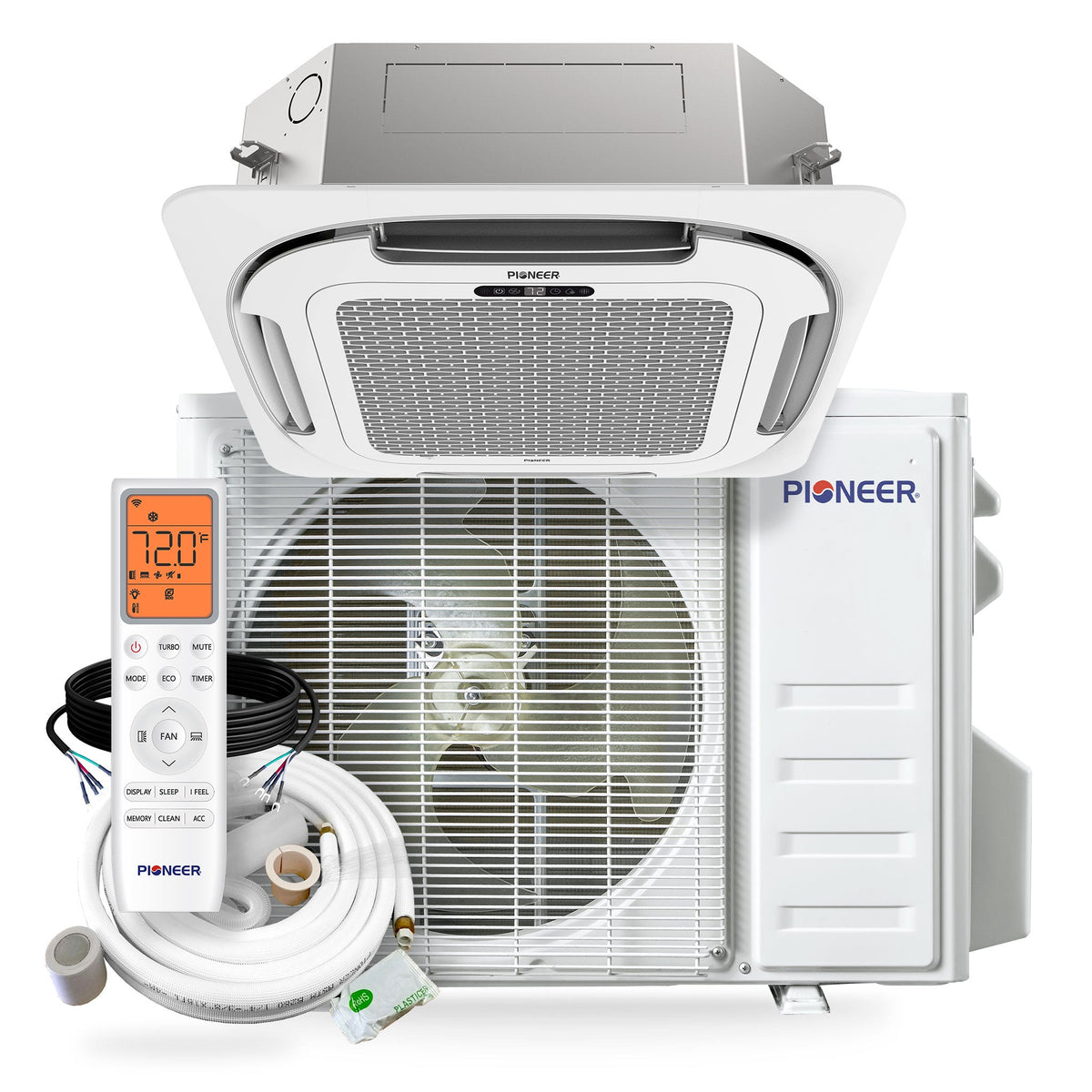

- High Efficiency Quantum Ultra Eight-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 16,000 BTU/H with 20.5 SEER2 / 11.0 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 8.5 HSPF2 / 2.9 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Eight-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

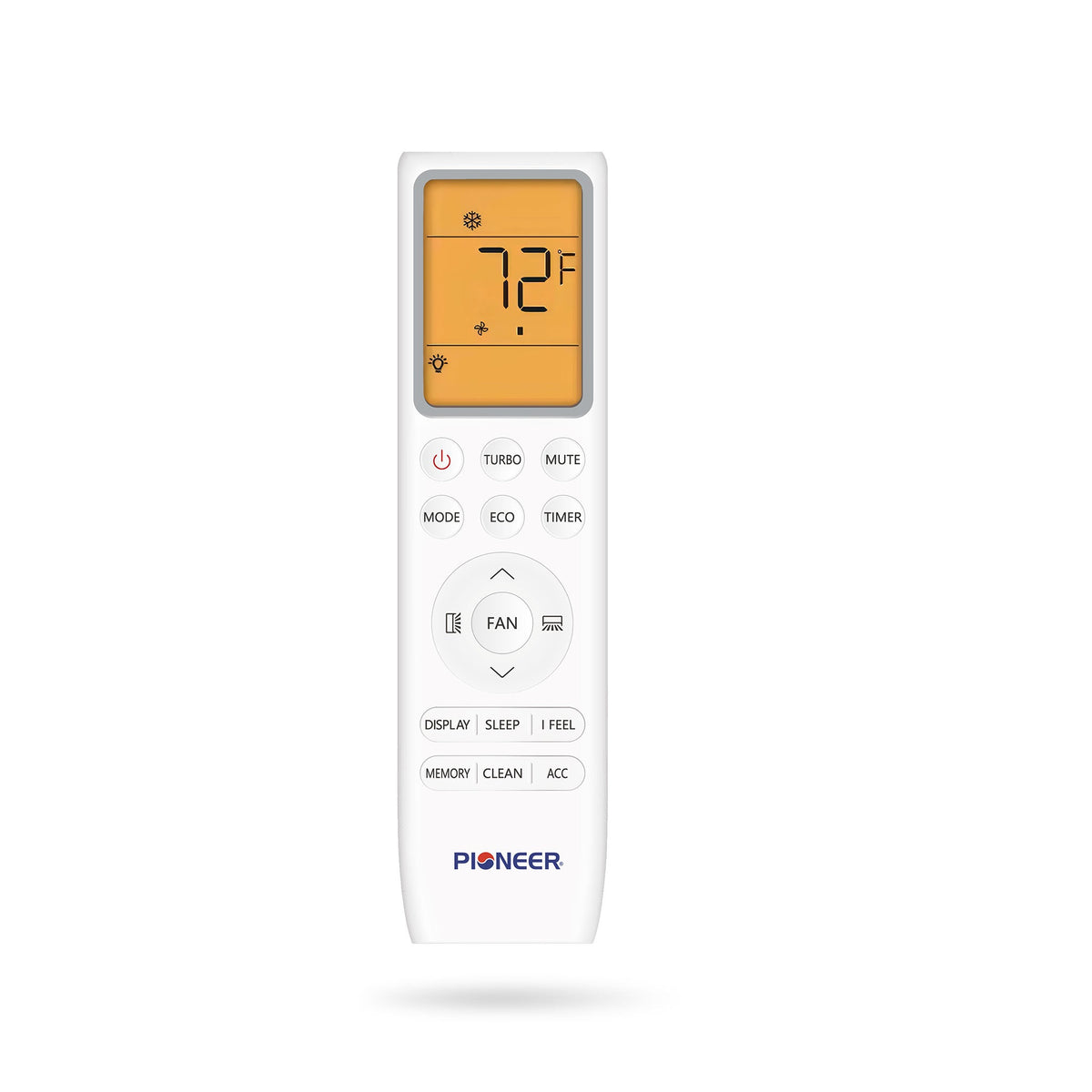

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 16,000 BTU/h
- Cooling Capacity Range: 6,000~19,400 BTU/h
- Cooling SEER2: 20.5 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,000~21,400 BTU/h
- Heating HSPF2 (Region IV/V): 8.5 / 7.4 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.9 / 1.8 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
-
Minimum Room Size: 51 sq ft

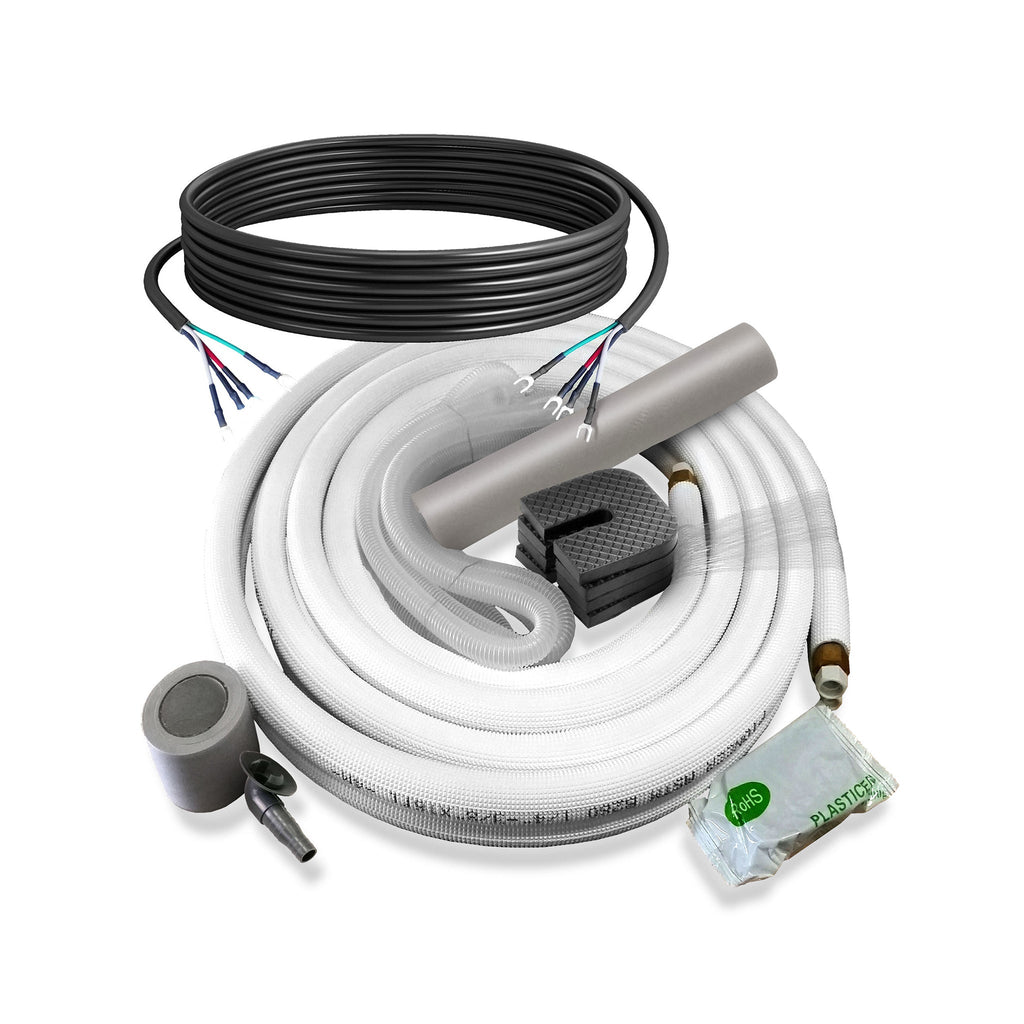

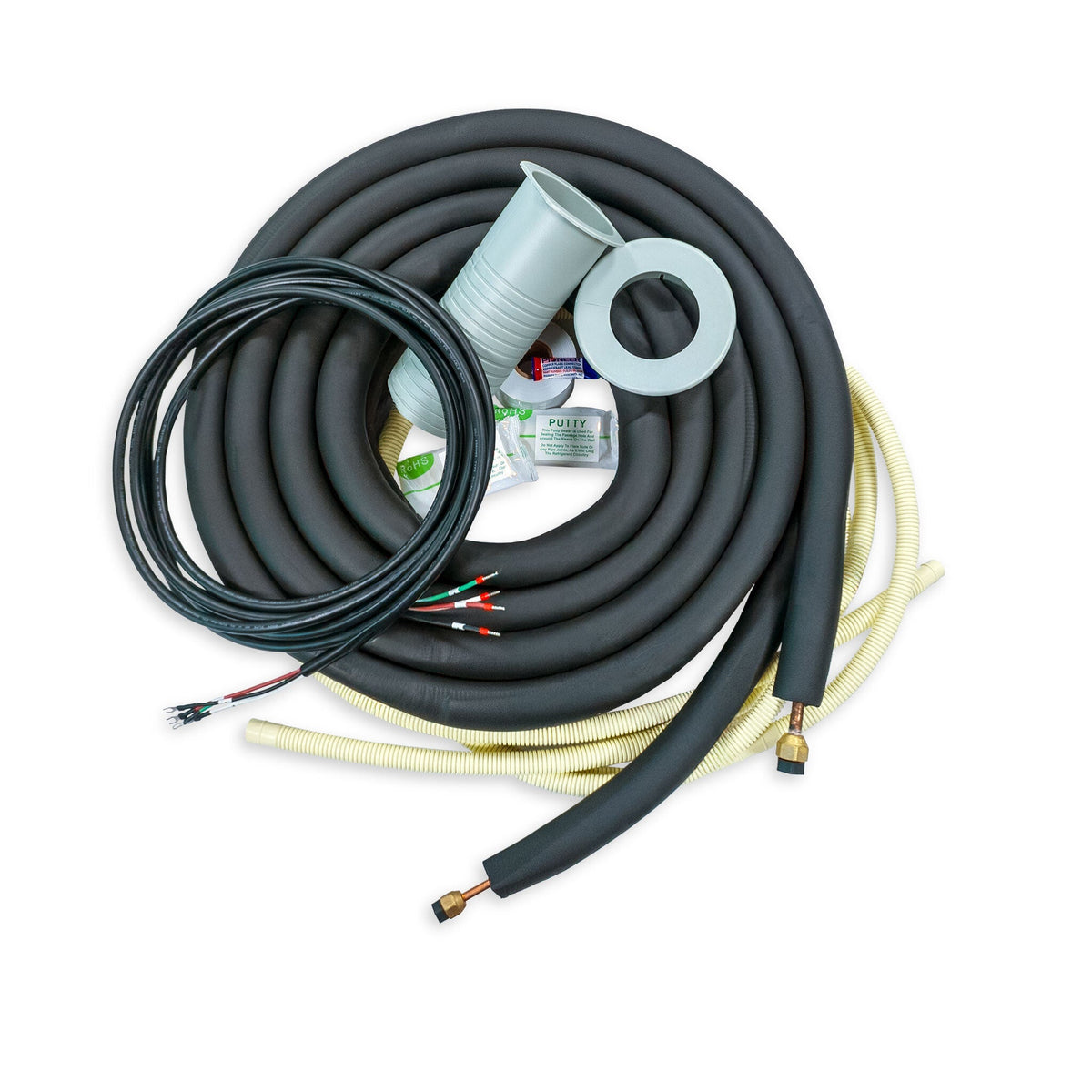

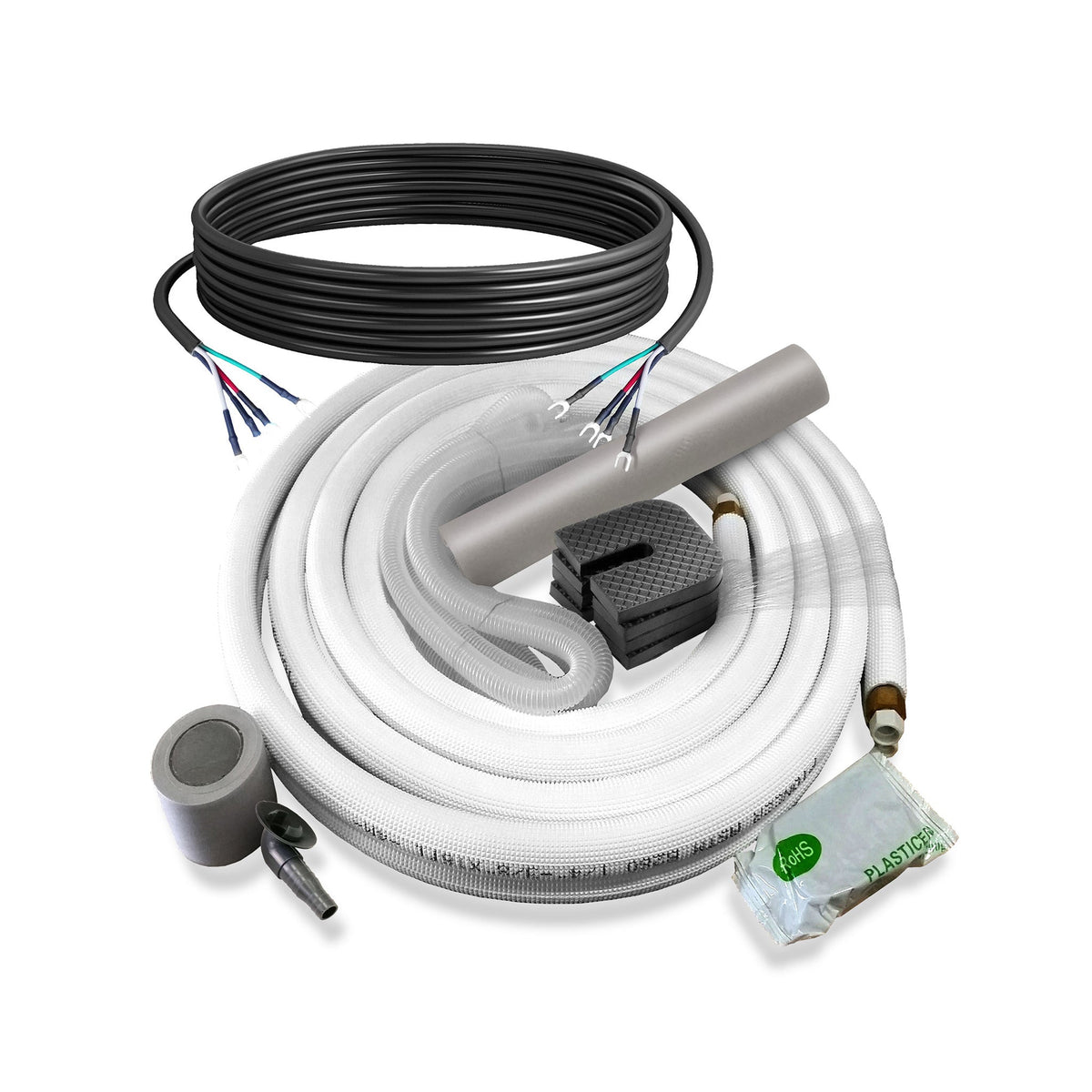

- Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048760
-

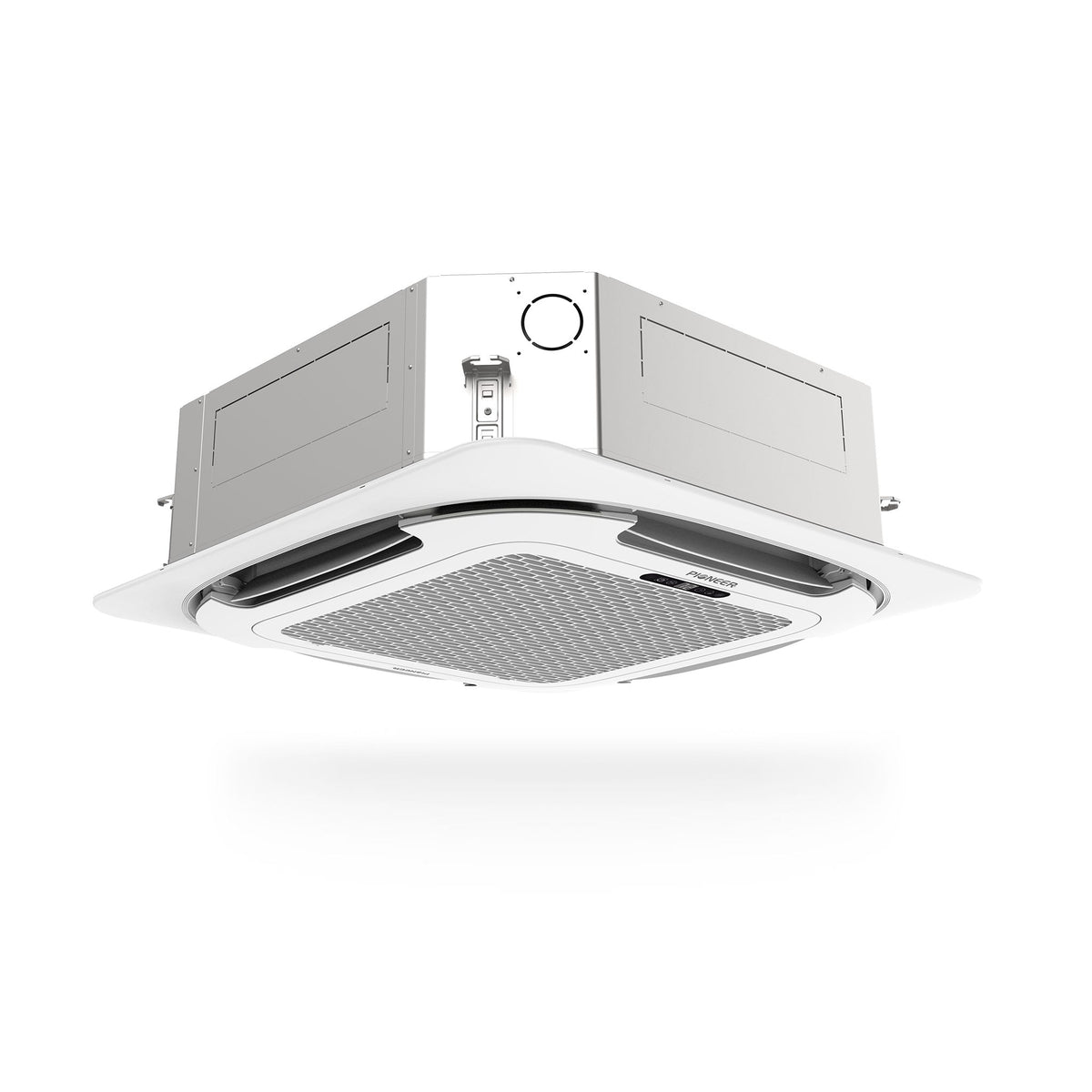

Indoor Unit
- Part Number: CT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)
- Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
- Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs
-

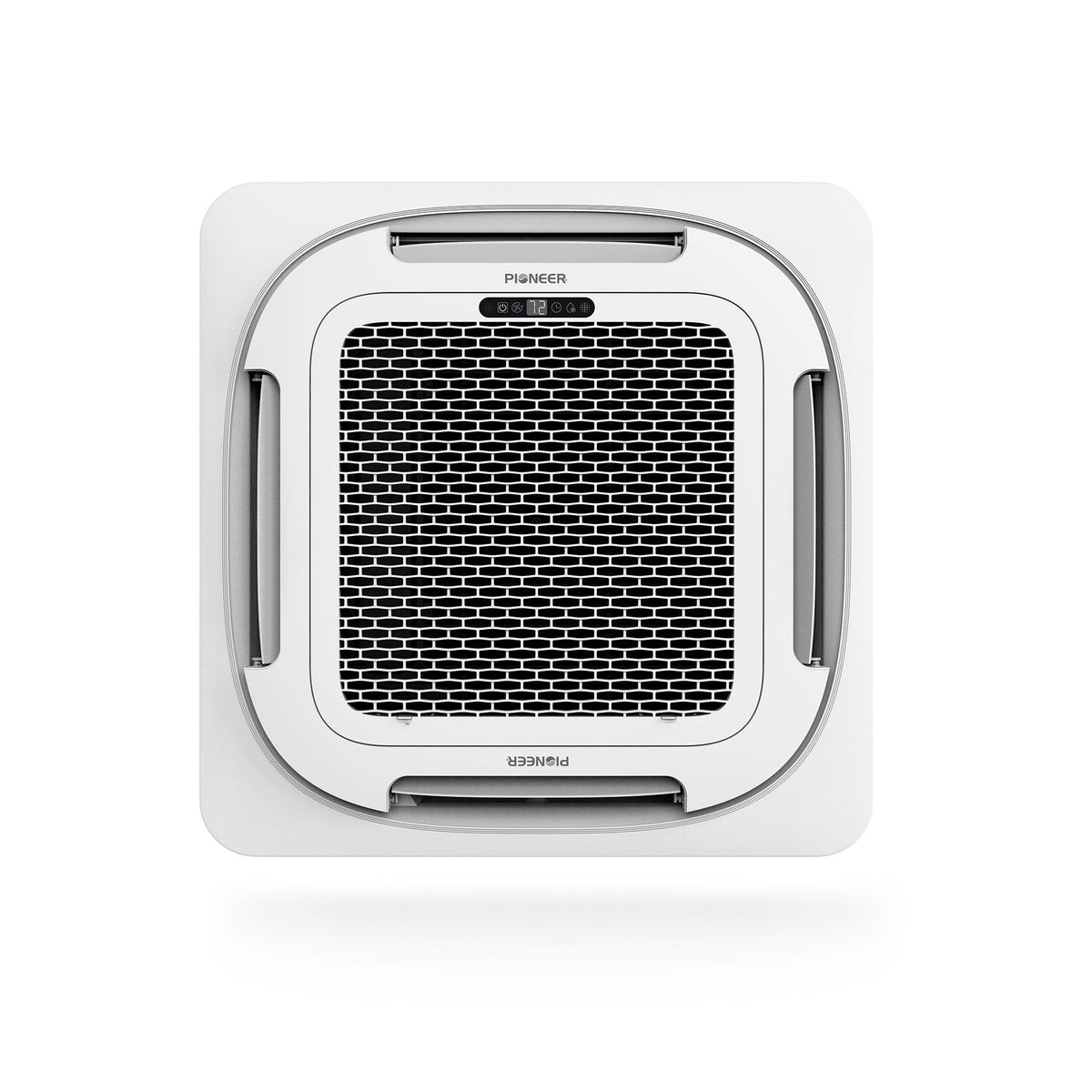

Decorative Panel
- Part Number: CT0918DPNL
- Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
- Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
- Net / Gross Weight: 6.0 / 9.5 lbs
-

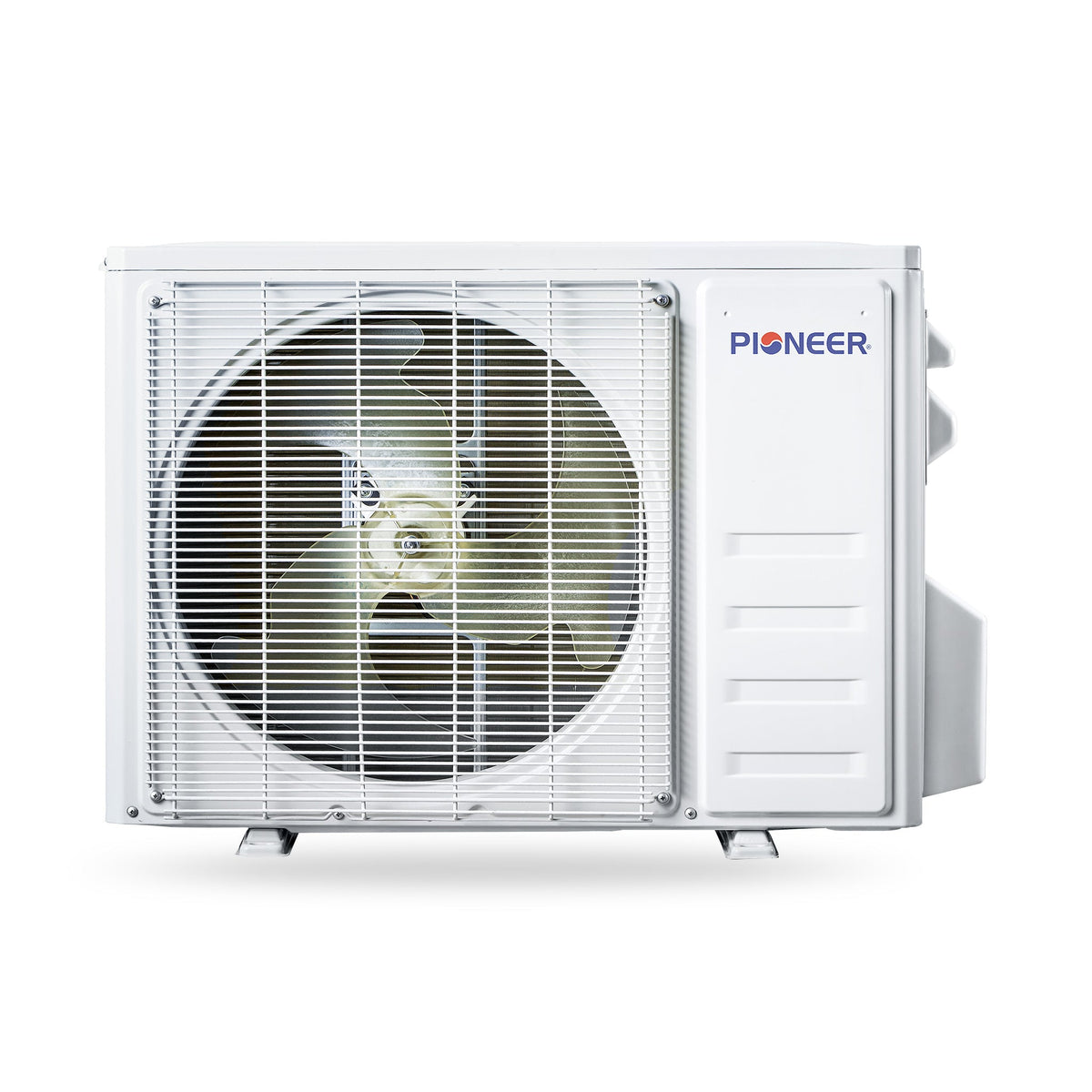

Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
- Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs.
