- Delivers up to 1000Wh per day with 5-6 hours of sunlight.
- 10-year warranty and 25-year 80% power output guarantee.
- 9 bus-bars and PERC technology for higher efficiency.
- Half-cut cells and bypass diodes enhance accidental shading tolerance.
- Durable design ensures long-lasting use in challenging environments.
- Pre-drilled holes facilitate easy installation.
Reliable Electricity Output Performance

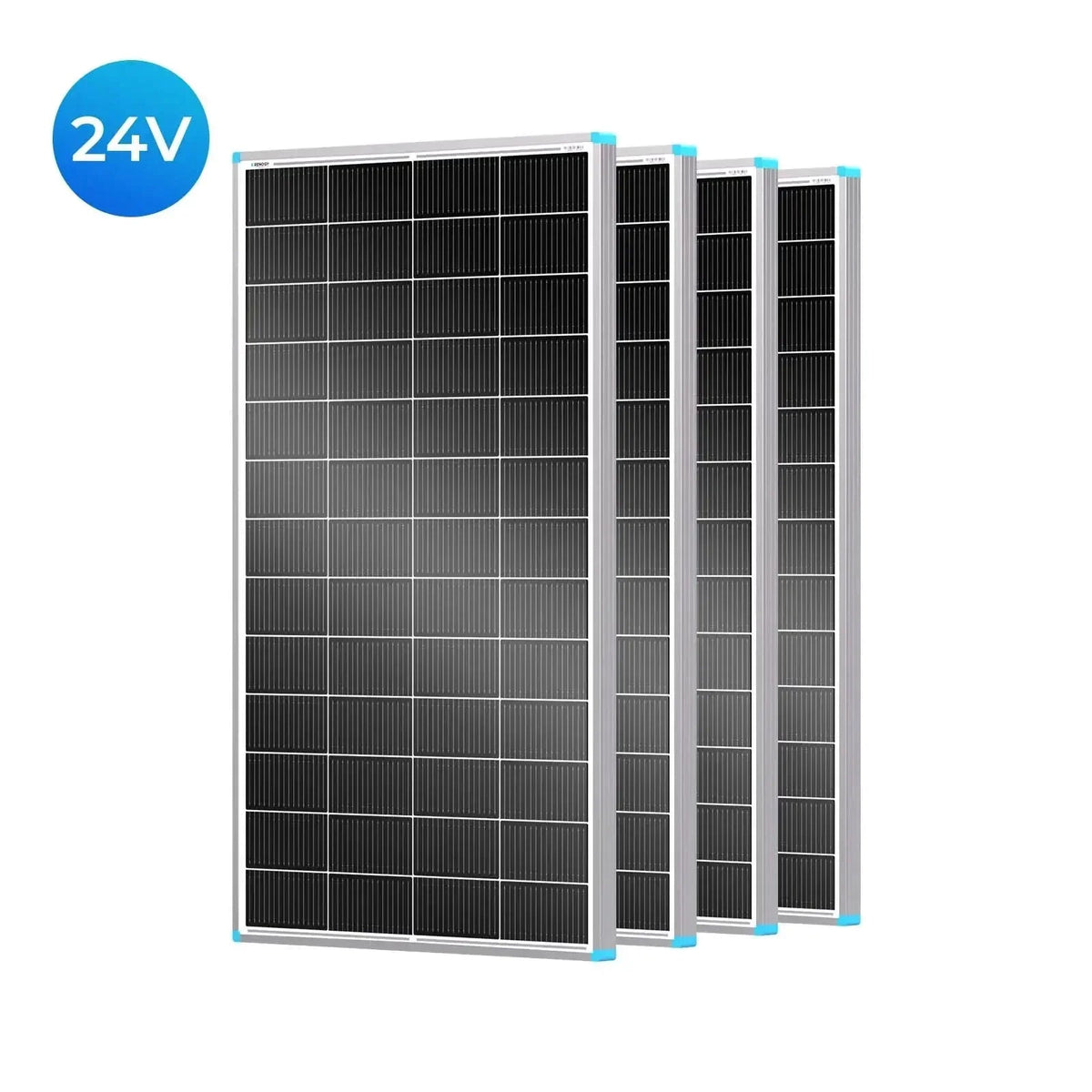

Renogy 200W Monocrystalline Solar Panel delivers up to 1000 Watt-hours of electricity per day with 5–6 hours of direct sunlight. It features a guaranteed positive output tolerance of 0%–3%, ensuring consistent and reliable performance.
Advanced Solar Cells for Enhanced Efficiency
Built with Grade A+ solar cells, this panel maximizes efficiency through 9 busbars for enhanced conductivity and PERC technology for improved light reflection.
Consistent Solar Conversion under Accidental Shading
Thanks to half-cut cells and bypass diodes, this panel maintains consistent solar energy conversion, even in conditions of accidental shading, while protecting against hotspot overheating.
Premium Quality Construction
Designed for durability, this panel is built to endure challenging environments, ensuring long-lasting and dependable use.
Powerful Performance
Engineered to excel in extreme weather conditions, this panel provides exceptional energy production for years to come.
Proven Reliability
Extensively tested and certified, the panel offers guaranteed quality for dependable and consistent power output.
Quick and Easy Mounting

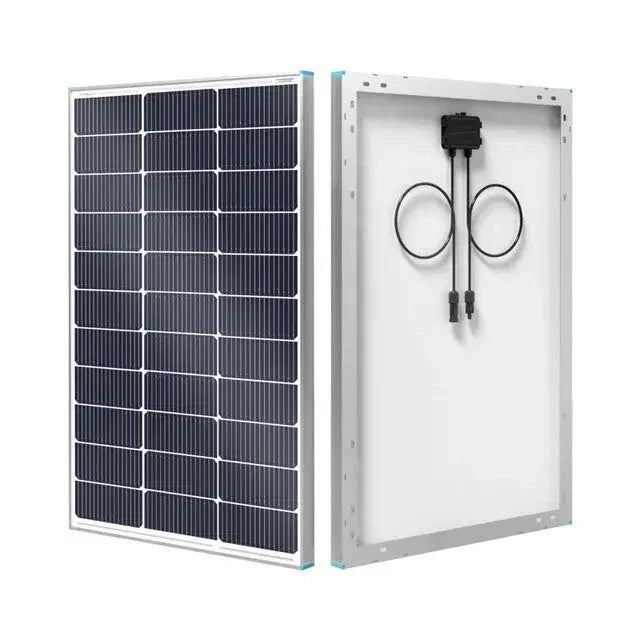

Pre-drilled holes on the back of the panel enable fast installation and compatibility with various Renogy mounting systems, including Z-Brackets, Pole Mounts, and Tilt Mounts.
Secure and Durable Packaging
Renogy panels are carefully packaged with extra-thick corrugated cardboard and foam L-brackets on all four corners for added protection during shipping.
Fast and Reliable Customer Support
Renogy offers professional sales and technical support through multiple channels, ensuring that your questions are answered within 24 hours.
| Specifications | |
|---|---|
| Max Power at STC: 200W | Open Circuit Voltage: 23V |
| Short Circuit Current: 11.05A | Optimum Operating Voltage: 19.2 V |
| Optimum Operating Current: 10.42 A | Operating Temperature: -40°F~194°F / -40℃~90℃ |
| Maximum System Voltage: 600 VDC UL | Maximum Series Fuse Rating: 20A |
| Output Cable: 13 AWG 2.6 ft (0.9m) long | Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm |
| Weight: 26.46 lb (12 kg) |
Solar Cells: 68 Cells (4*17) |
| Junction Box: IP65 | Connectors: Solar Connectors |
| Module Efficiency: 19.2% | Frame: Anodized Aluminium Alloy |
| Maximum Series Fuse Rating: 15A |
Warranty Information
| Panels |

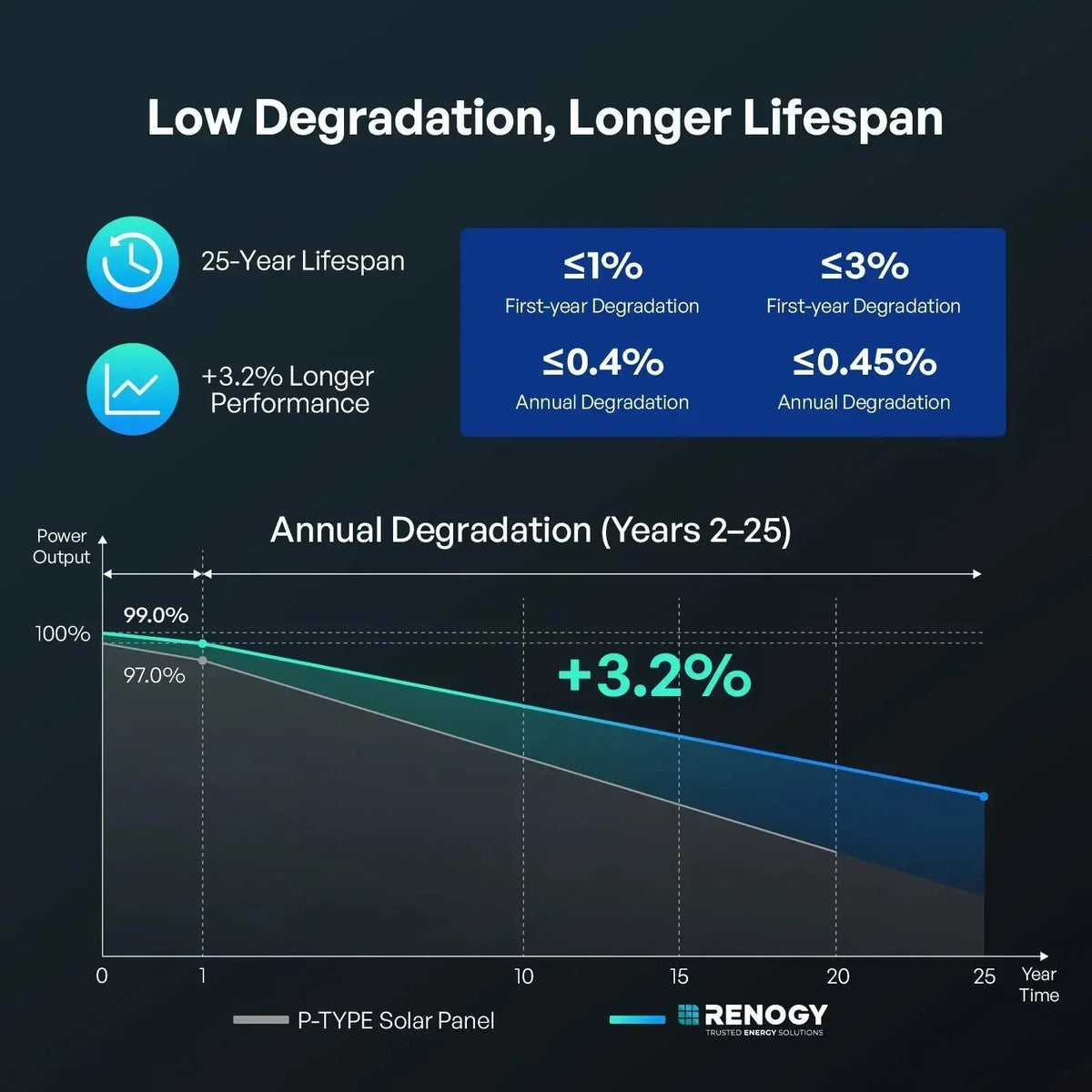

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
