Description

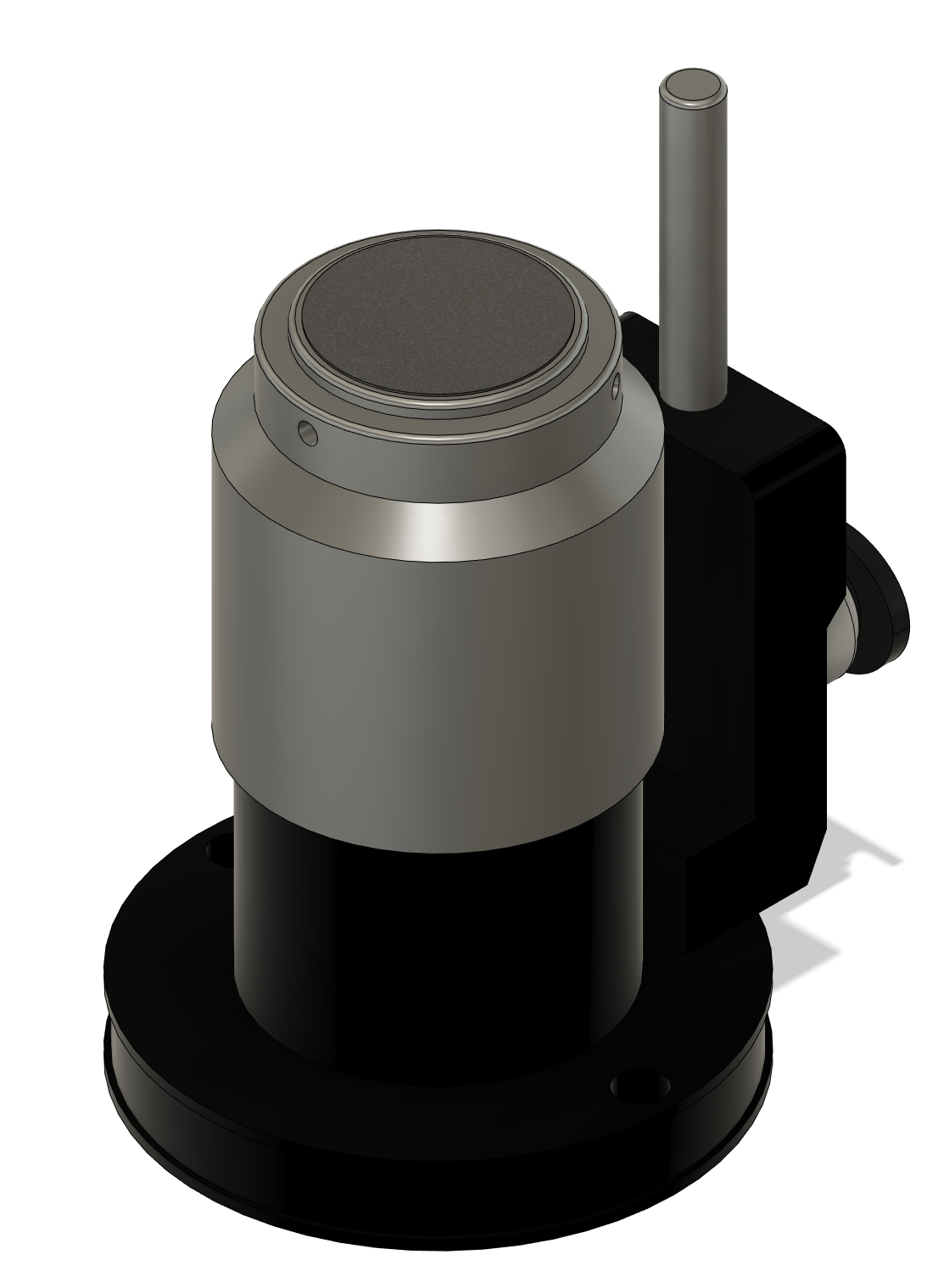

Automate tool-length measurement and establish repeatable Z offsets with the PwnCNC High-Precision CNC Tool Setter. Designed for MASSO-controlled CNC systems and compatible PwnCNC installations, it provides a reliable contact signal for tool changes, setup, and repeatable machining.
Key Features
- Measures tool length for accurate Z-offset calibration
- Normally closed, four-wire configuration
- GX12 4-pin aircraft connector for secure installation
- Partial metal-sleeved cable protection near the cutting area
- Waterproof, dustproof, and coolant-resistant construction
- Over-travel alarm and stable 24V signal output
Technical Specifications
- Accuracy: ±0.001 mm
- Stroke: 5 mm
- Contact force: 1.5 N
- Contact life: Up to 3 million cycles
- Contact rating: 24V DC at 20 mA
- Configuration: Normally closed, four-wire
- Housing: Alloy body with hardened contact surface
Compatibility
- Plug-and-play with supported PwnCNC machines and conversion kits
- Compatible with MASSO G3 and MASSO G3 Touch controllers
- Onefinity Elite installations require the appropriate PwnCNC tool-setter adapter
- Other controllers may require custom wiring or a compatible input interface
Optional Installation Accessories
For a cleaner enclosure installation, pair it with the PwnCNC Tool-Setter Cable Inlet. Onefinity Elite users can add the Onefinity Tool-Setter Adapter.
Documentation
View the tool-setter installation guide
Note: Verify controller input type, wiring, and probing logic before operation. Incorrect configuration can cause a crash or damage to the tool setter.
