Irrigation & sprinklers are the components used to distribute water through underground zones or portable hose-end setups. This collection suits homeowners and landscape crews replacing individual fittings, building watering circuits or adding adjustable control at a faucet.
There are more than 500 listed products: about 290 are classified as underground irrigation, roughly 200 as hose-end equipment and about 15 as hose timers. Common product names include sprinkler heads, spray nozzles, risers, adapters, couplings, hose menders, shutoffs and gear-driven parts. Brass, zinc, metal and plastic constructions appear frequently in the titles.
Map Zones Before Choosing Irrigation & Sprinklers
Begin with the area to be watered, available pressure and flow, plant needs, soil behavior and sun exposure. Lawns usually benefit from even overlapping coverage, while shrubs, beds and containers may need slower or more localized application. Keeping unlike watering needs on separate zones prevents a thirsty lawn schedule from overwatering established shrubs.

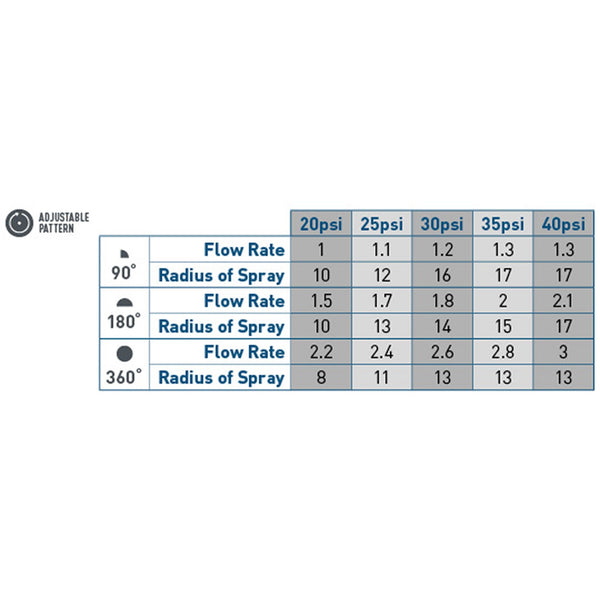

Measure static pressure only as an initial reference; operating pressure drops when water is flowing. Flow capacity also limits how many outlets can run together. If a zone demands more water than the supply can provide, spray patterns shrink and coverage becomes uneven. Manufacturer flow charts and pressure ranges should guide the final number and type of heads.
Sketch the property and mark valves, faucets, pipes, walks, slopes and planted areas. Arrange sprinklers so adjacent patterns overlap according to the product guidance rather than merely touching at their outer edges. Wind, obstacles and elevation changes can reduce real-world coverage, so an advertised radius should not be treated as a guaranteed design dimension.
Underground Heads, Hose-End Equipment or Timers

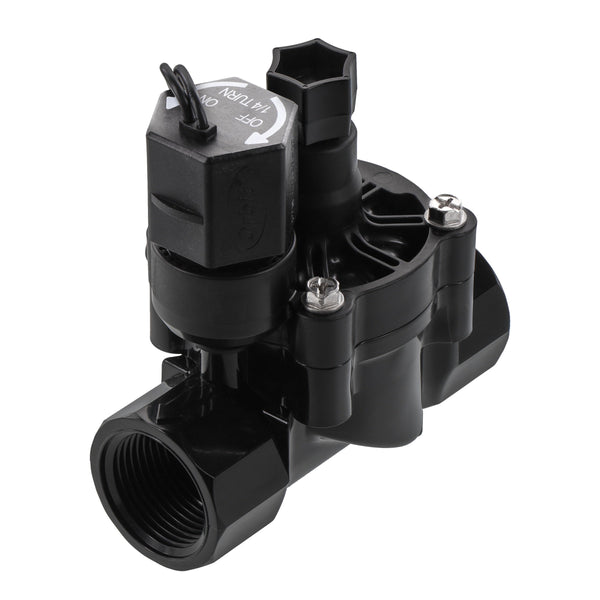

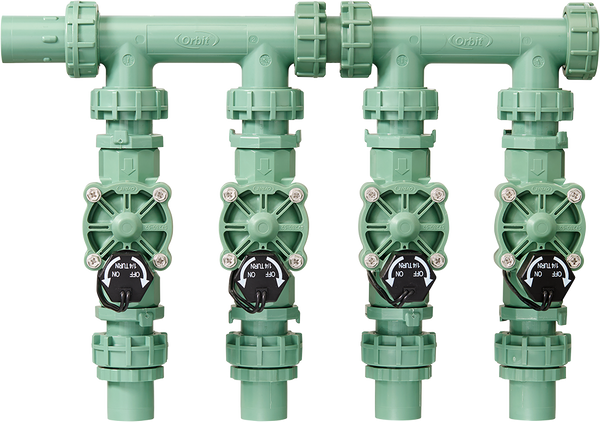

Underground systems conceal distribution piping and can water defined zones repeatedly. They require compatible pipe, fittings, valves, risers and heads, plus protection against leaks and freezing where applicable. Pop-up spray bodies are typically used for shorter ranges, while gear-driven rotors can cover broader areas at slower application rates; do not mix components with substantially different precipitation rates on one zone unless the design accounts for the difference.

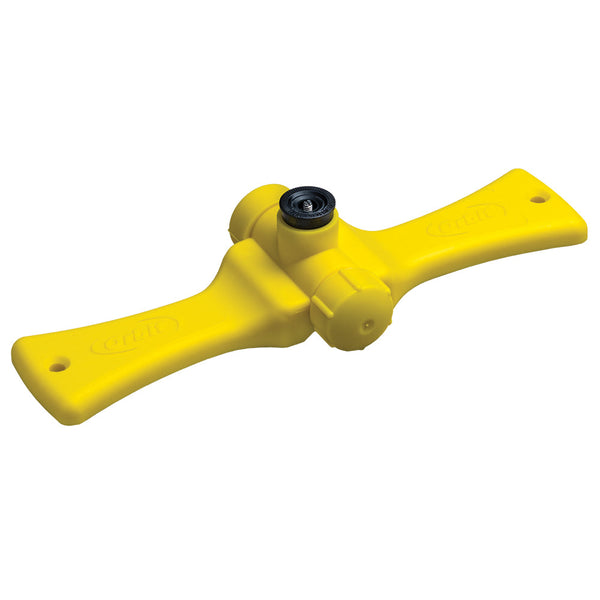

Hose-end sprinklers connect to a faucet and are easier to reposition. Adjustable pattern sprinklers can serve irregular lawns, while pistol nozzles and wands support hand watering and cleanup. Their practical coverage depends on hose diameter, length, pressure, connector restrictions and simultaneous water use elsewhere in the home.

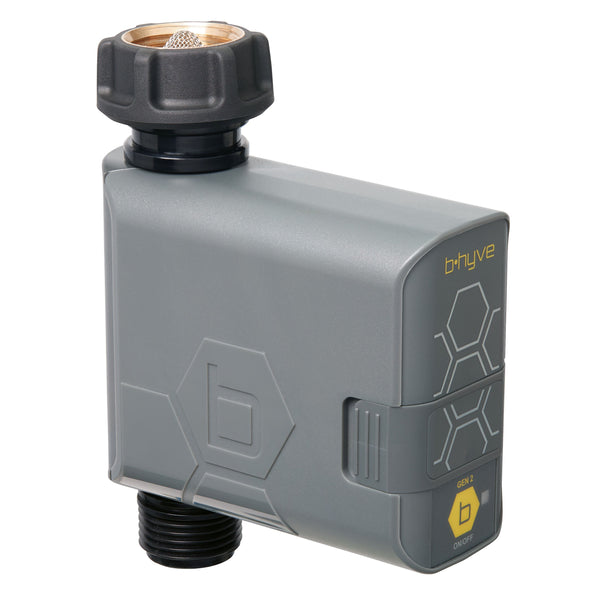

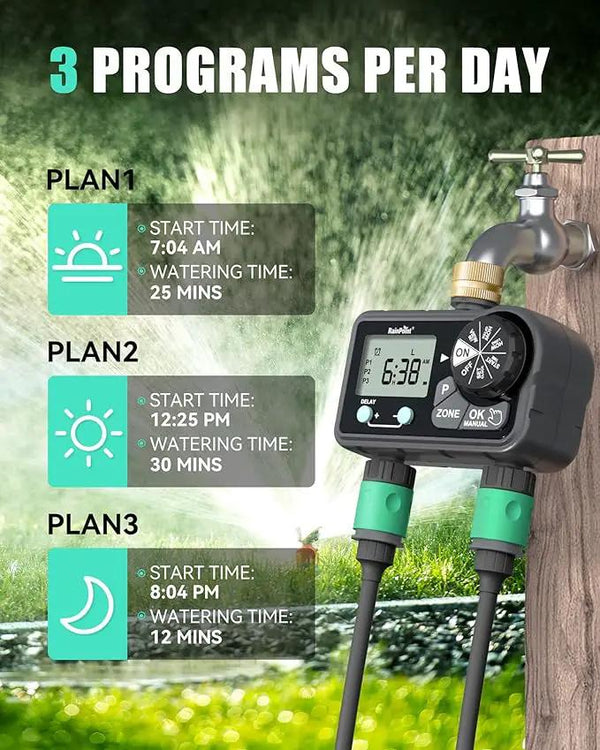

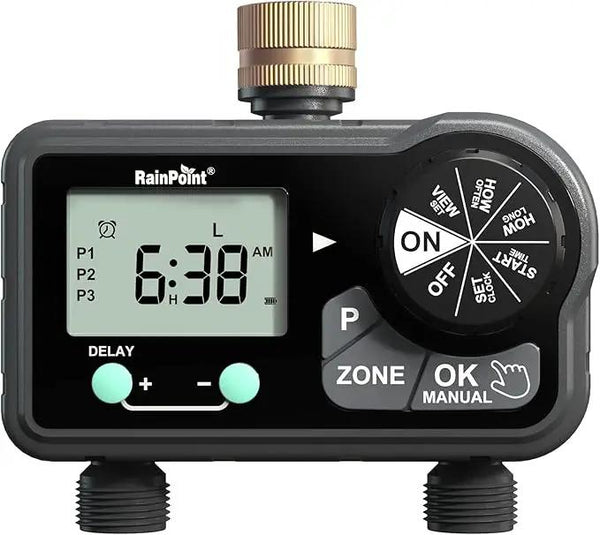

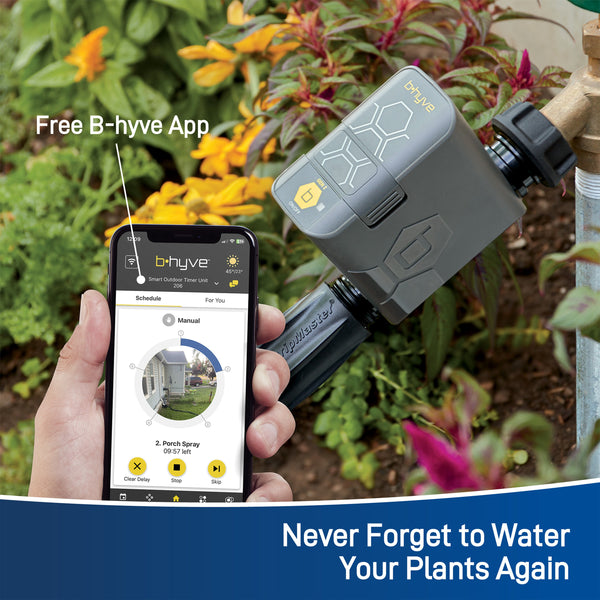

Hose timers automate start and stop times at the faucet. Check the number of outlets, connection thread, operating-pressure limits and whether the unit is intended for continuous outdoor connection. A timer controls scheduling, but it does not correct poor coverage, a leaking hose or mismatched emitters.
Spray Heads vs Gear-Drive Rotors

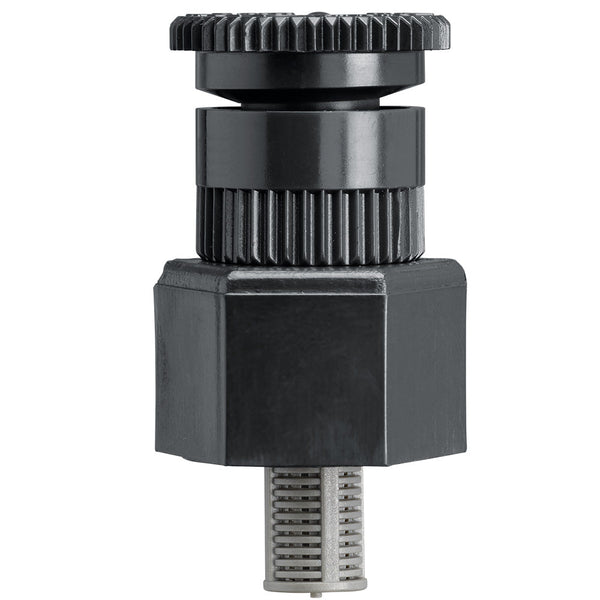

- Fixed or adjustable spray: Applies water relatively quickly over short to moderate distances and works well in smaller lawn shapes.
- Gear-drive rotor: Moves a stream across an arc and generally applies water more slowly over a larger radius.

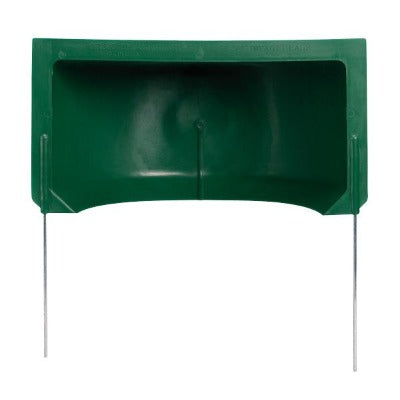

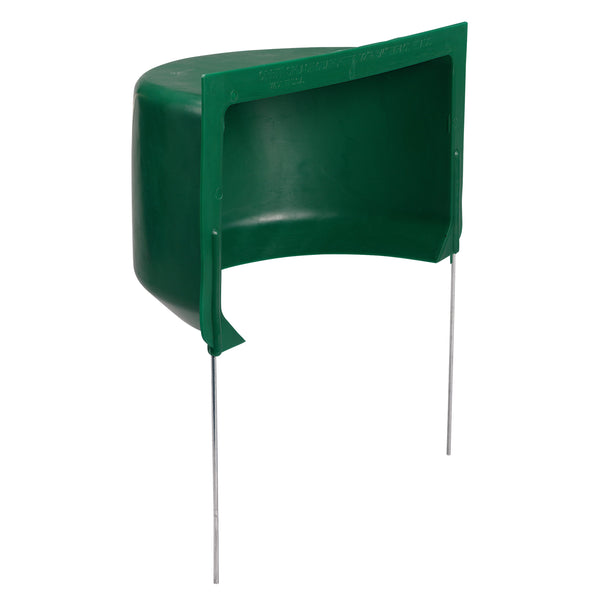

- Impact sprinkler: Uses a mechanical striking action, often with an adjustable arc, and can suit open areas where its spray pattern is acceptable.

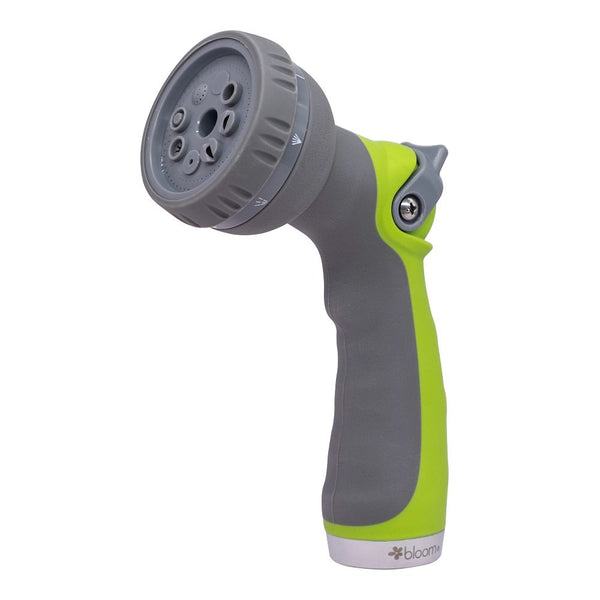

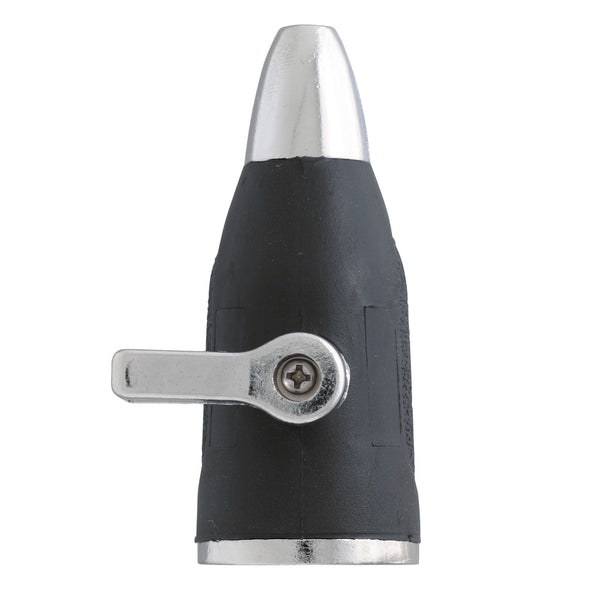

- Hand nozzle: Provides direct control for containers, spot watering and washing but requires an operator.

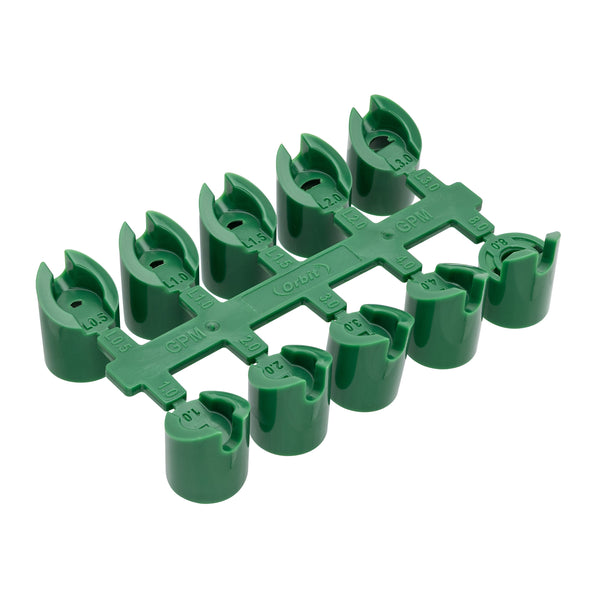

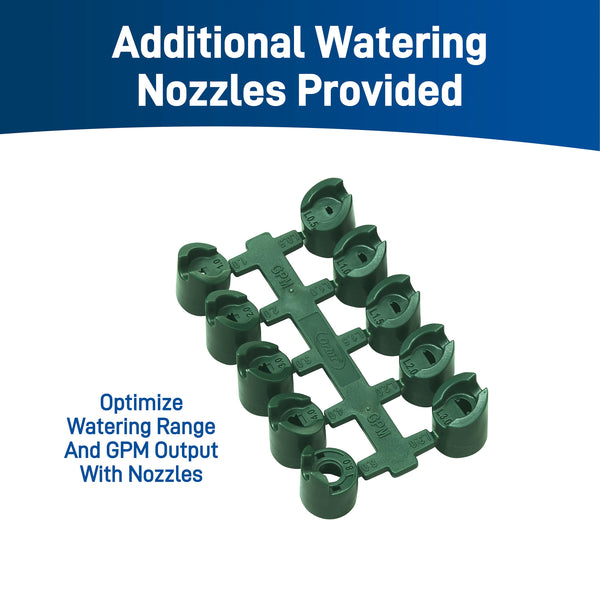

Choose matched nozzles when uniform application is important. Heads on the same zone should have compatible operating requirements, and arc settings should correspond to their positions: corners, edges and interior areas do not need identical patterns. Overspray onto walls and pavement wastes water and can contribute to staining or moisture problems.
Fittings, Threads and Repair Parts

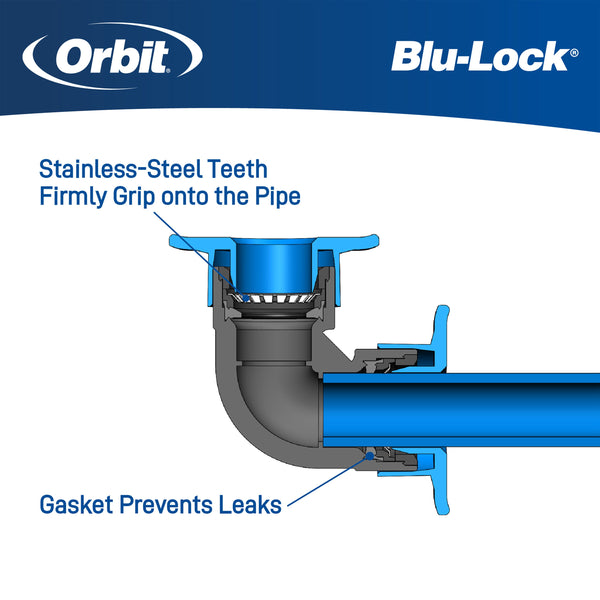

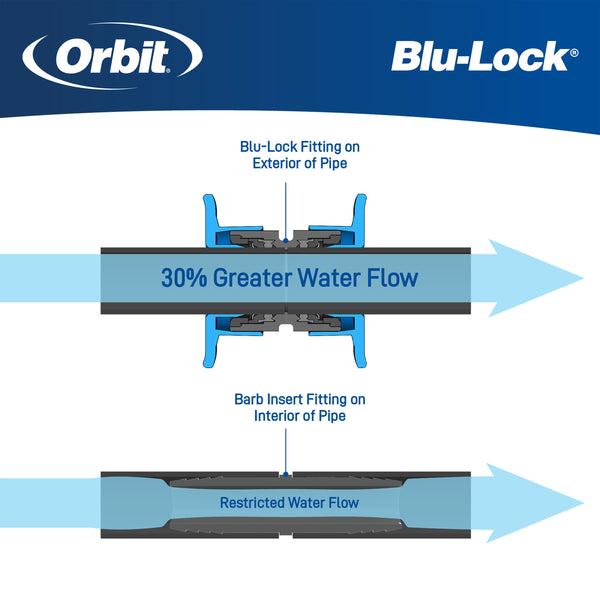

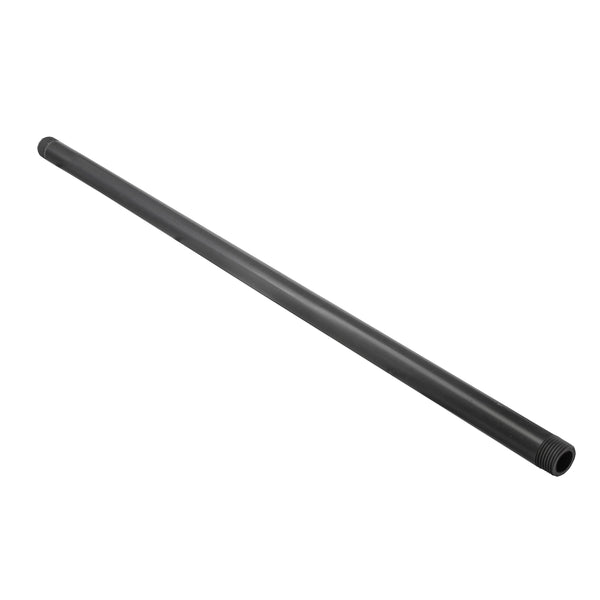

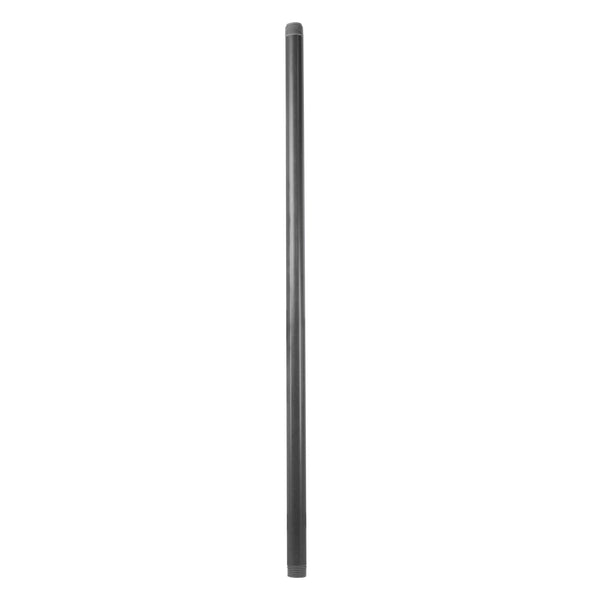

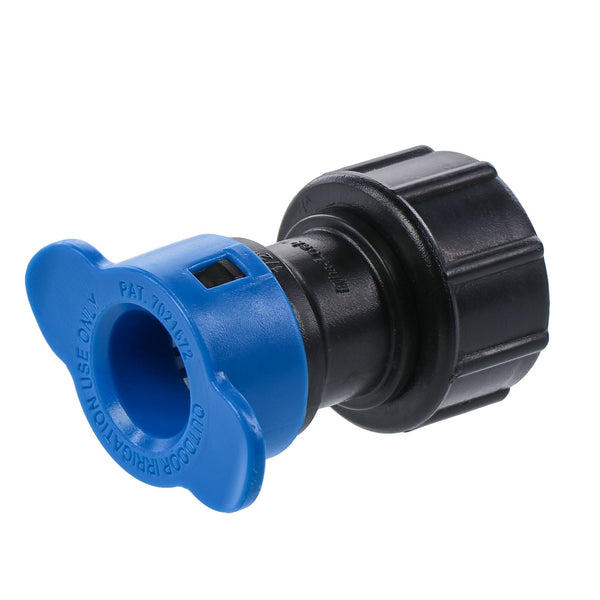

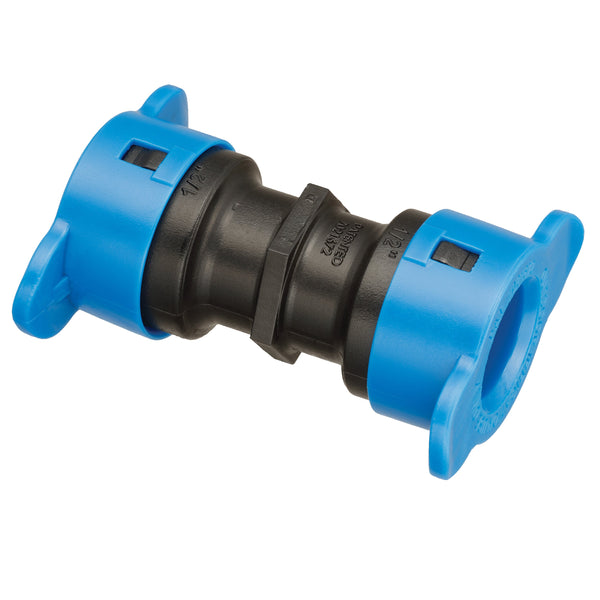

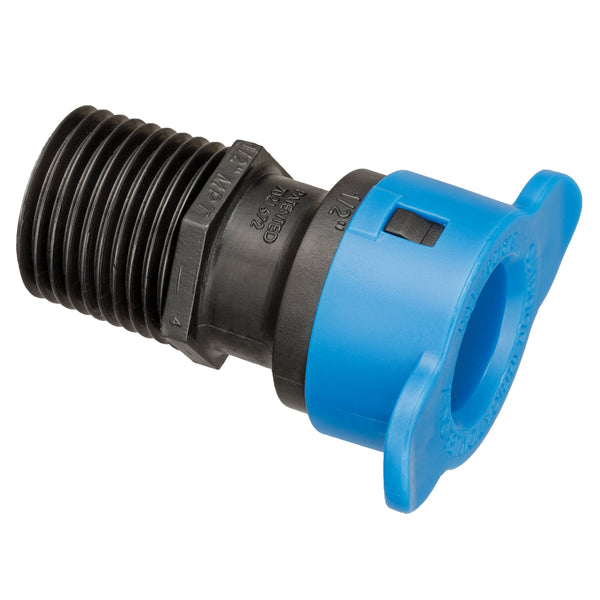

Adapters, couplings, risers, shutoffs and hose menders are inexpensive compared with a complete system, but small compatibility errors can stop an installation. Identify the connection type, nominal size, male or female thread, material and pressure rating before ordering. Garden-hose thread and pipe thread are not automatically interchangeable even if two fittings appear close in diameter.
Use only sealants and assembly methods approved for the fitting material. Excessive force can crack plastic bodies or deform threads, while cross-threading creates a leak path. Brass offers strength and corrosion resistance in many watering applications, but connecting different metals in a wet environment can introduce corrosion concerns; follow the system manufacturer's compatibility guidance.
List prices range from around $1 to about $285 per item. The middle half costs roughly $3 to $18, reflecting the large number of small nozzles, fittings and repair components. Each amount is for the listed item—possibly one connector, head, timer or packaged unit—so compare included quantities and sizes. Nearly all products are shown as in stock.
Installation Checks and Seasonal Care
Flush new or repaired lines before installing small-orifice nozzles so construction debris does not immediately clog them. Set heads level with the finished grade specified by the manufacturer, and keep soil or mulch from blocking the spray. After pressurizing the zone, inspect every joint, adjust arcs away from hardscape and watch the full cycle for pooling or runoff.
Watering in shorter cycles can help on slopes or compacted soil where application exceeds the infiltration rate. Schedule according to plants, soil and local restrictions rather than using the same duration year-round. Periodically clean screens, straighten tilted heads, replace damaged seals and repair leaks promptly.
In freezing climates, winterization may be required for underground piping, valves and hose-connected equipment. The correct process depends on system design; compressed-air blowout can be hazardous and should be performed with the specified pressure limits and appropriate expertise. Disconnect and drain portable timers or nozzles when their instructions call for protected storage.
For the surrounding workspace, browse garage and garden products. Related projects may also call for garden tools, raised garden beds or deck boxes. Irrigation near artificial plants and trees should be directed toward living plantings rather than decorative foliage.
Irrigation & Sprinklers FAQ
How do I choose a sprinkler nozzle pattern?
Match the arc and radius to the head's location and the shape of the planted area. Confirm that pressure and flow meet the nozzle specification, then adjust it while the complete zone is operating.
Can spray heads and rotors run on the same zone?
They often apply water at different rates, which can leave one area too wet or too dry. Separate zones or carefully matched precipitation rates generally produce more uniform watering.
Why does a sprinkler head have weak coverage?
Possible causes include low operating pressure, excessive zone flow, a clogged nozzle, a leak, a pinched line or an obstructed head. Inspect the simplest issues first and compare the running system with the component's stated pressure range.
What should I check before buying a hose timer?
Check faucet and hose connection types, pressure limits, outlet count, programming controls and outdoor-use instructions. Also confirm how the timer behaves when its batteries are depleted, if it uses batteries.
How often should an irrigation system be inspected?
Watch each zone periodically during the watering season and after mowing, digging or freezing weather. Look for leaks, blocked nozzles, tilted heads, runoff and water landing on pavement.
