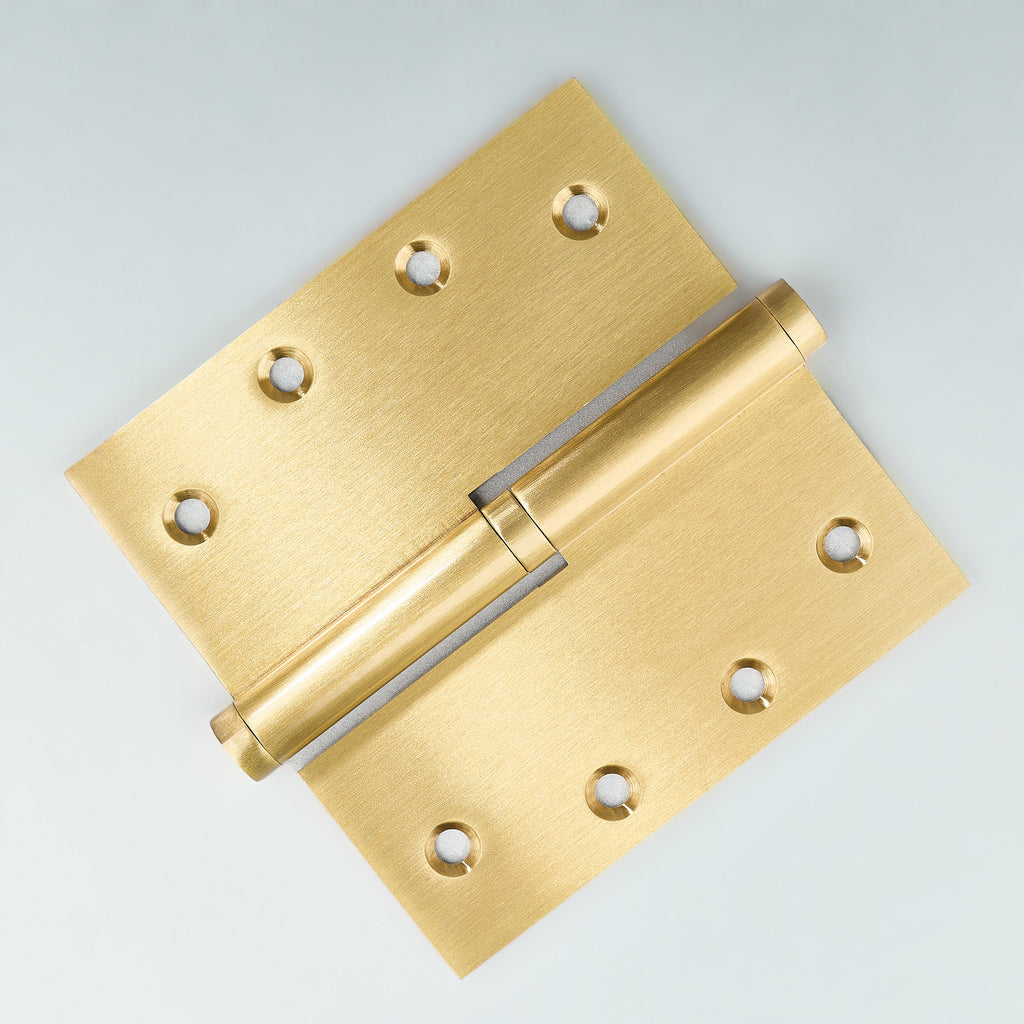

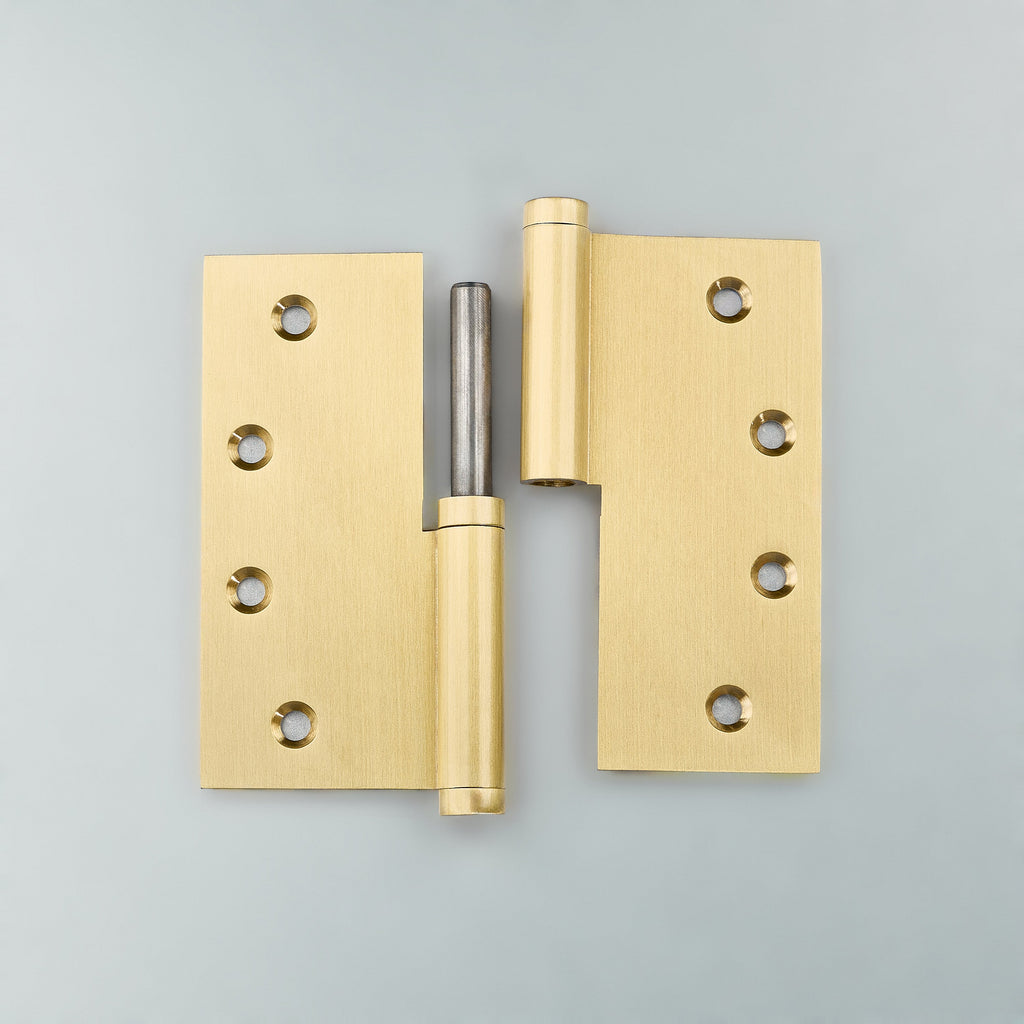

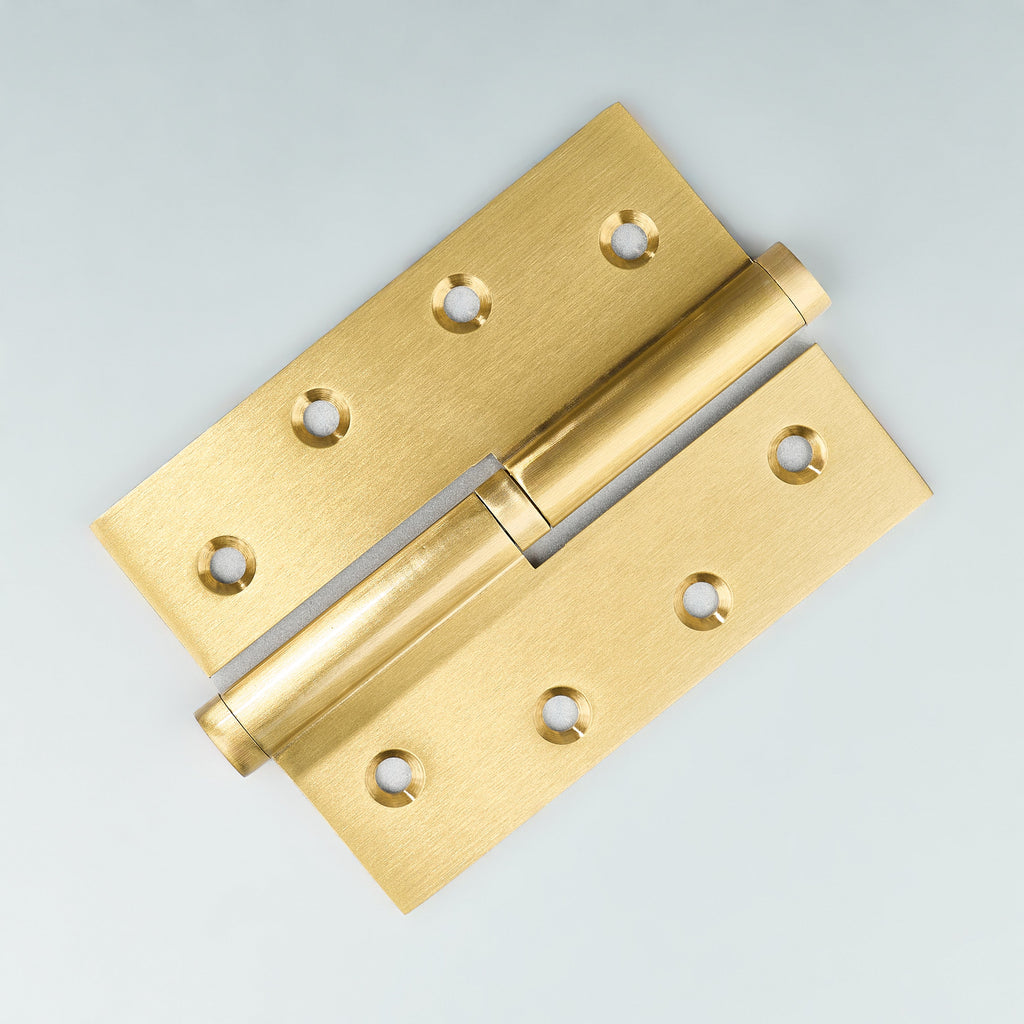

Sometimes a door needs to come off as well as swing open. Apollo’s lift-off construction lets its two halves separate at the pin, while solid brass and a satin brass finish with gloss lacquer keep the visible hardware part of the room’s design. Choose the left- or right-handed version to match the interior door’s installation. Sold in sets of three.
Materials and finishes
Solid brass.
Listed finishes: Satin Brass (gloss lacquer).
Product selections
Size: 4"x4" Square Edge (set of 3); 4"x3" Square Edge (set of 3); 4"x3" Rounded Edge (set of 3).

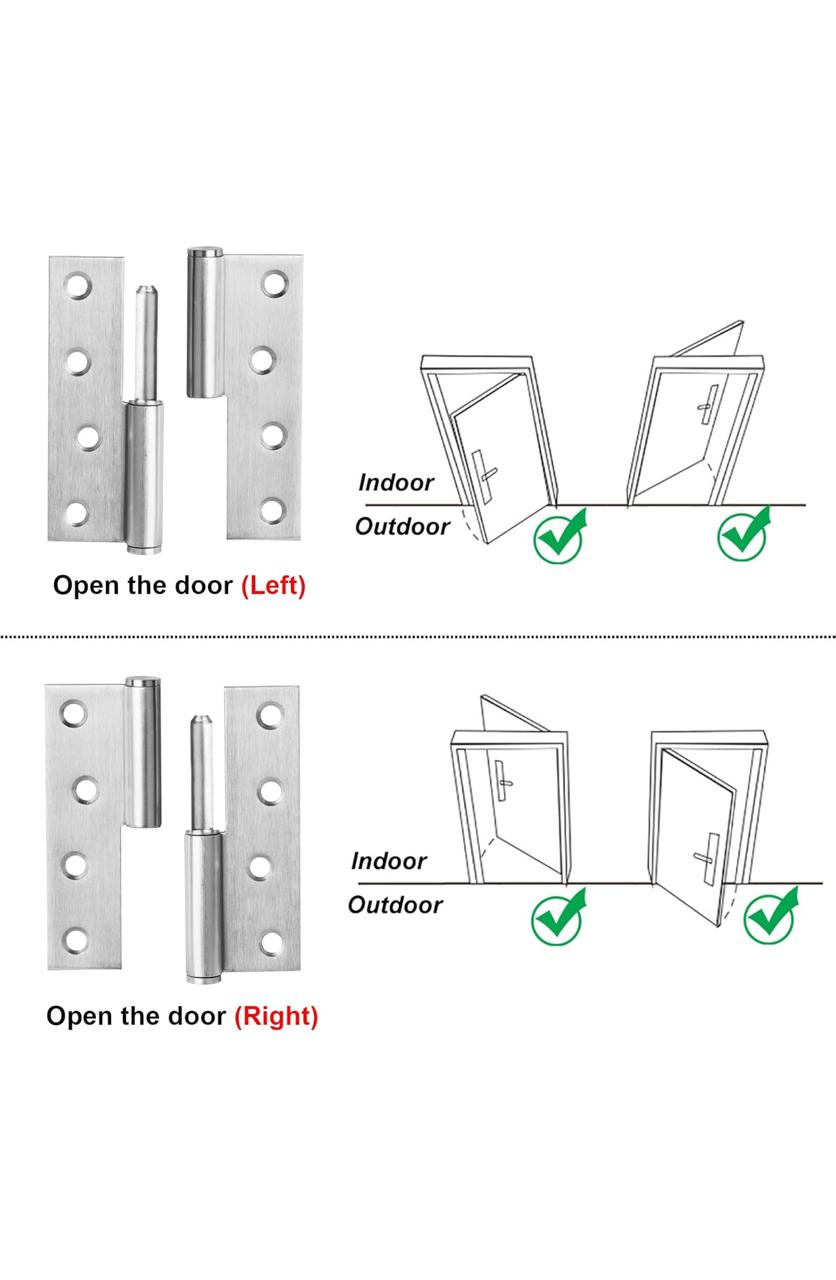

Position: Right Handed Door; Left Handed Door.
Dimensions

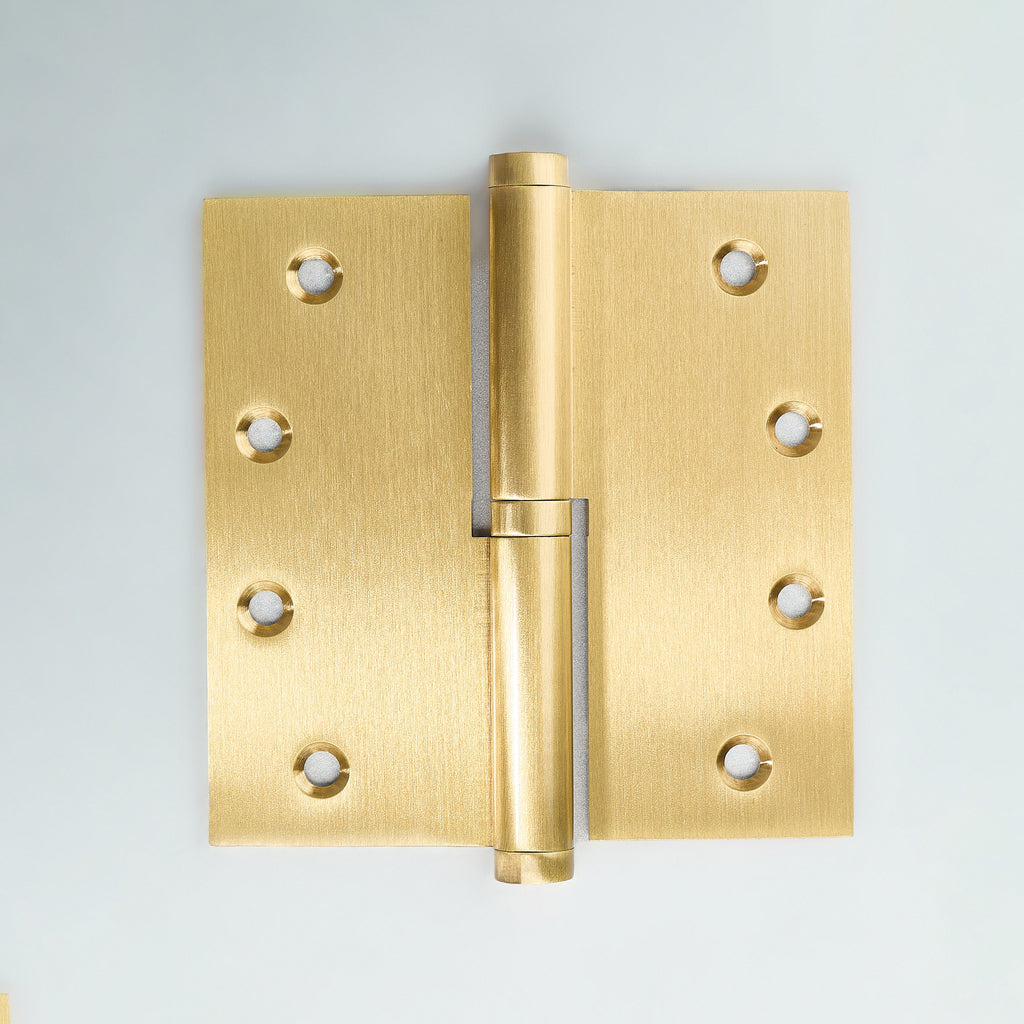

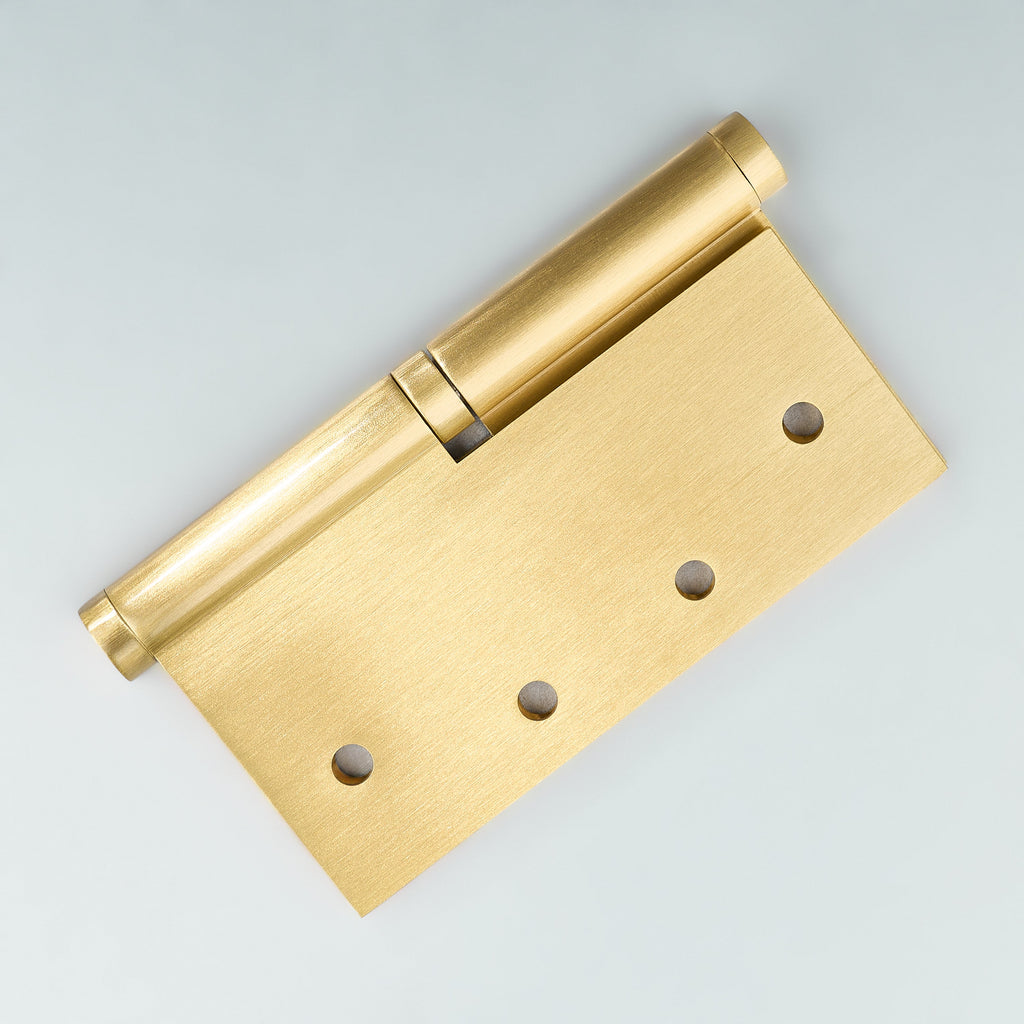

4"x4" Square Edge (set of 3) / Right Handed Door:
Hinge length: 111.15 mm; Open hinge width: 100.90 mm; Thickness: 3 mm.
4"x4" Square Edge (set of 3) / Left Handed Door:
Hinge length: 111.15 mm; Open hinge width: 100.90 mm; Thickness: 3 mm.

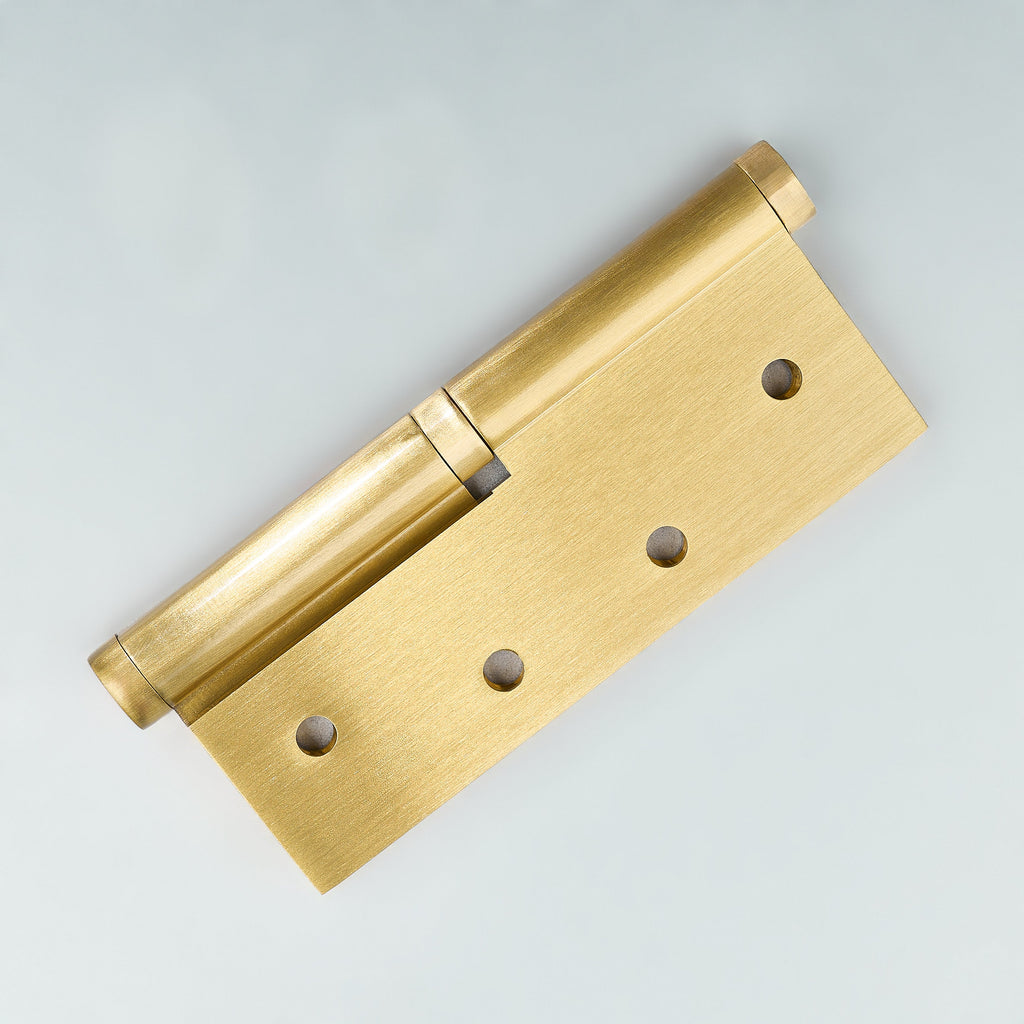

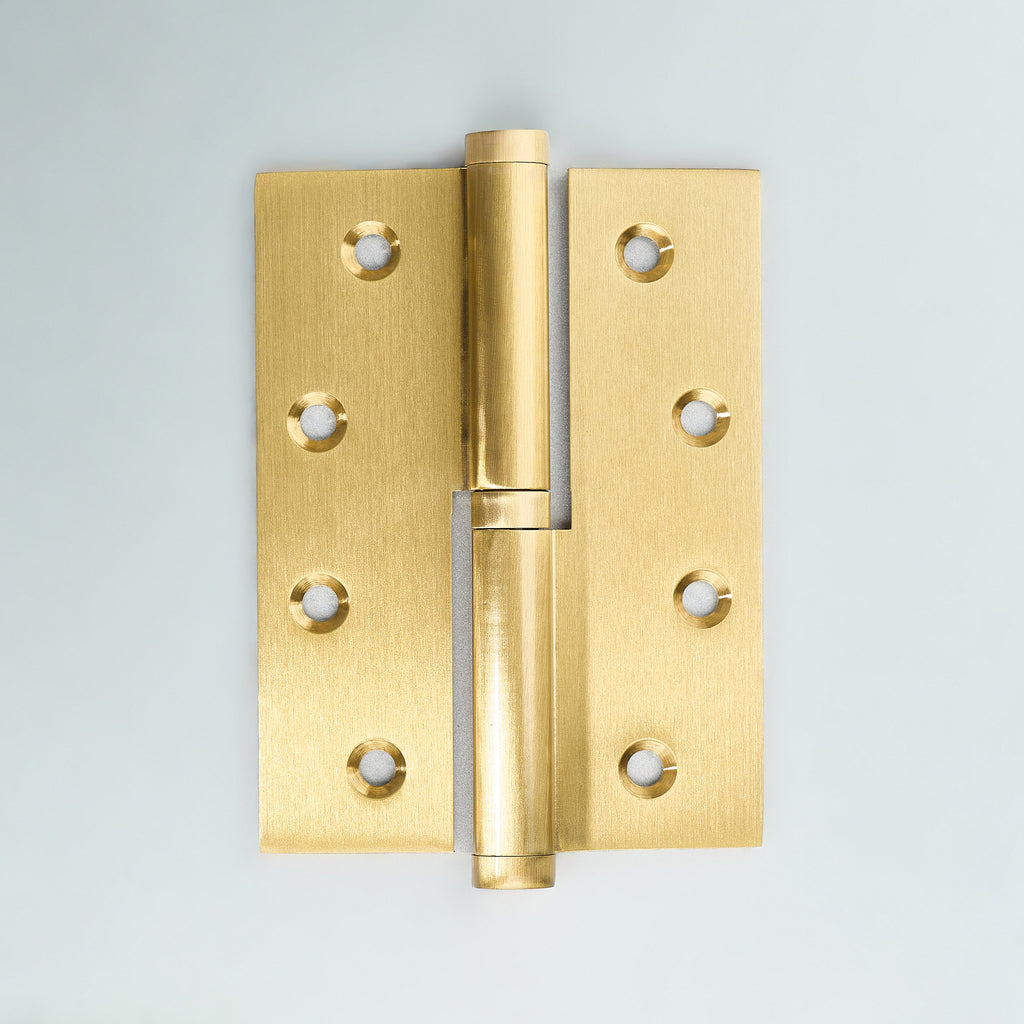

4"x3" Square Edge (set of 3) / Right Handed Door:
Hinge length: 111.90 mm; Open hinge width: 75.35 mm; Thickness: 3 mm.
4"x3" Square Edge (set of 3) / Left Handed Door:
Hinge length: 111.90 mm; Open hinge width: 75.35 mm; Thickness: 3 mm.

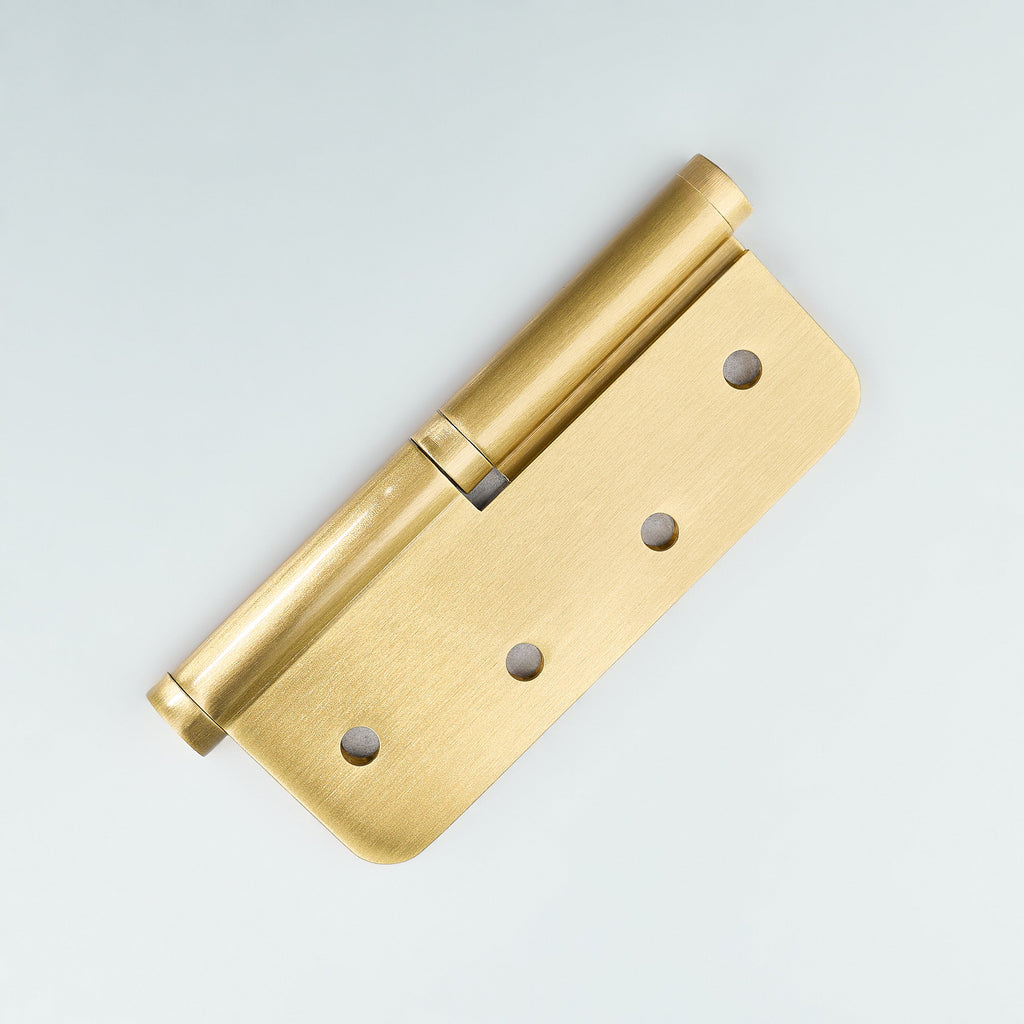

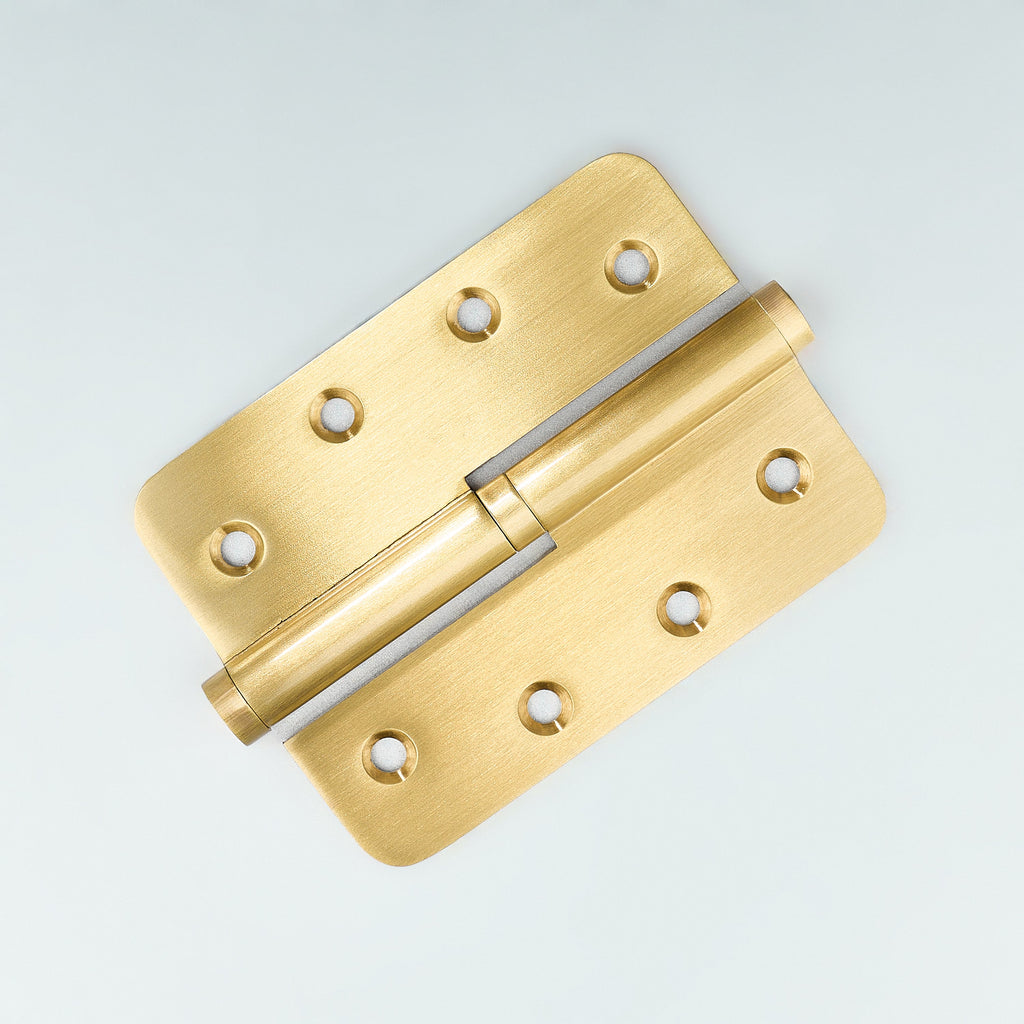

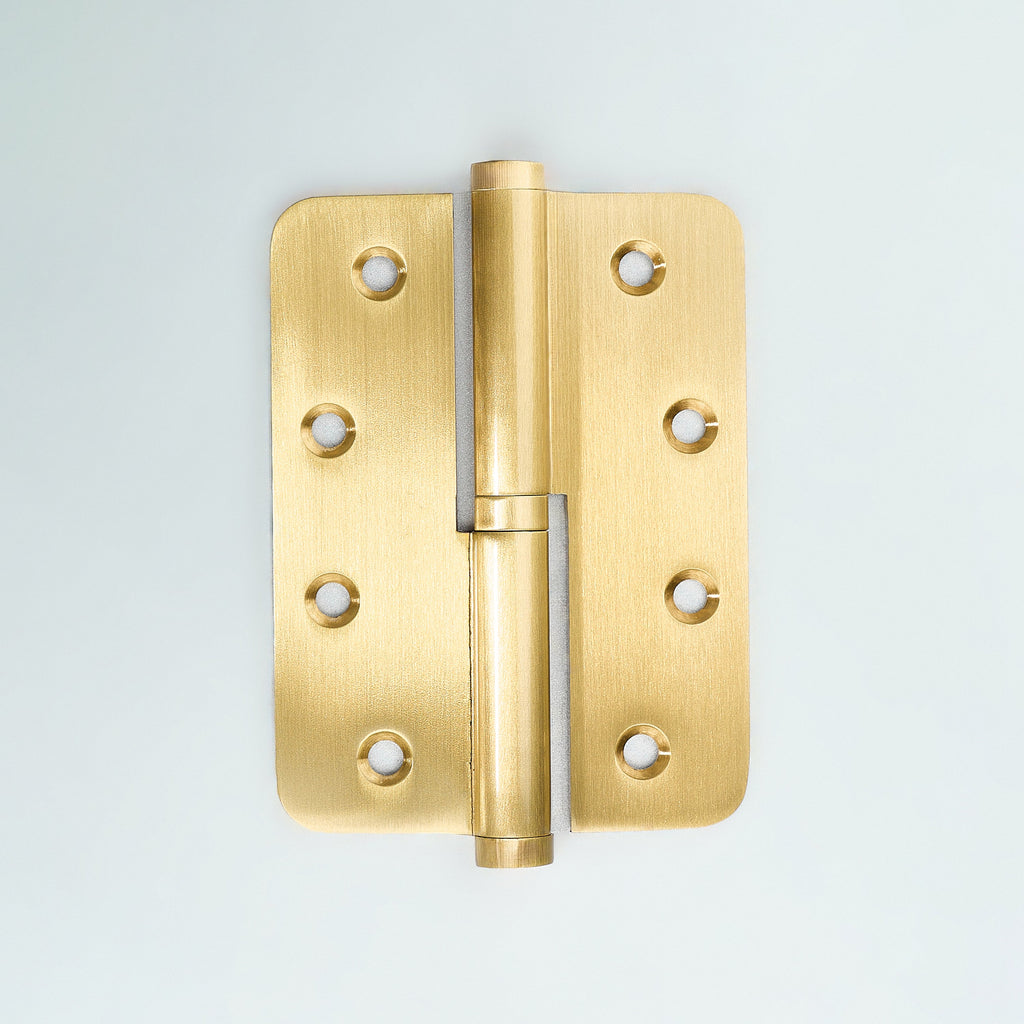

4"x3" Rounded Edge (set of 3) / Right Handed Door:
Hinge length: 111.00 mm; Open hinge width: 75.15 mm; Thickness: 3 mm.
4"x3" Rounded Edge (set of 3) / Left Handed Door:
Hinge length: 111.00 mm; Open hinge width: 75.15 mm; Thickness: 3 mm.
Size selections are nominal inches. The hinge length and open width above are actual dimensions in millimetres; match the selected edge profile and handed configuration.
View the 4 × 3-inch square-edge hinge dimension drawing
Included
Three hinges and 24 matching screws
Use and installation
Match the leaf size, edge shape and handed option, where listed, to the door and frame.
