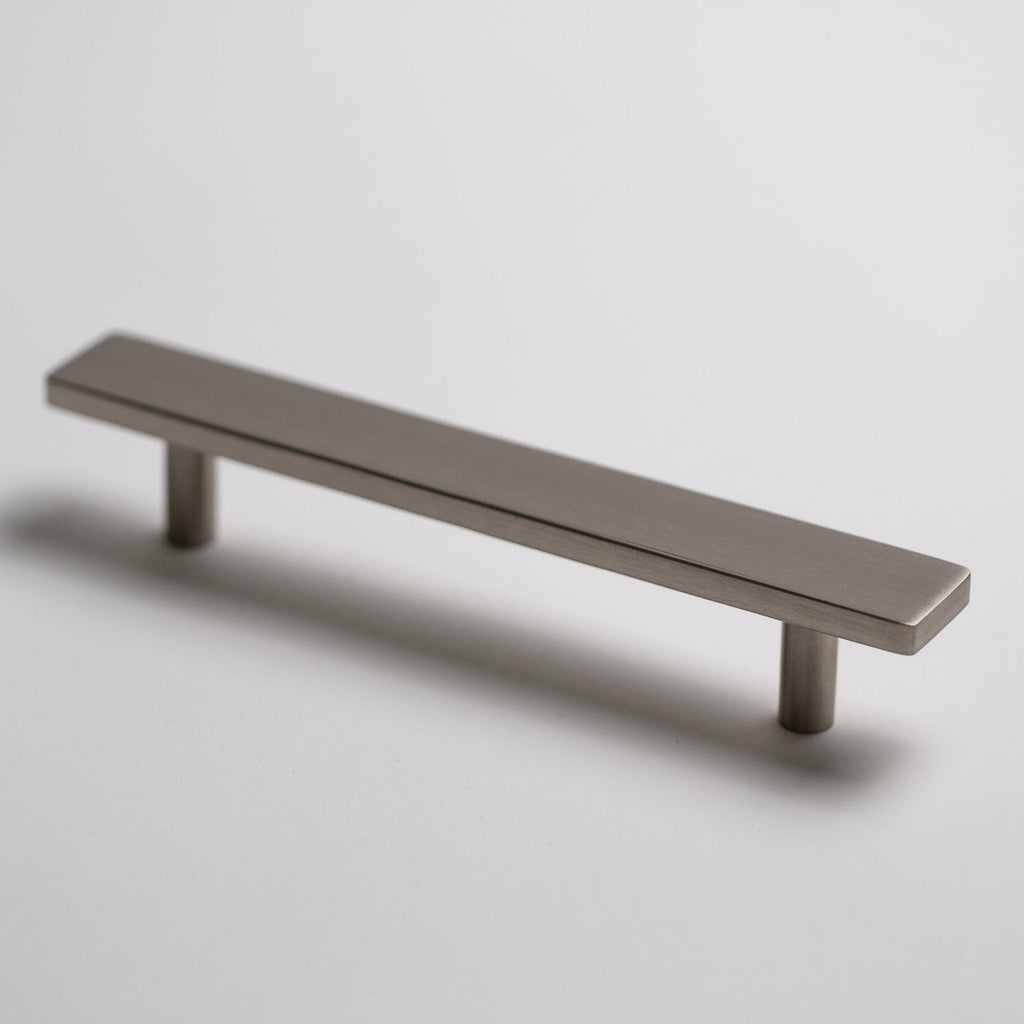

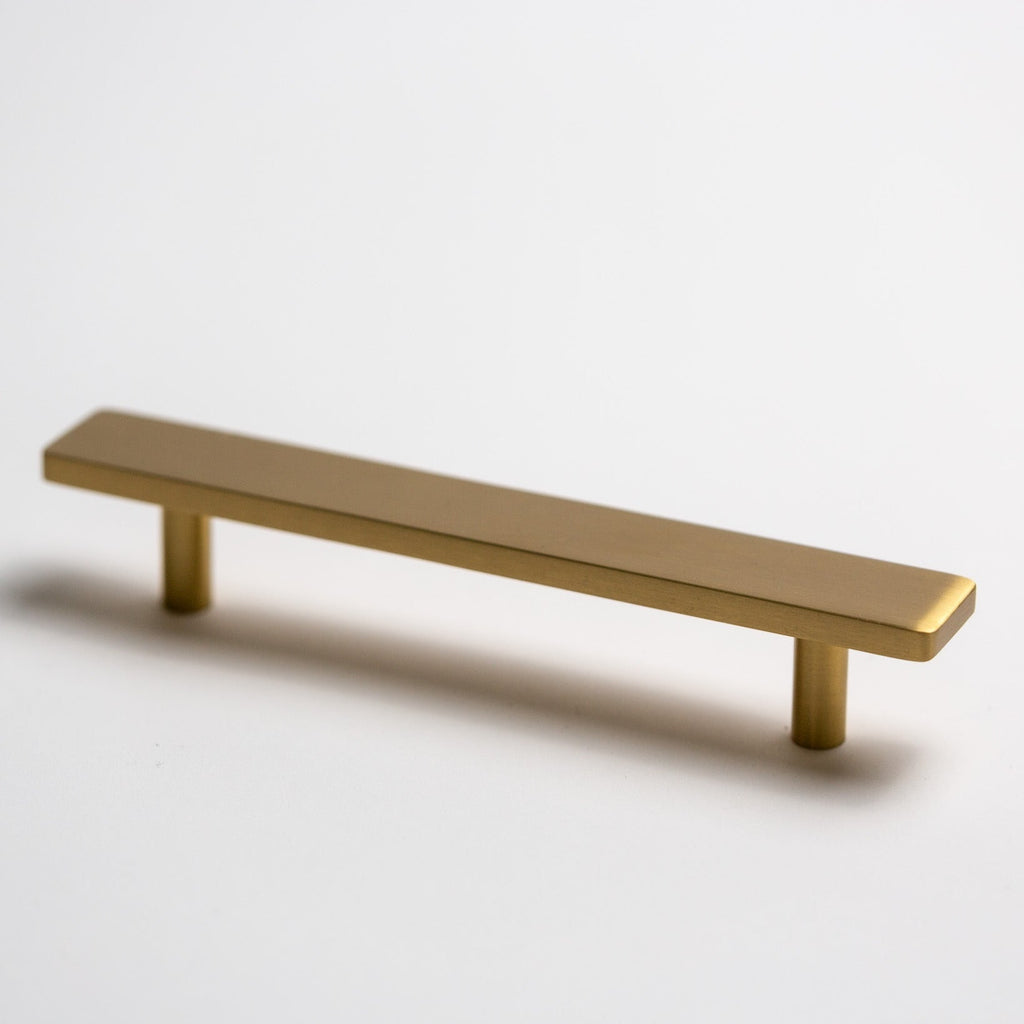

Auburn gives a simple bar pull a broader face. A flat brass span rests on two round supports, with a little length extending beyond each foot. Seen straight on, it draws a clear line across the cabinetry; from an angle, the space beneath gives that solid form a lighter appearance. It suits a room where proportion does the work that ornament might otherwise do.
Materials and finishes
Solid brass.

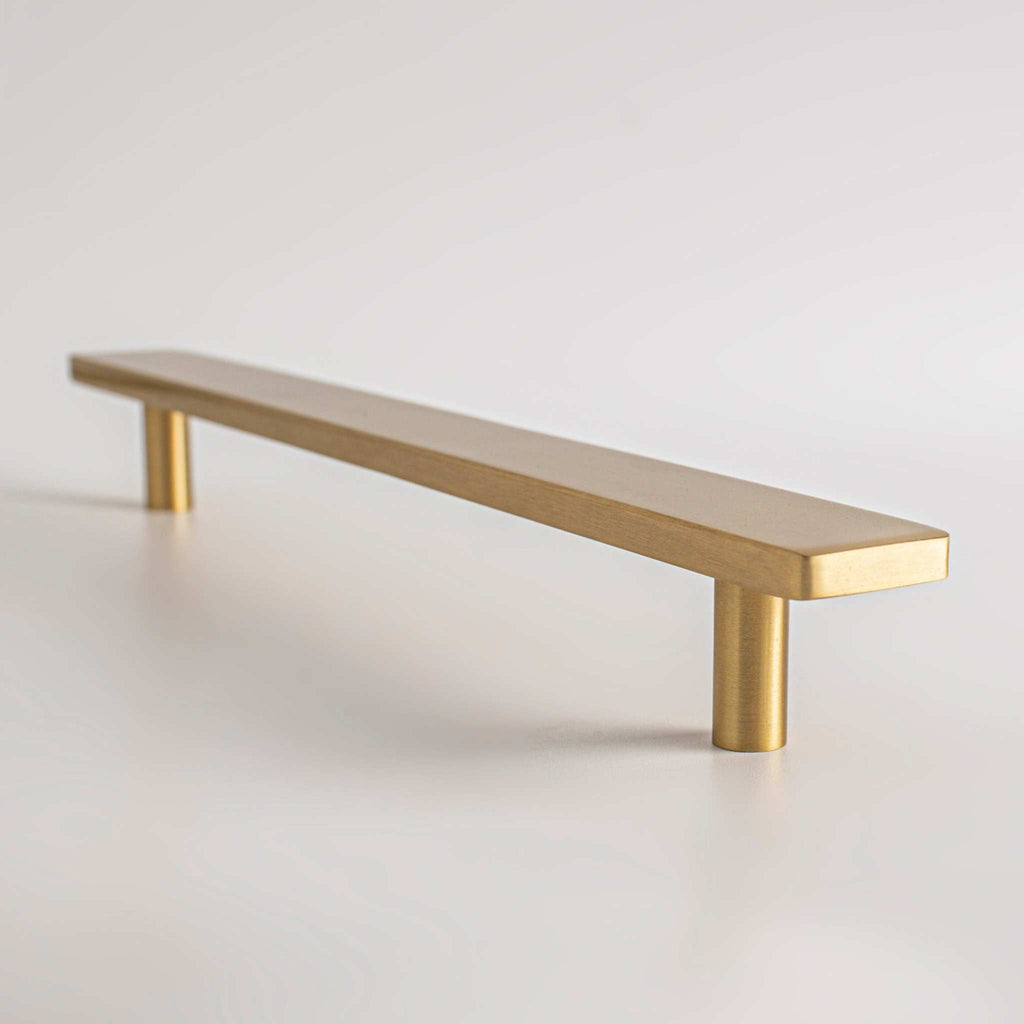

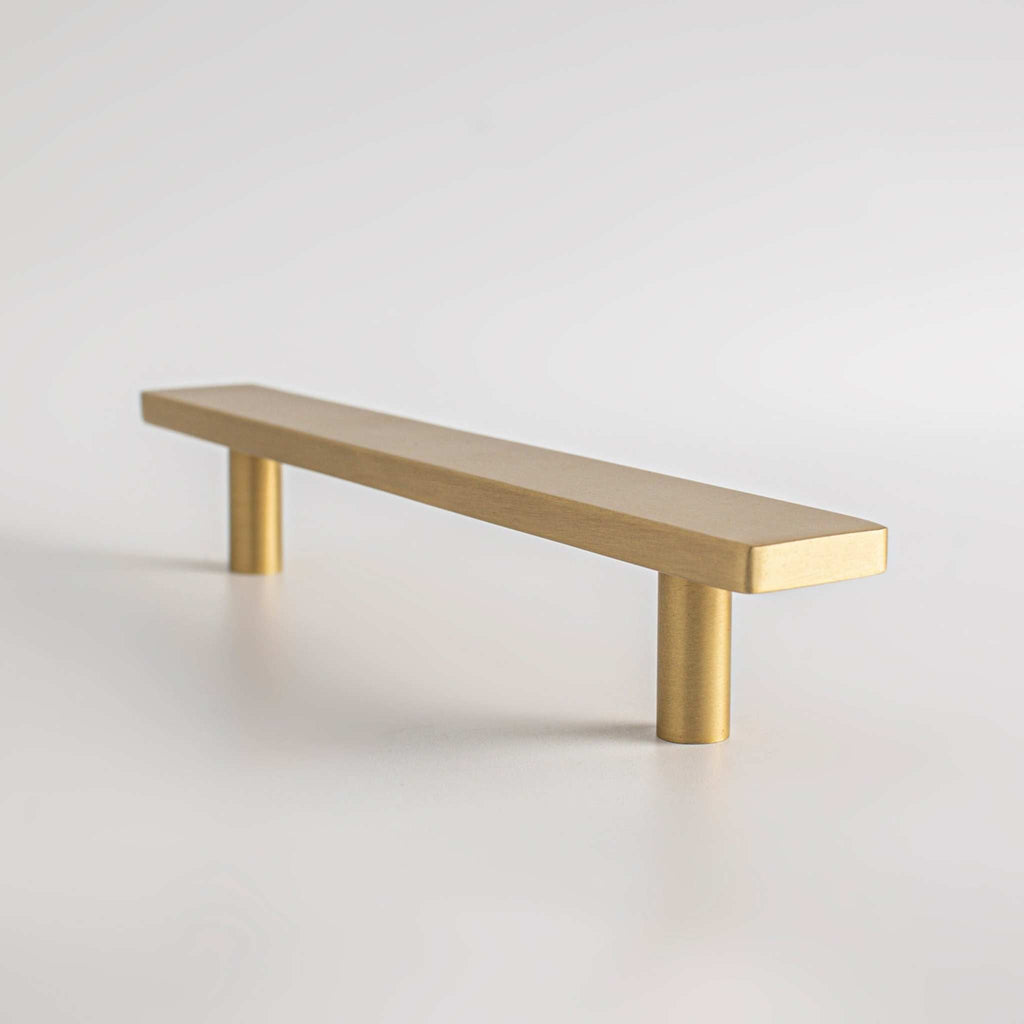

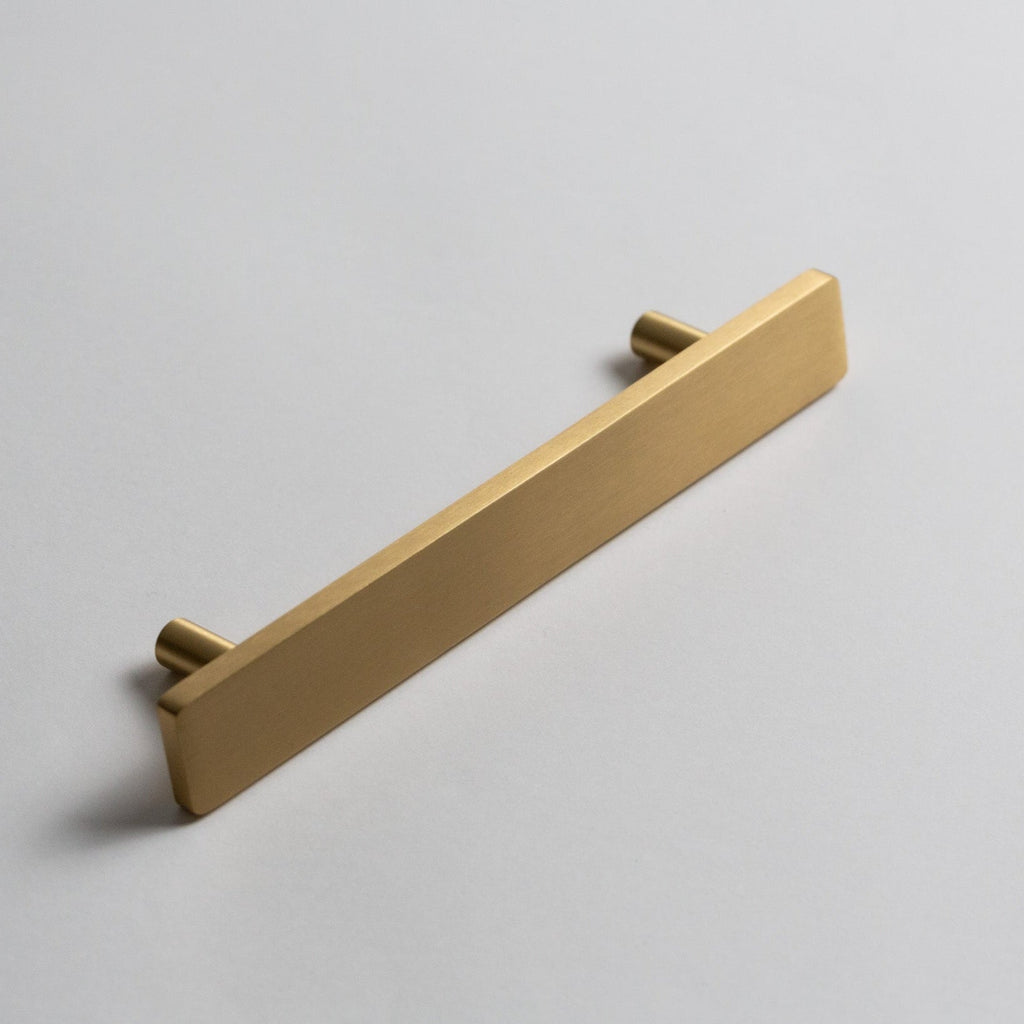

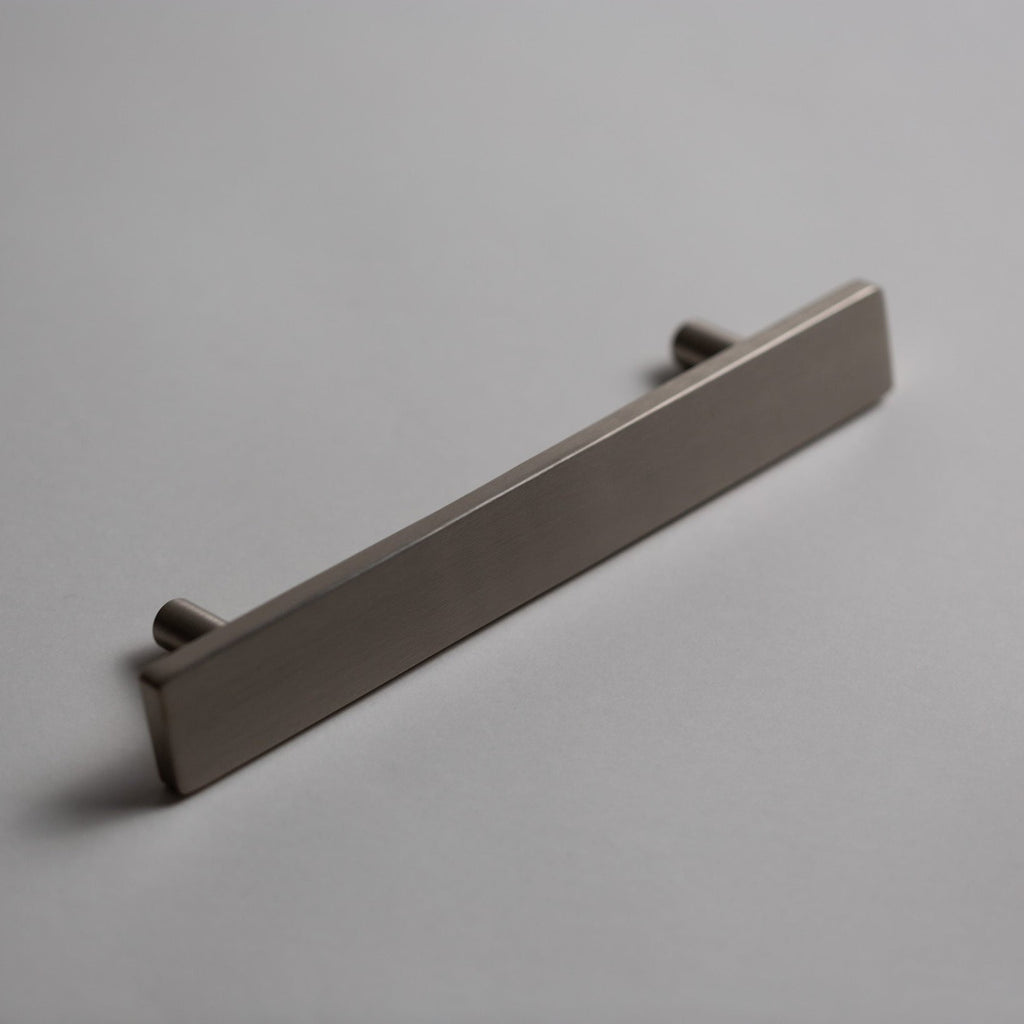

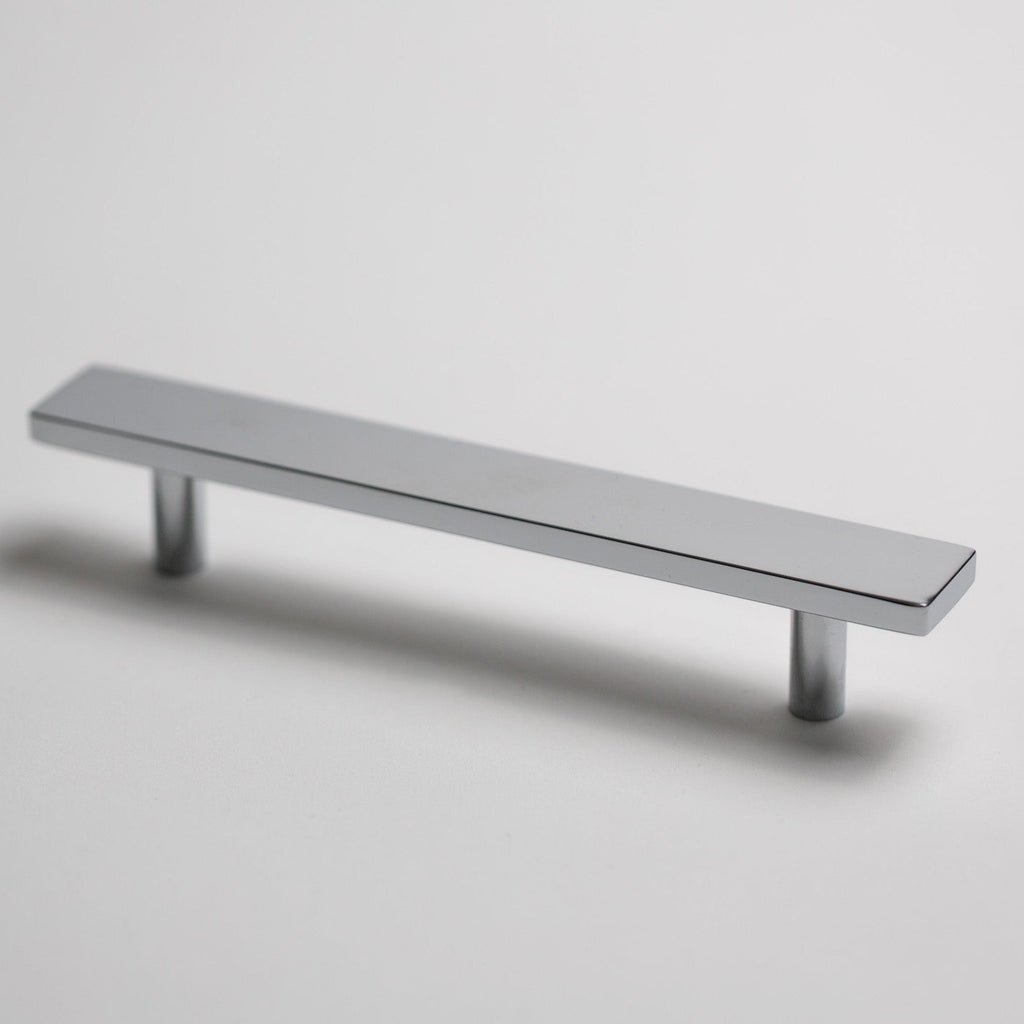

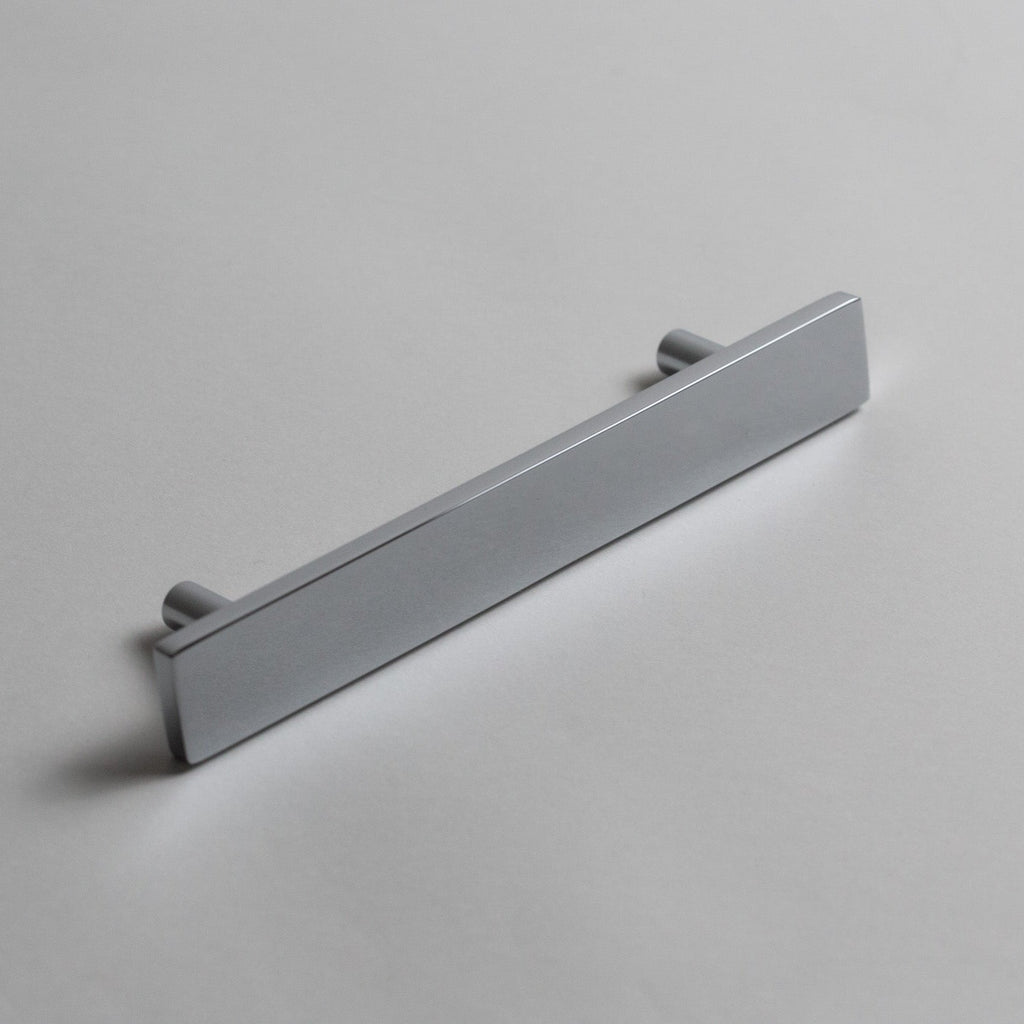

Listed finishes: Satin Brass (gloss lacquer); Satin Brass (matte lacquer); Polished Nickel; Satin Nickel (gloss lacquer).
Product selections
Size: 5" (3" C-C); 7" (5" C-C); 10" (8" C-C); 21" (18" C-C); 27" (24" C-C).

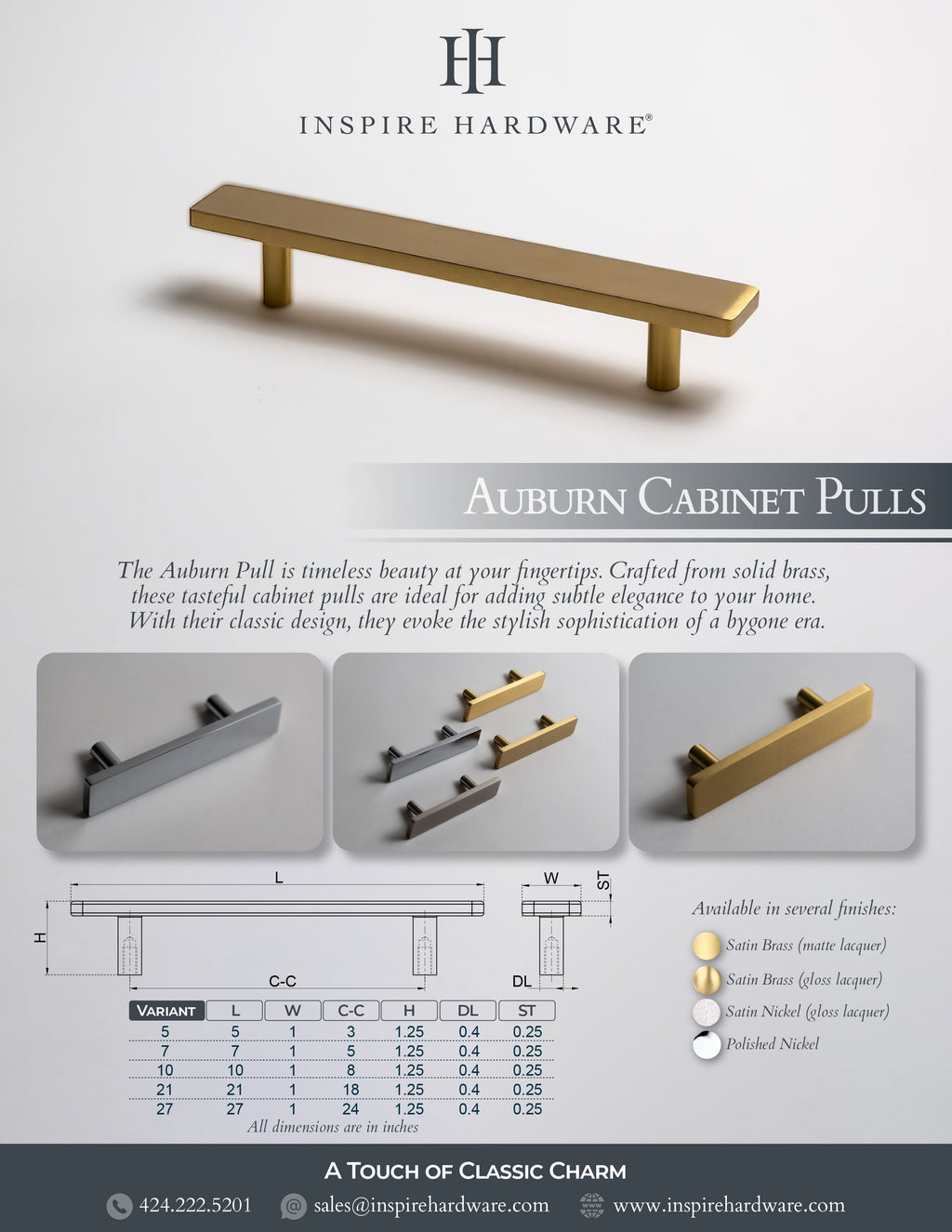

Dimensions
5" (3" C-C):
Mounting centers: 3 in; Overall length: 5 in; Projection: 1.25 in; Width: 1 in; Thickness: 0.25 in.
7" (5" C-C):
Mounting centers: 5 in; Overall length: 7 in; Projection: 1.25 in; Width: 1 in; Thickness: 0.25 in.
10" (8" C-C):
Mounting centers: 8 in; Overall length: 10 in; Projection: 1.25 in; Width: 1 in; Thickness: 0.25 in.
21" (18" C-C):
Overall length: 21 in; mounting centers: 18 in; projection: 1.25 in; width: 1 in; thickness: 0.25 in.
27" (24" C-C):
Overall length: 27 in; mounting centers: 24 in; projection: 1.25 in; width: 1 in; thickness: 0.25 in.
Included
One pull, 4 sets of screws of different lengths for ease of installation (M4 in 20mm, 25mm, 35mm, and 40mm lengths)
Use and installation

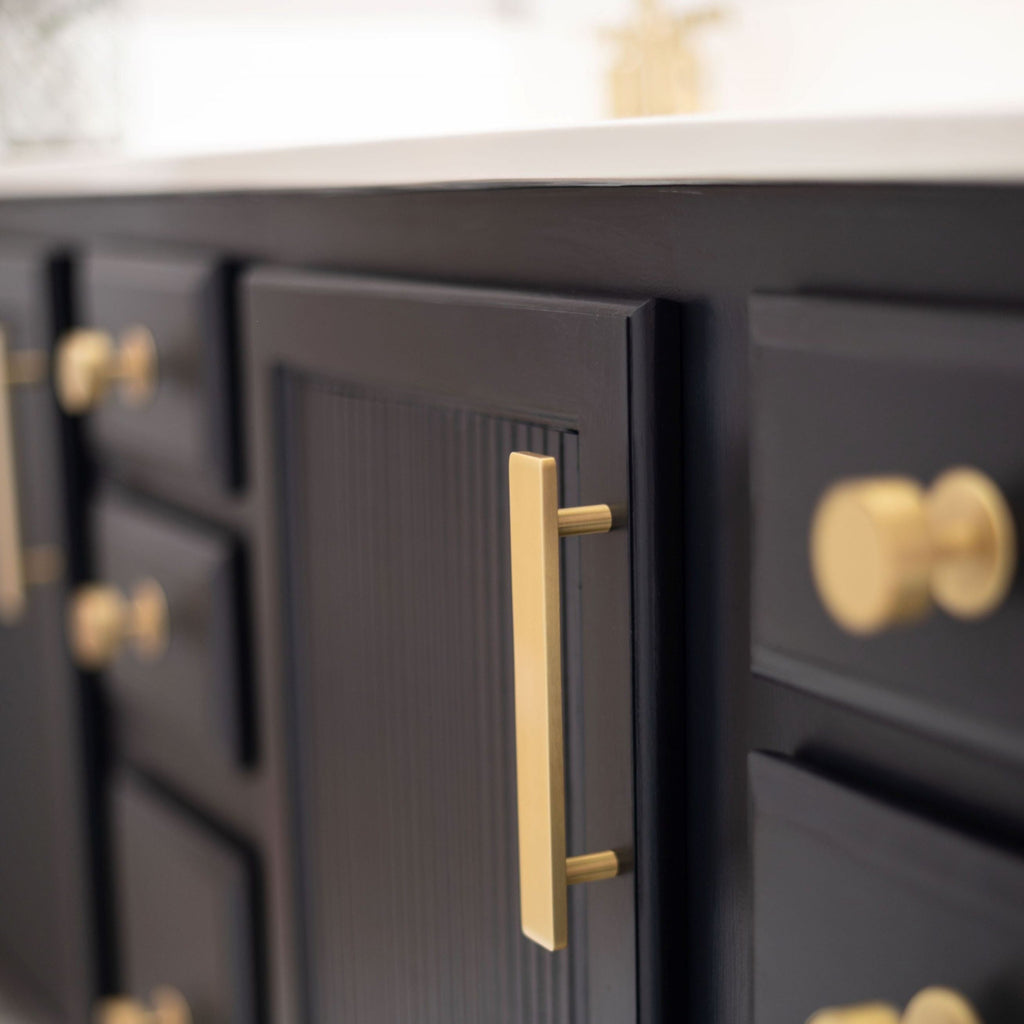

Mount horizontally or vertically. Use a dedicated appliance pull for appliance panels.
