Key Features

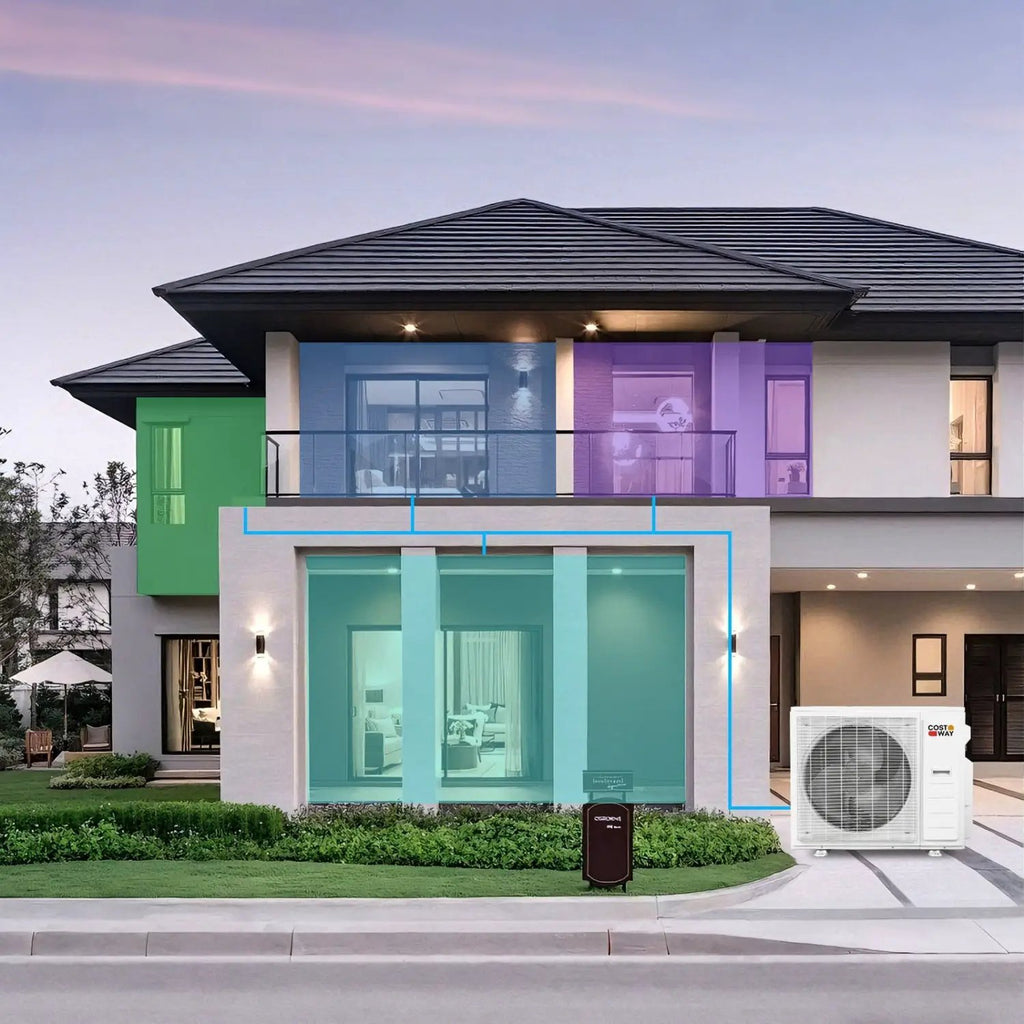

- Powerful whole-home cooling and heating for 4 zones

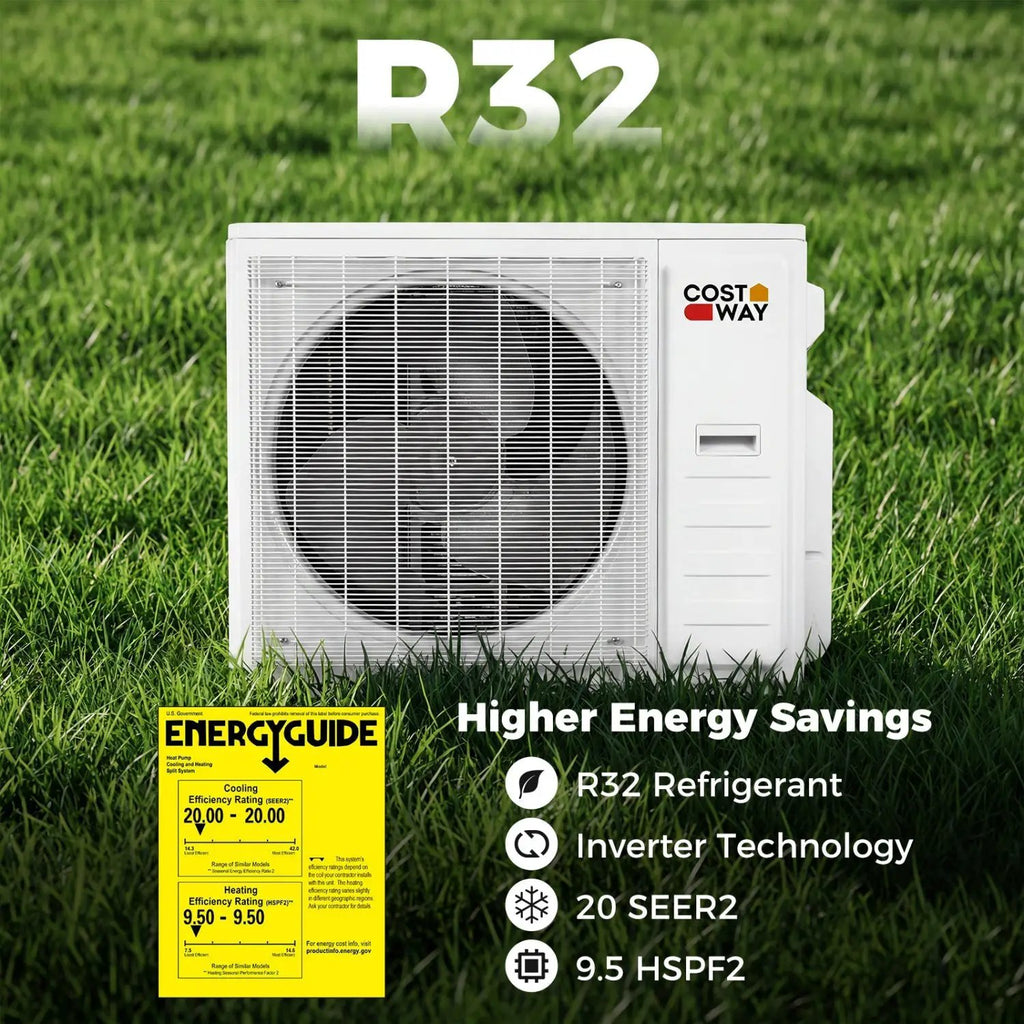

- 20 SEER2 and inverter technology ensure high energy efficiency

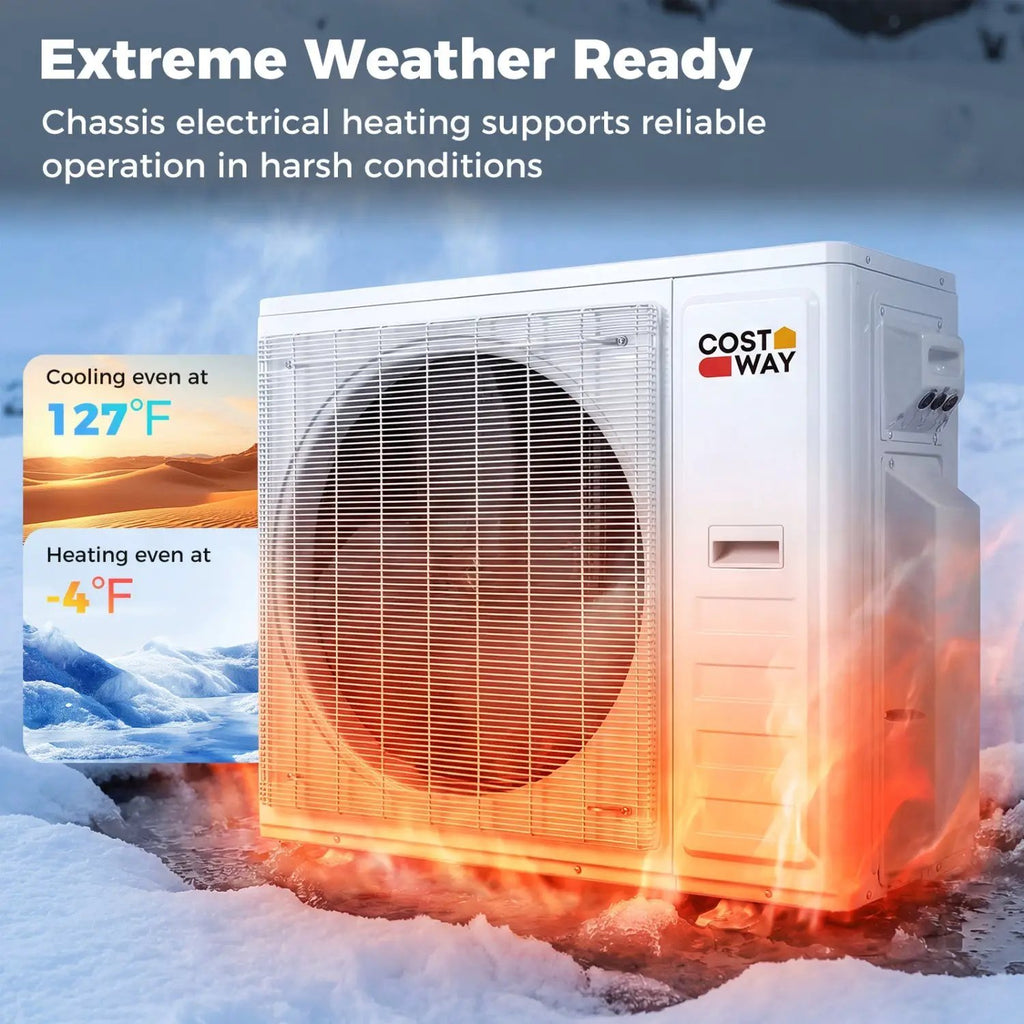

- Outdoor unit with chassis heating for reliable cold-weather operation

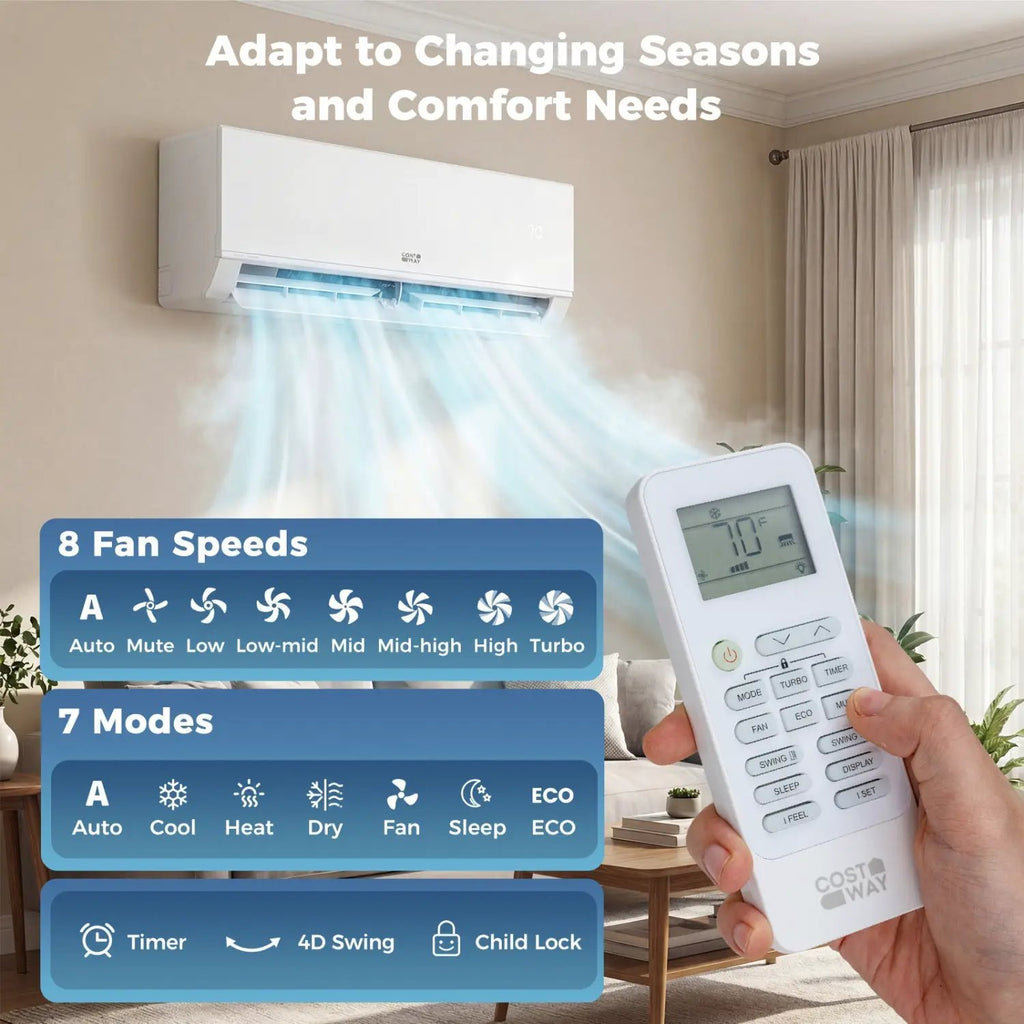

- Choose from 7 operating modes and 8 fan speeds
- Easily control from your phone remote or voice demands
- 24-hour timer for easy daily use and smart energy saving
- Low noise operation ensures a peaceful environment
- Self-clean function supports fresher airflow over time
- Removable & washable filters for simple cleaning
- Child lock prevents accidental setting changes
- 4D auto swing offers more even air distribution
Specifications
- Color: White

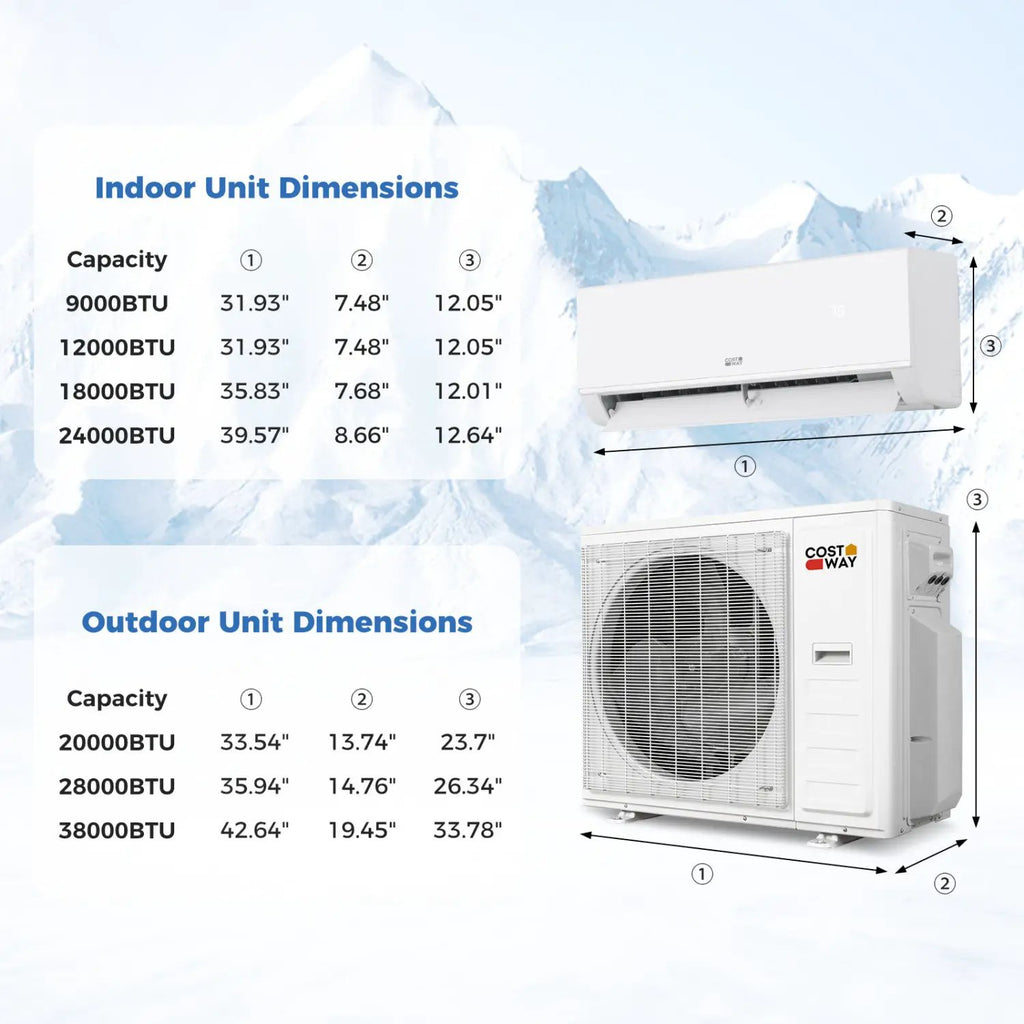

- Material: Cold-rolled Steel Sheet Copper Aluminum Indoor Unit Dimensions . 9K 31.93” x 7.48” x 12.05” 12K 31.93” x 7.48” x 12.05” 18K 35.83" x 7.68" x 12.01" 24K 39.57" x 8.66" x 12.64" Outdoor Unit Dimensions . 20K 33.54" x 13.74" x 23.7" 28K 35.94" x 14.76" x 26.34" 38K 42.64" x 19.45" x 33.78" Multi Zone Combination 4
- Voltage: 208-230V Frequency 60Hz Temperature Setting Range 60℉~88℉ Refrigerant R32 Indoor Unit Noise Level 28 dB Max Remote Control Distance 39.5 ft Coverage Area-9K 450 Sq.Ft Coverage Area-12K 750 Sq.Ft Coverage Area-18K 1250 Sq.Ft Coverage Area-24K 1500 Sq.Ft Dehumidification Capacity-9K 66 Pints/Day Dehumidification Capacity-12K 81.2 Pints/Day Dehumidification Capacity-18K 111.6 Pints/Day Dehumidification Capacity-24K 131.9 Pints/Day Maximum Air Flow Volume-9K 335 CFM Maximum Air Flow Volume-12K 342 CFM Maximum Air Flow Volume-18K 617 CFM Maximum Air Flow Volume-24K 847 CFM 20K SEER2 23 28K SEER2 20 38K SEER2 20 20K HSPF2 9.5 28K HSPF2 9.5 38K HSPF2 9.5 Diameter of Liquid Pipe 1/4" Diameter of Gas Pipe-9K 3/8" Diameter of Gas Pipe-12K 3/8" Diameter of Gas Pipe-18K 3/8" Diameter of Gas Pipe-24K 1/2"
- Net Weight: of 18K(Outdoor Unit) 70.5 lbs
- Box Qty: 6
- Is Assembly Required: Yes

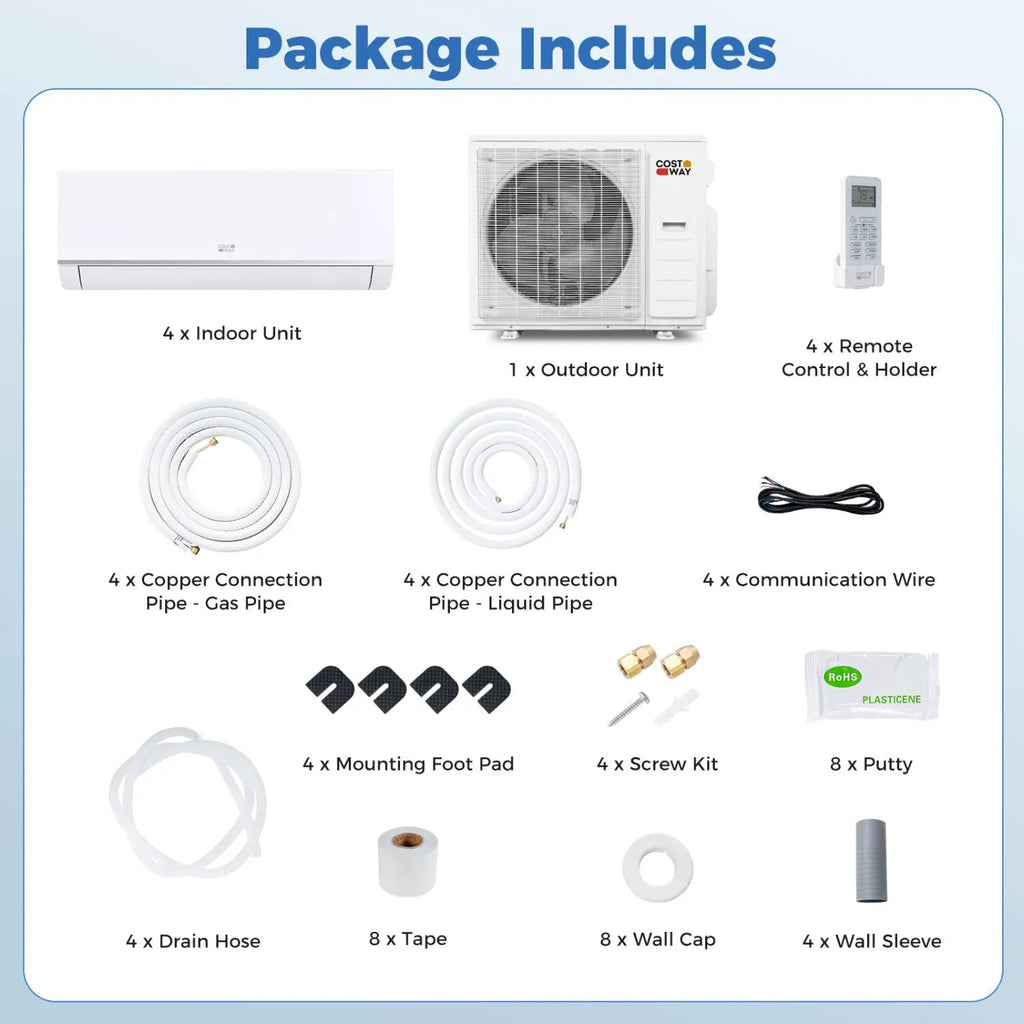

- Package Includes: 1 x Outdoor Unit 4 x Indoor Unit 4 x Copper Connection Pipe - Gas Pipe 4 x Copper Connection Pipe - Liquid Pipe 4 x Communication Wire 4 x Drain Hose 4 x Remote Control & Holder 4 x Wall Sleeve 8 x Wall Cap 8 x Tape 8 x Putty 4 x Screw Kit 4 x Mounting Foot Pad 6 x User Guide
