7610

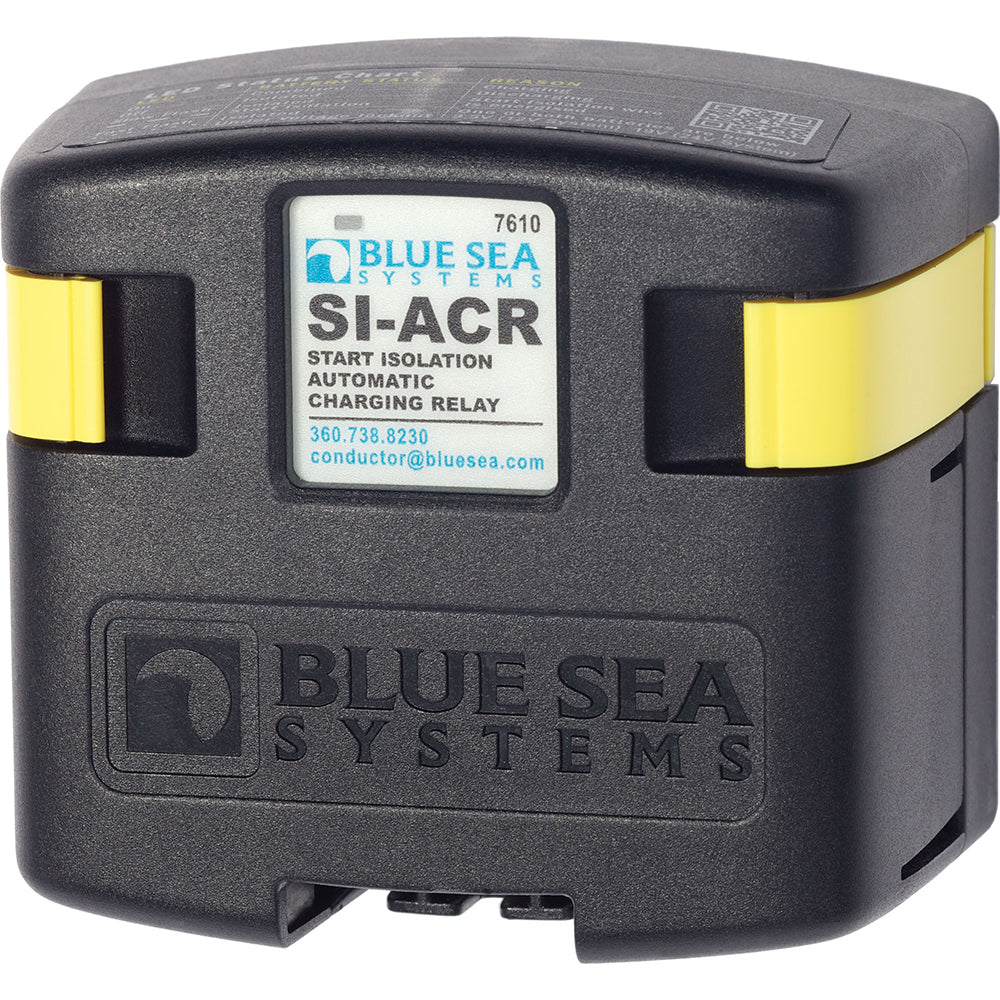

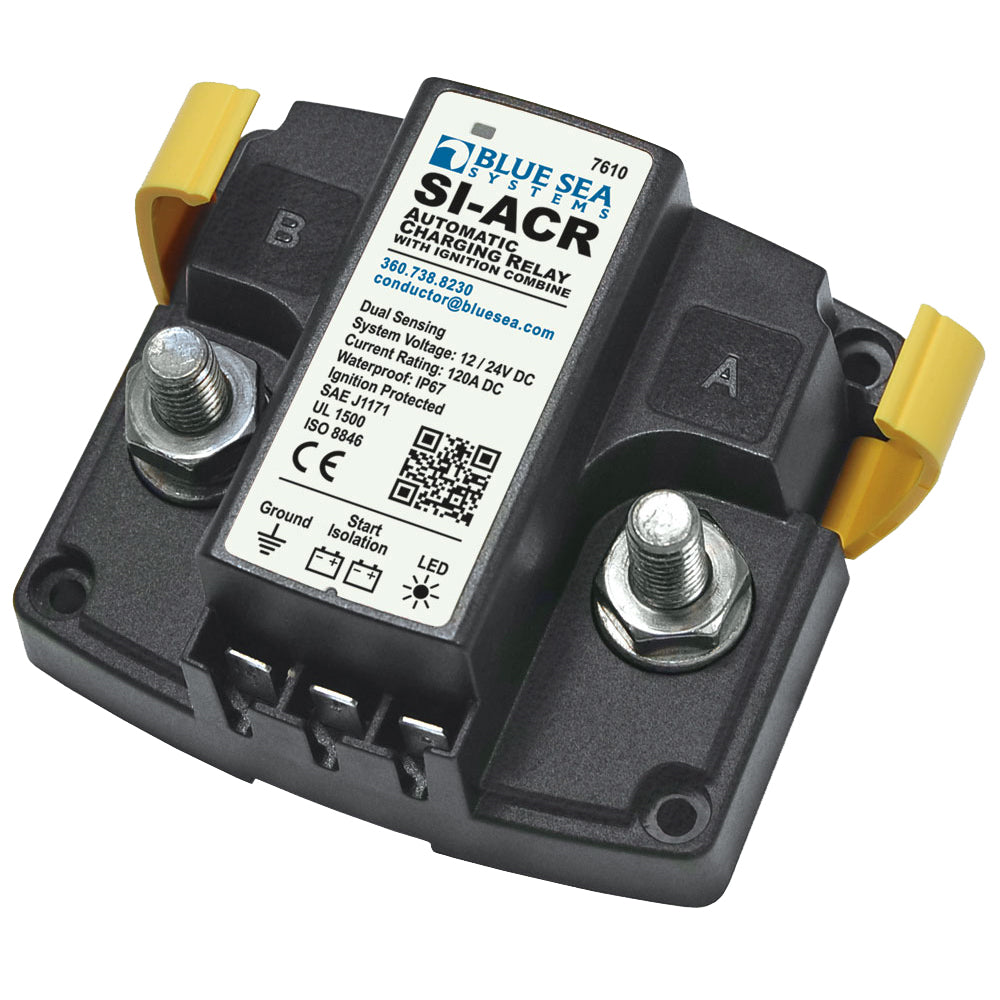

120 Amp SI-Series Automatic Charging Relay
- Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
- Automatically combines battery banks during the charging cycle and isolates under discharge
- 12/24 Volt auto ranging voltage input
- Waterproof rated IP67 - temporary immersion for 30 minutes
- Ignition protected - safe for installation aboard gasoline powered boats
- Remote LED output indicates relay state away from ACR
- LED light indicates when batteries are combined
- LED blinks in undervoltage lockout and starting lockout
- Supports high-output alternators up to 120 Amperes
- Included with the ADD A BATTERY Dual Circuit System
- Automatically combines battery banks during the charging cycle and isolates under discharge
- Ignition protected - safe for installation aboard gasoline-powered boats
- Activates from any charging source - alternators, battery chargers, or solar panels
- Hermetically sealed contacts / vaporproof
- Side and bottom knockouts for power cable connections

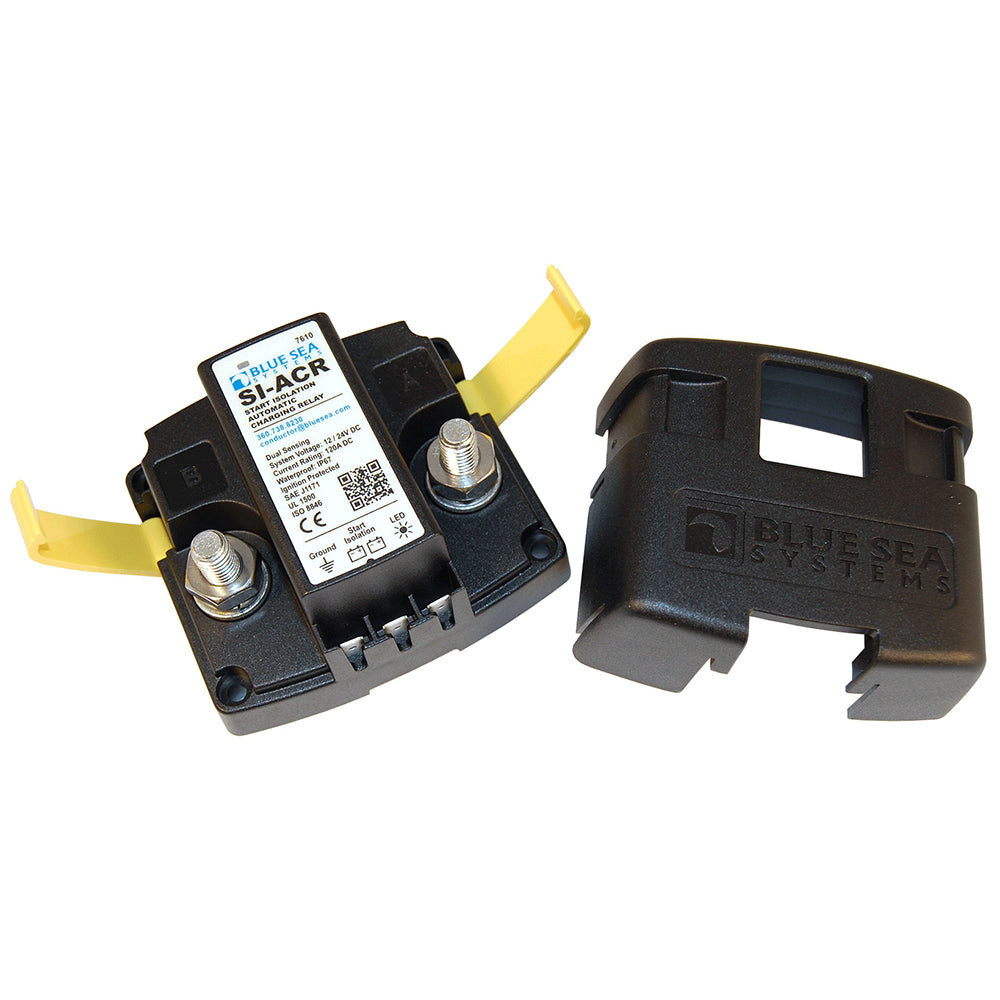

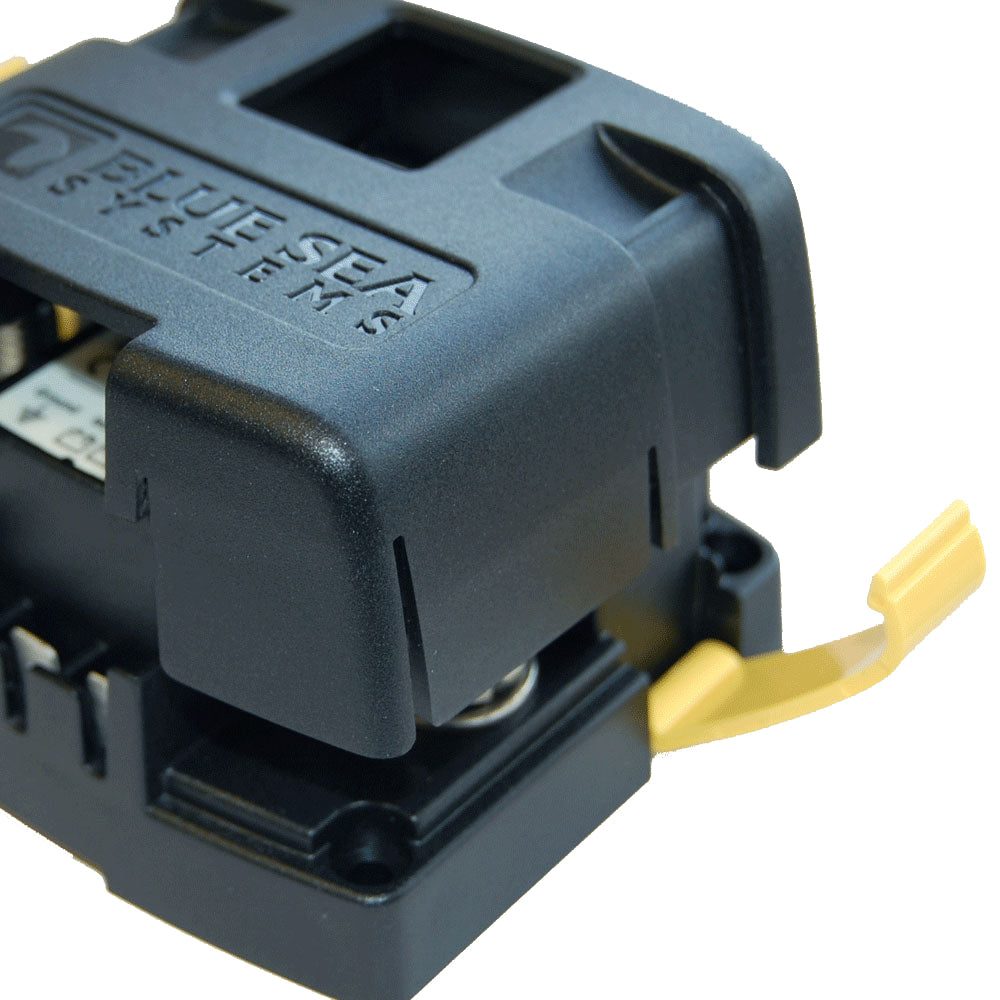

- Clip-on cover protects and insulates terminal connections
- Tin-plated copper studs for maximum corrosion resistance
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Owner's Manual (pdf)
