Description

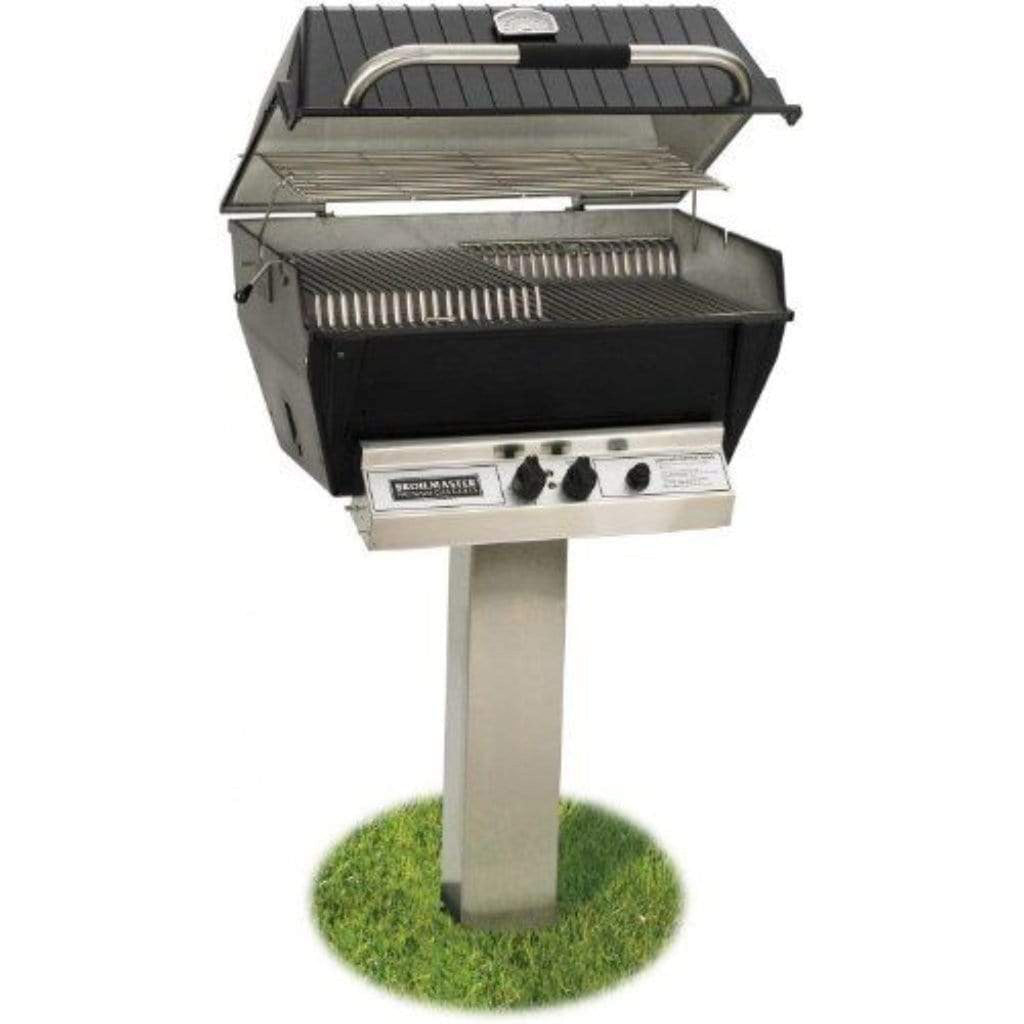

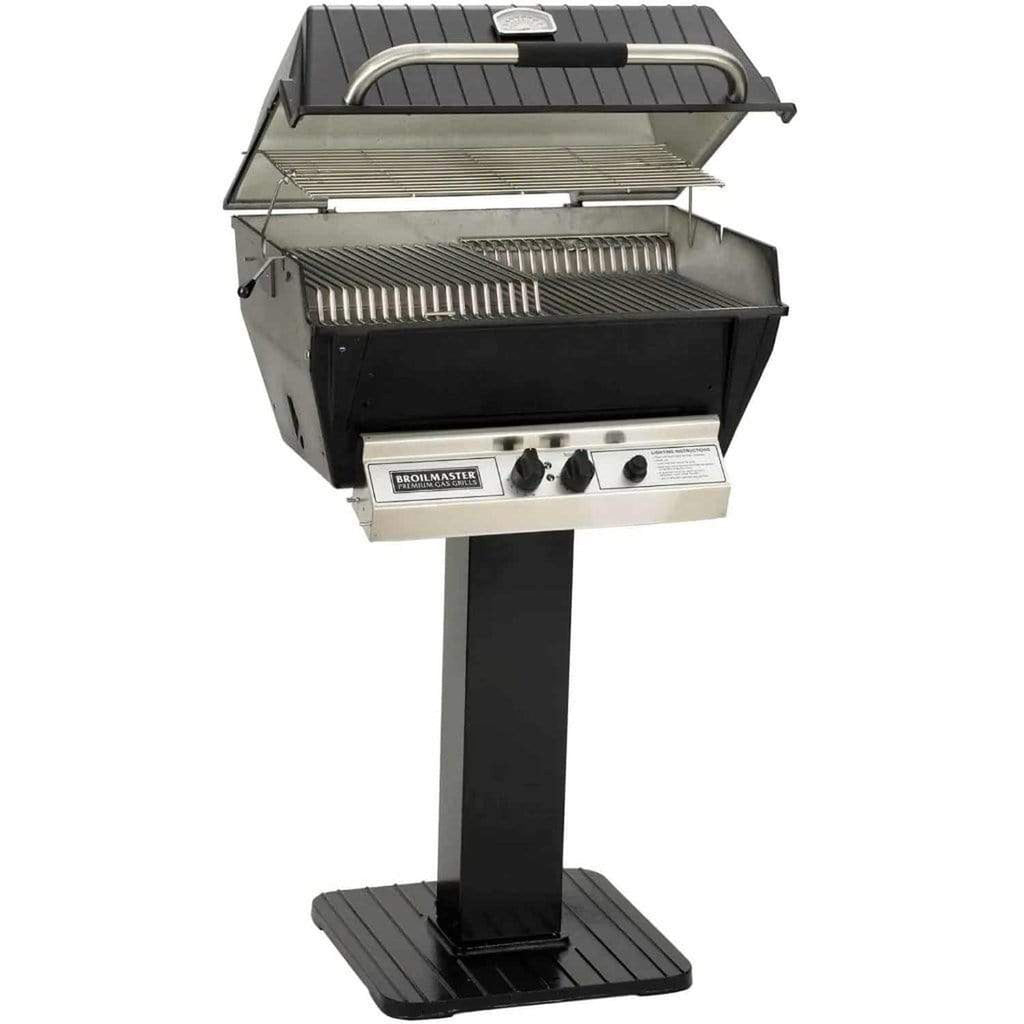

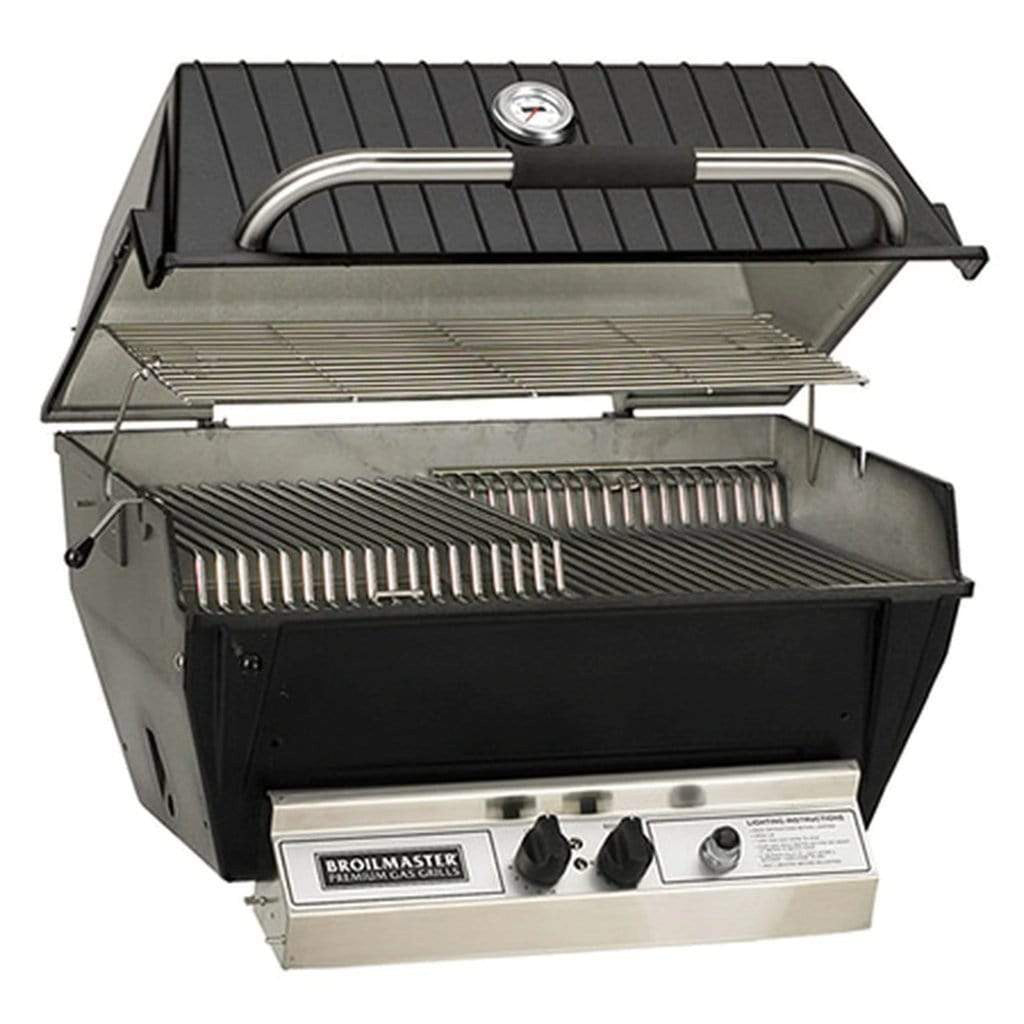

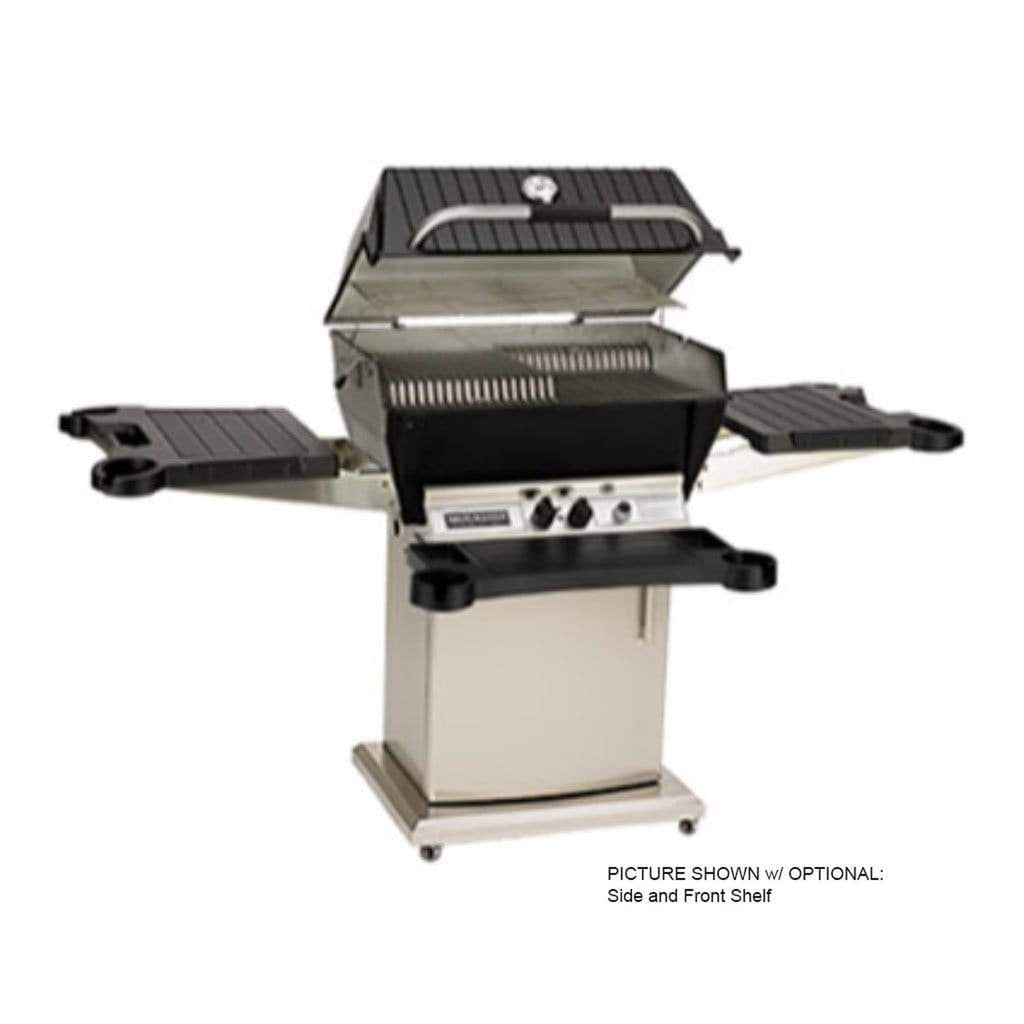

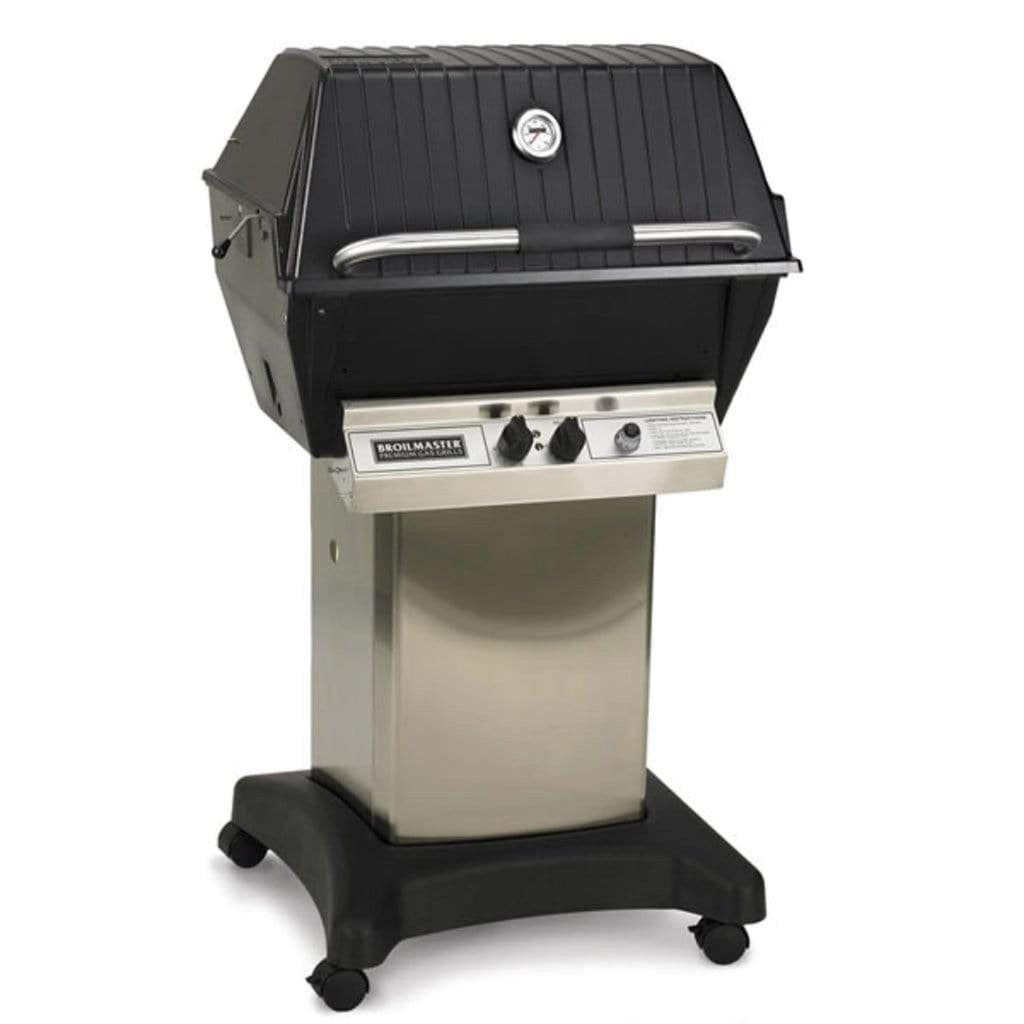

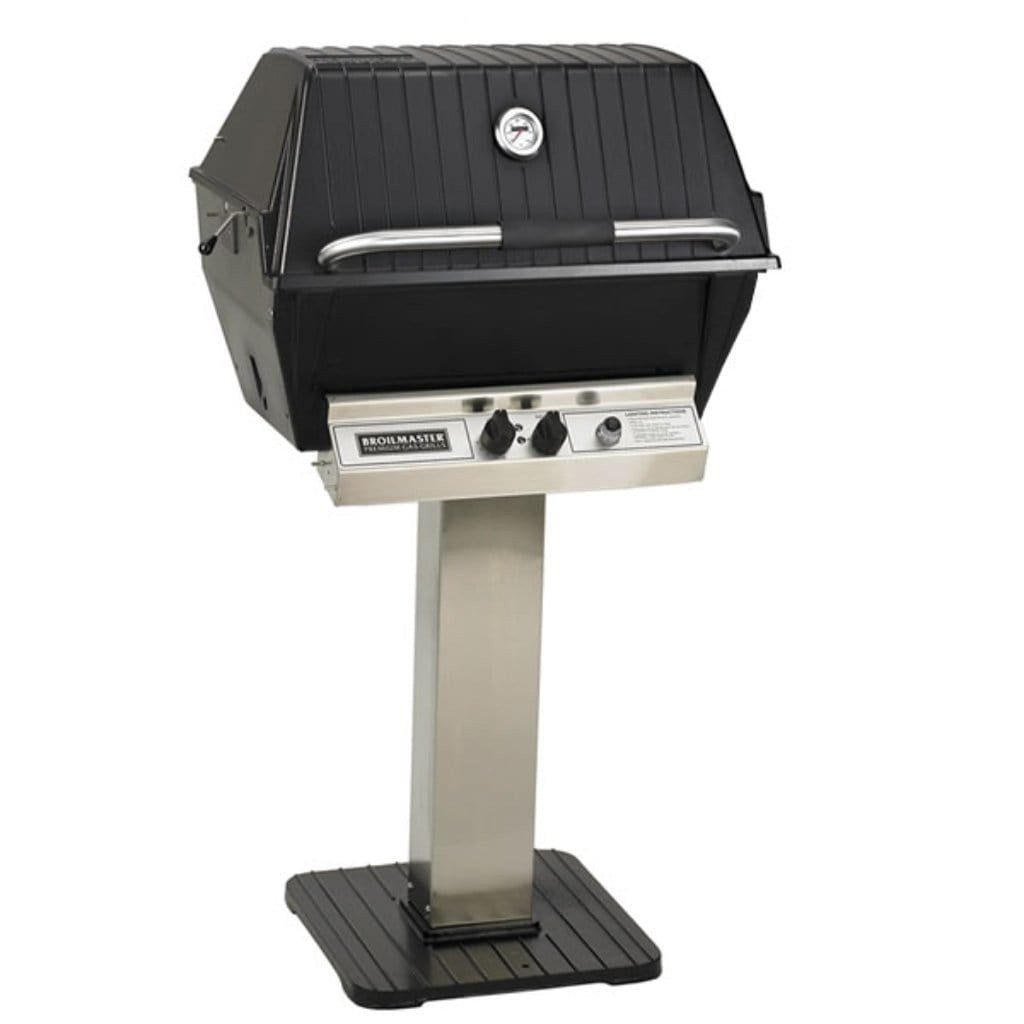

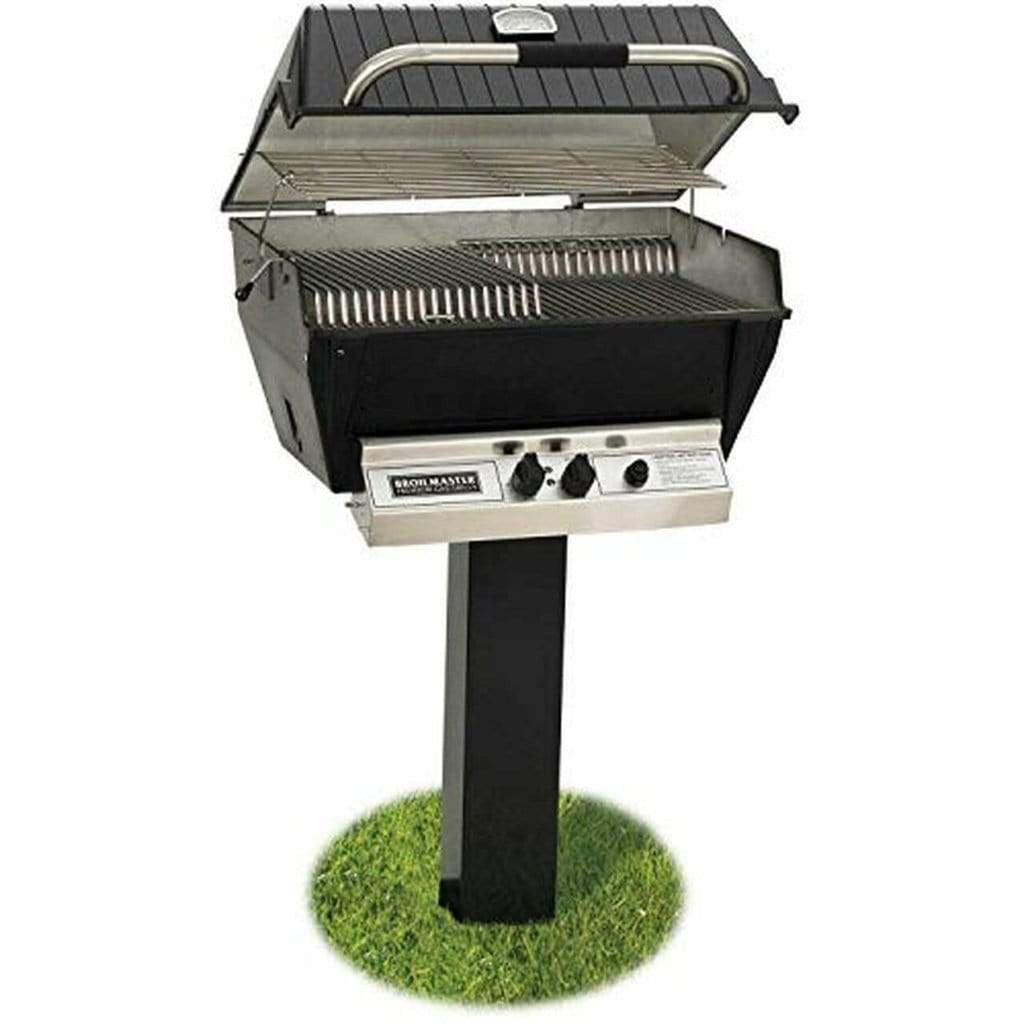

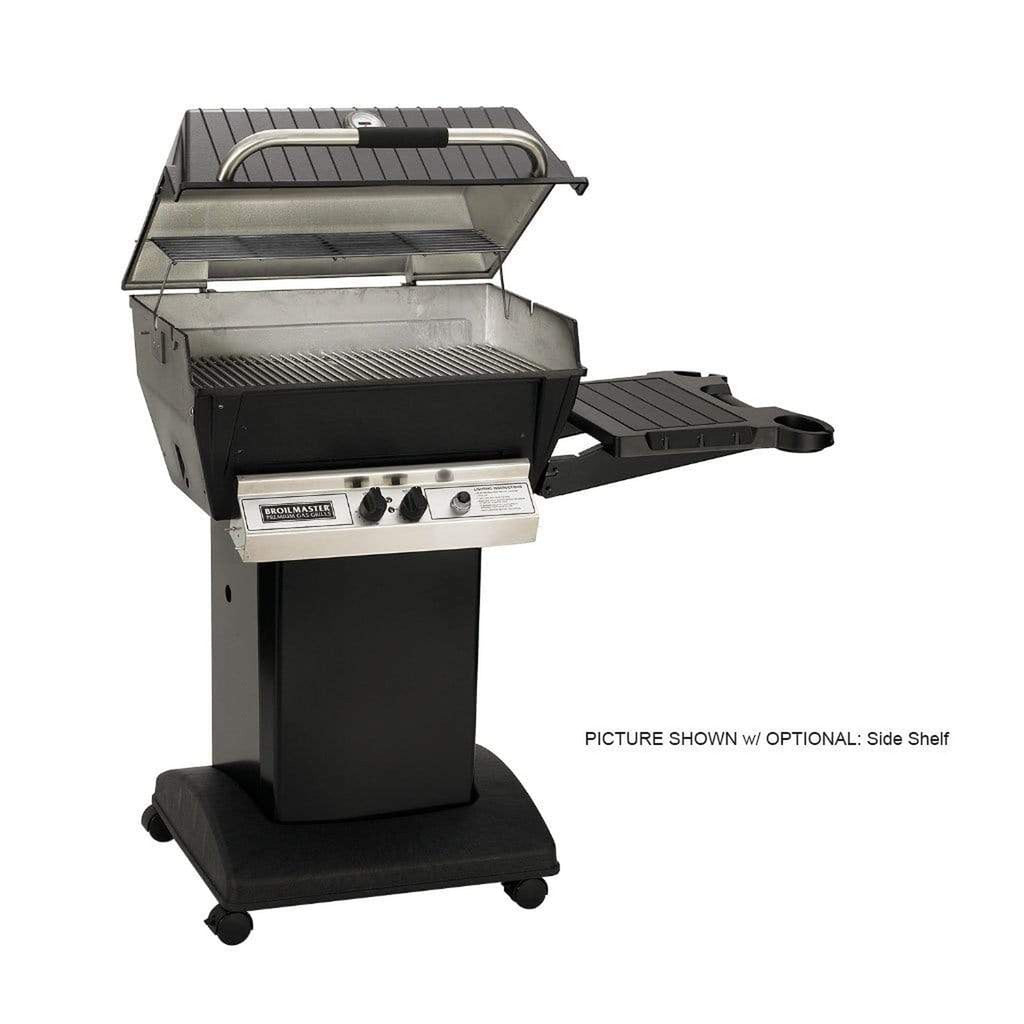

Broilmaster P3XF Premium Gas Grill
The Broilmaster Story
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
Historically, Broilmaster’s cast-aluminum grill head featured a deep bottom casting that allowed more uniform temperature across the cooking grid. The original Broilmaster G-1000 also featured the now legendary Bow Tie Burner, known for even heat distribution. Variations of both can be found on most modern Broilmaster grills.
Throughout the years Broilmaster expanded the cast-aluminum offerings to include a full line up of gas, infrared, and charcoal grills. Each Broilmaster grill incorporates a variety of features such as multi-level cooking grids, retract-a-rack, separate burner controls, stainless steel griddles, and the patented Smoker Shutter.
In 2018 we introduced the Broilmaster Stainless gas grill series. Broilmaster Stainless gas grills combine the distinctive features of an original Broilmaster with a sleek, contemporary design. The versatile multi-level cooking grids, retract-a-rack, and timeless Bow Tie Burner live on in this new generation of stainless steel grills.
With the combination of versatile cooking capabilities, convenient features, and unmatched customer service, a Broilmaster grill is truly the grill of a lifetime.
Description
The Broilmaster Premium P3XF gas grill comes loaded with standard features, including the flare buster flavor enhancers. The Bow Tie Burner provides exceptional heat distribution and up to 40,000 BTUs. With a durable cast-aluminum exterior construction, the Broilmaster Premium P3XF is built to last. A total of 695 square inches of total cooking area provides a variety of cooking options for any size crowd.
Standard Features
|
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel Bow Tie Burner Evenly Distributes Heat Across the Cooking Area |
 |
Multi-Level Stainless Steel Cooking Grids Provide Control Over Food Distance To The Flame |
 |
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |
Flare Buster Ceramic Flavor Enhancers Protect The Burner From Any Food Drippings To Reduce Flare-Ups |
 |
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features
- 695 Sq. In. of Total Cooking Area
- Heavy-Duty Cast Aluminum Construction
- 40,000 BTU
- Stainless Steel Bow Tie Burner
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Control Panel
- Stainless Steel Folding Retract-A-Rack
- Fits all Broilmaster Mountings
Technical Specifications
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 40,000 |
| Overall Size: | W:26 3/4" H:20 1/2" D:18 3/4" |
| Color: | Black |
| Item Weight: | 77 lbs. |
| Cooking Area: | 695 sq. in |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Grill Exterior Material: | Cast-Aluminum |
P3XF Series includes:
- Two stainless Steel Rod Cooking Grids 3-Level Adjustable (695 Sq. In. Of total cooking area)
- Stainless Steel Folding Retrack-A-Rack
- Stainless Steel Bowtie Burner (40,000 Btu)
- Electronic Ignition
- Tall lid for smoking Turkey or Roast
- Stainless Steel Lid Prop
- Flare Buster Flavor Enhancer
Requires:
- Cart or Post
BROILMASTER WARRANTY |
|
|
LIMITED LIFETIME Against Rust-through |
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
|
10 YEARS Against Rust-through |
Stainless Steel Burners for H-Series and R3B |
|
5 YEARS Against Rust-through |
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
|
2 YEARS Against Rust-through |
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
|
1 YEAR Against Rust-through |
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Options and Accessories
Click to see Cart Options
 |
Black Painted Steel Cart DCB1
|
 |
Stainless Steel Cart PCB1
|
 |
Stainless Steel Storage Cart PSCB1
|
Click to see Post Options
 |
PAINTED STEEL PATIO POST BL26P
|
 |
STAINLESS STEEL PATIO POST SS26P
|
 |
PAINTED STEEL IN-GROUND POST BL48G
|
 |
STAINLESS STEEL IN-GROUND POST SS48G
|
Click to see Shelf Options
|
|
BLACK SOLID SURFACE SIDE SHELF SKFPB2
|
|
|
BLACK SOLID SURFACE SIDE SHELF SKFB2
|
|
|
STAINLESS STEEL SIDE SHELF SKSS2
|
|
|
STAINLESS STEEL DROP DOWN SHELF DPA153
|
|
|
BLACK COMPOSITE SURFACE FRONT SHELF FKBLACK
|
|
|
STAINLESS STEEL FRONT SHELF FKSS
|
Click to see Side Burners
 |
Infrared Side Burner
|
 |
Blue Flame Side Burner
|
Click to see Flavor Enhancer
 |
Flare Buster Flavor Enhancer for P3 Series Grills Flare Buster flavor enhancers provide exceptional heat distribution when used with your Broilmaster grill. They also protect the burner from any food drippings to reduce flare-ups. Note:Requires B101061 Rack if replacing flavor screen |
 |
Char-Master Briquets Enhance the flavor of your food by using these Char-Master ceramic briquets in your Broilmaster gas grill. Heated by the burner, they help distribute heat evenly and maintain a consistent temperature. Drippings fall onto the briquets instead of the burner and burn off to create a smoke to give grill foods a charcoal flavor. |
Click to see Gas Conversion Kit
 |
Propane to Natural Gas Convert your Broilmaster P4, H3X (P3X 2015 and newer) BBQ Grill from propane to natural gas with the Broilmaster Conversion Kit. This orifice will be easy to install with all the parts you need. |
 |
Natural Gas to Propane Convert your Broilmaster P4, H3X (P3X 2015 and newer) BBQ Grill from natural gas to propane with the Broilmaster Natural Gas to Propane Conversion Kit This orifice will be easy to install with all the parts you need. |
Click to see Other Accessories
 |
Cast Aluminum Cover Protect your Broilmaster grill and cart when not in use with the Broilmaster grill cover. Three variations are available to fit over shelving, side burners and other accessories. Covers are available in black only. |
 |
NG12 12ft Quick Disconnect Hose Kit Quick disconnect 3/8" natural gas 12' hose and coupling kit. The inside diameter of the hose is 3/8" and the outside diameter of the hose is about 5/8". |
 |
Heavy Duty Rotisserie Kit Add the motorized rotisserie kit allows you to roast a whole chicken, pork loin, roast, and much more in the convenience of your Broilmaster Stainless gas grill. The rotisserie kit and included counterweight evenly roasts large cuts of meat from every angle. |
 |
Smoker Shutter The stainless steel smoker shutter converts your Broilmaster grill to an indirect cooking system. This patented technology provides versatile cooking options allowing you to smoke, roast, slow cook, and bake. |
 |
Stainless Steel Griddle From bacon, eggs, and pancakes to cookies, this super-duty griddle adds versatility to your Broilmaster grill. Made from thick stainless steel, the griddle includes a large cooking surface and drip tray. |
 |
Diamond Cooking Grids These diamond-patterned cooking girds are easy to cook on and clean, making them the perfect solution for cooking your fish and vegetables. |
 |
Grid Lifter Kit
|
Downloads
- P3XF Owner's Manual
- Broilmaster Brochure
- Post Owner's Manual
- Cart With Door Owner's Manual
- Cart With Base Owner's Manual
- Solid Surface Front Shelf Kit Owner's Manual
- Solid Surface Drop-Down Shelf Kit Owner's Manual
- Flare Buster Flavor Enhancer Owner's Manual
