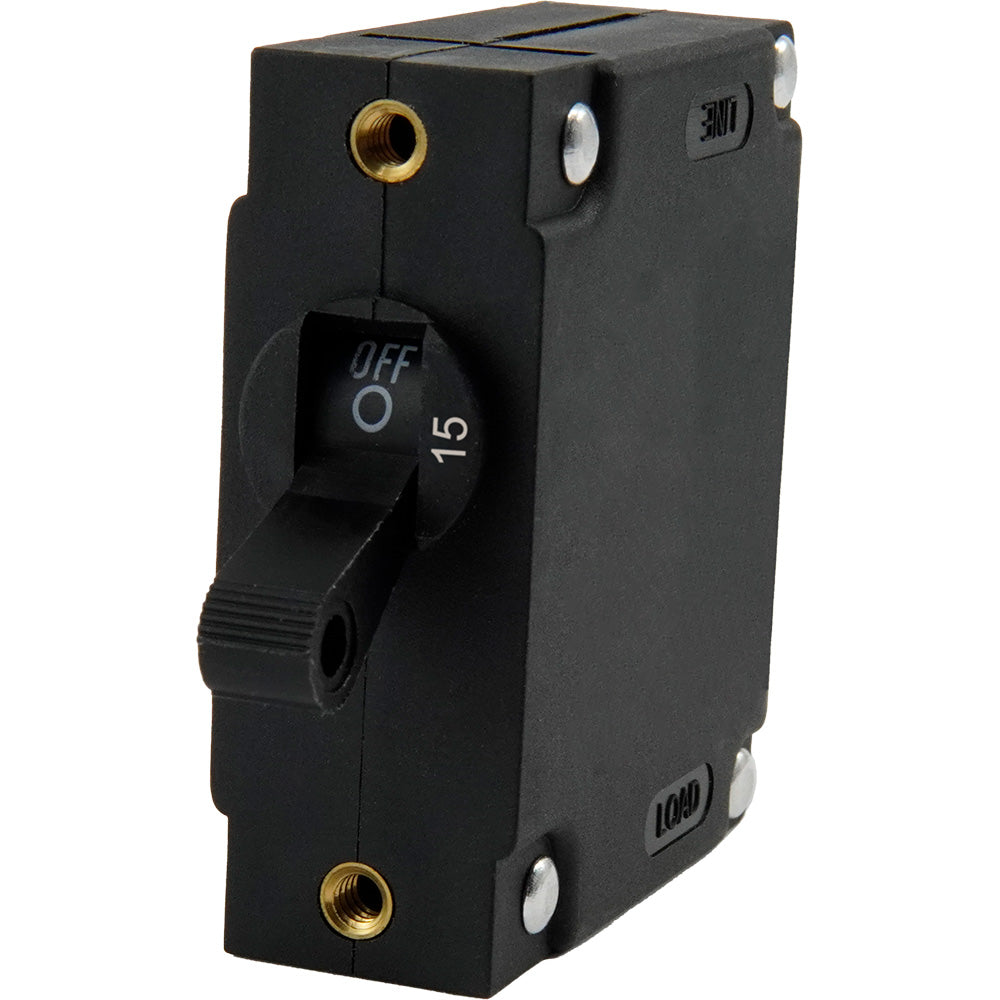

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 15A
Features:
- Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
- AC & DC Rated to cover a wide range of system application needs.
- Toggle-Style Actuator for easy on/off switching control, combined with circuit protection.
- High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
- High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
- Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots.
Specifications:
- Amperage: 15a
- Type: Electric
- Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs
- UPC: 850067590941
Brochure (pdf)
