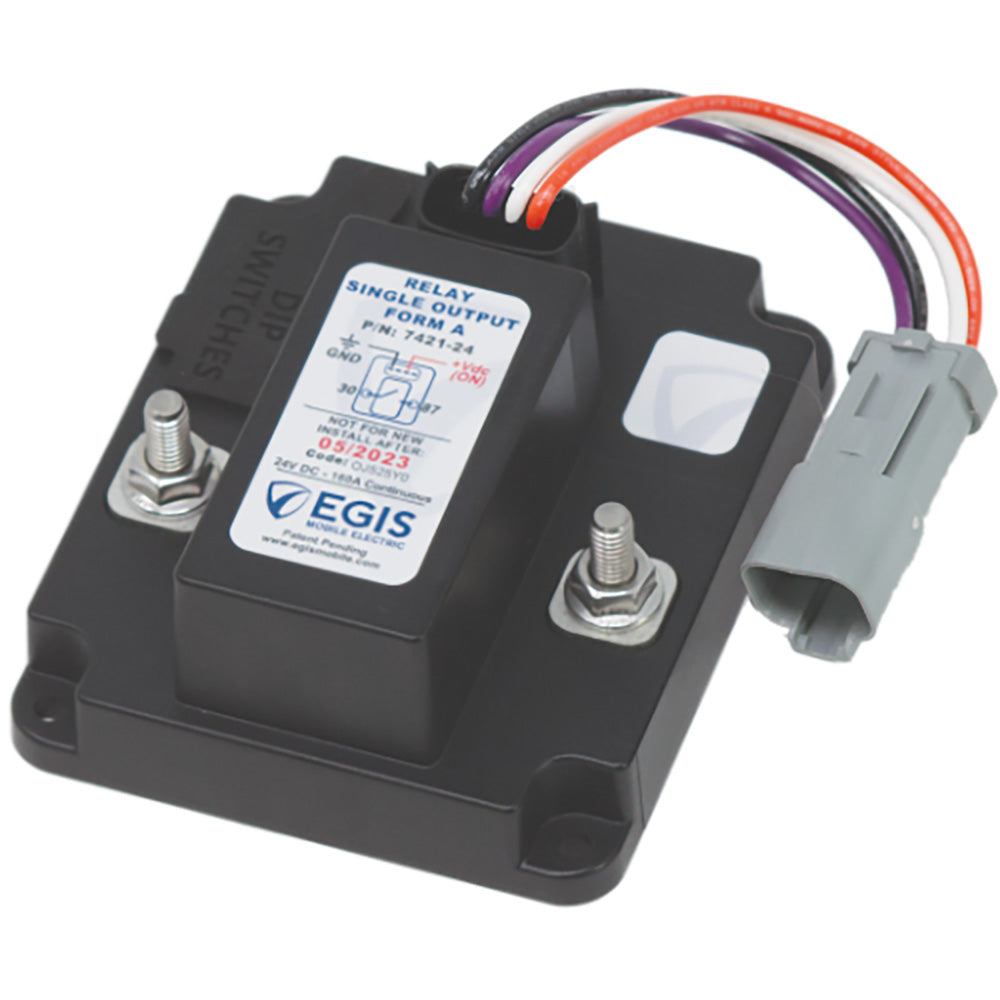

TH3 Relay 160A - 24V
Features:
- Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop
- Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection.
- Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability
- Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families.
- Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware
- Single or Dual Split Output Options provide flexibility for different electrical system requirements
- Integral Diode Suppression reduces voltage spikes on control lines during switching
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 6"W x 7"L WT: 0.79 lbs
- UPC: 850035199930
Brochure (pdf)
