Stellar 1W Mini Puck Light

The Mini LED Puck Light delivers precise, high-quality accent lighting in an ultra-compact form factor. Designed for tight spaces where clean aesthetics matter, this 24V puck light produces 100 lumens with a 90+ CRI, ensuring vibrant, true-to-life color rendering.

Available in multiple color temperatures (2200K, 2700K, 3000K, and 3500K), this mini puck light allows you to tailor the ambiance for residential or light commercial applications. The 36° beam angle provides focused illumination, making it ideal for under-cabinet lighting, display cases, shelving, toe-kick lighting, and architectural accents.

Built for performance and flexibility, the fixture is IC-rated, airtight, damp-location rated, and dimmable down to 5% when paired with compatible 24V drivers. Its slim profile—with a 0.69″ cutout, 0.79″ outer diameter, and 1.03″ depth—makes installation simple even in shallow or confined spaces.

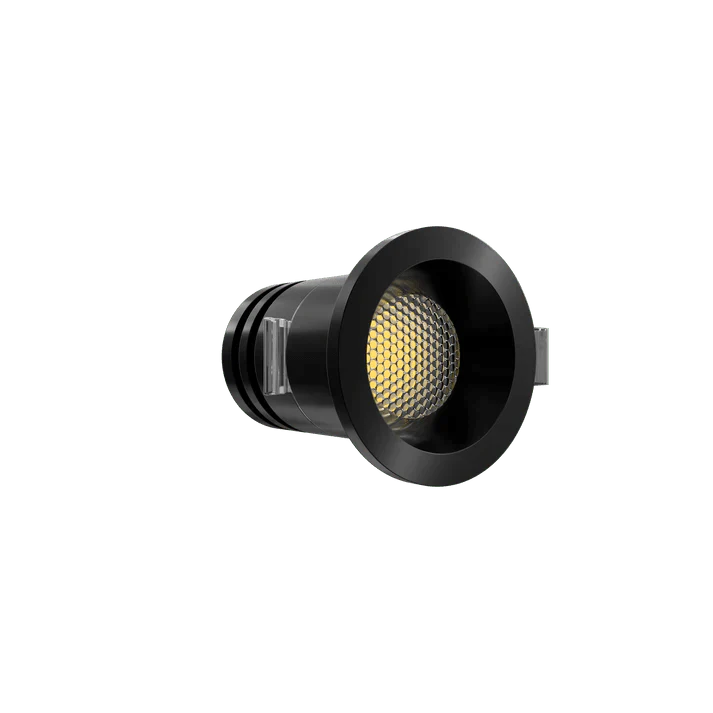

Finished in sleek black for modern installations, the Mini Black Puck Light offers dependable performance, refined output, and professional-grade quality in a discreet design.

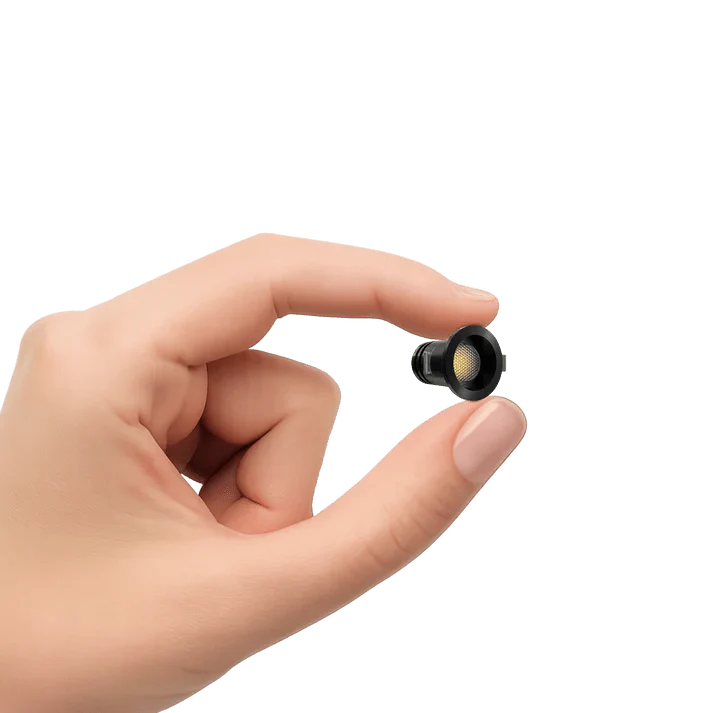

• Ultra-compact mini LED puck light for tight spaces and clean installs
• 1W output / 100 lumens with 90+ CRI for accurate color rendering
• 24V low-voltage operation for safe, reliable installations

• 36° focused beam angle ideal for accent and task lighting
• Smooth dimming to 5% with compatible 24V drivers
• IC-rated, airtight, and damp-location rated
• Slim profile: 0.69″ cutout, 0.79″ OD, 1.03″ depth
• Modern black finish for contemporary designs
• Ideal for under-cabinet, shelving, display, and toe-kick lighting
