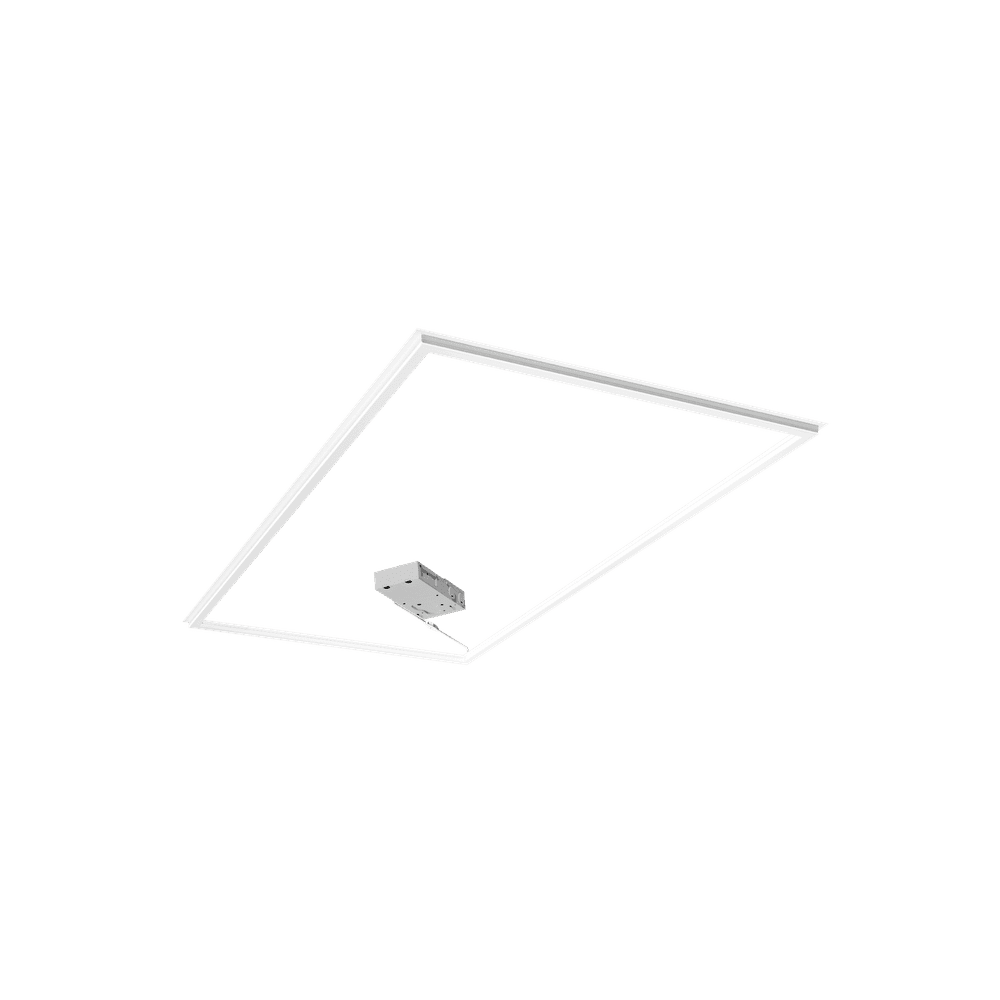

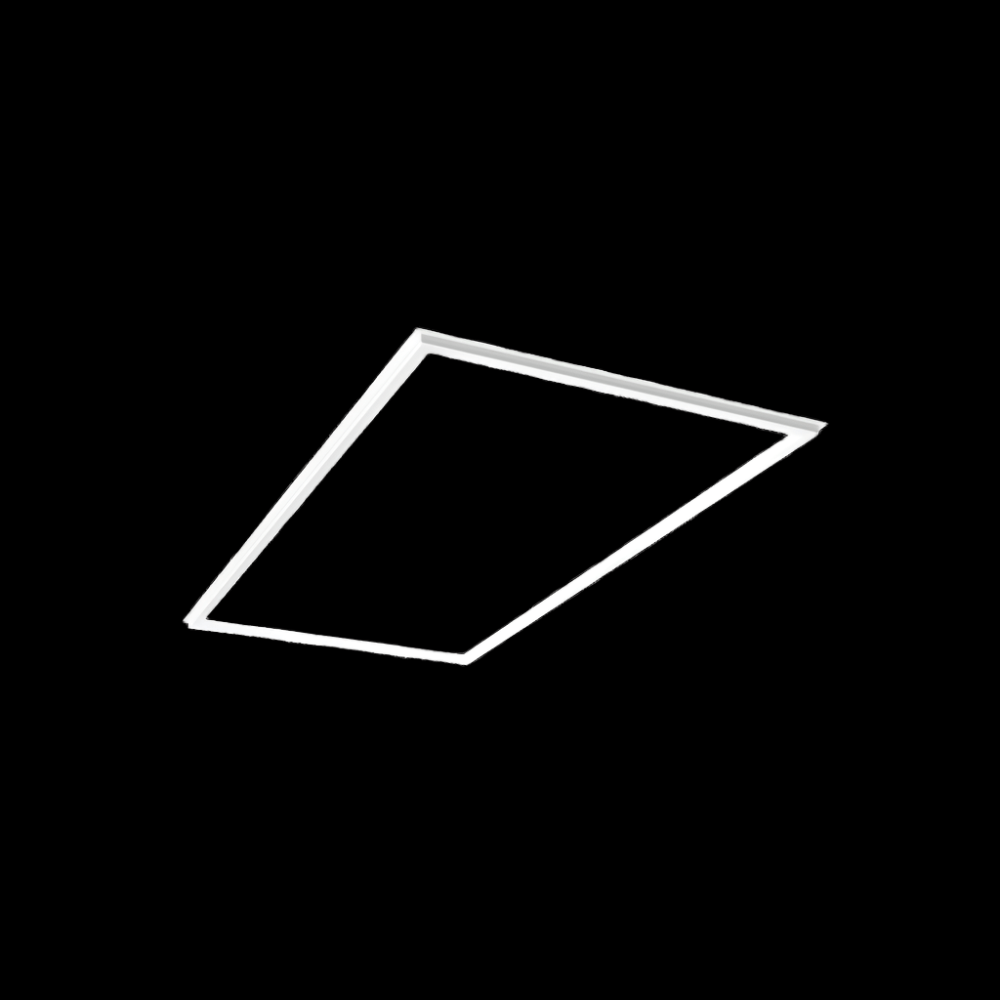

2X4 Frame Panel Selectable CCT/Wattage
The Goodlite Equator Frame Panel is a high-performance, low-profile LED panel designed for commercial and residential drop ceilings. Featuring both wattage and color temperature selectability, these panels offer unmatched flexibility for any lighting environment.
- Wattage Selectable: 2x4: 40W / 50W / 60W (up to 7800 lumens)
- 5CCT Switchable: 3000K / 3500K / 4100K / 5000K / 6500K
- 0-10V Dimmable
- Low Profile: Ultra-slim 1.2mm height
- 120–277V Universal Input
- CRI 80 for balanced color rendering
- Optional Emergency Backup (EM models)
Dimensions
| Length (in.) | 23.70” |
| Width (in.) | 47.75” |
| Height (in.) | 0.54" |
Spec Sheets
Spec Sheet
Info
| Wattage | 40/50/60W |
| Lumen | 5200/6500/7800 |
| Color Temp. | 3000K-6500K |
| Voltage | 120-277V |
| CRI | 80> |
| L70 Lifespan | 50,000 Hours |
| Finish | Formulated for high durability and long-lasting color |
| Lens | Frosted |
| Mounting | Surface Mount |
| Housing | Plastic frame & galvanized steel back housing |
Additional Info
| Model Number | G-12124 |
| Safety Listings | ETL, DLC Listed, TITLE 24 |
| Location Rating | Wet Location |
| Warranty | 5 Years |
