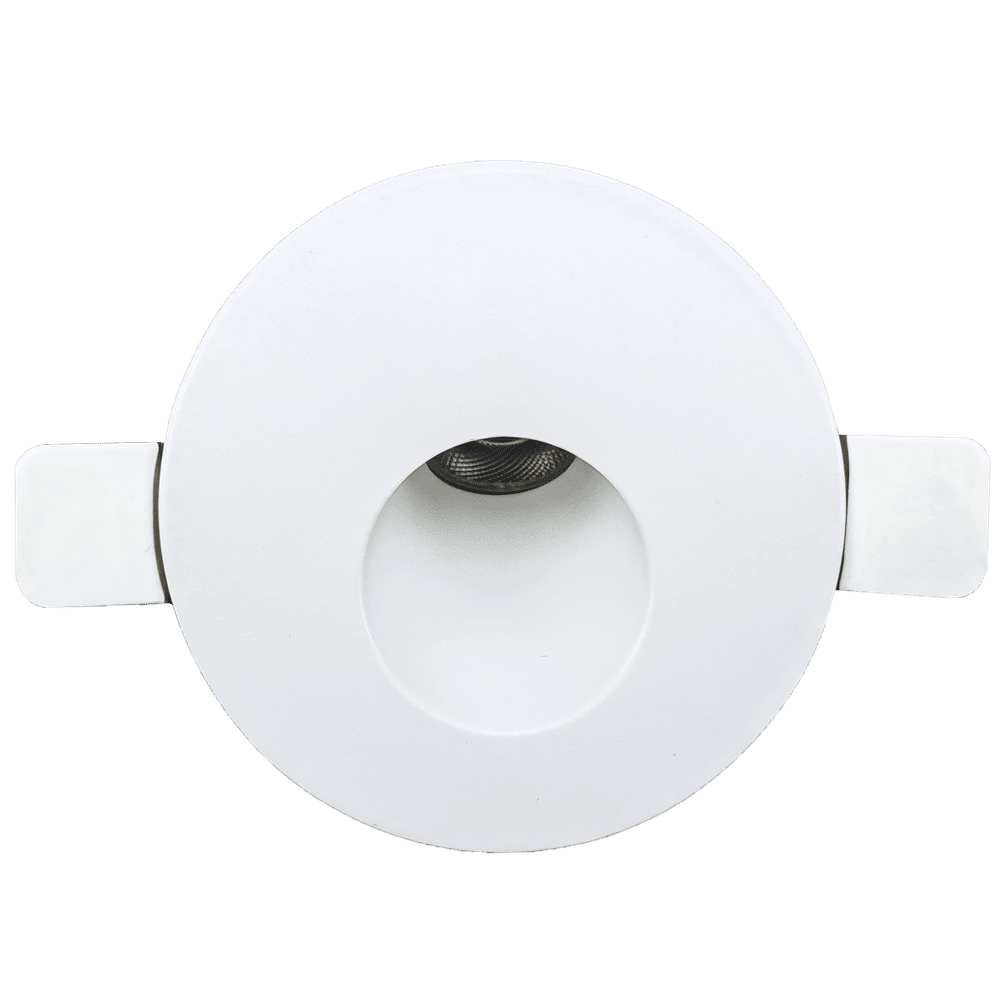

Eclipse Round Clip-In Step Light Selectable CCT
Illuminate staircases and pathways using the sophisticated yet compact ECLIPSE Round Clip-In Step Light. This 5-watt light source emits 500 lumens of soft, energy-efficient light and offers a 5CCT switchable range of color temperatures (2700K, 3000K, 3500K, 4100K, 5000K) for versatile ambience. Featuring a compact 2.5" x 2.5" cutout and shallow 1.5" depth, it can be easily and discreetly installed. With an 80° beam angle, impressive 90 CRI, and ability to dim down to 5%, it is perfect for use in both residential and commercial spaces. This light is also IC-rated, plenum-rated (FT6), and Title 24 compliant, ensuring both safety and performance.
- Wattage: 5W
- Color Temp: 5CCT (2700K–5000K)
- Voltage: 120V
- Beam Angle: 80°

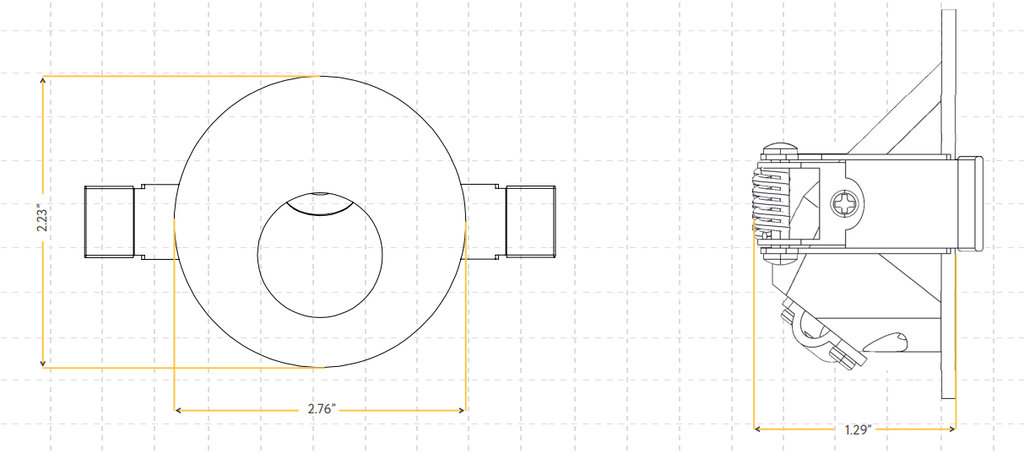

- Dimensions: 2.23" X 2.76"
- Cutout: 2.36", Depth: 1.29"
- Rated Life: 50,000 hours
- Warranty: 3 years
| Fixture Type |
Step Light |
| Finish |
White |
| Wattage |
5W |
| Lumen Output |
200L |
| CCT (Kelvin) |
27K-50K |
| Temperature |
Selectable CCT |
| Indoor or Outdoor Fixture |
Outdoor |
Spec Sheet
Info
| Technology |
LED |
| Wattage |
5W |
| Lumen |
350L |
| CCT (Kelvin) |
27K-50K |
| Color Temp. |
Selectable CCT |
| CRI |
>90 |
| Voltage |
120V |
| Rated Hours |
50000 |
| Dimmable |
Yes-Dimmable |
| Weight (lb.) |
.70 |
Dimensions
| Length (in.) |
2.76" |
| Width (in.) |
2.23" |
| Depth (in.) |
1.29" |
| Cutout (in.) |
2.36" |
Additional Info
| Safety Listing |
ETL Listed |
| Location Rating |
IP65 - Wet |
| Energy Star |
No |
| Warranty |
3 Years |
