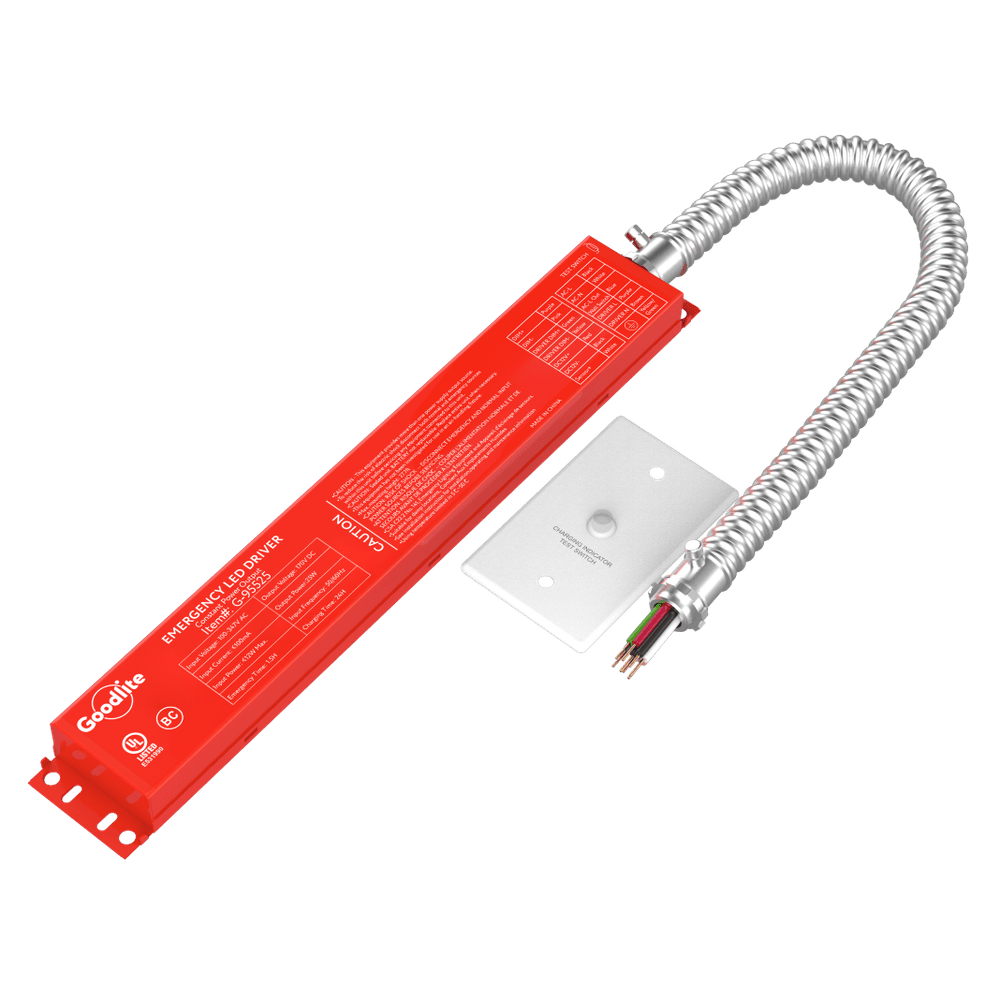

25W Emergency Backup Driver
This 25W Emergency LED Driver provides backup power for both isolated and non-isolated LED drivers. Can also be used with 0-10V dimming fixtures and capable of illuminating LED luminaires up to 150W, with a minimum illumination time of 90 minutes.
- UL listed for factory and field installation
- Easy wiring: directly connect to AC INPUT OF LED Lights
- Universal Input voltage:100-347VAC, 50/60Hz
- Self testing monthly/yearly
- Ideal for various kinds 0-10V dimmable indoor LED lights≤150W
(Non 0-10v dimmable LED lights≤25W)
| Type | Emergency Driver |
| Finish | Orange |
| Wattage | 25W |
| Indoor or Outdoor | Wet Location Rated |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Output Wattage | 25W |
| Output Max Milliamps | 4000mA |
| Output Voltage |
170VDC |
| Input Voltage |
120/347V |
| Battery Backup Time |
90 Minutes |
| Input Current Max | 100mA |
| Recharging Time | 24 Hours |
Dimensions
| Width (in.) | 12.91" |
| Length(in.) | 1.45" |
|
Height (in.) |
0.94" |
Additional Info
| SKU | G95525 |
| Safety Listing | UL Listed |
| Location Rating | Wet Location |
| Energy Star | No |
| Warranty | 5 Years |
