Description

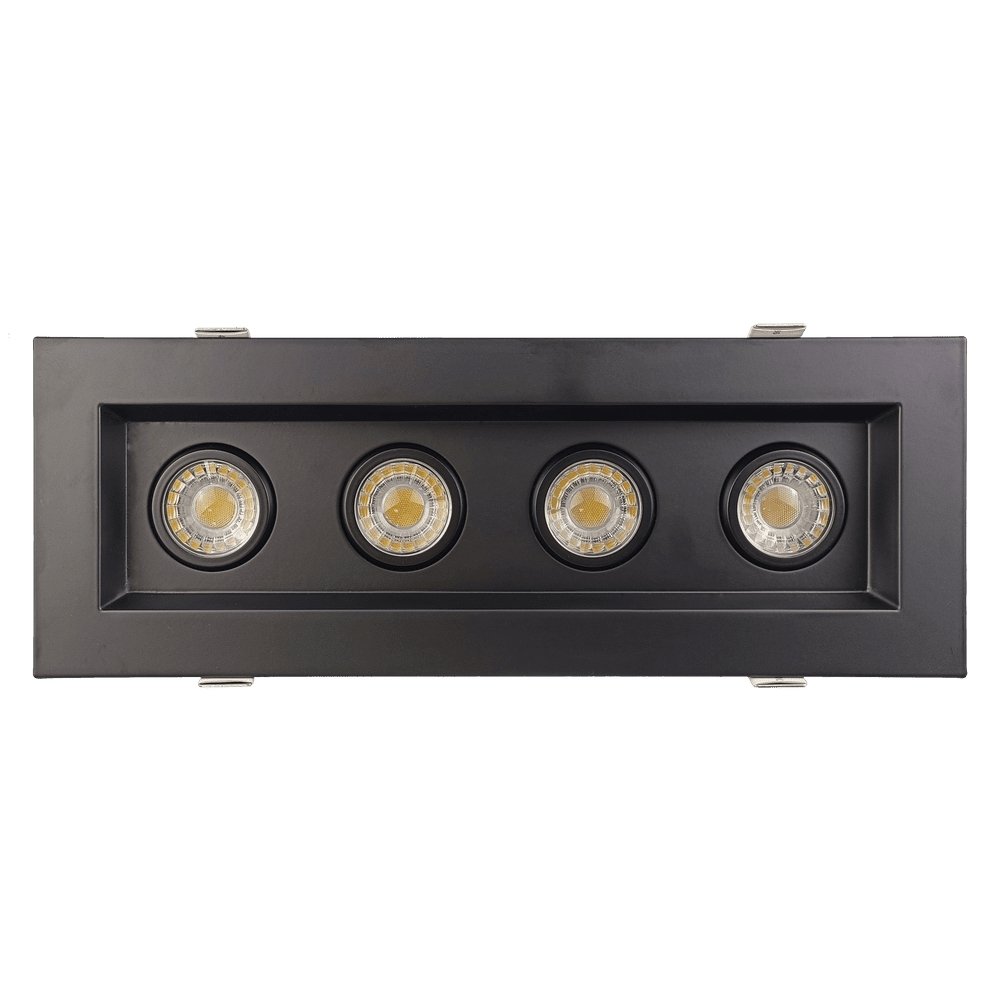

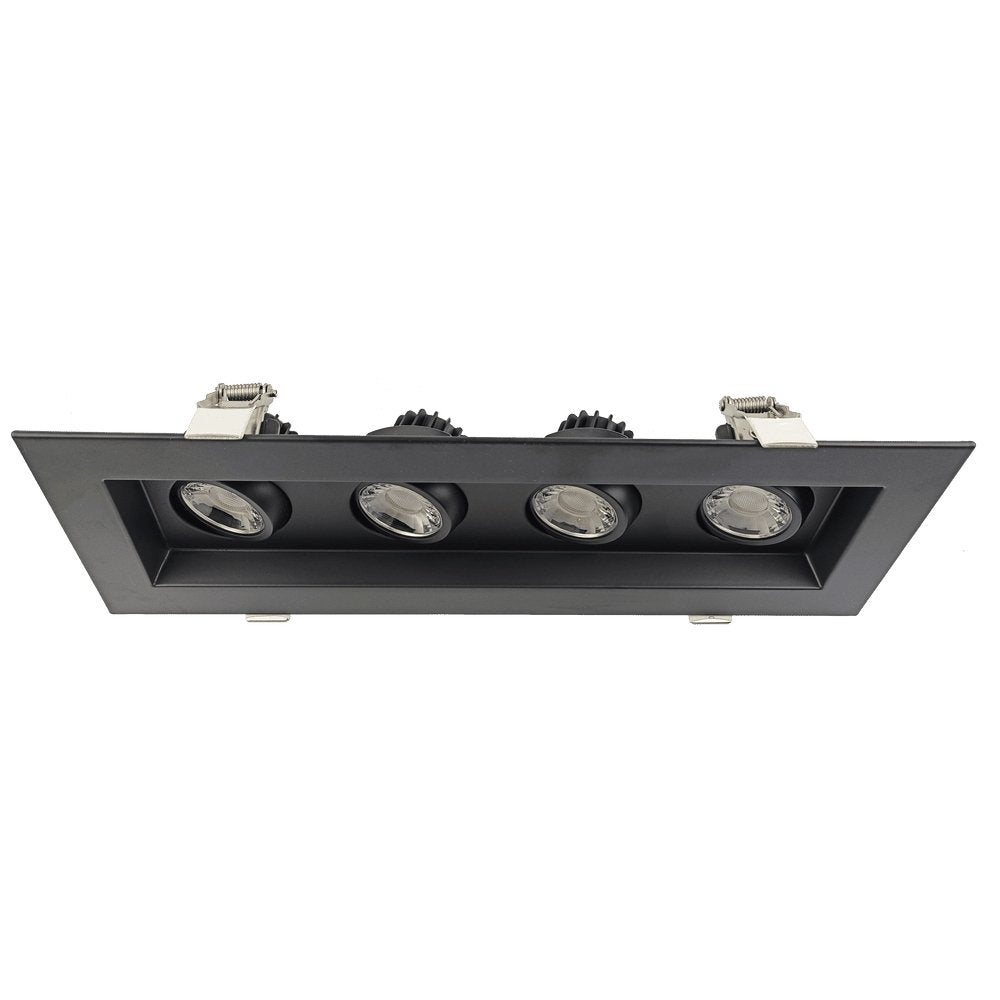

30W 4-Head Gimbaled Downlight CCT Select
R3/30W/GR/M4/LED/5CCT B
3 inch LED Quadruple Gimbal Downlite Fixture, Black Finish
Selectable Color Temperature, 27,30,35,41,50k
Includes: LED Luminaire, Driver, Instruction sheet.
- Wattage : 30
- Equiv. Wattage : 275W
- Output Lumen : 2800
- Dimmable: Yes
| Fixture Type | 4 Head LED Luminaire |
| Finish | Black |
| Wattage | 30W |
| Lumen Output | 2800L |
| CCT (Kelvin) | 27K-50K |
| Temperature | Selectable Color |
| Location |
Damp |
Click Here for Rough in Mounting Plate
Spec Sheet
Spec Sheet
IES Profile
Info
| Technology | LED |
| Wattage | 30W |
| Lumen | 2800L |
| CCT (Kelvin) | 27K-50K |
| Color Temp. | Selectable |
| CRI | >90 |
| Voltage | 120V |
| Rated Hours | 50000 |
| Dimmable | Yes-Dimmable |
| Weight (lb.) | 2.00 lbs |
| Beam Angle | 40° |
Dimensions
| Length (in.) | 14.06" |
| Width (in.) | 5.08" |
| Cutout (in.) | 3.35" x 12.50" |
| Height (In.) | 2.70" |
Additional Info
| Safety Listing | ETL Listed |
| Location Rating | Damp |
| Energy Star | No |
| Warranty | 3 Years |
