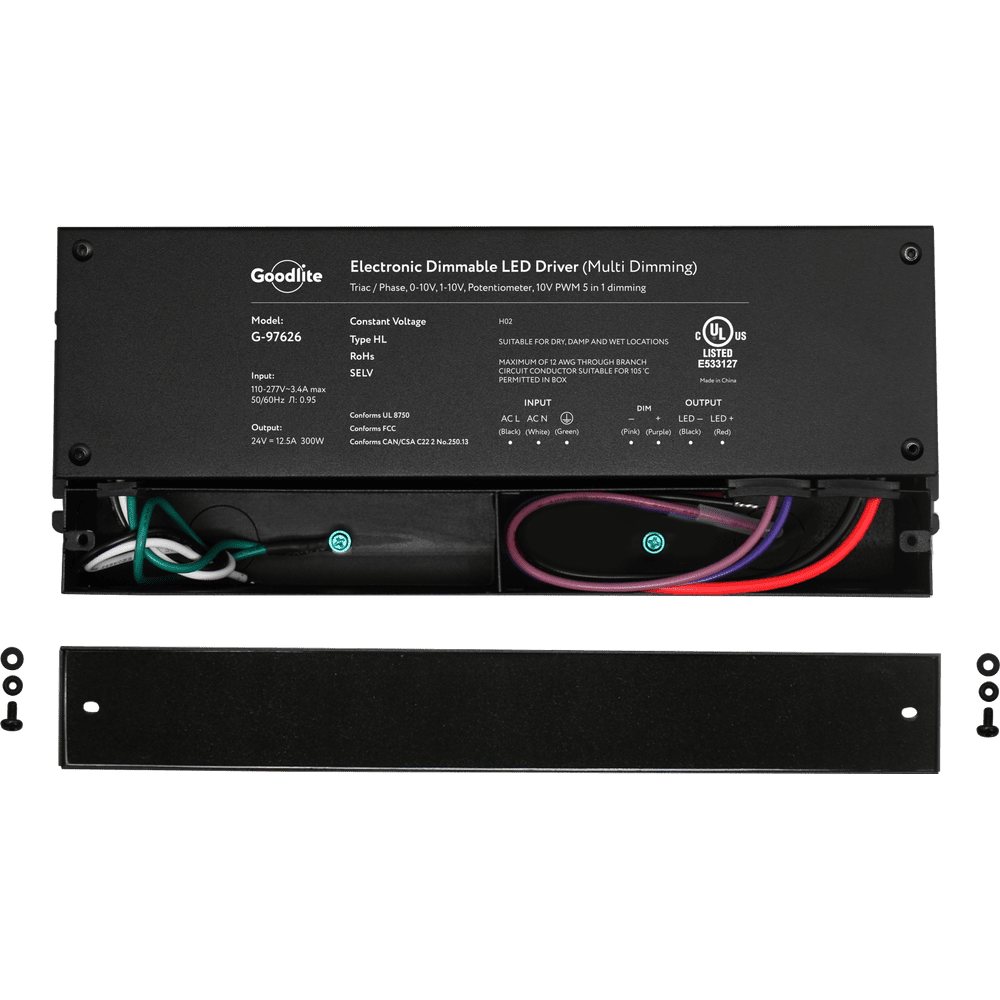

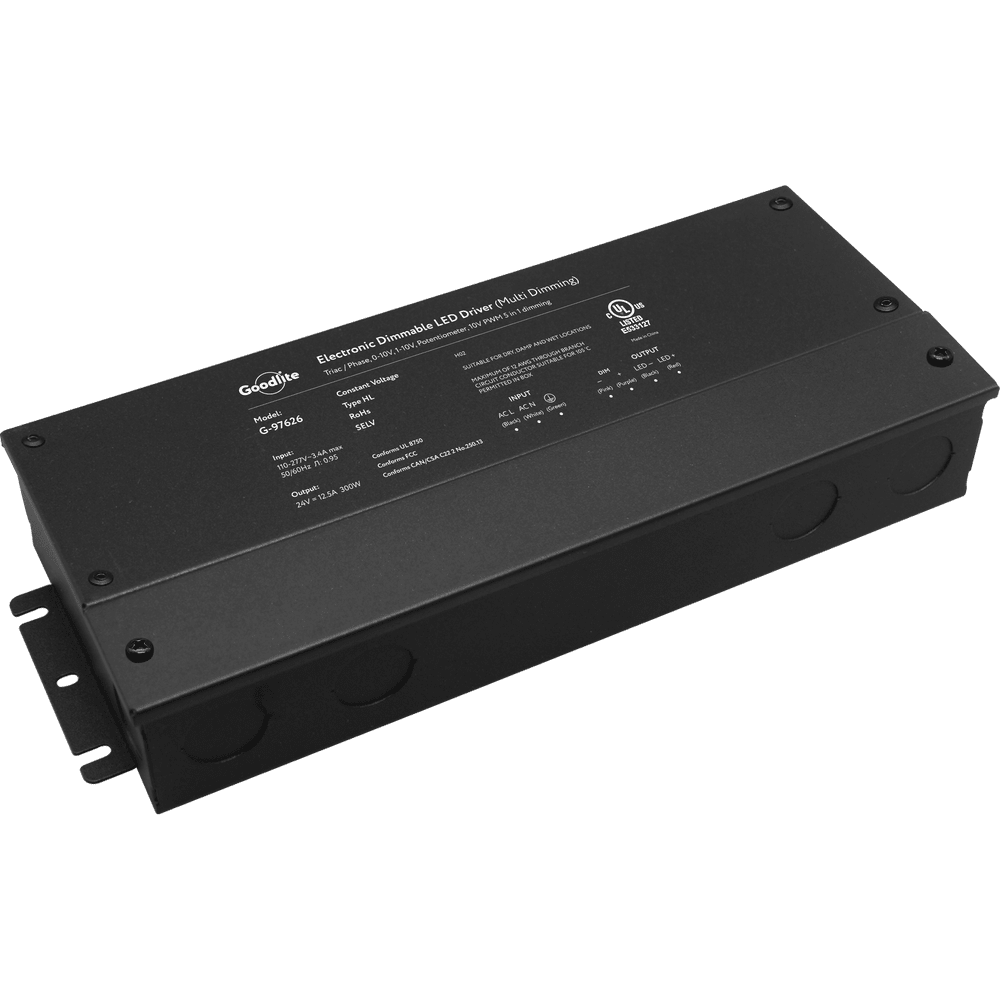

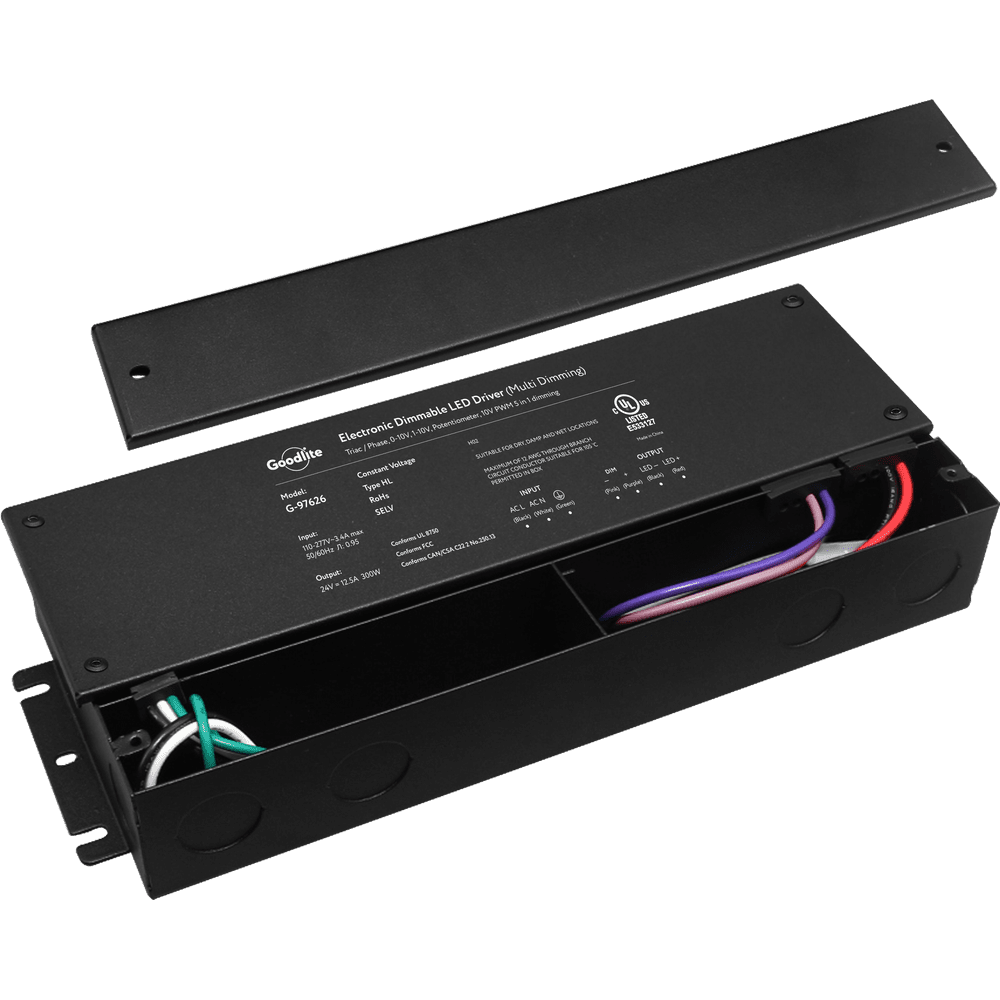

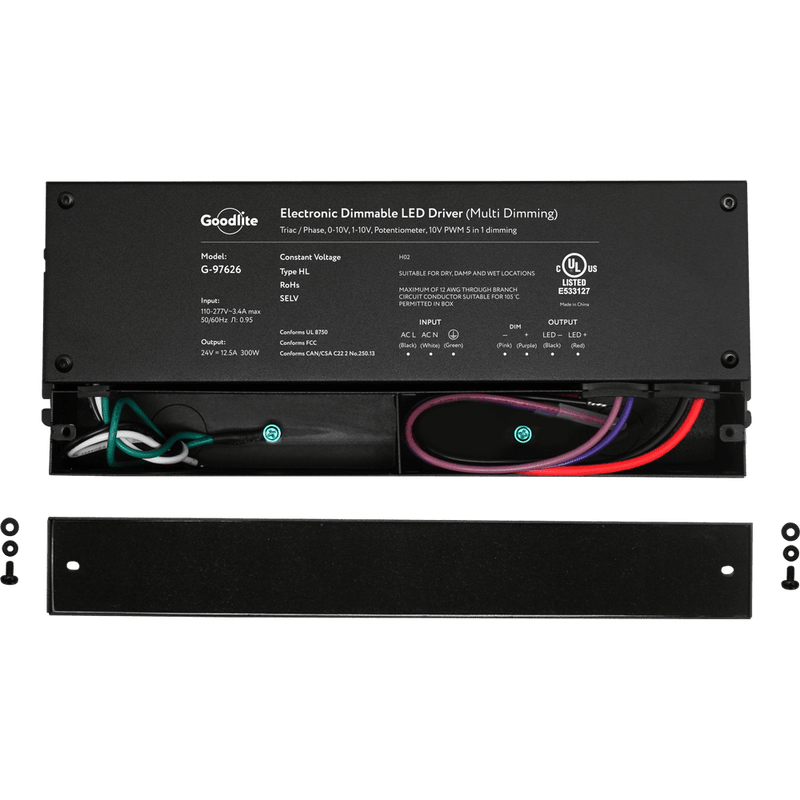

300W 24V Electronic Dimmable Driver
300W/24V/ECV/Driver
Electronic Dimmable driver
Constant voltage output
- Dimming : Triac / Phase, 0-10V, 1-10V
- 600W
- Potentiometer
- 10V PWM
-
5 in 1 dimming Electronic
Dimensions
| Width (in) | 4.13" |
| Length (in) | 10.11" |
| Height (in) | 1.73" |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Wattage | 300W |
| Voltage | 24VDC |
| Input Voltage | 110-277VAC |
| Dimmable | Triac / Phase, 0-10V, 1-10V, Potentiometer, 10V PWM |
| UL Listed | Yes |
| Location | IP66 Wet Location |
Accessories
| G-48516 |
C/PTS/CONNECTOR | Tape to Power Connector |
| G-48517 | C/STS/CONNECTOR | Tape to Tape Connector |
| G-48518 | C/6"/JUMPER/CONNECTOR | 6" Tape to Tape Connector |
