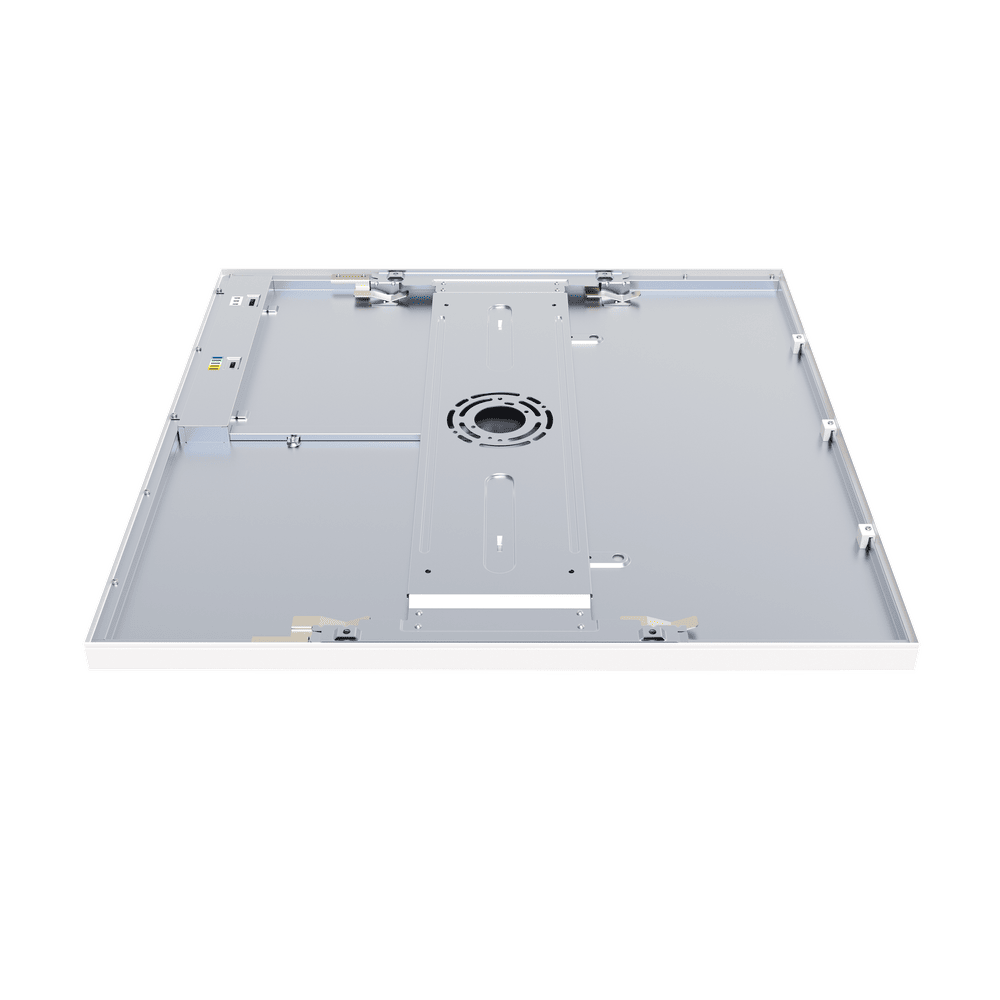

2X2 Surface Mount Panel Selectable CCT/Wattage
This 2x2 Surface Mount LED Panel delivers versatile performance and modern efficiency, ideal for commercial and residential applications where surface mounting is preferred. Featuring selectable wattage and color temperature, this panel adapts easily to your lighting needs.
- Wattage Selectable: 30W / 40W / 50W
- Lumen Output: 3660 / 4720 / 5750 lumens
- CCT Selectable: 3000K / 3500K / 4100K / 5000K / 6500K
- Dimmable: Yes (compatible with 0-10V dimmers)
- Input Voltage: 120–277V
- Mounting: Surface mount – no recessed ceiling required
- Application: Ideal for offices, schools, retail, healthcare, and more
Dimensions
| Length (in.) | 23.74” |
| Width (in.) | 23.74” |
| Height (in.) | 1.06" |
Spec Sheets
Spec Sheet
Info
| Wattage | 30/40/50W |
| Lumen | 3660/4720/5750 |
| Color Temp. | 3000K-6500K |
| Efficacy | 113.2-127.8 lm/W |
| Voltage | 120-277V |
| CRI | 80> |
| L70 Lifespan | 50,000 Hours |
| Finish | Formulated for high durability and long-lasting color |
| Lens | Frosted |
| Mounting | Surface Mount |
| Housing | Plastic frame & galvanized steel back housing |
Additional Info
| Model Number | G-12023 |
| Safety Listings | ETL, DLC Listed, TITLE 24 |
| Location Rating | Wet Location |
| Warranty | 5 Years |
