Legrand 5747WH Wiremold Single-Gang Shallow Switch and Receptacle Box Fitting

SKU: LEG-5747WH
Color: White
All deliveries are carbon neutral
Powered by Shopify Planet
$10.99 $11.99 / Piece
8% OFF
5OFFSALE (5% OFF)
Ships within 3-10 business days.

Description

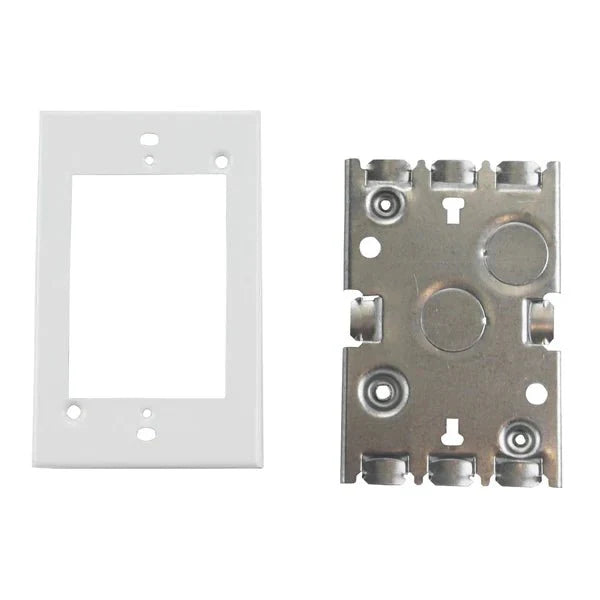

Single-Gang Shallow Switch and Receptacle Box Fitting

For standard shallow switches and receptacles including single-gang combination devices. Base has two 1/2'' trade size KOs. Larger gang boxes available by special order. Single-gang: 4 5/8'' L x 2 7/8'' W (117mm x 73mm). Accepts NEMA single-gang standard faceplates. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''vc'' or the ''WH'' color suffix to ''WHC'' to denote the Canadian versions.



Product Width (in.) 2.875"
Product Height (in.) 4.62"
Product Depth (in.) 1.375
Product Weight 1.0 lb


Spec Sheet

Cut Sheet

Installation Instructions

Info
Product Line Wiremold
Application Sector Residential/Commercial
Standard cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E4751 Guide RJPR. Meets Article 386 of NEC. Meets Section 12-1600 of CEC.
Type Raceway



Additional Info
RoHS Conformant YesThis product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
NAFTA Yes
Voltage 600 V
