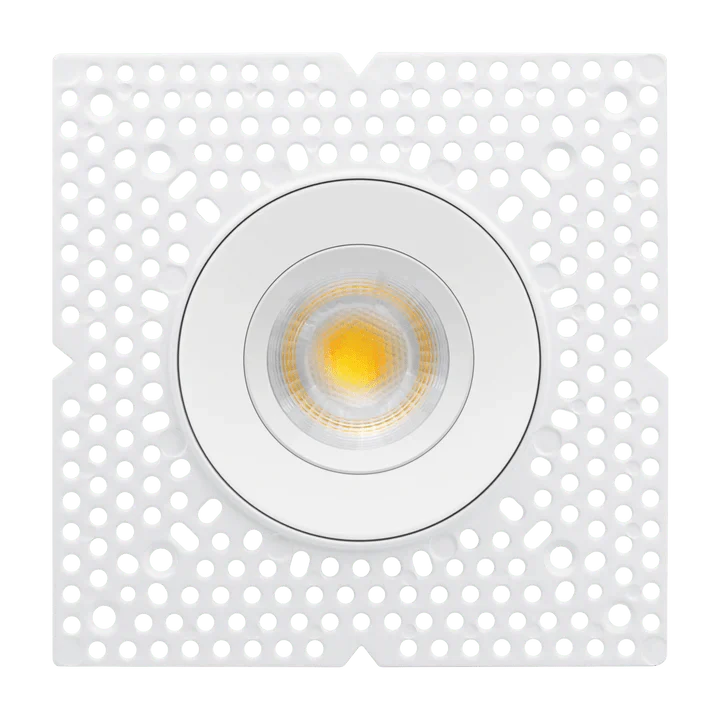

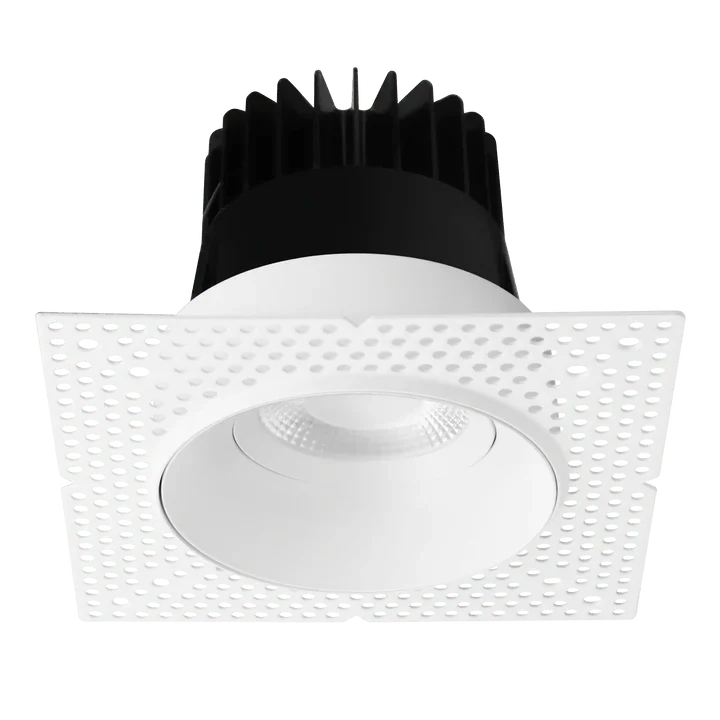

LR25434 4" 20W Trimless Gimbaled Spotlight
The Luxrite LR25434 is a 4-inch regressed trimless spotlight designed for seamless integration into modern lighting setups. With its selectable color temperature (CCT) and gimbal design features, this spotlight offers flexibility in achieving the desired ambiance for any space.
This fixture is suited for universal voltage applications and supports dual dimming options, ensuring compatibility with various lighting systems. Its gimbal design and push 'n lock mechanism facilitate easy installation and maintenance.
Engineered for efficiency, the 20W LED light delivers optimal illumination while minimizing energy consumption, making it an ideal choice for both residential and commercial environments.
- Selectable CCT for customizable lighting environments
- Universal voltage compatibility for diverse applications
- Dual dimming support for enhanced control
- Trimless design for a clean, modern aesthetic
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Wattage | 20W |
| Lumen | 2000L |
| Color Temperature | Selectable CCT |
| Beam Angle | 36° |
| CRI | 90+ |
| Voltage | 120-277V |
| Dimmable | TRIAC/0-10V |

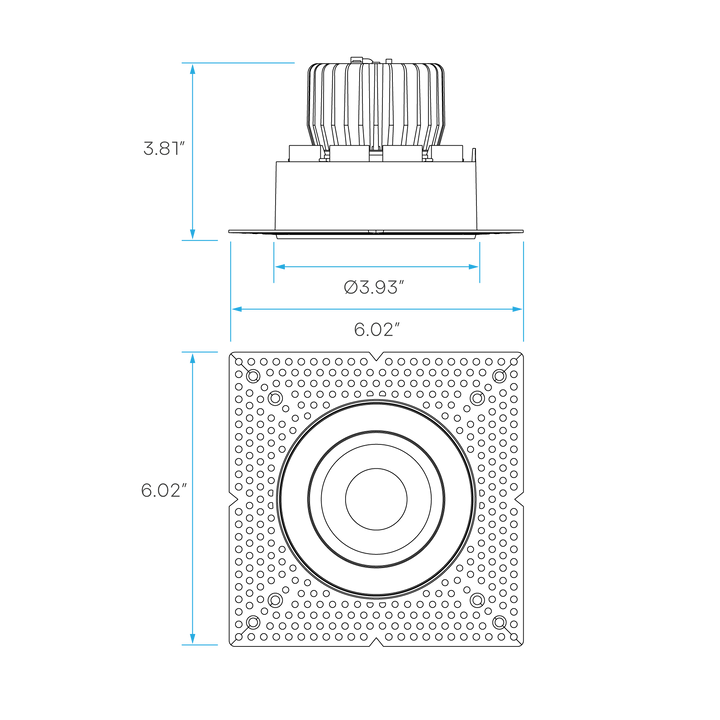

Dimensions
| Length (In.) | 6.02" |
| Width (In.) | 6.02" |
| Depth (In.) | 3.81" |
| Cutout (In.) | 4.25” |
Additional Info
| IC Rated | Yes |
| Location Rating | Wet Location |
| Listings | cETLus |
| Waranty | 5 Year |
