160W Integrated LED Driver Full-Range Dimmer & Color Temperature Controller

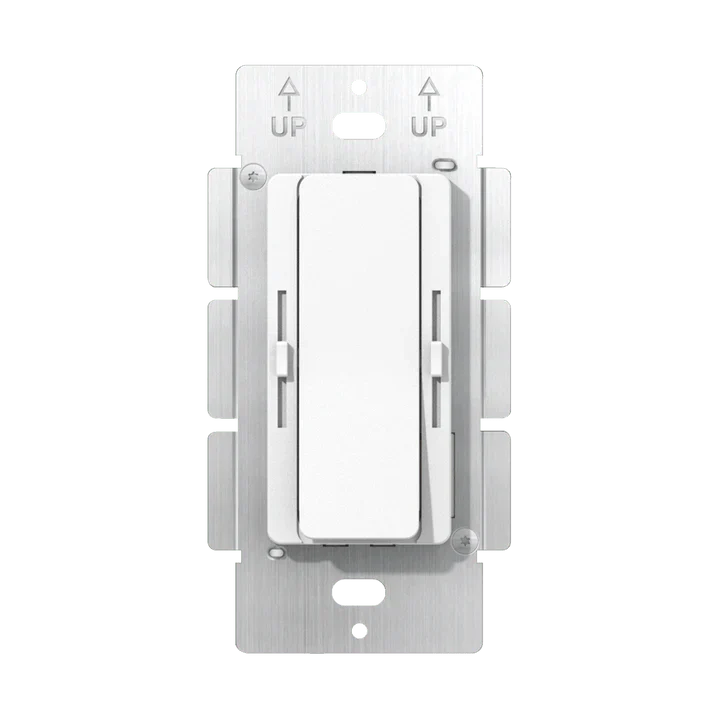

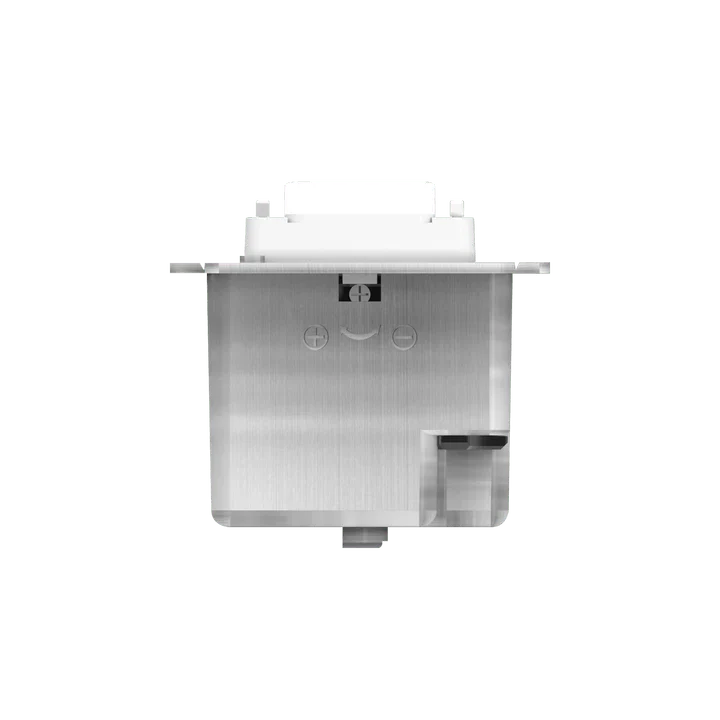

The Luxrite LR36143 is a compact all-in-one LED power and control solution, combining a high-efficiency Class 2 driver, full-range dimmer, and CCT (correlated color temperature) slider into a single unit. Designed for seamless integration into residential and commercial lighting systems, this micro driver delivers smooth dimming, flexible color tuning, and flicker-free 24VDC output.
- Supports 2700K-5000K
- Ultra-smooth 0–100% dimming with 4096 levels
- Fine-tuned control via touch-sensitive remote color wheel
- Linear dual-color tuning with no flicker
- 2.4GHz signal range up to 30 meters (barrier-free)
- Match up to 10 remotes per controller
- Auto-transmitting and synchronization between multiple controllers
- Works with 12–24VDC constant voltage LED tape lights
- Dual channel output: up to 120W per channel at 24V
- Power-off memory saves last light state
- Optional fade-in/fade-out on power on/off
- Power-off memory saves last light state
- Two pairing methods: button match or power cycling
- Compact, low-profile design with mounting rack included
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Wattage | 160 |
| Input Voltage | 120VAC, 60Hz |
| Output Voltage | 24VDC (adjustable to 26V) |
| Output Current | 6.67A |
| Efficiency | 94.5% @ full load |
| Dimming Range | 0.3% – 100% |
| Certifications | UL/cUL, FCC, RoHS, SELV |
| Environment | Dry/damp location, -40°F to 140°F |
| Protection | Short-circuit, overload, overheat |

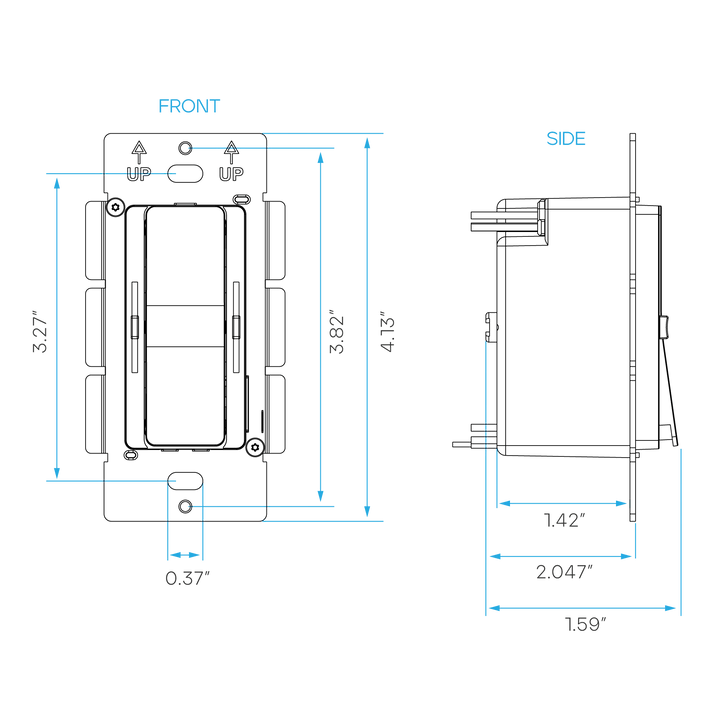

| Dimensions | 4.13" x 2.13" x 2.00" |
| Warranty | 5 Years |
