Description

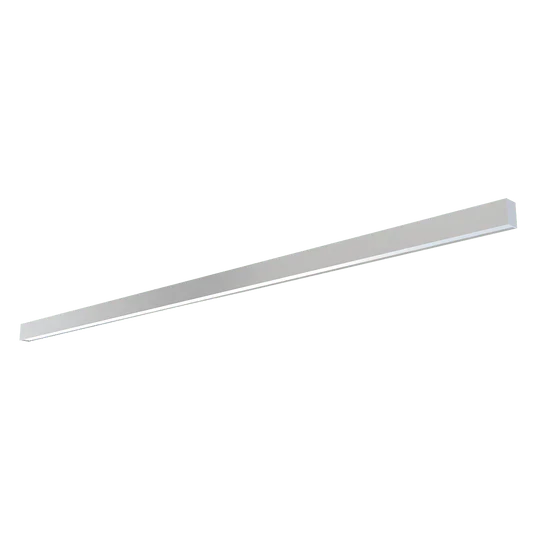

8FT 80W Architectural Linear Up/Down Fixture

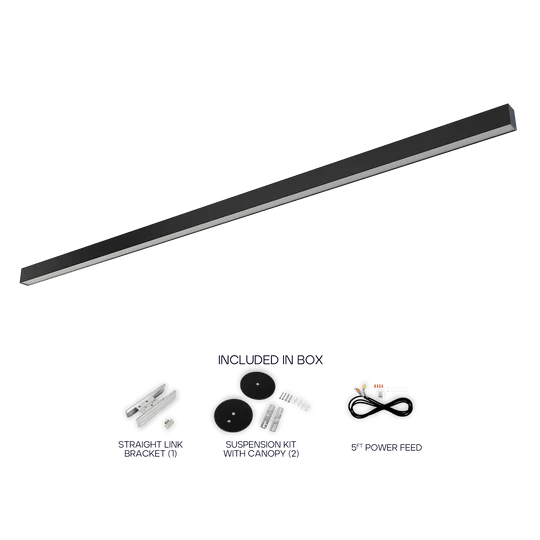

Combining standard wrap performance and high-end linear lighting, These architectural linear fixtures offer adjustable wattage and CCT options for an affordable price. Offering 70/30%, 90/10% uplight, or 100% downlight, and reduced glare for a contemporary look. The fixture comes with a suspension kit, straight connector and a 5' power feed.
- Available in following sizes / selectable wattages:
2FT - 15/20/25W
4FT - 30/40/50W
8FT - 50/60/84W
- Available field-adjustable CCTs: 5000/4000/3500
- End-to-end connector available for continuous run mounting
- 5-Year, No-Compromise Warranty
- UL listed for damp locations
- DLC listed
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Wattage | 50/64/80W |
| Lumen | 5750/7360/9200 |
| Color Temp. | 35K-50K |
| Efficacy | 122.2-135.4 lm/w |
| Lifespan | 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Lighting Pattern | 70%/90%/100% downlight, 30%10% uplight |
| Lens | Diffused Polymethyl Methacrylate (PMMA) |
| Finish | Black, White |
| Mounting | Comes standard with two mounting accessories: aircraft cable for secure, suspended mounts and a stainless bracket for easy mounting to junction boxes |
| Finish | Formulated for high durability and long-lasting color |
