Description

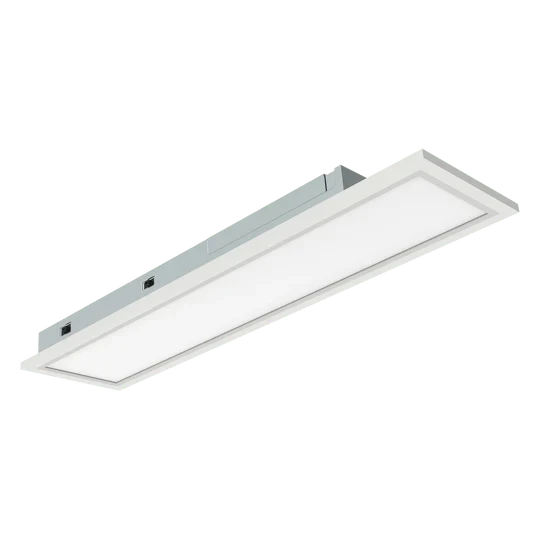

6 IN X 2FT Linear Backlit Panel Lay In
Traditional linear panels have been completely revamped in this sleek, modern style. The super-narrow frames, shallow profile, and greater surface area result in smoother, more luminous output. The linear flat panel provides a sleek modern linear light with back-lit construction to provide a soft glare-free solution. It is designed for grid/T-bar ceiling and can be used in many lighting applications. Uses include schools, offices, retail, healthcare and other commercial spaces
LED6"X2BPNL/3WO/4CCT/D
- Barely visible frames integrate beautifully with updated decor and create more surface area.
- Less than 2” deep, this fixture still provides identical lumens per SF as the original linear flats.
- Available in 3000K, 3500K, 4000K and 5000K color temperature with a minimum of 80 CRI.

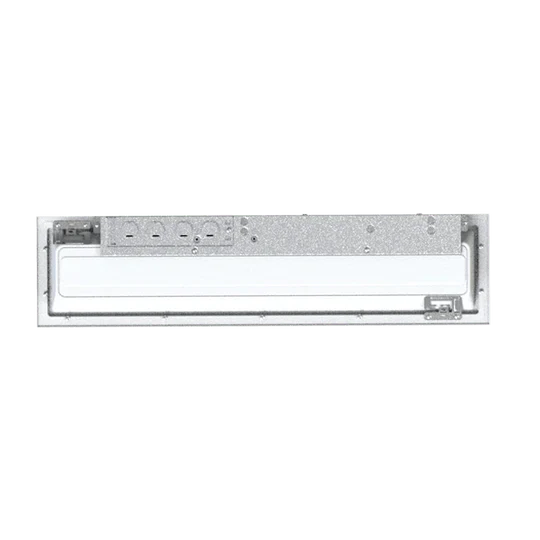

- The back plate includes integral T-bar clips for installation in grid ceilings.
Spec Sheet
Spec Sheet
Installation Instructions
Info
Dimensions
|
| Wattage | 13/16/20 |
| Lumen | 1600/1900/2200 |
| Color Temp. | 3000K/3500K/4000K/5000K |
| Efficacy110 | lm/W |
| CRI | >80 |
| Voltage | 120-277V |
| Dimming |
0-10V |
| Warranty | 5 Year |
