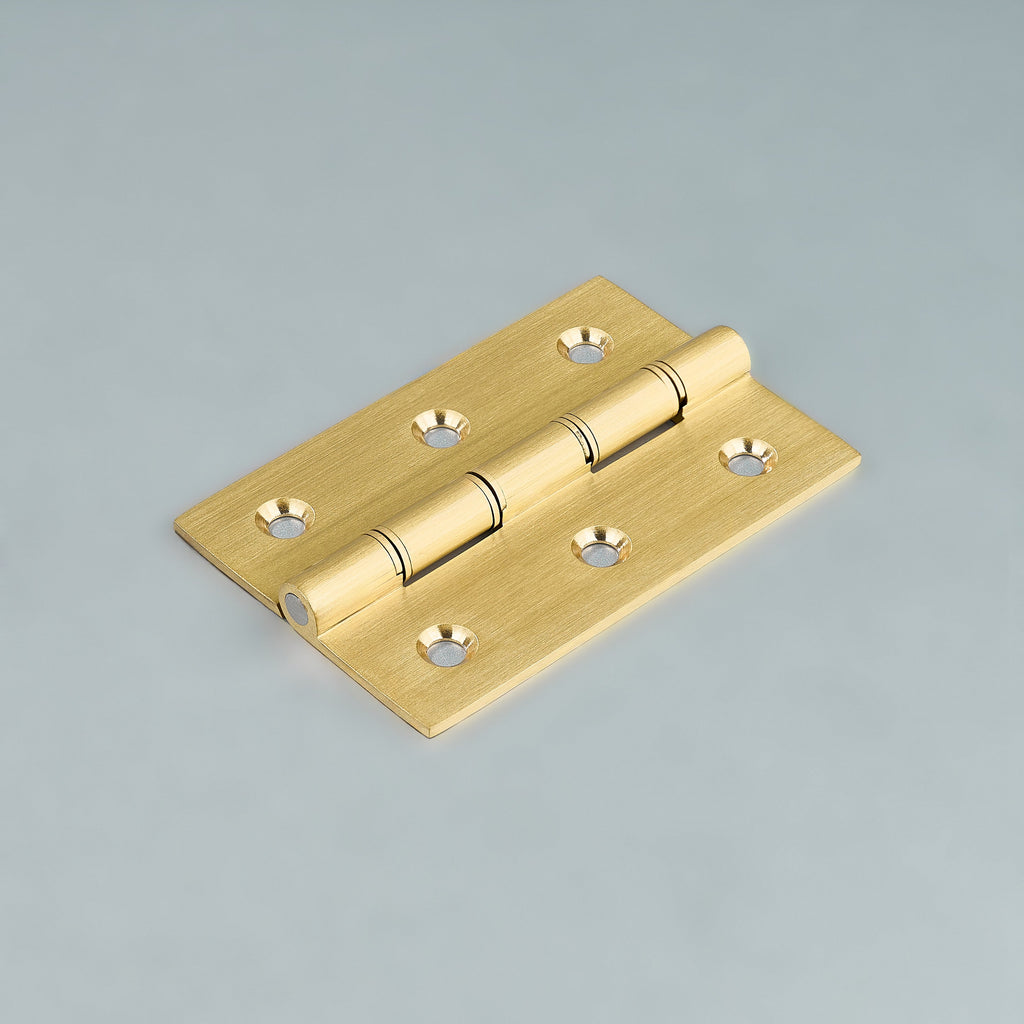

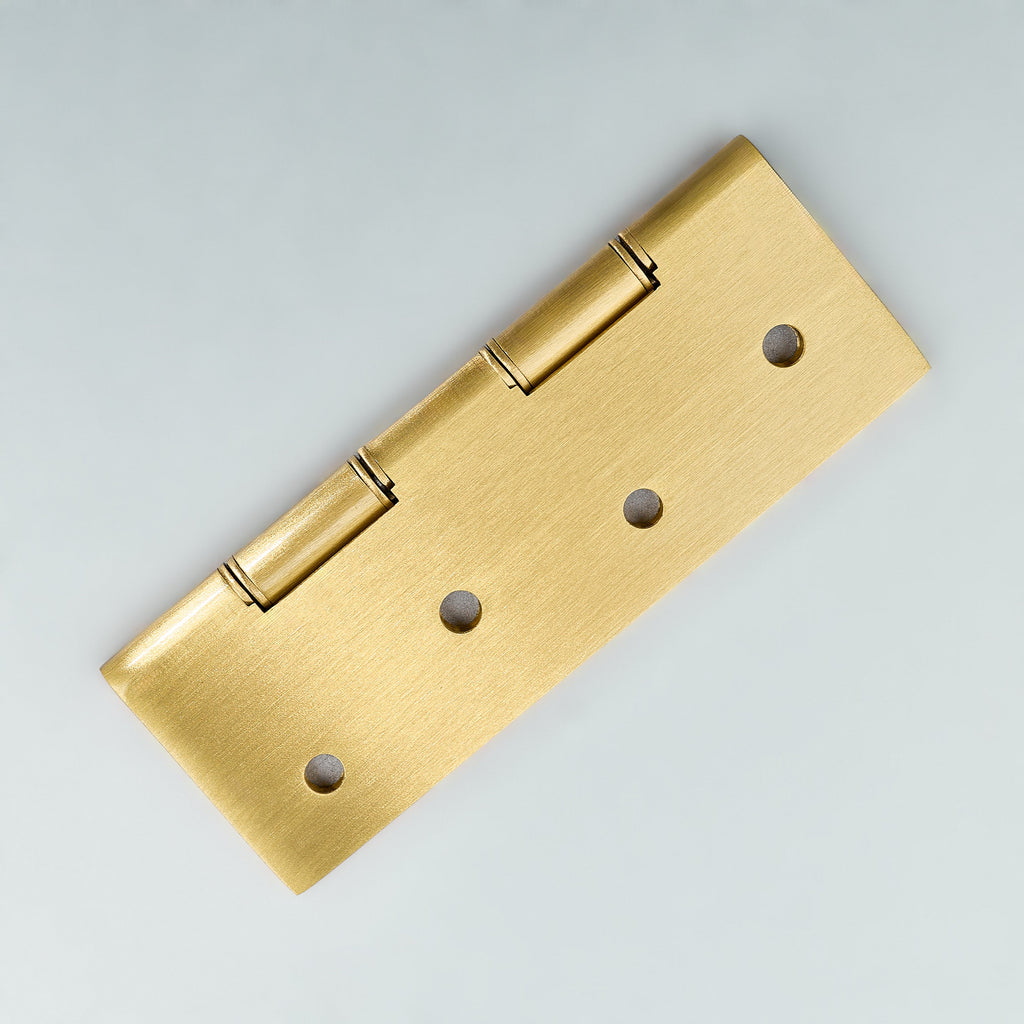

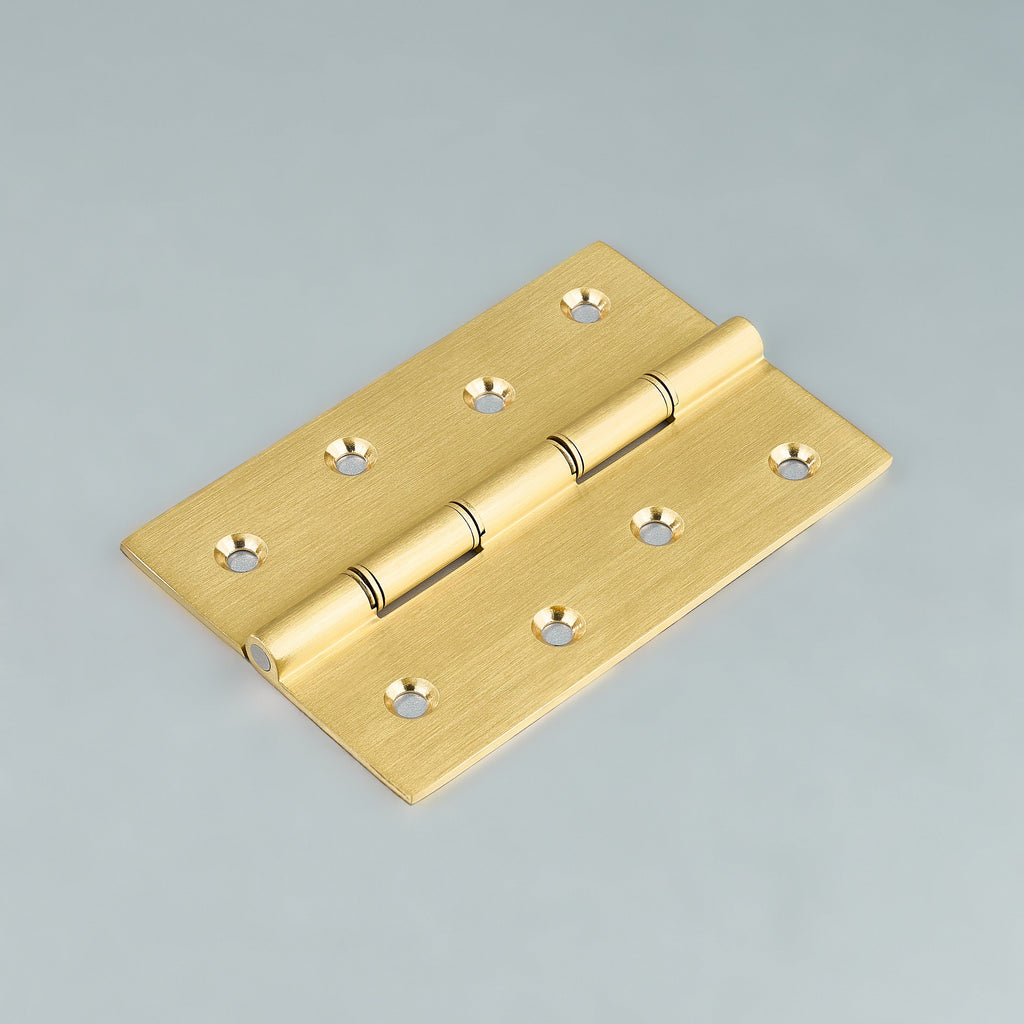

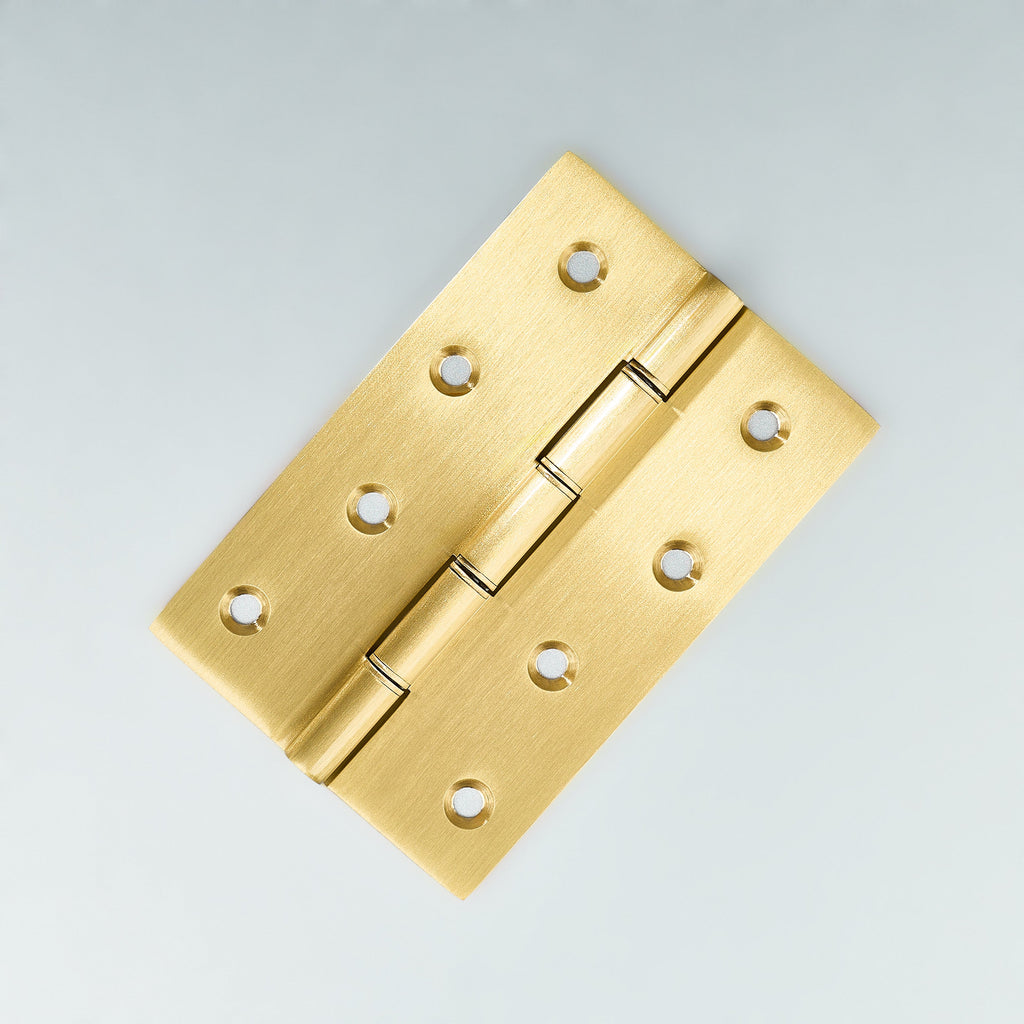

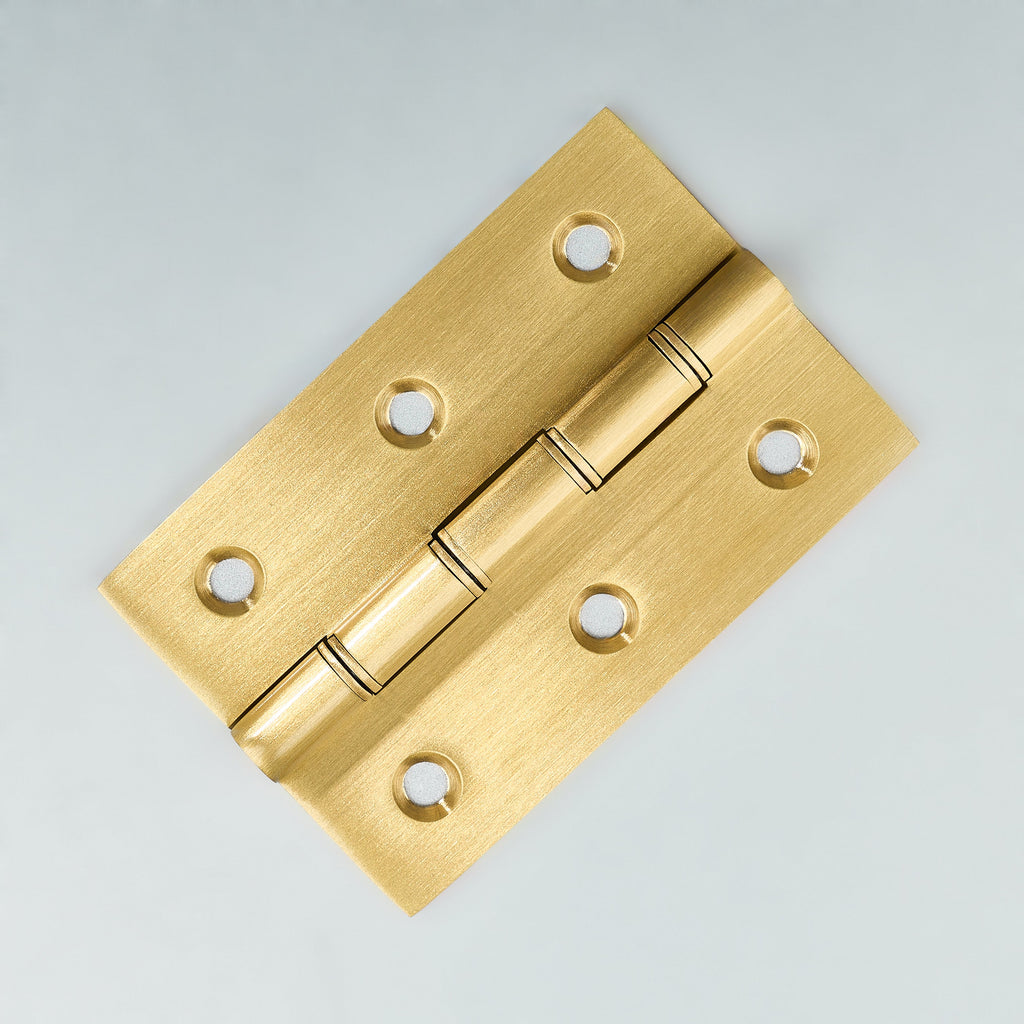

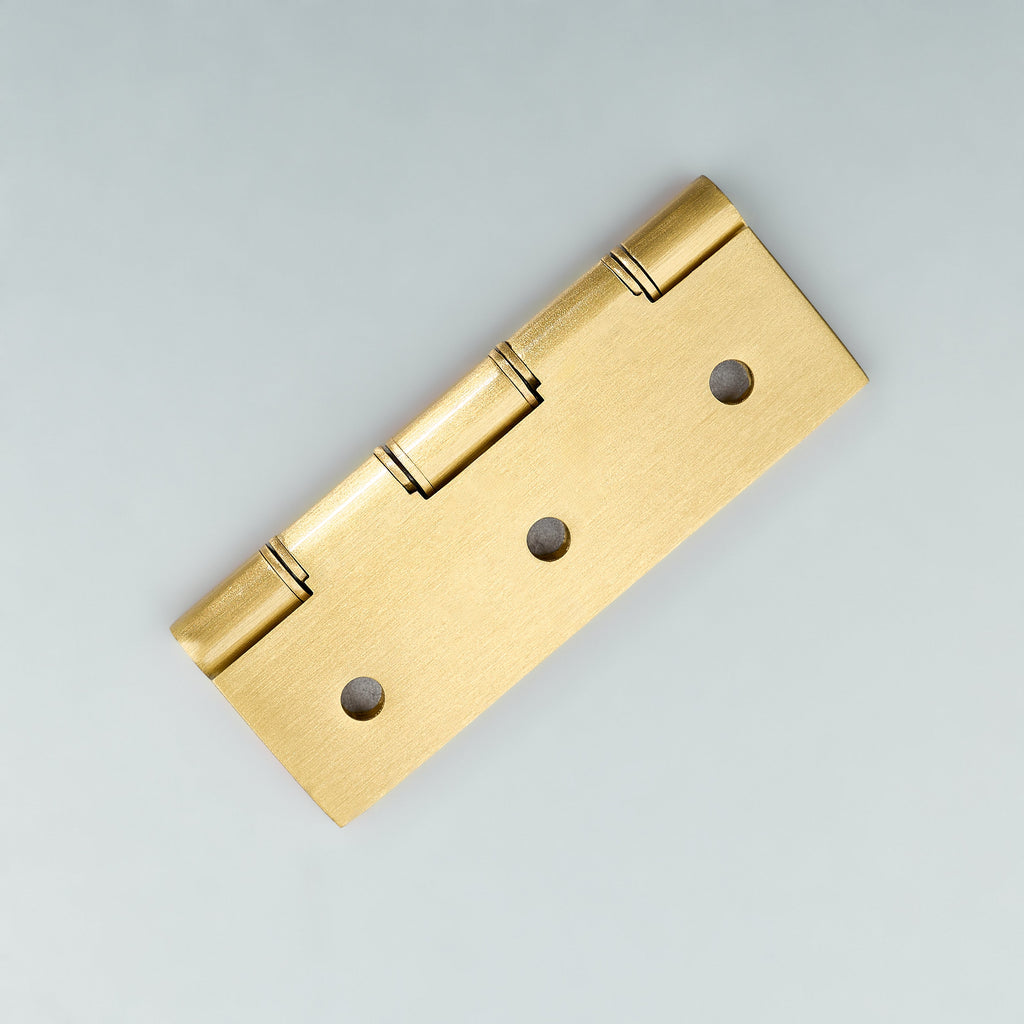

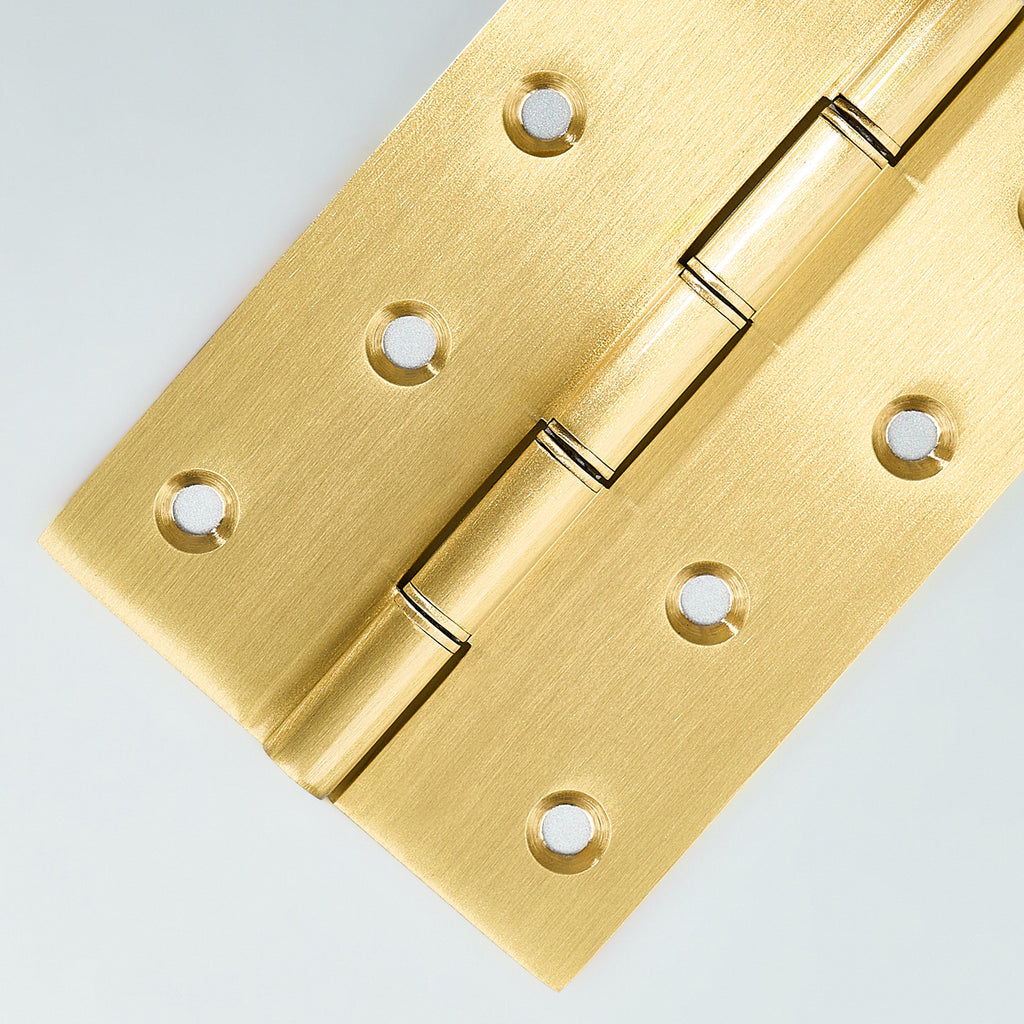

The narrow barrel of a hinge can become a small repeating detail along a cabinet door. Neptune pairs that rounded line with square-edged brass plates and washer construction. The satin brass finish with gloss lacquer brings warmth to the visible hardware without adding ornament. Designed for cabinetry doors and sold in sets of two.
Materials and finishes
Solid brass.
Listed finishes: Satin Brass (gloss lacquer).
Product selections
Size: 4"x2.6" Square Edge (set of 2); 3"x2" Square Edge (set of 2).
Dimensions
4"x2.6" Square Edge (set of 2):
Hinge length: 100.75 mm; Open hinge width: 66.48 mm.
3"x2" Square Edge (set of 2):
Hinge length: 75.85 mm; Open hinge width: 50.00 mm.
Size selections are nominal inches. The hinge length and open width above are actual dimensions in millimetres; match the selected edge profile and handed configuration.
Included
Two hinges, 16 matching screws
Use and installation
Match the leaf size, edge shape and handed option, where listed, to the door and frame.
