Description

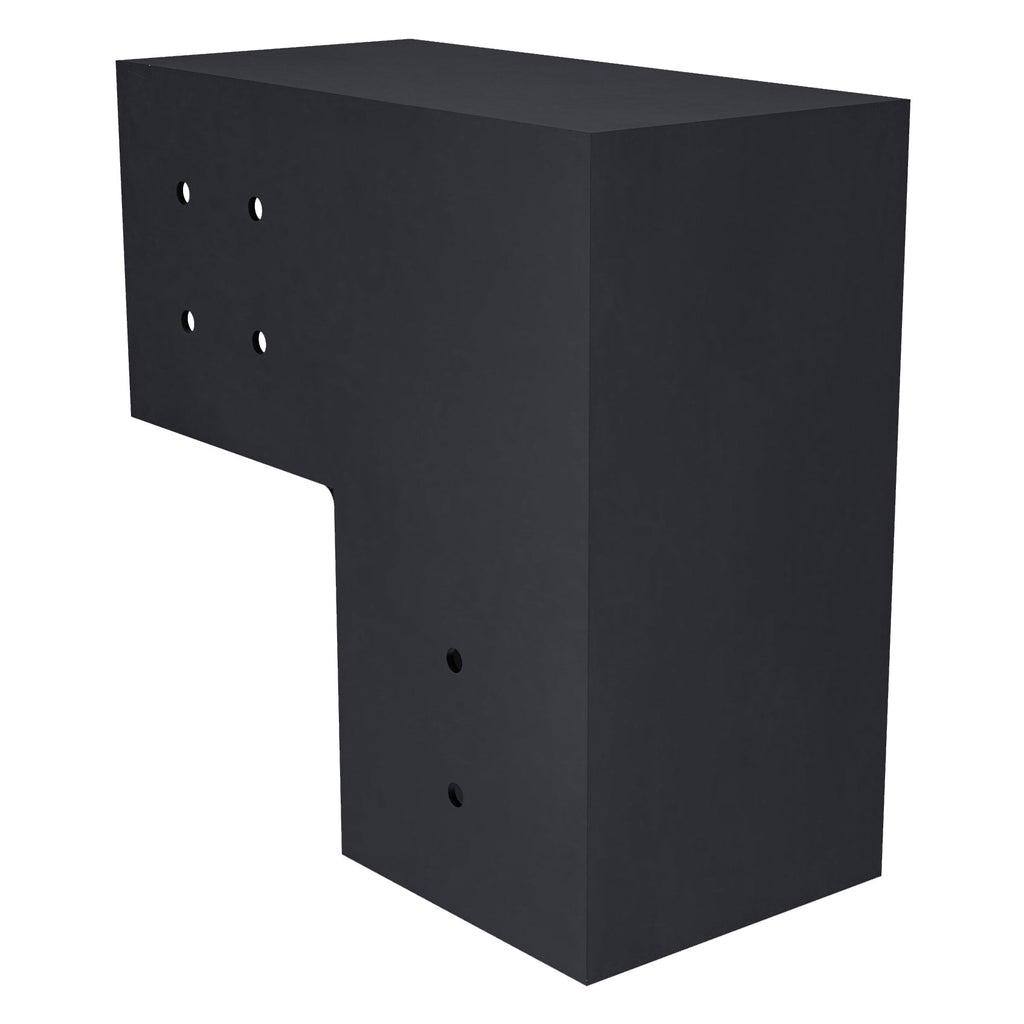

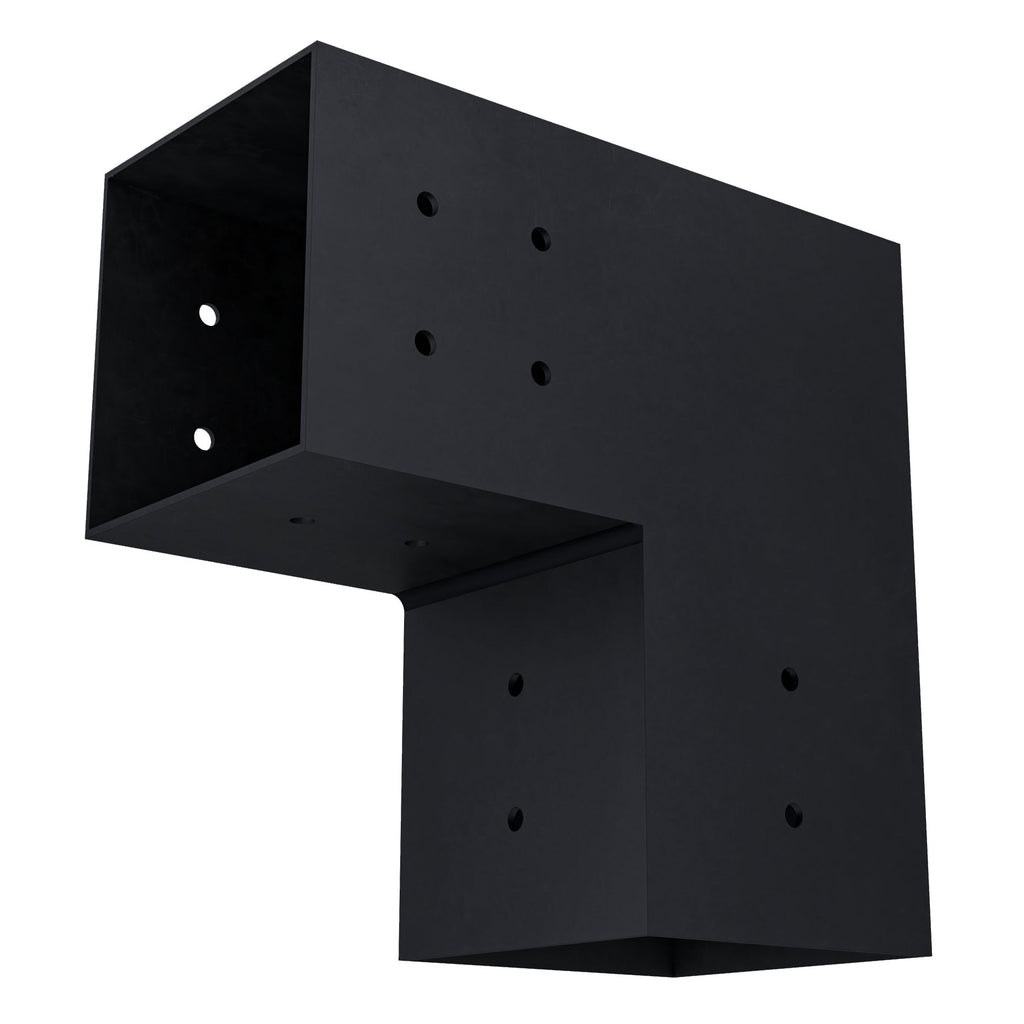

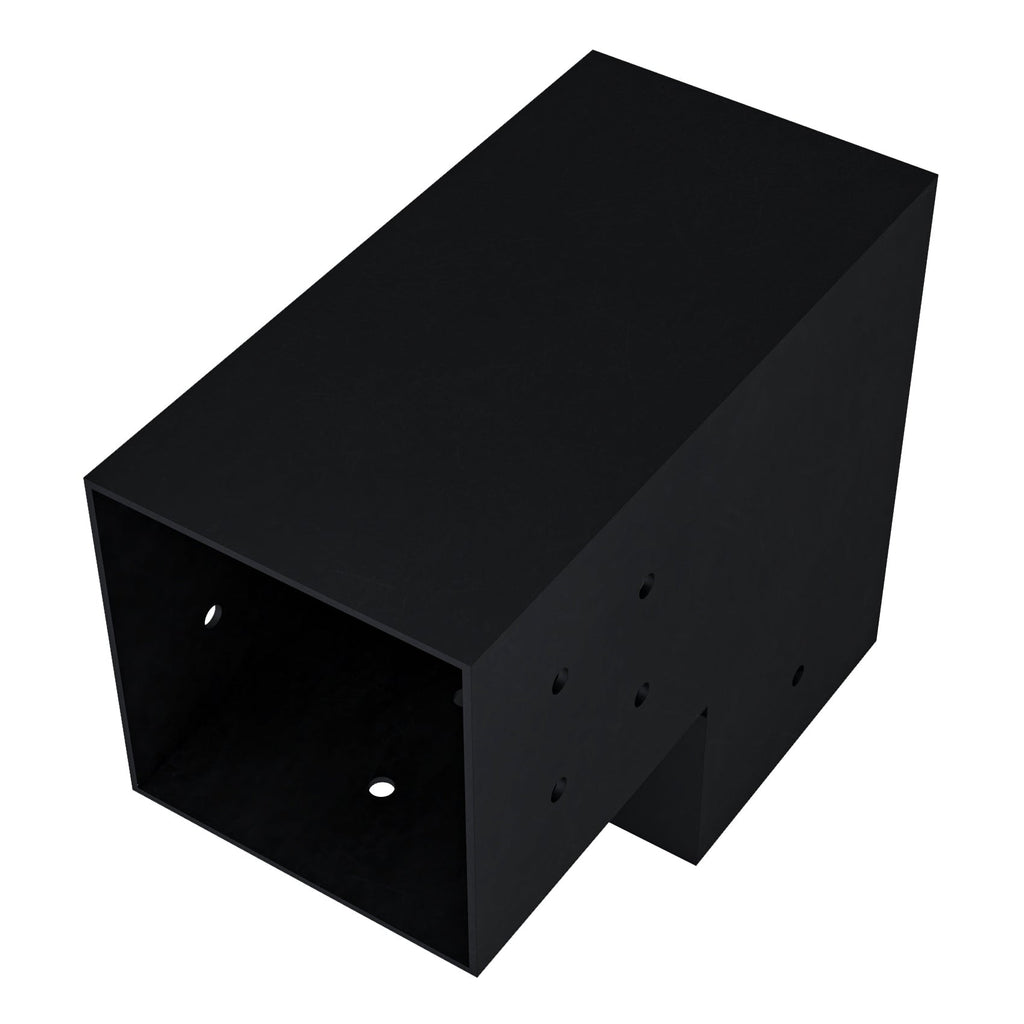

2-Arm L Bracket Usage
2-arm "L" brackets are used at the tops of a stand-alone privacy wall (one that is not connected to a pergola frame). They are also used when building a triangle pergola with traditional roof rafters (atop the beams).
4x4 Pergola Bracket Features
- Made with premium quality steel
- 14-gauge steel (~2.0mm thick)
- Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5” x 3.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width: 7.5 inches (190.5 mm)
- Depth: 3.75 inches (95.25 mm)
- Height: 7.5 inches (190.5 mm)
- Number of arms: 2 (1 vertical + 1 horizontal)
- Inner dimensions of each arm: 3.6 x 3.6 inches (92 x 92 mm) - made for 4x4 wood posts (which measure 3.5 x 3.5 inches)
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 3.35 pounds
- Not included: wood posts
