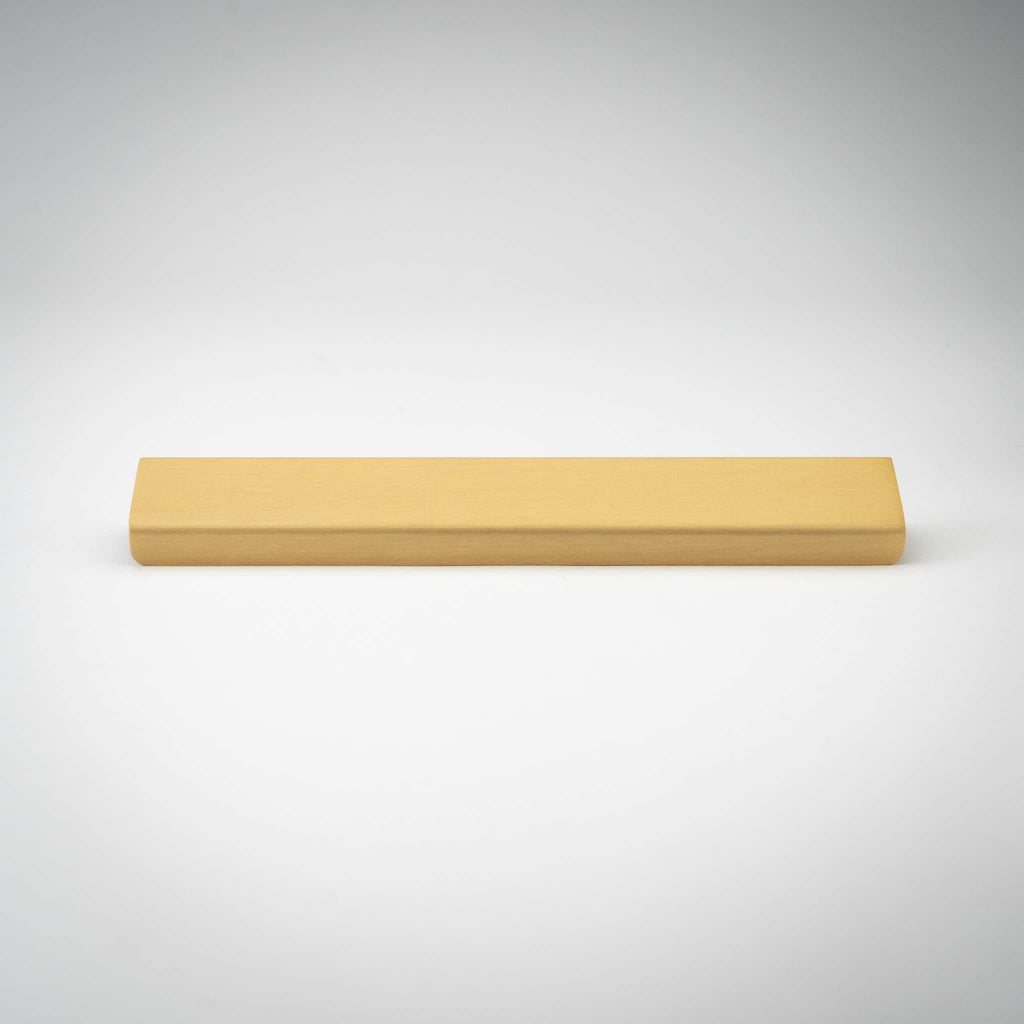

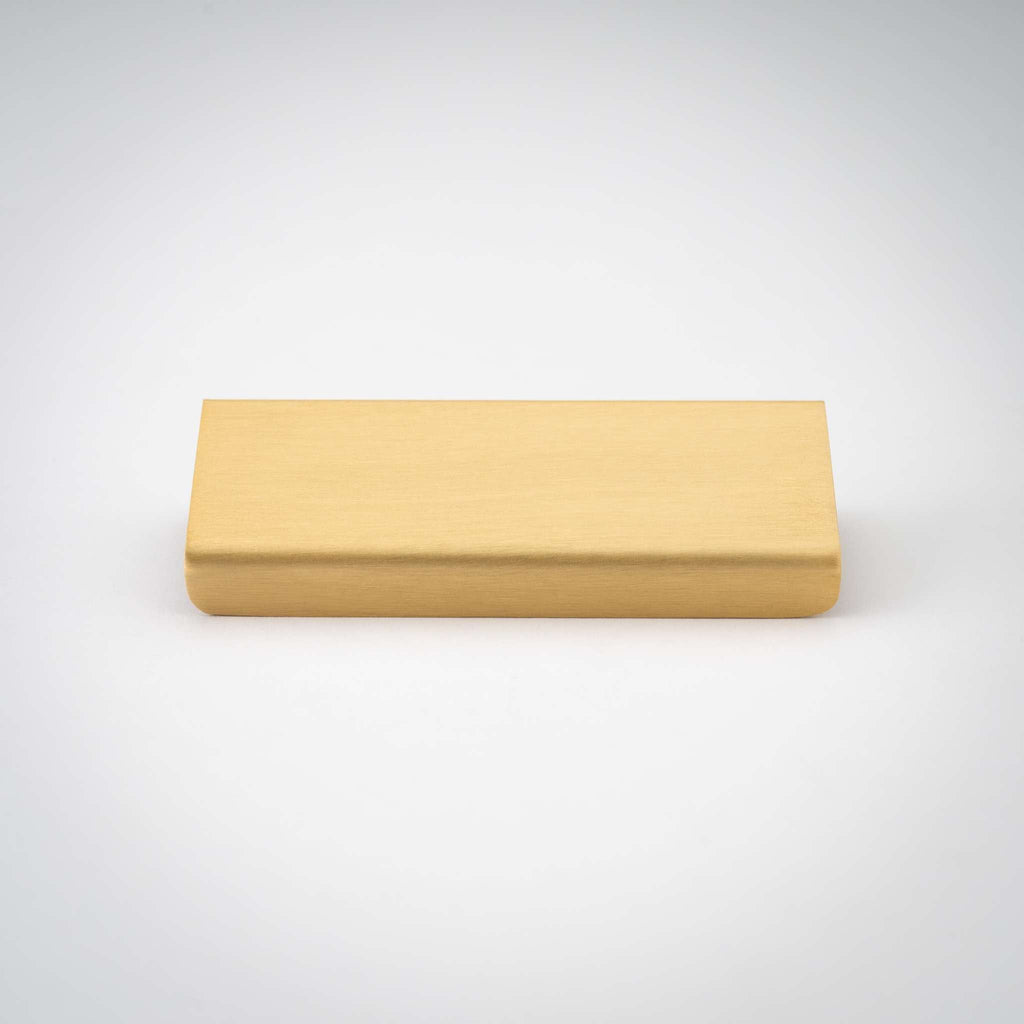

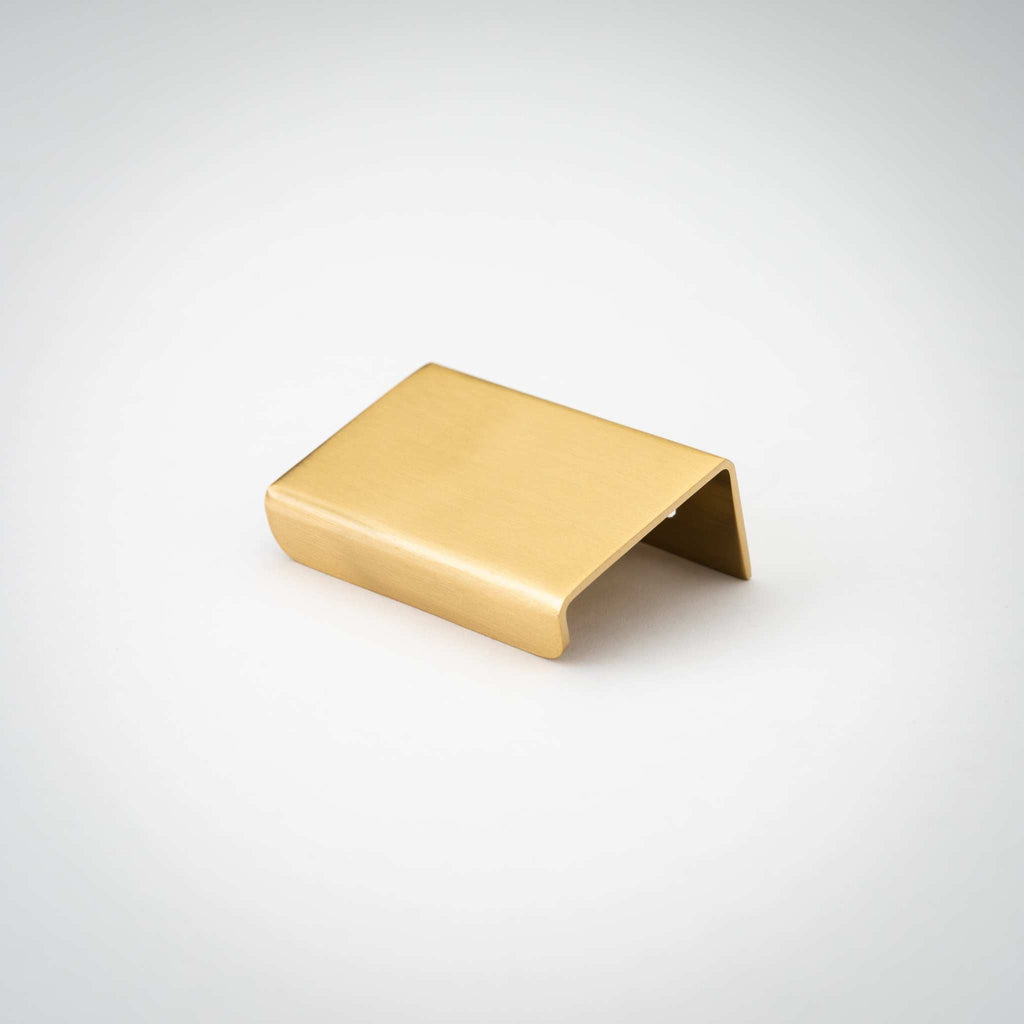

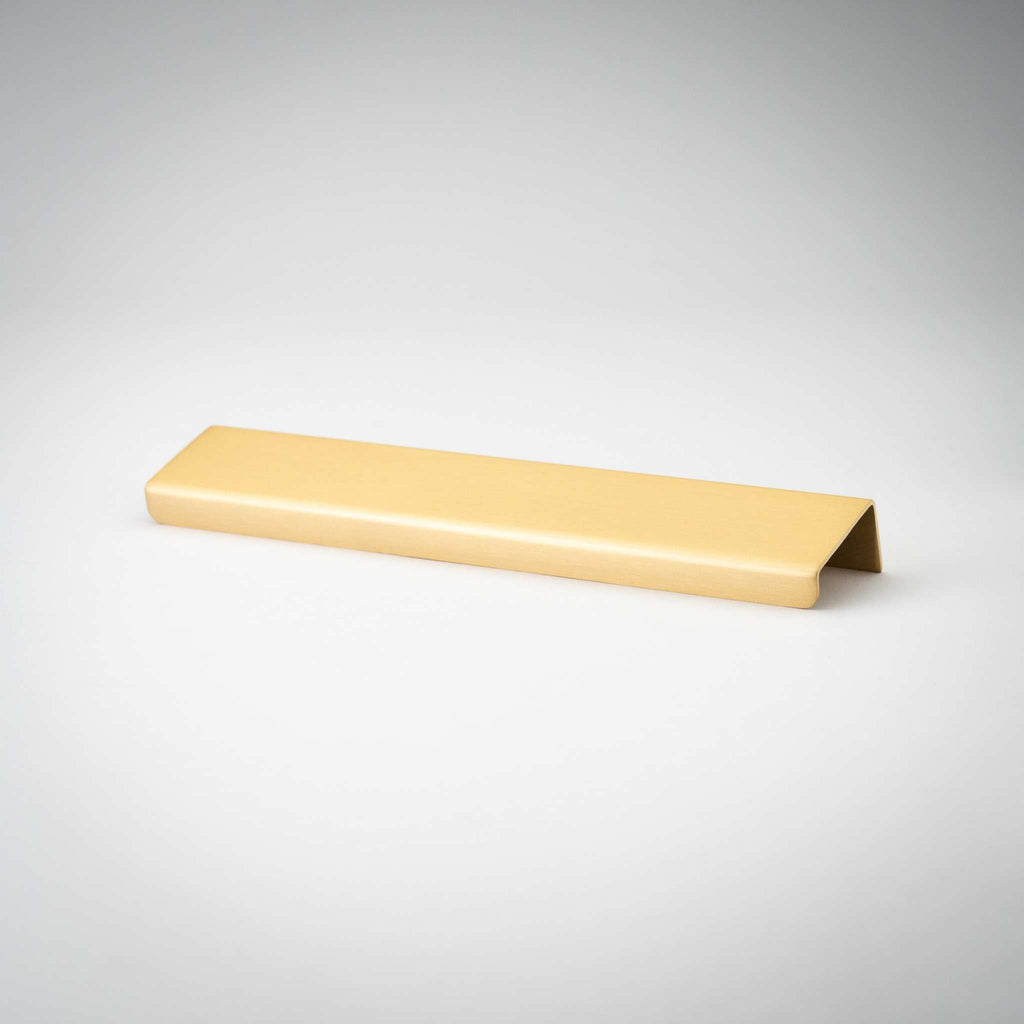

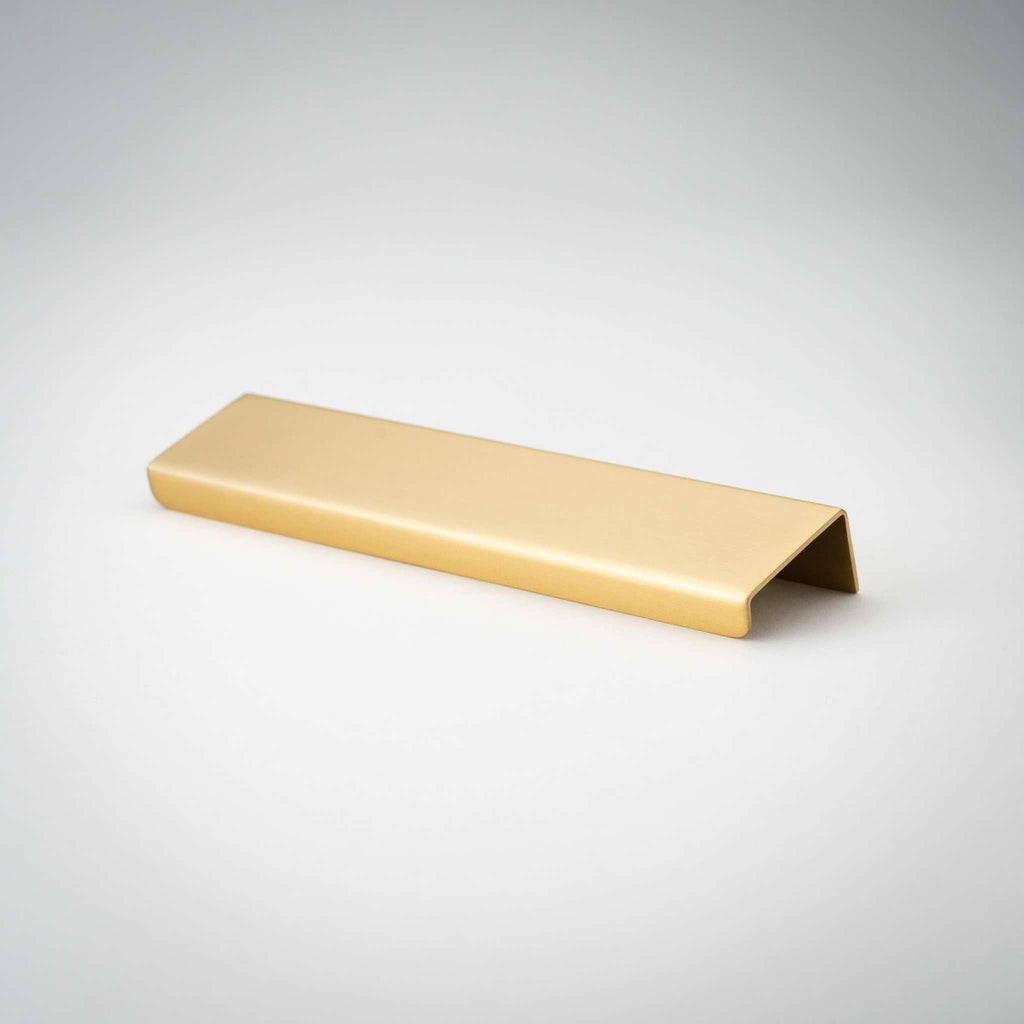

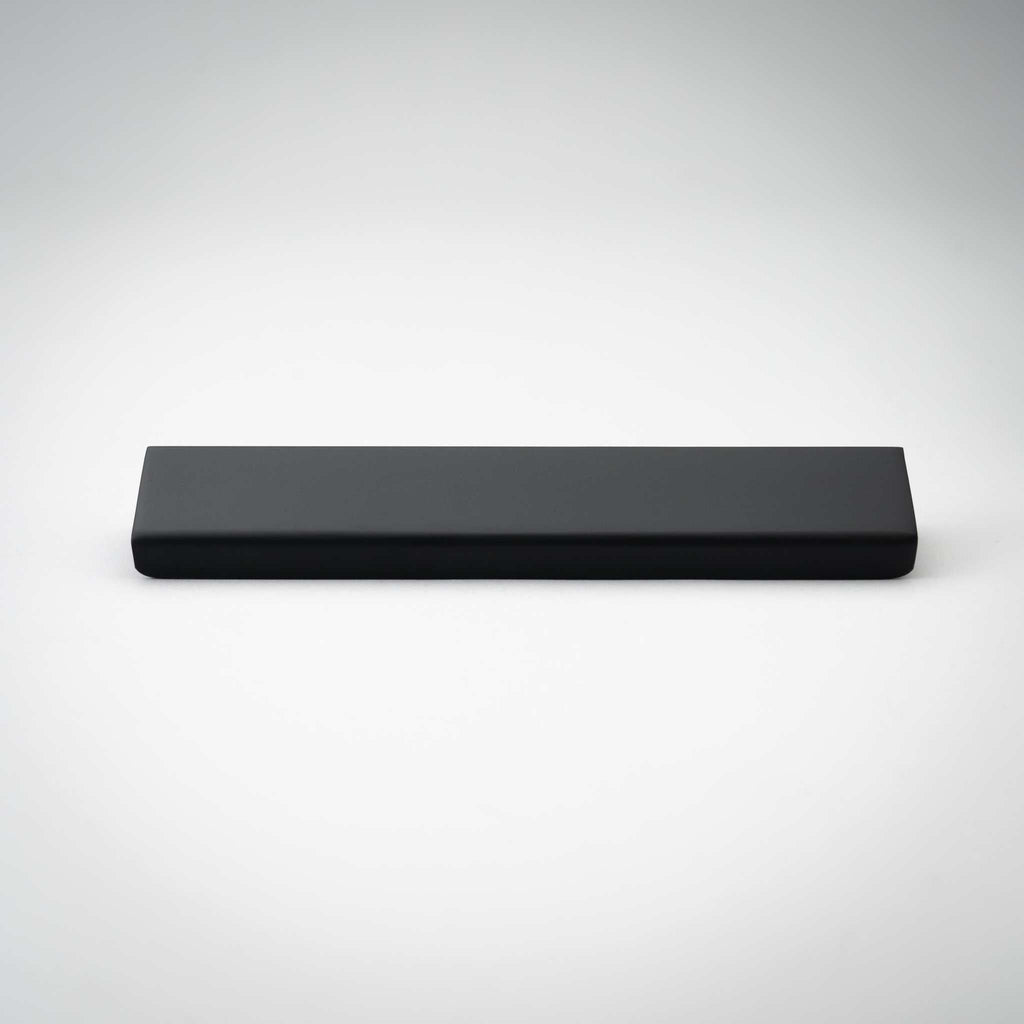

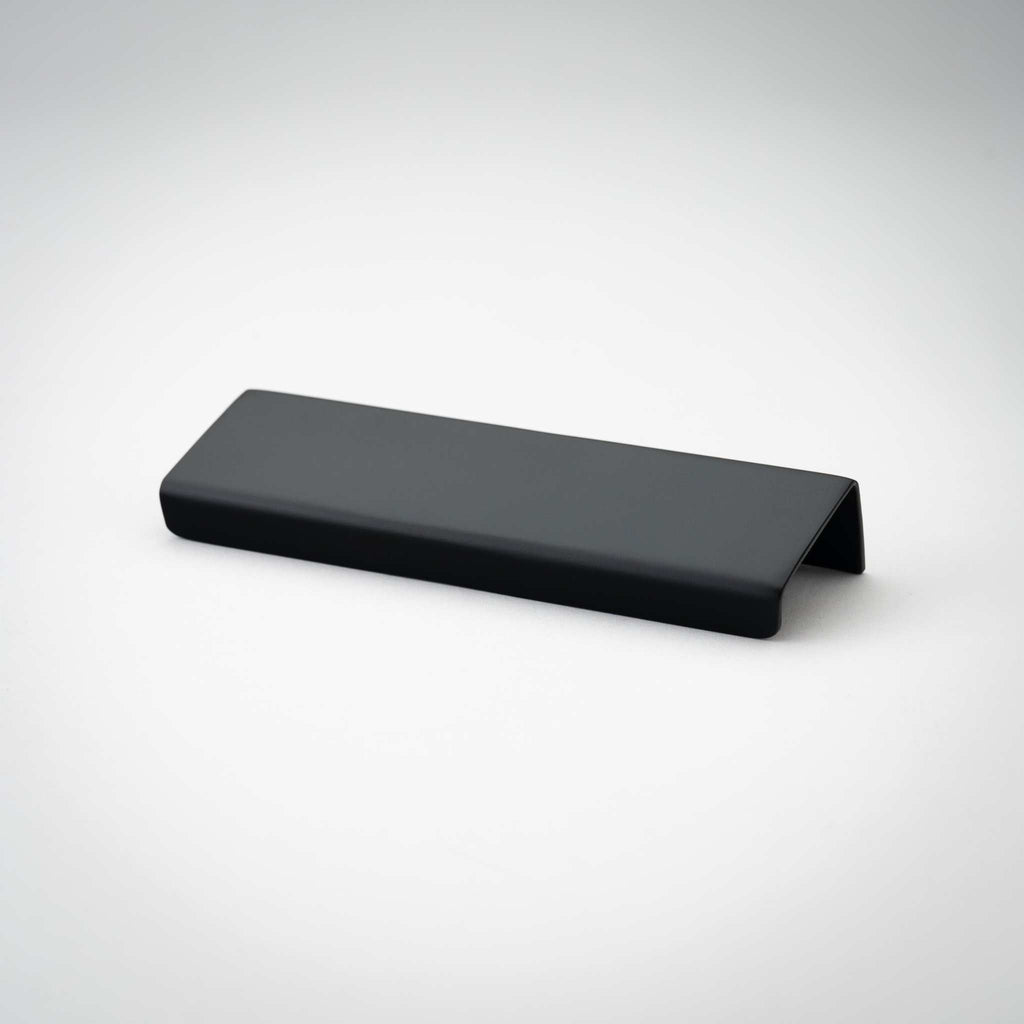

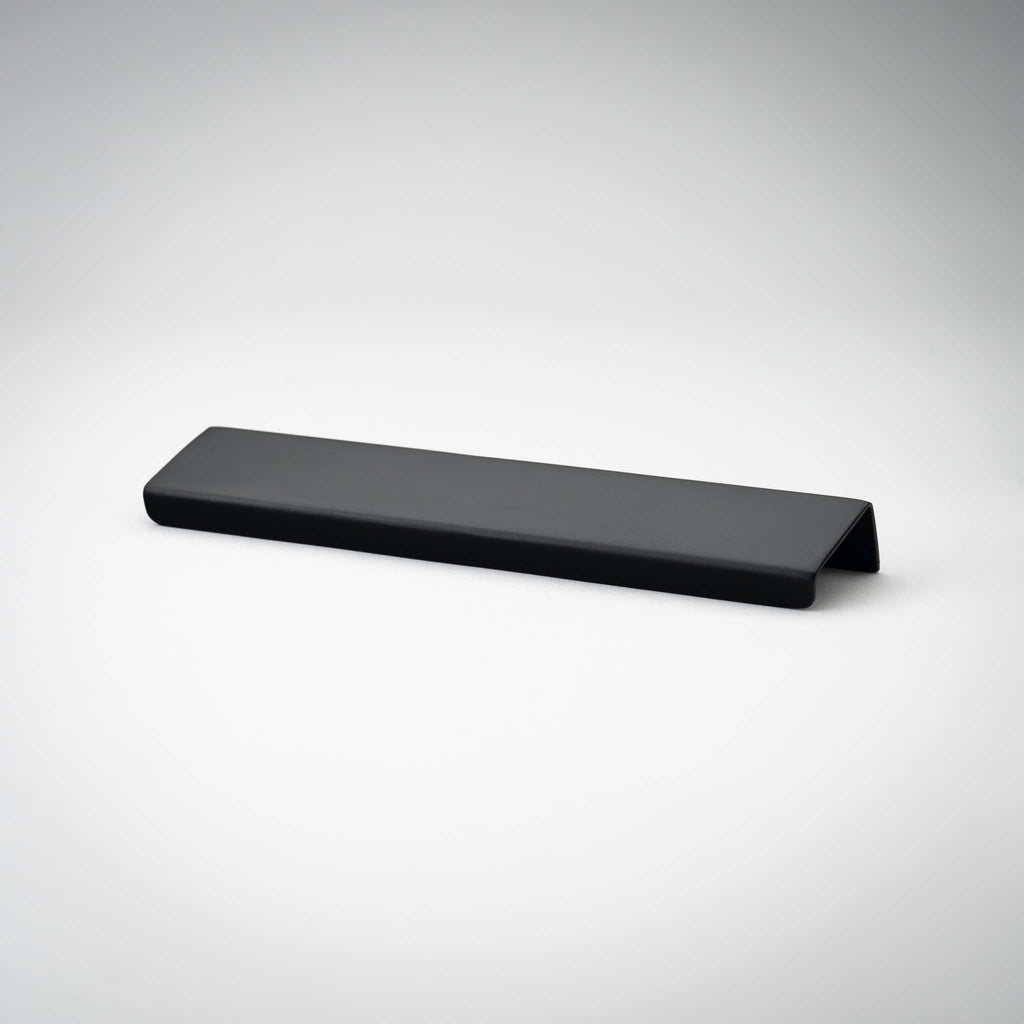

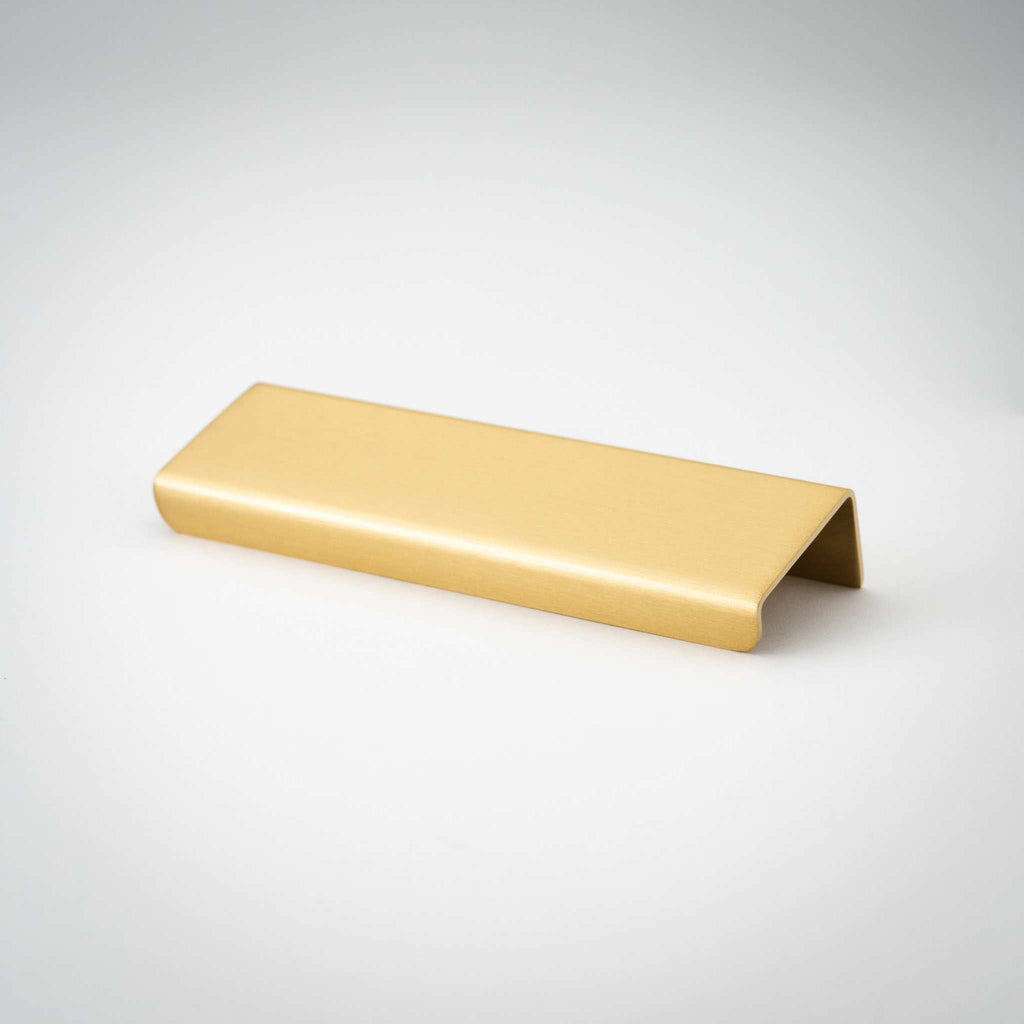

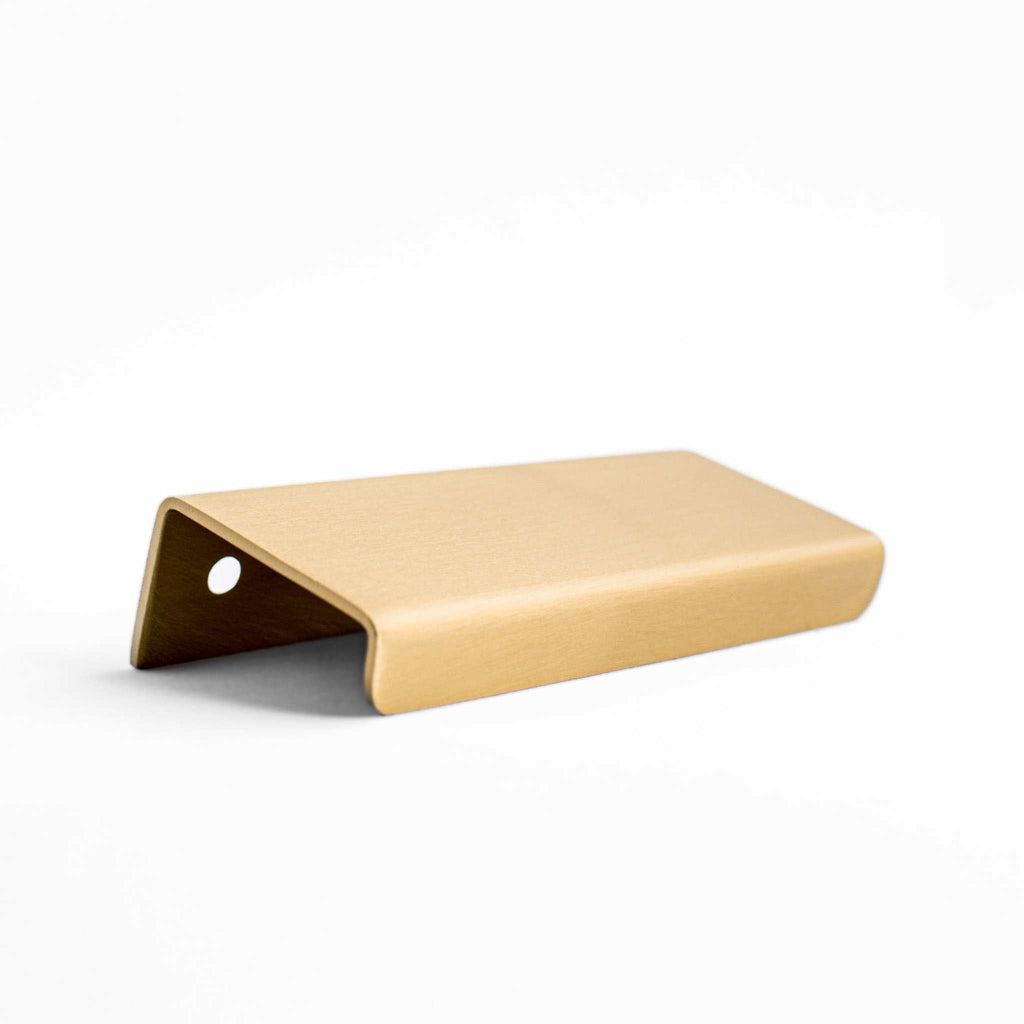

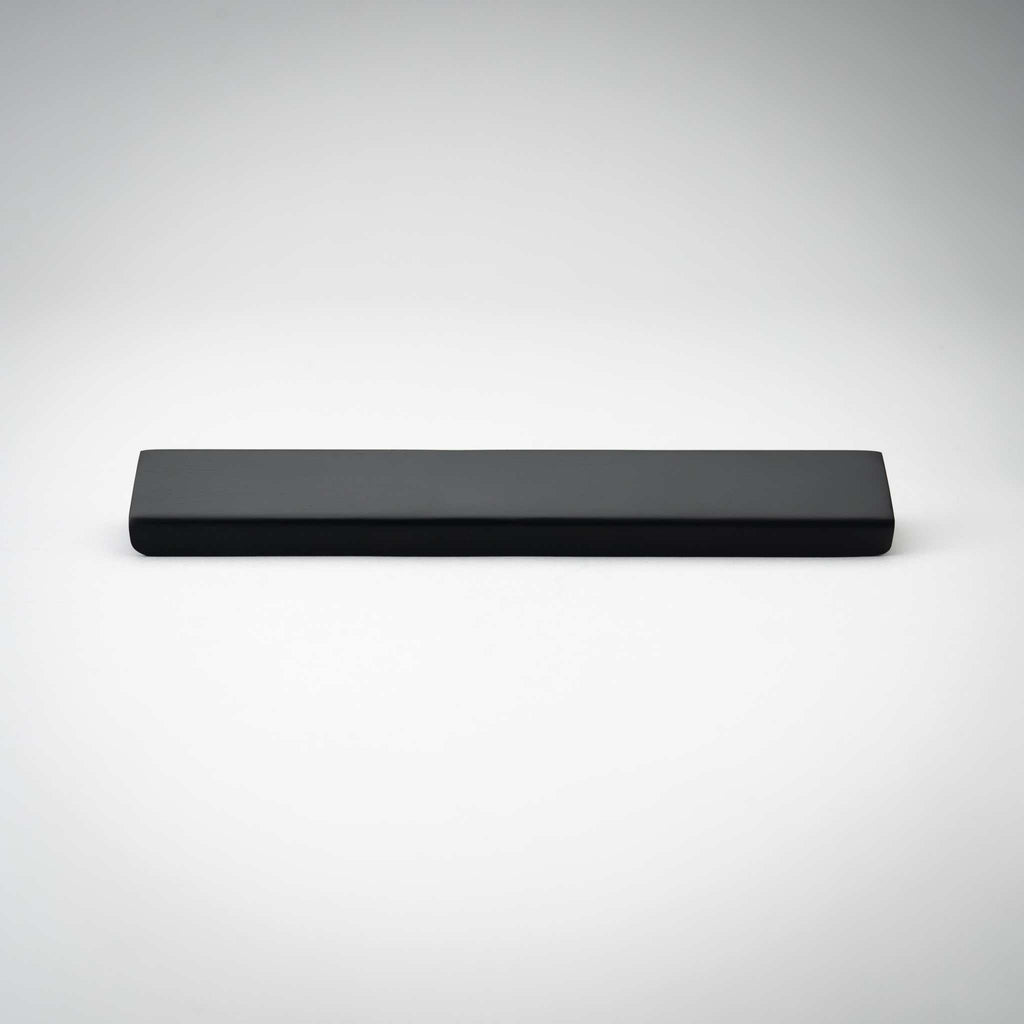

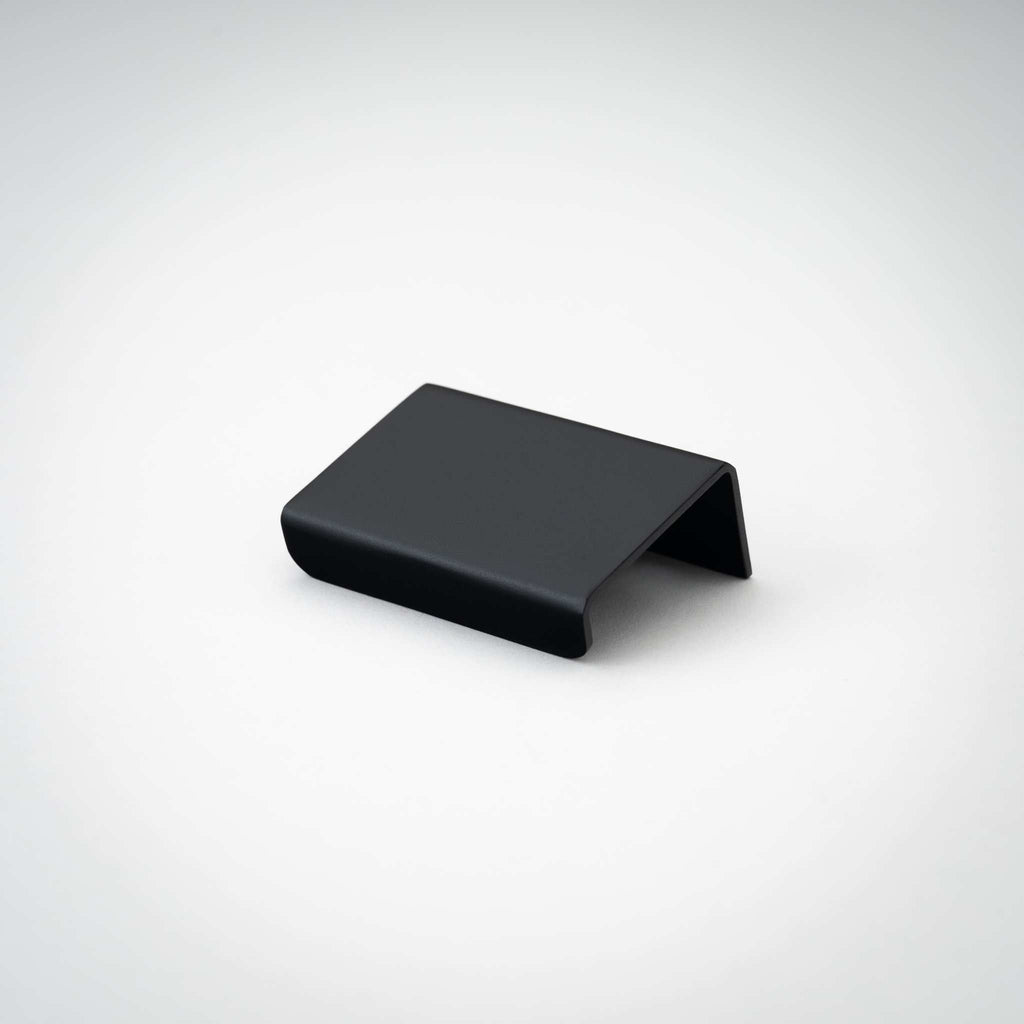

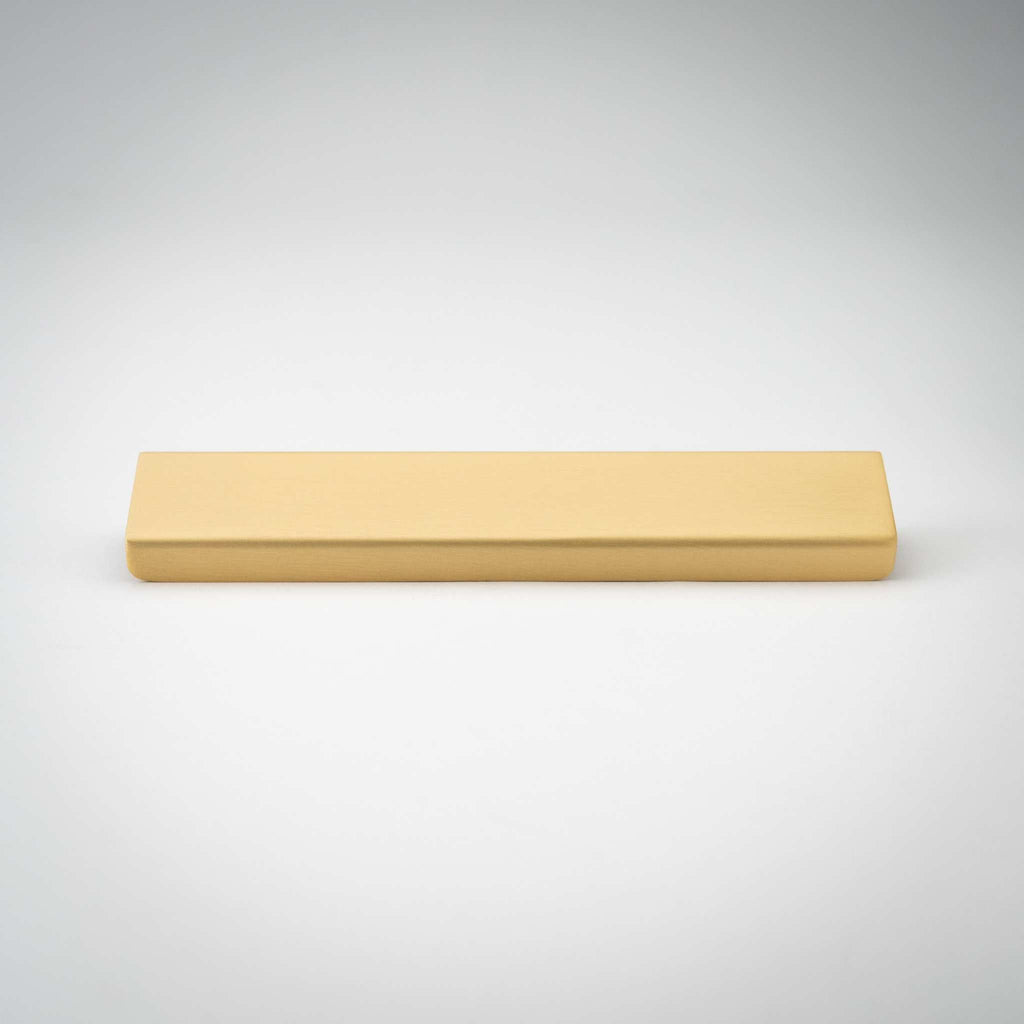

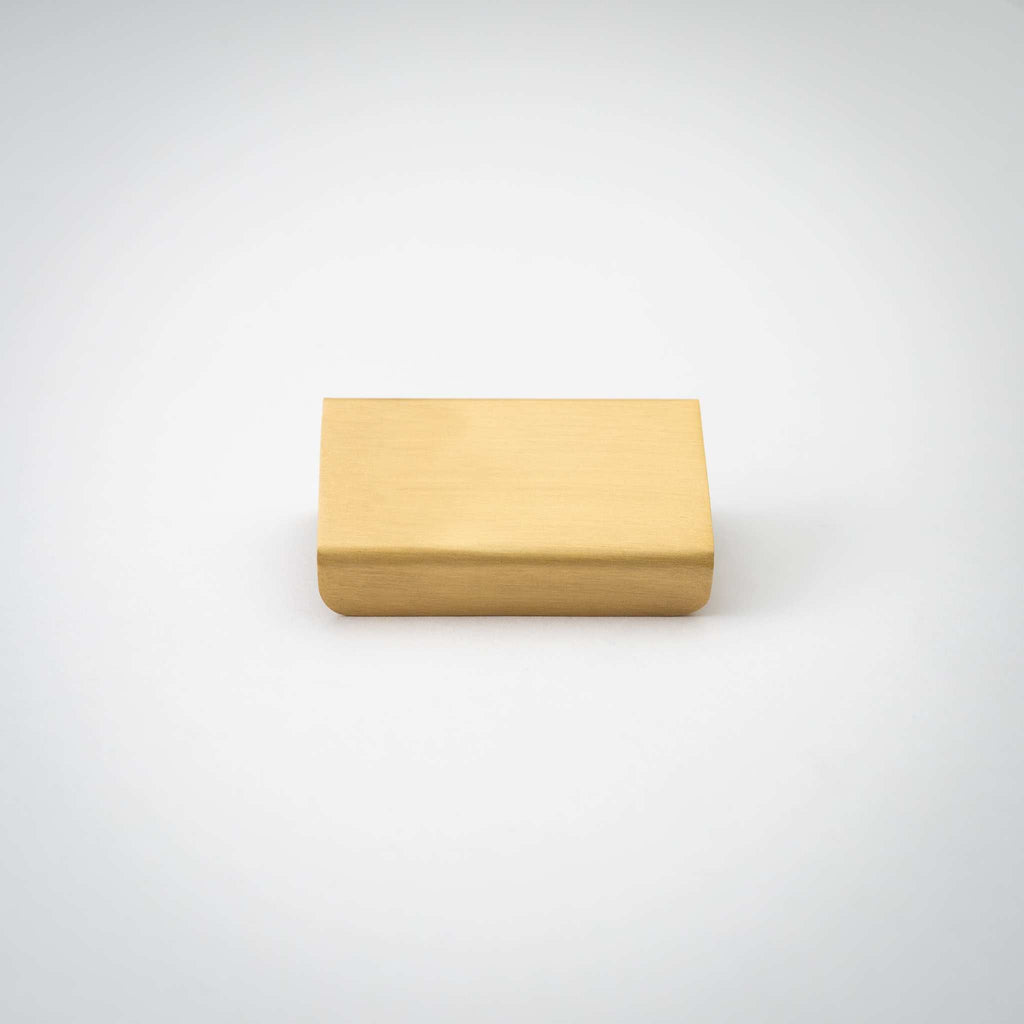

Verge creates a clean line at the opening edge of a cabinet door or drawer. Different lengths let the pull follow the proportions of the front.
Materials and finishes
Solid brass.

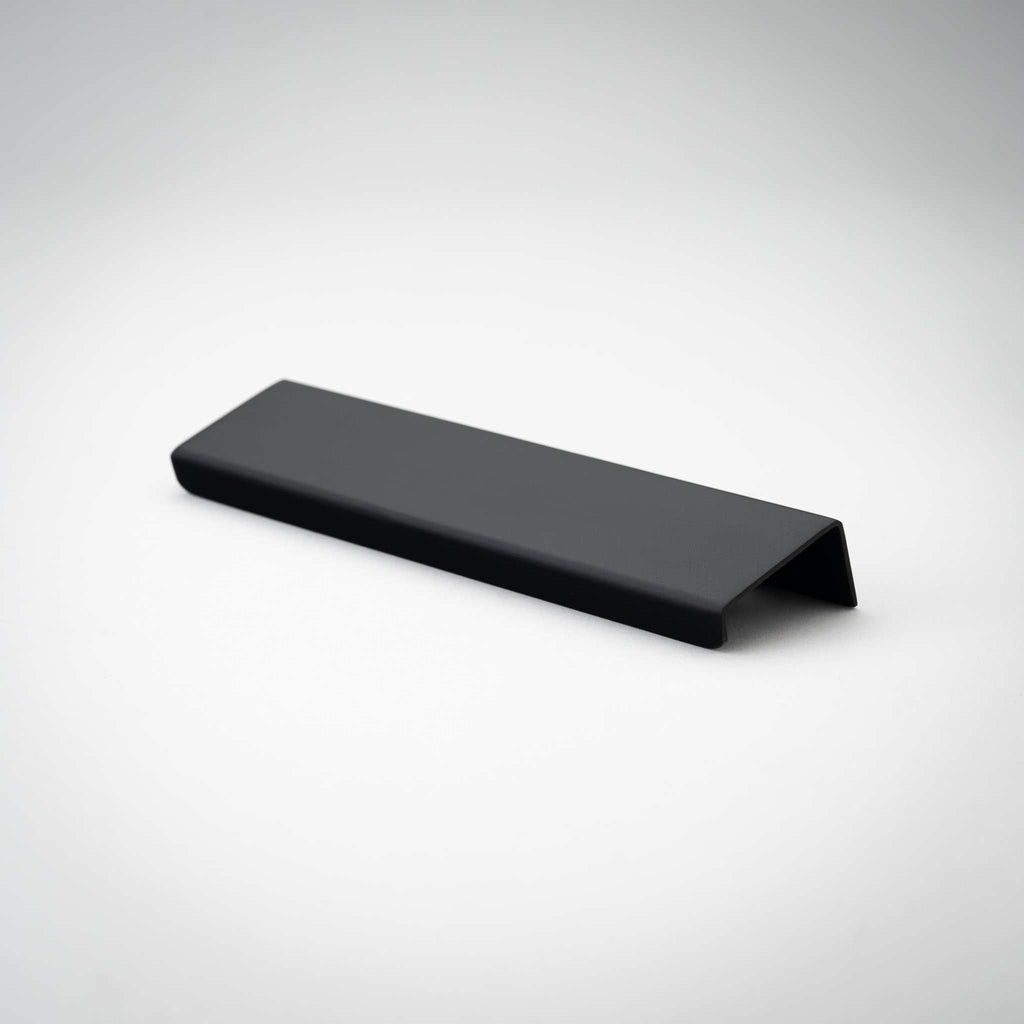

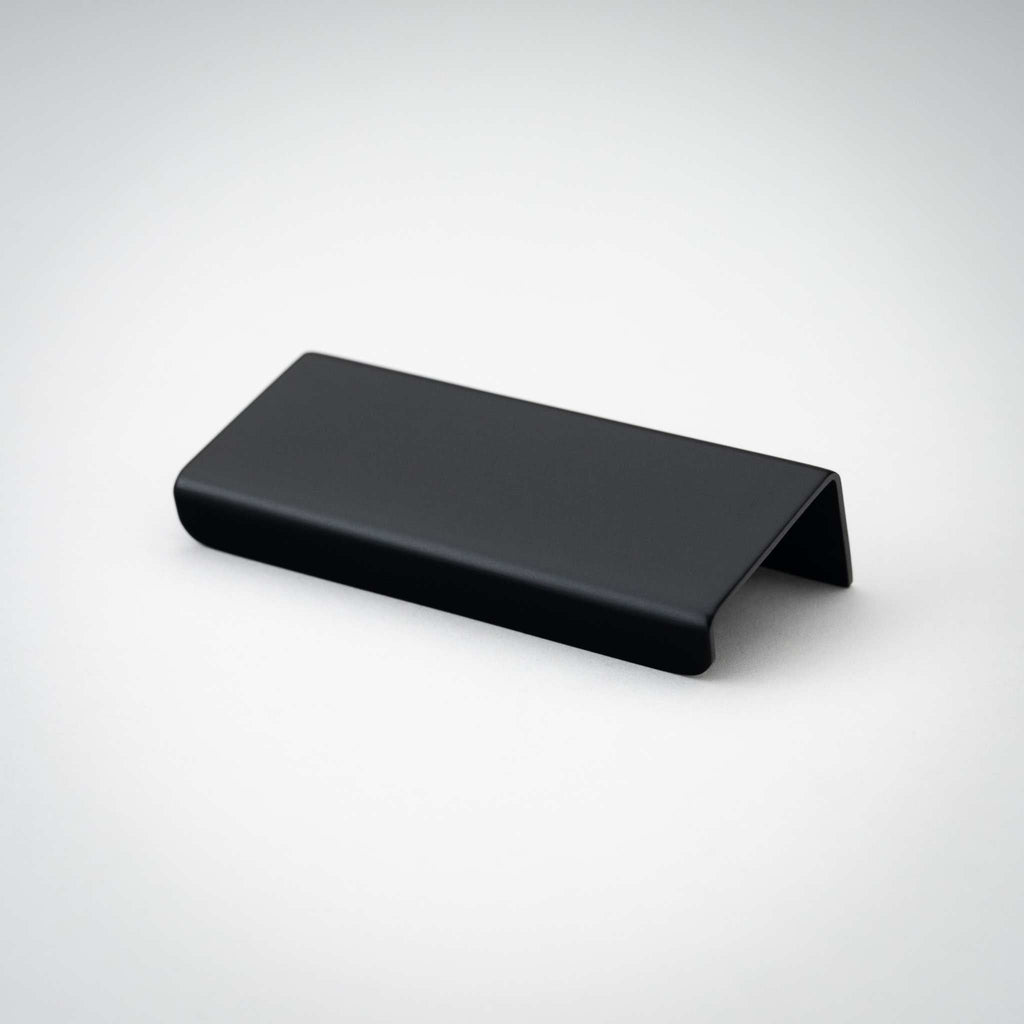

Listed finishes: Matte Black; Satin Brass (matte lacquer); Satin Brass (gloss lacquer).
Product selections

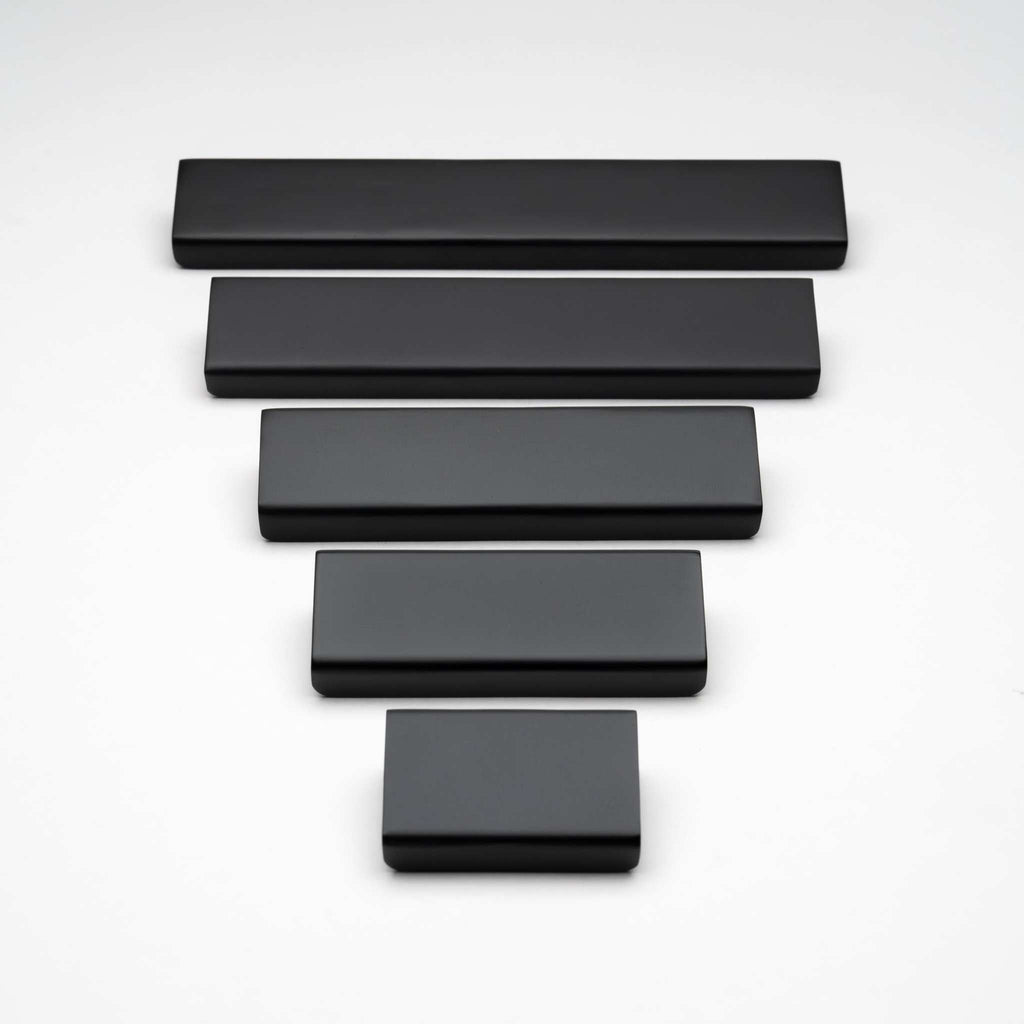

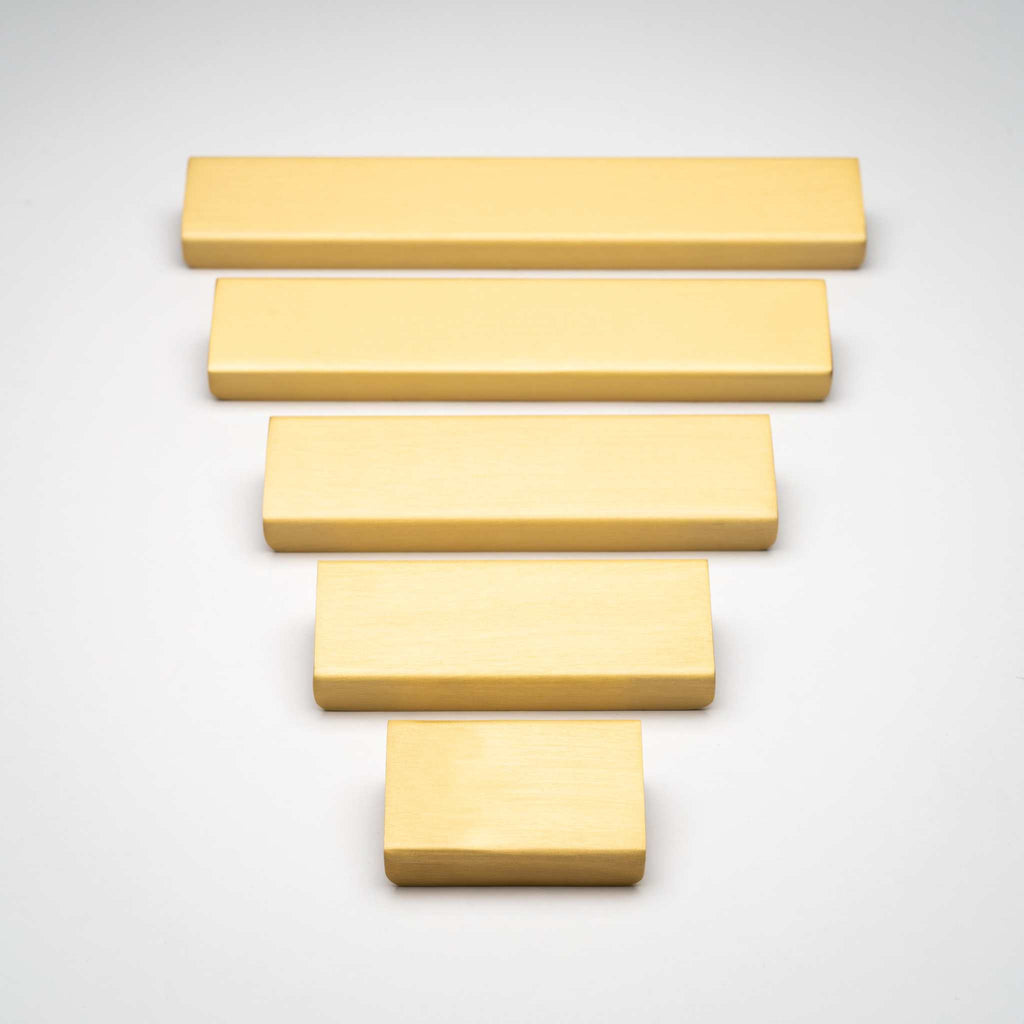

Size: 2" (1" C-C); 3" (2" C-C); 4" (3" C-C); 5" (4" C-C); 6" (4" C-C); 6" (5" C-C); 7" (6" C-C); 7" (6.25" C-C); 3.25" (2.5" C-C).

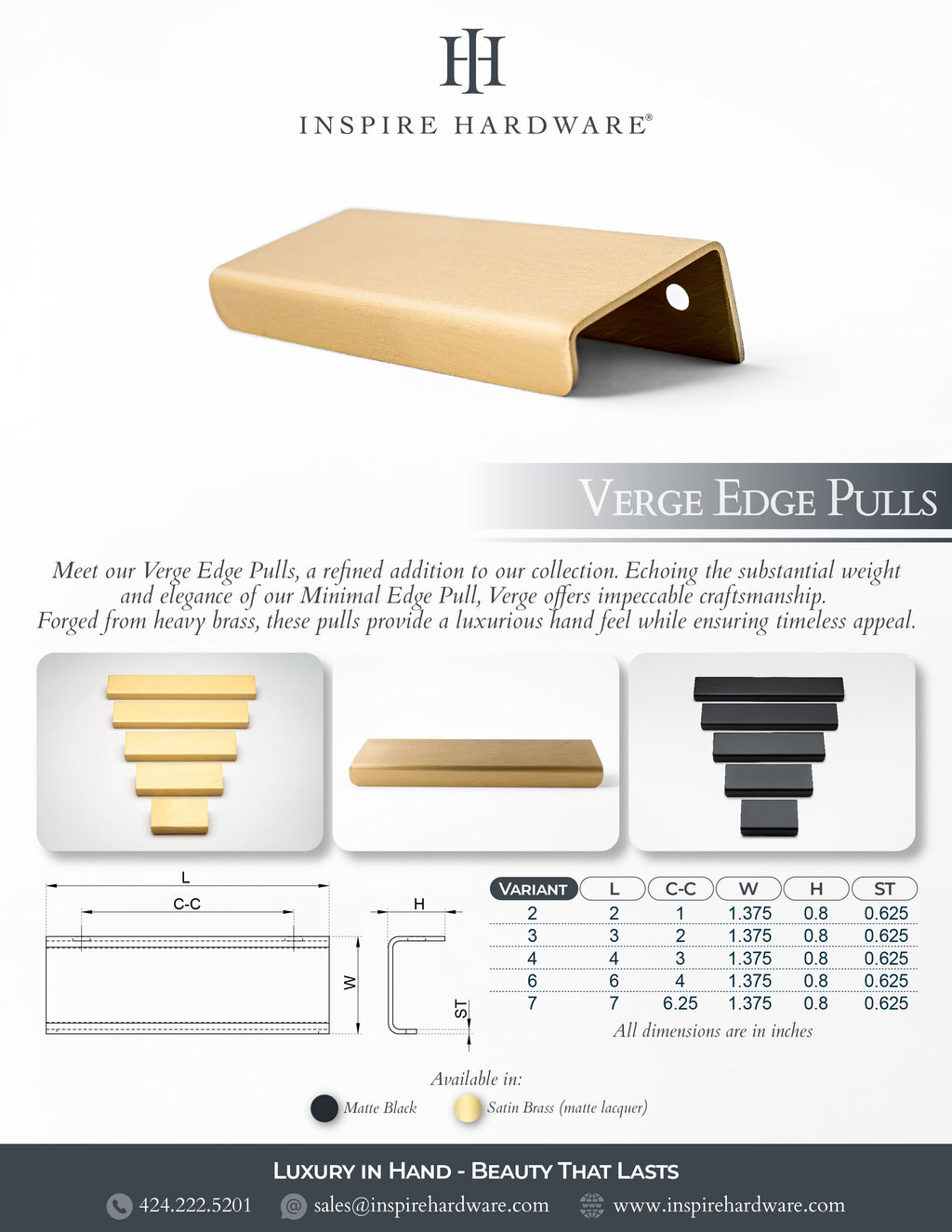

Dimensions

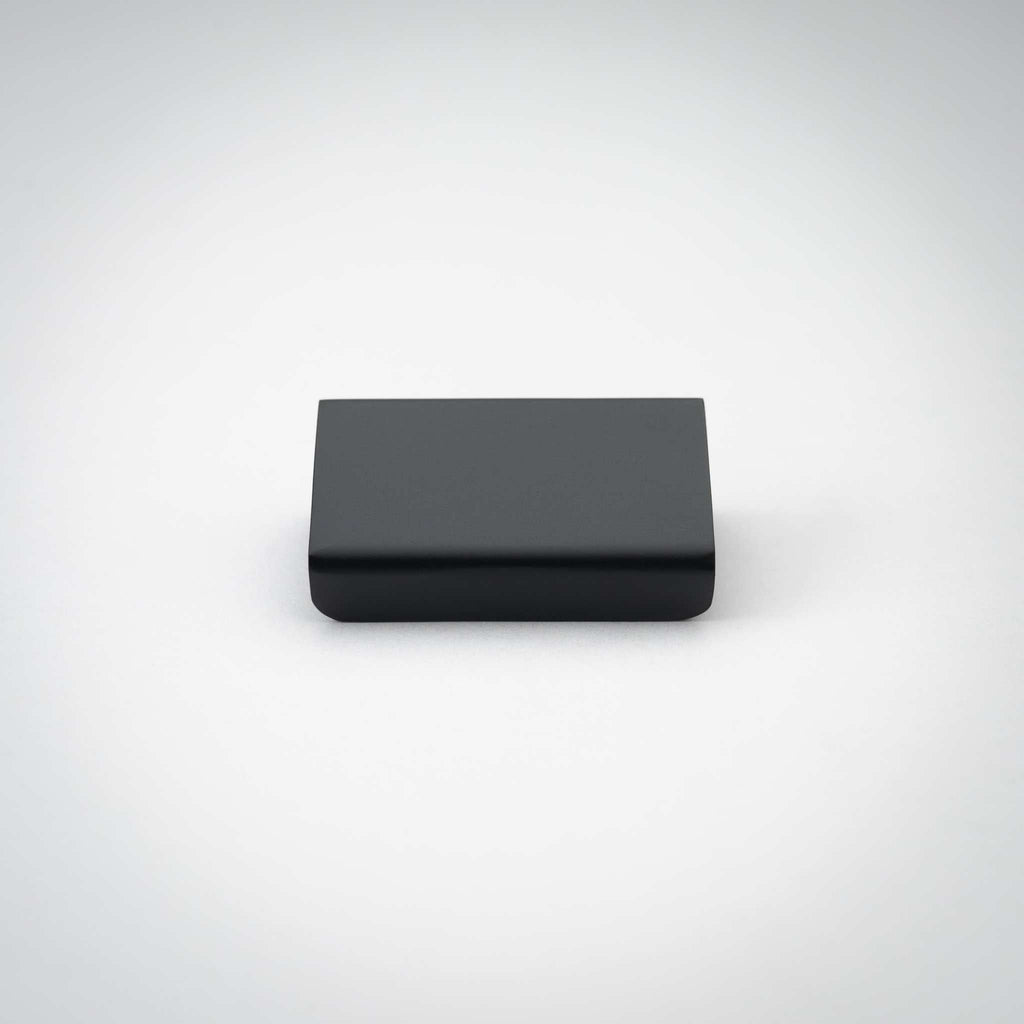

2" (1" C-C):
Mounting centers: 1 in; Overall length: 2 in; Projection: 1 3/8 in; Thickness: 1/16 in; Front lip height: 0.4 in; Back height: 0.8 in.

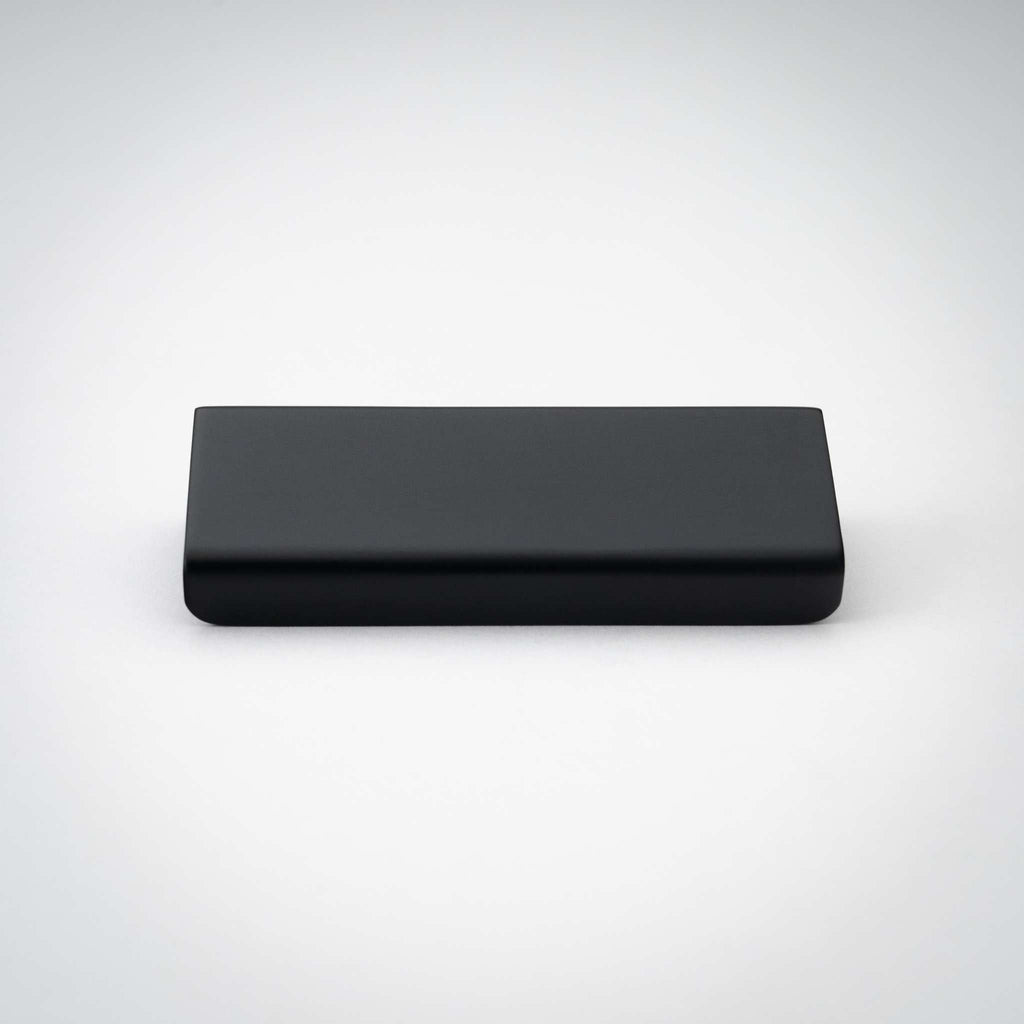

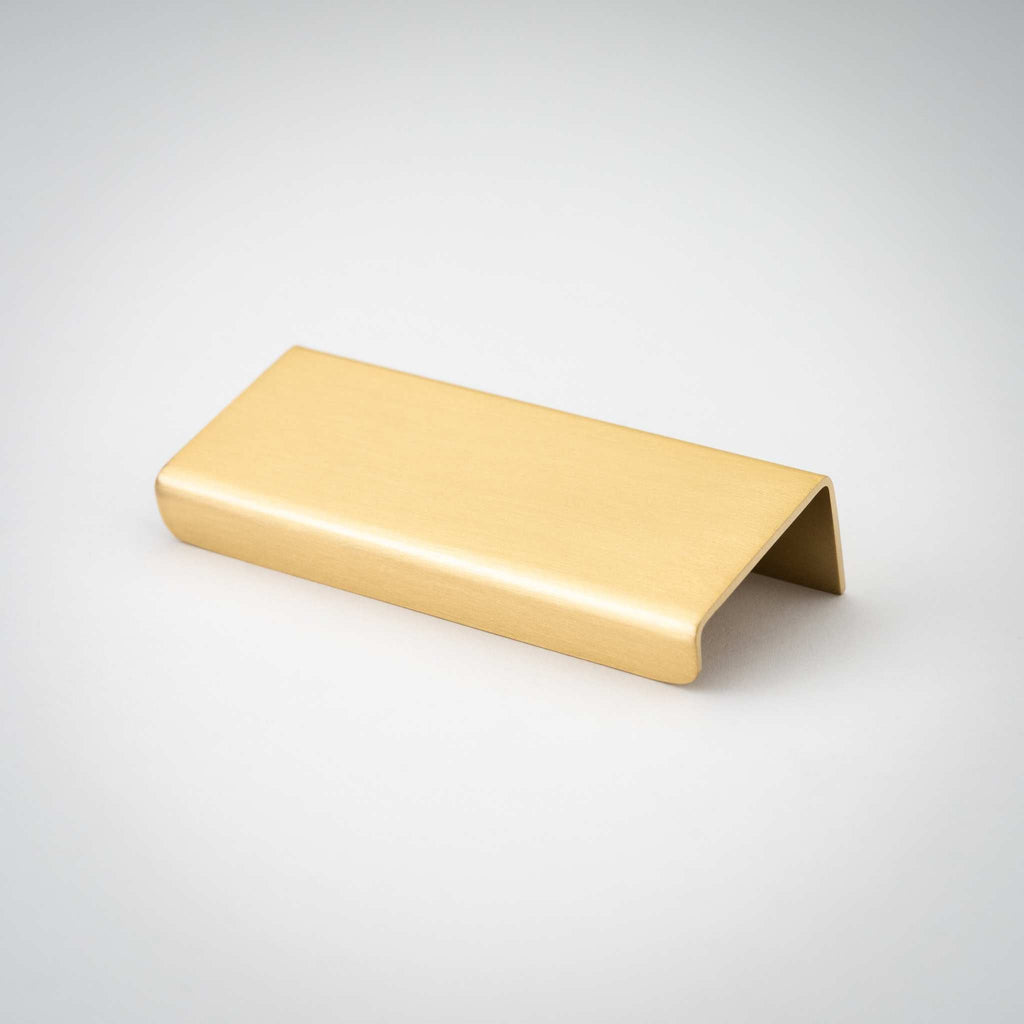

3" (2" C-C):
Mounting centers: 2 in; Overall length: 3 in; Projection: 1 3/8 in; Thickness: 1/16 in; Front lip height: 0.4 in; Back height: 0.8 in.

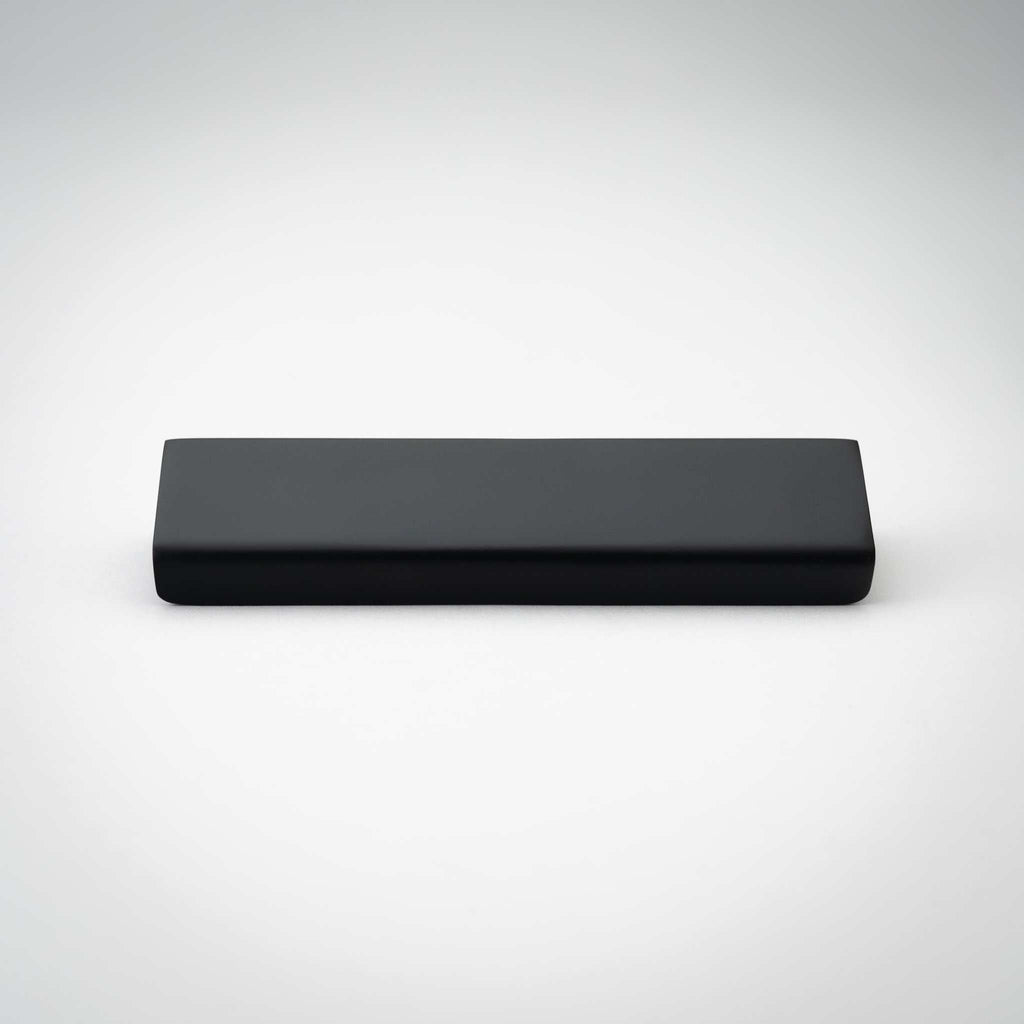

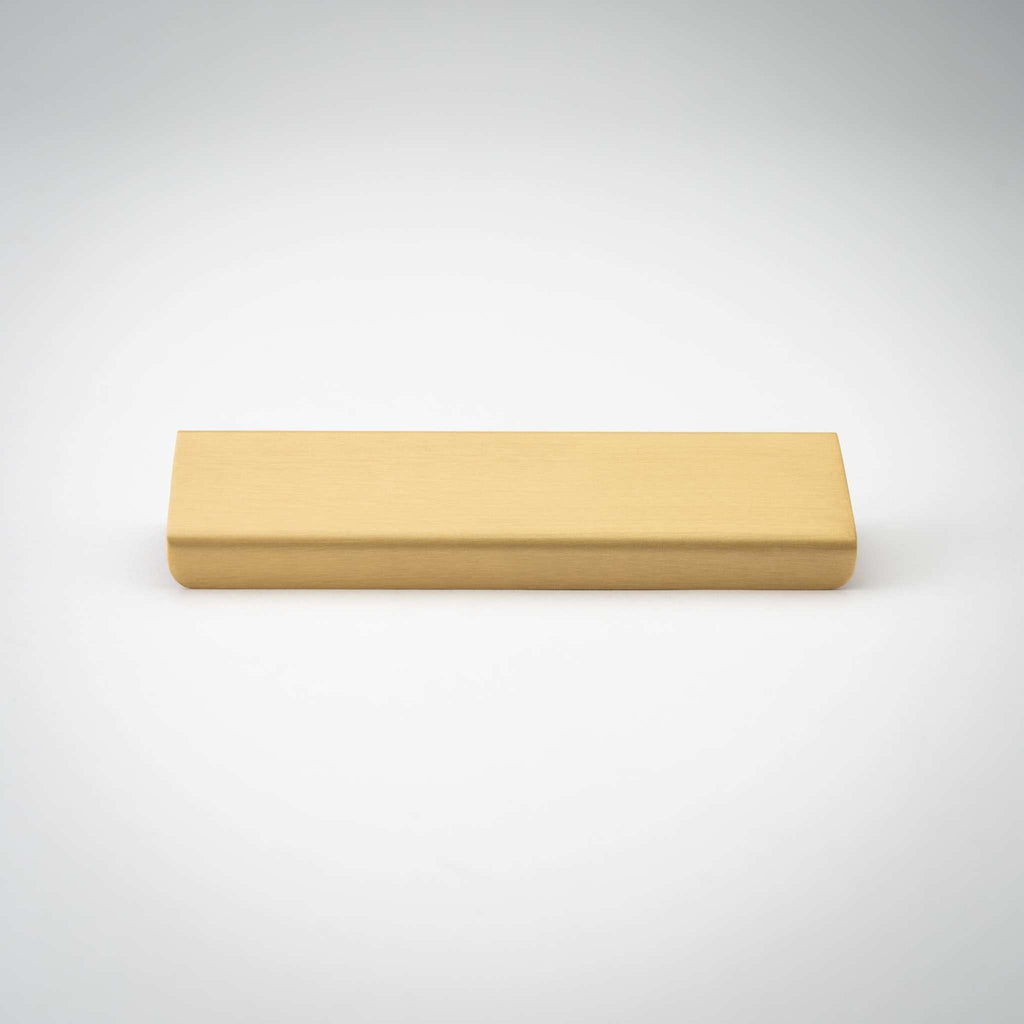

4" (3" C-C):
Mounting centers: 3 in; Overall length: 4 in; Projection: 1 3/8 in; Thickness: 1/16 in; Front lip height: 0.4 in; Back height: 0.8 in.
5" (4" C-C):
Mounting centers: 4 in; Overall length: 5 in; Projection: 1 3/8 in; Thickness: 1/16 in; Front lip height: 0.4 in; Back height: 0.8 in.
6" (4" C-C):
Projection: 1 3/8 in; thickness: 1/16 in; front lip height: 0.4 in; back height: 0.8 in. Use the selected length and mounting-center label to identify this configuration; confirm the exact fixing positions before drilling.
6" (5" C-C):
Mounting centers: 5 in; Overall length: 6 in; Projection: 1 3/8 in; Thickness: 1/16 in; Front lip height: 0.4 in; Back height: 0.8 in.
7" (6" C-C):
Mounting centers: 6 in; Overall length: 7 in; Projection: 1 3/8 in; Thickness: 1/16 in; Front lip height: 0.4 in; Back height: 0.8 in.
7" (6.25" C-C):
Projection: 1 3/8 in; thickness: 1/16 in; front lip height: 0.4 in; back height: 0.8 in. Use the selected length and mounting-center label to identify this configuration; confirm the exact fixing positions before drilling.
3.25" (2.5" C-C):
Projection: 1 3/8 in; thickness: 1/16 in; front lip height: 0.4 in; back height: 0.8 in. Use the selected length and mounting-center label to identify this configuration; confirm the exact fixing positions before drilling.
Included
One pull, 2 wood screws
Use and installation
Leave at least ¼ inch of clearance above or beside the cabinet front at the opening edge. Fix the pull from the rear with the supplied wood screws; pre-drill MDF or melamine fronts and tighten by hand.
Leave at least 1/4 in clearance above or beside the cabinet front.
