Description
This 10-ton hydraulic wire crimping tool which has 9 dies! With the powerful crimper, you could crimp wires and butt connectors easily. Much easier to use than a pair of hand crimpers.The crimper tool crimps AWG 12 to 2/0 size copper and aluminum wires, lugs and compressible battery terminal ends
Great for battery and welding cables, power wires and electrical cables etc.
High Quality:
- Hydraulic wire crimper features 9 sets of dies for providing large crimping range from 4 to 70 square millimeters

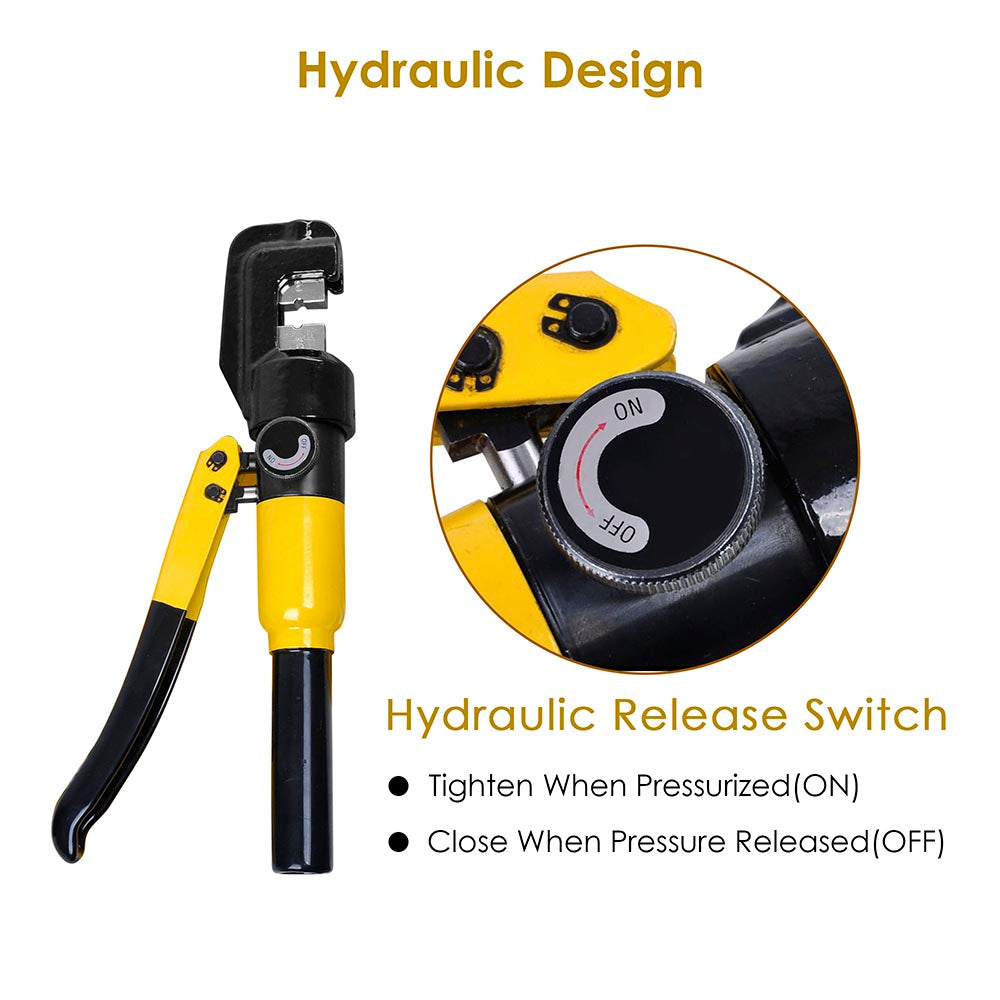

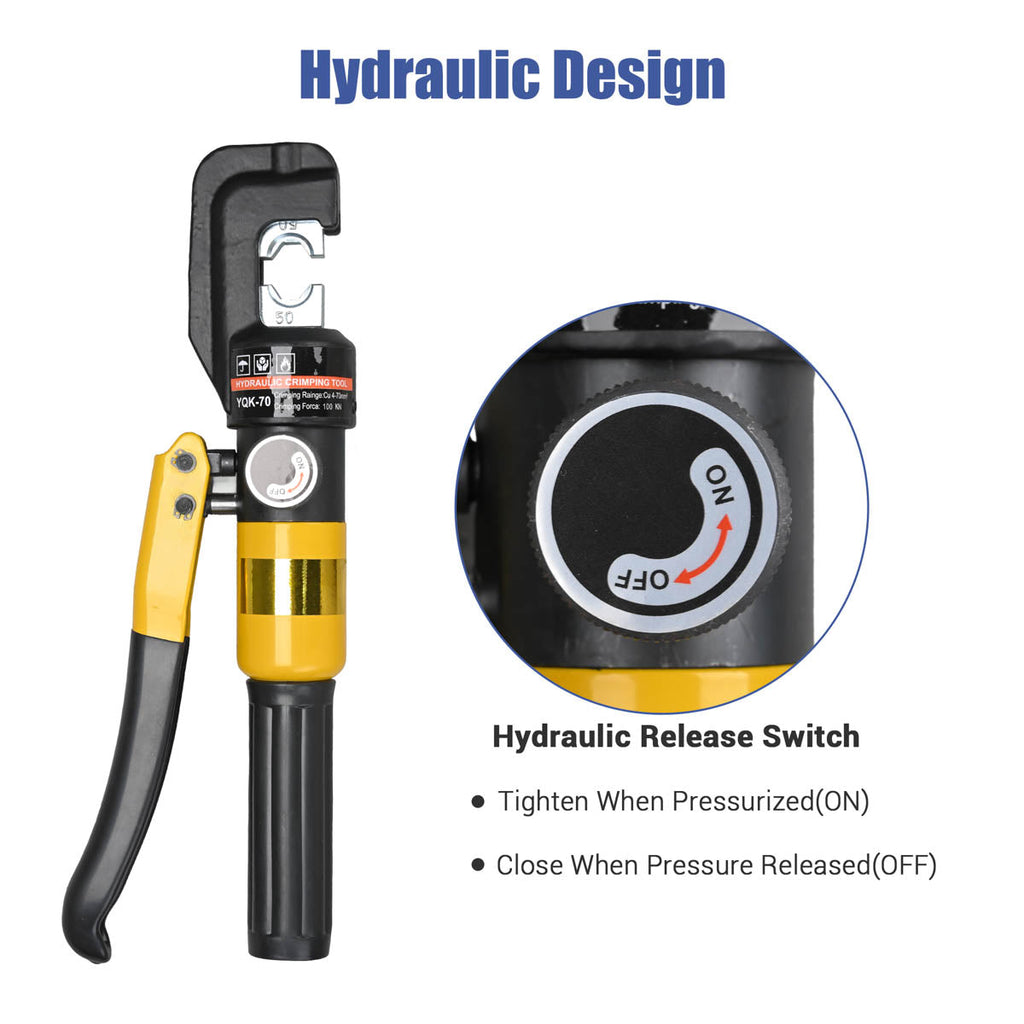

- Hydraulic Design
- Providing 10-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
- Hydraulic crimper is much easier than using a hand crimping

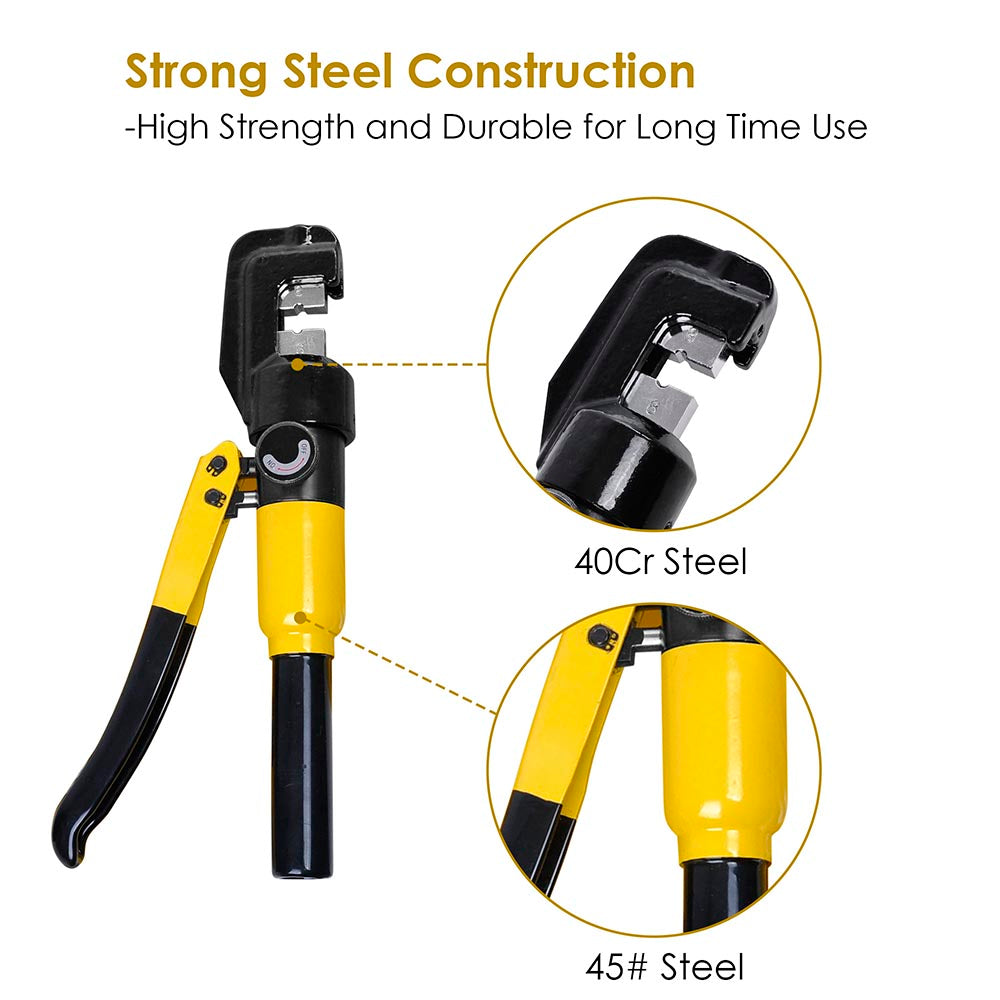

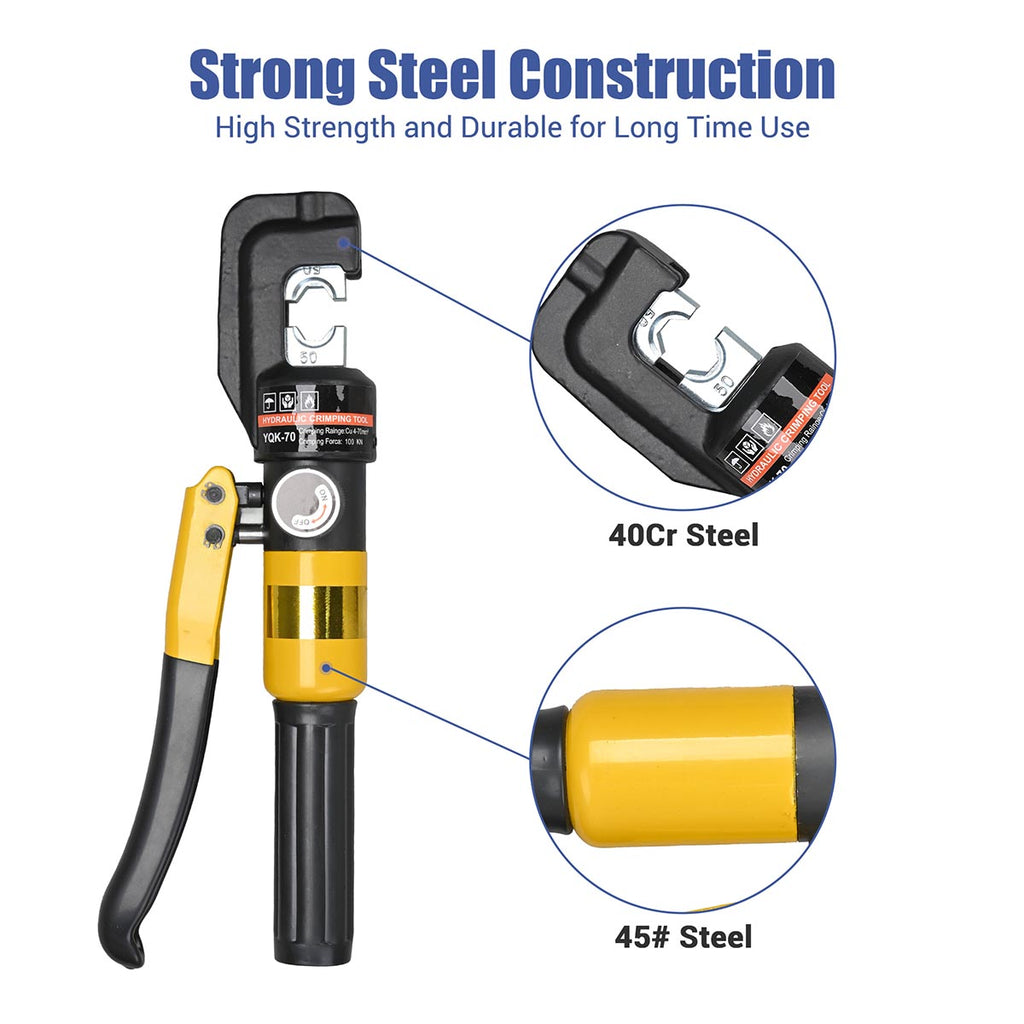

- Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
- Convenient & Portable

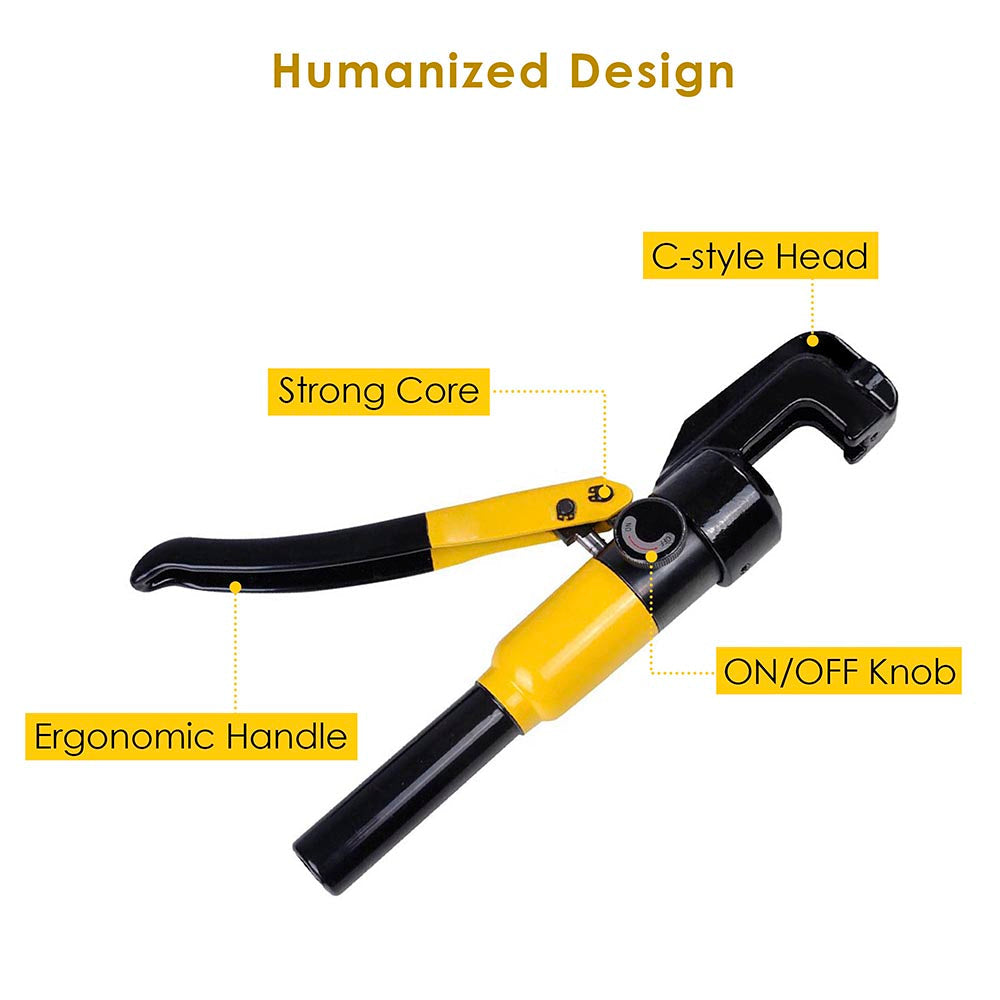

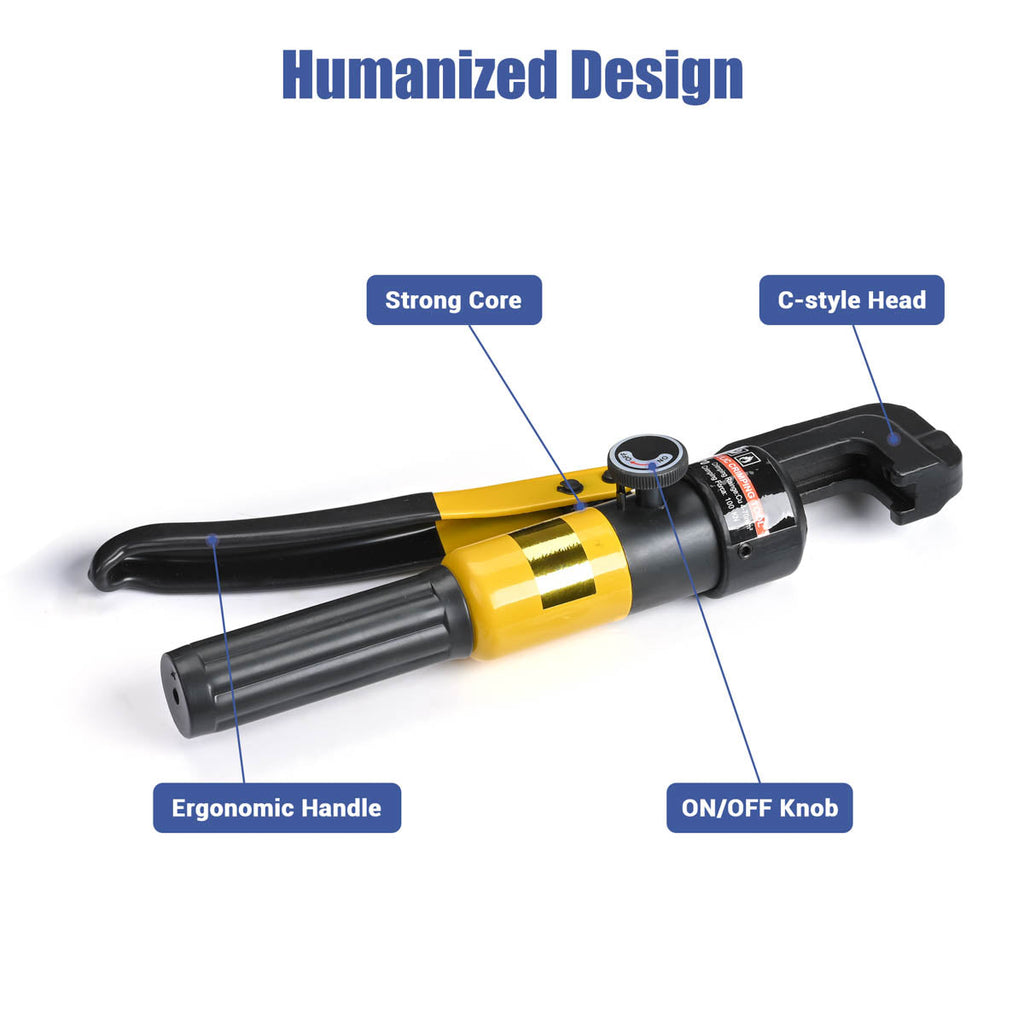

- C-style head for easy changing the dies and fixing the wire in position
- Long ergonomic handle for convenient and labor-saving operation

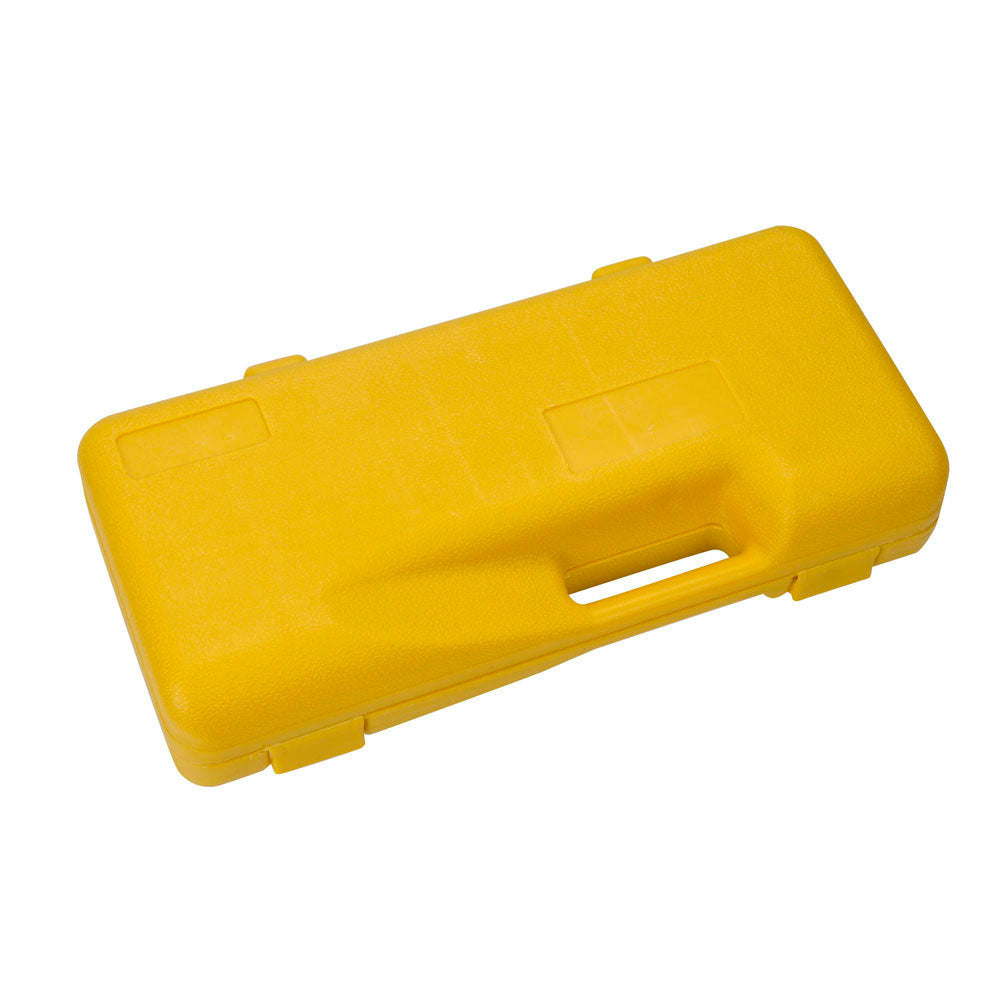

- Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place

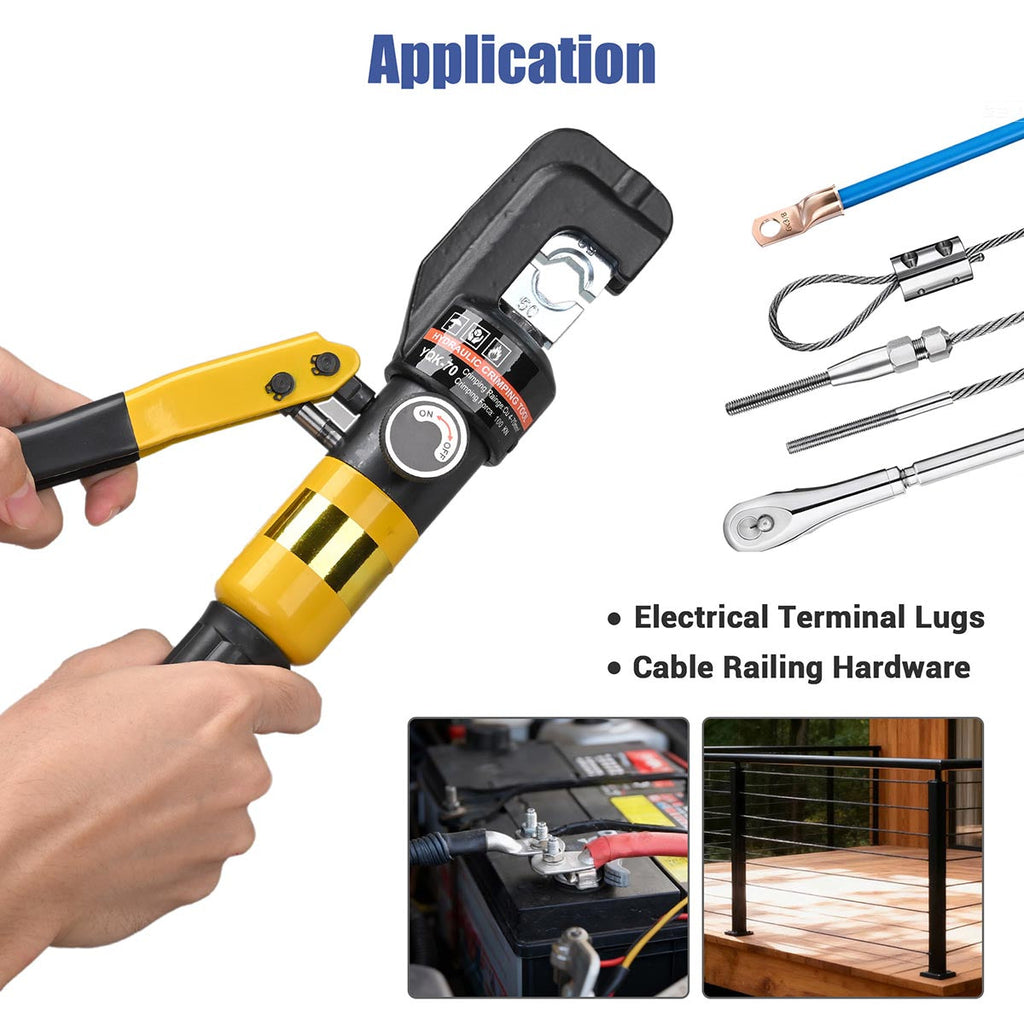

- Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire
Product Details:
- Max pressure: 10 Ton
- Stroke Capacity: 3/8" (10mm)

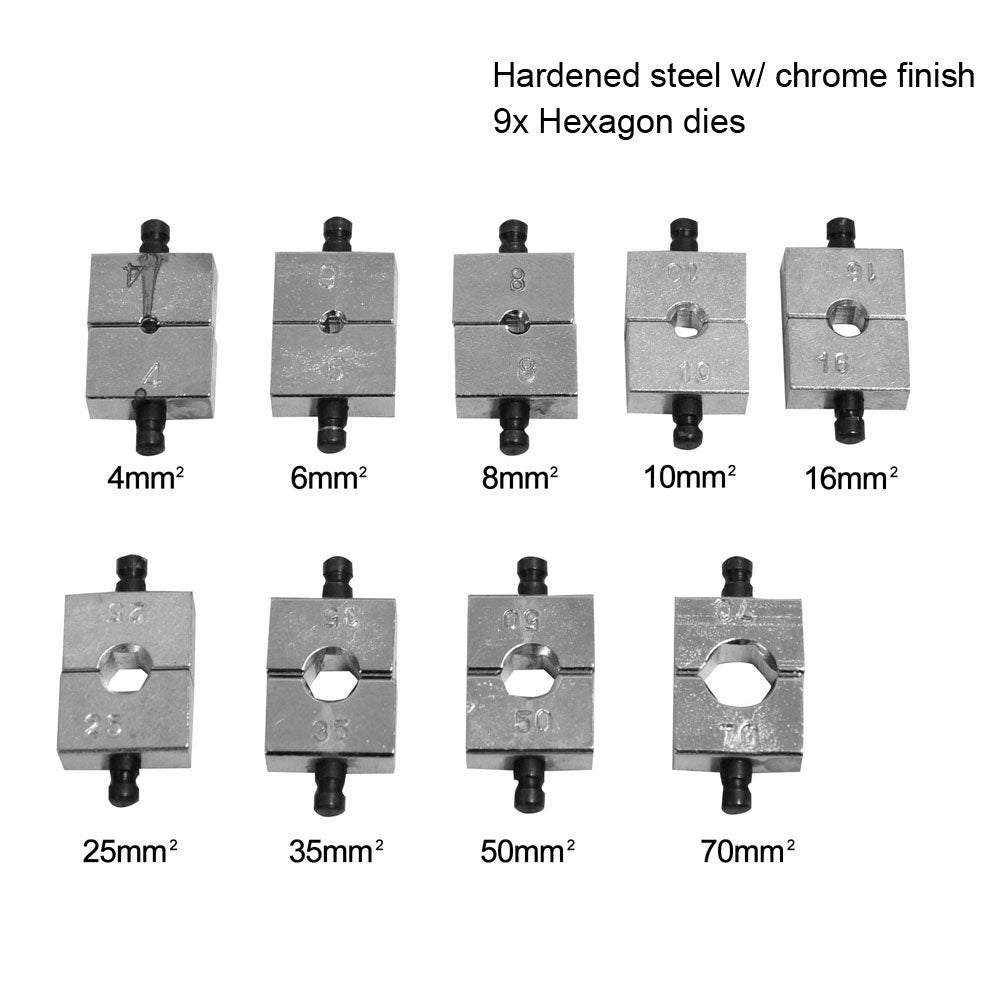

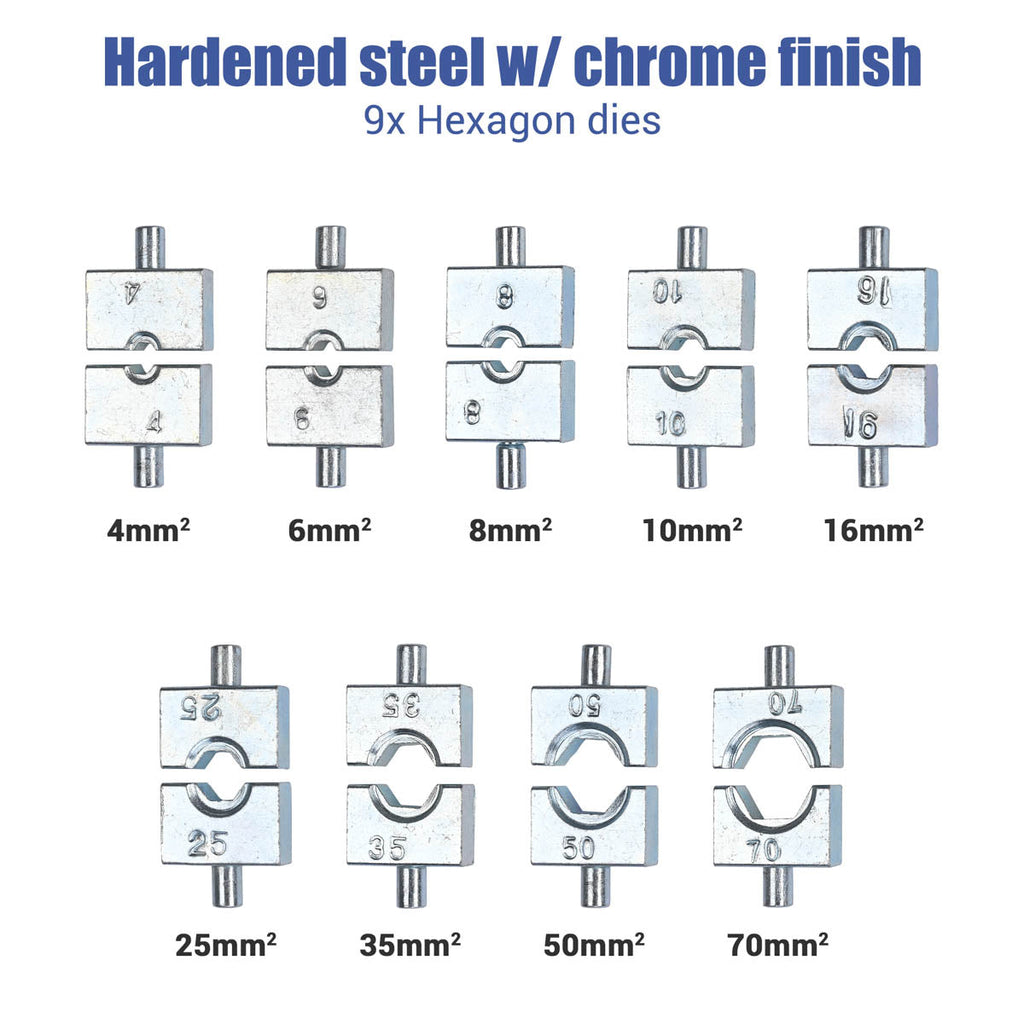

- 9x dies: 4, 6, 8, 10, 16, 25, 35, 50, 70mm2

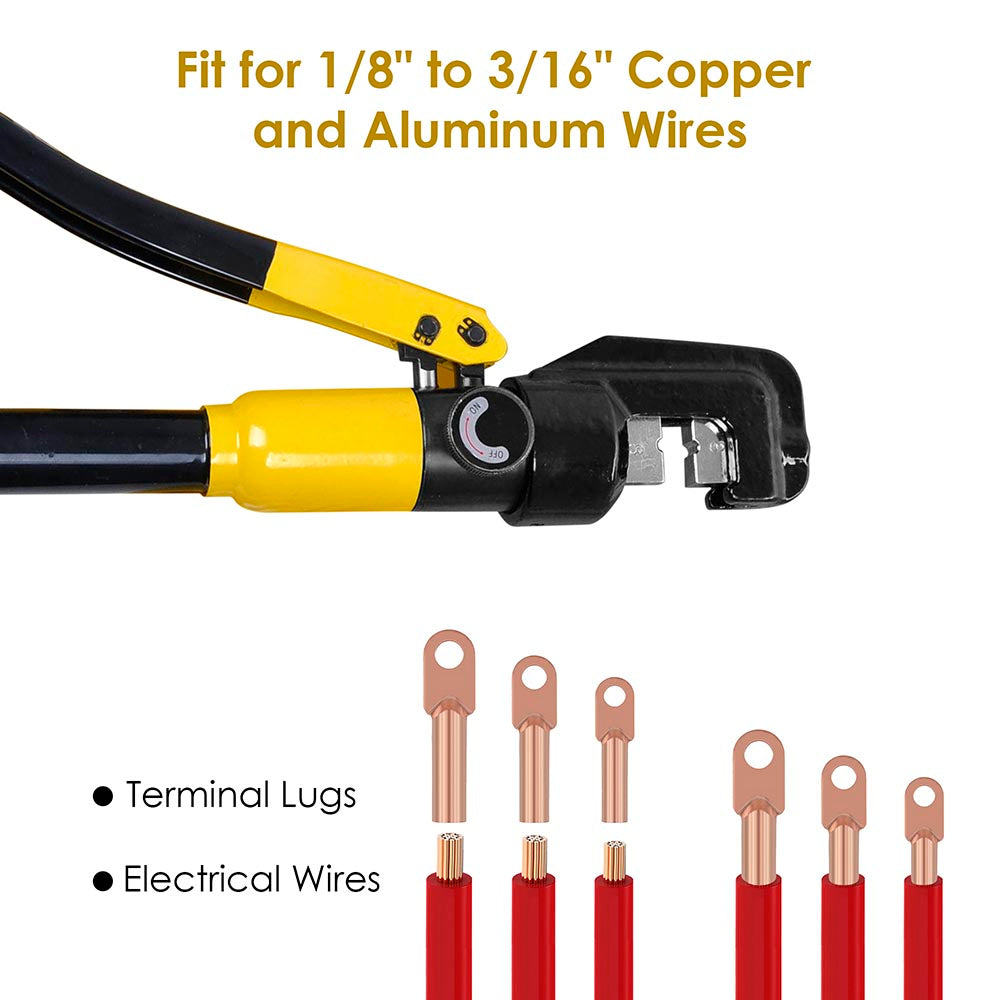

- Fits For: 1/8" to 3/16" (12 AWG to 2/0 AWG) copper and aluminum wires
- Case dimension: 13 3/4"L x 6 1/4"D x 3 1/4"H

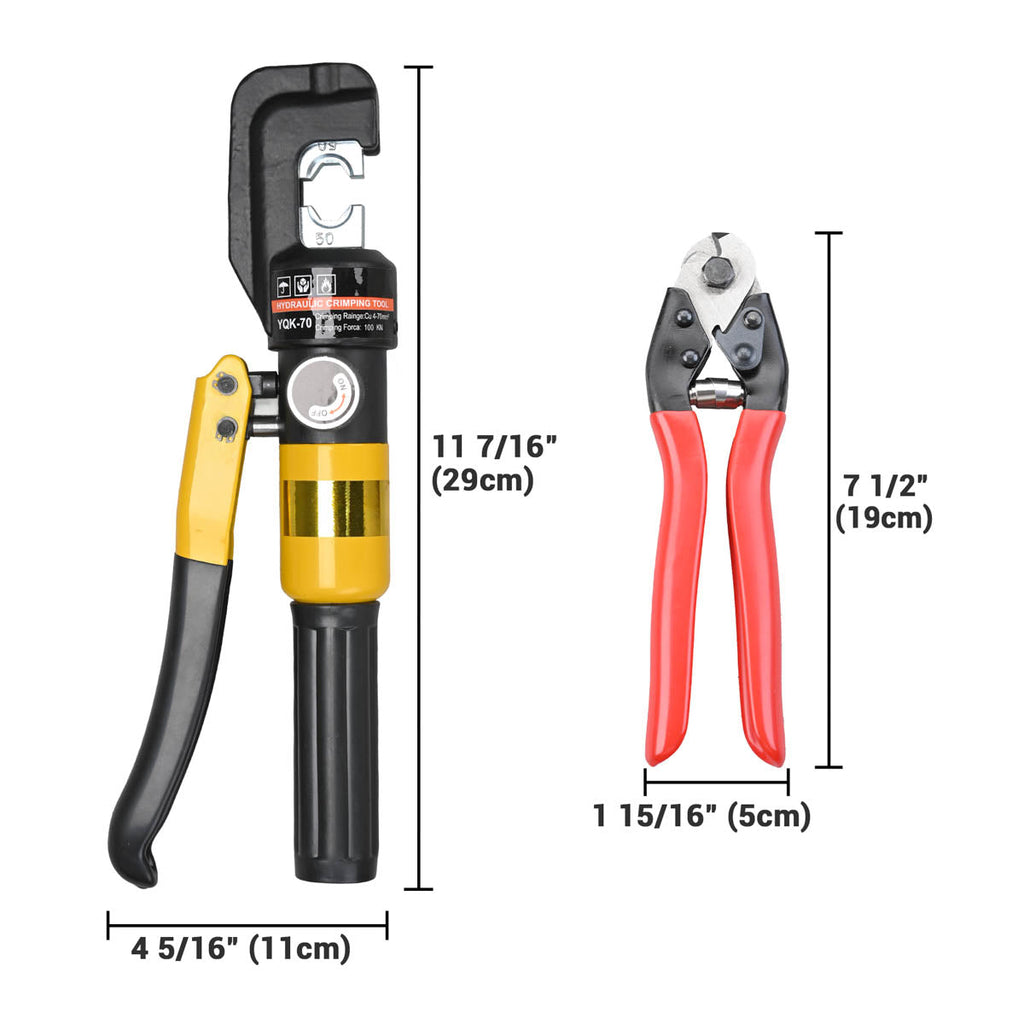

- Length: 12 3/16" (31 cm)
- Material: 45# Steel, 40Cr Steel
- Net Weight: 5.2 Lbs (2.37 kg)
Reference:
|
AWG
|
MM2
|
|
12
|
4
|
|
10
|
6
|
|
10 - 8
|
8
|
|
8
|
10
|
|
6
|
16
|
|
4
|
25
|
|
2
|
35
|
|
1/0
|
50
|
|
2/0
|
70
|

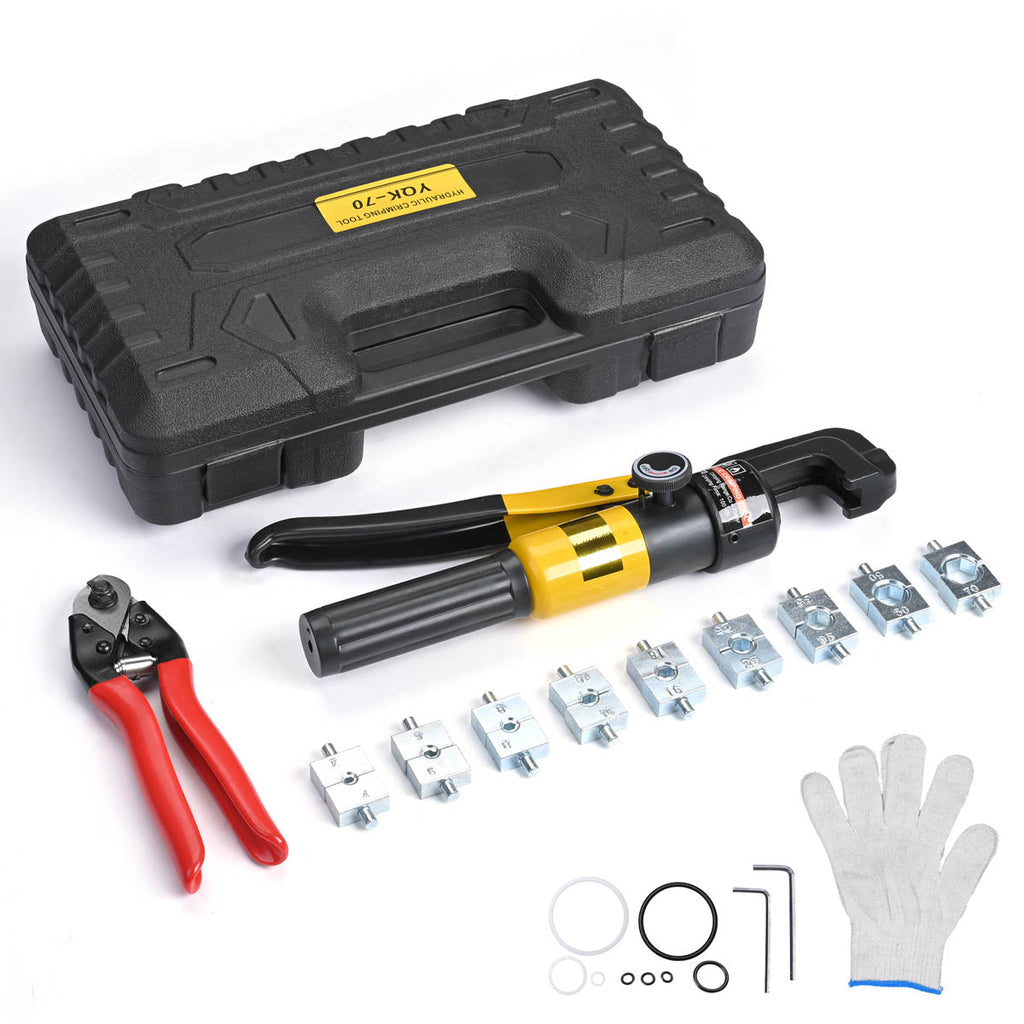

Also In The Box:
- 1x 10-ton crimper
- 9x dies (One Set of Dies has installed on the crimper.)
- 1x Set of Seal Rings
- 1x Plastic Carrying Case
- 1x Manual
Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram
