Description
Matching 1 inch Free Hanging Shelf Brackets
PLEASE NOTE:
This bracket is designed for countertops and shelves ranging from 12 inches to 26 inches, and is the preferred bracket for all shower benches.
The installation process for the Industrial Free Hanging Shelf Bracket® is the same as the Free Hanging Shelf Bracket, except you will cut a one (1) inch thick slot out of the drywall instead of a half (1/2) inch thick slot when installing drywall over the bracket.

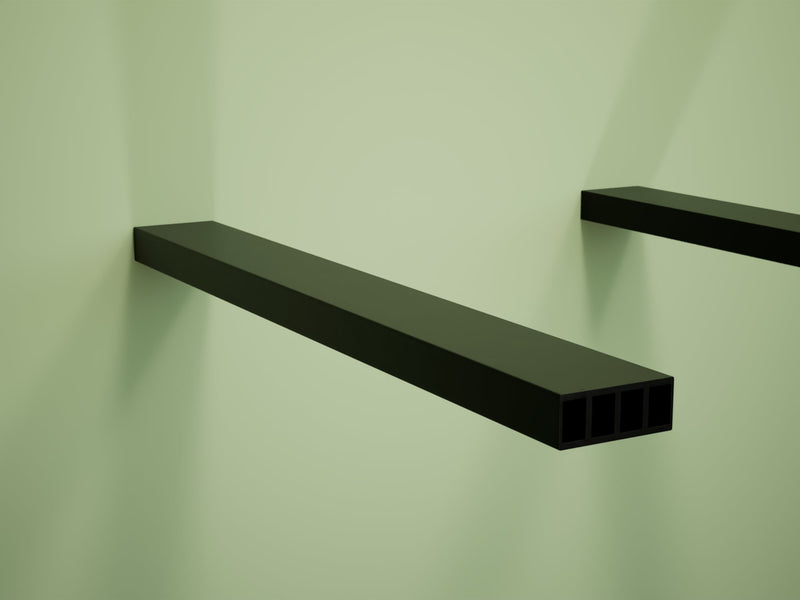

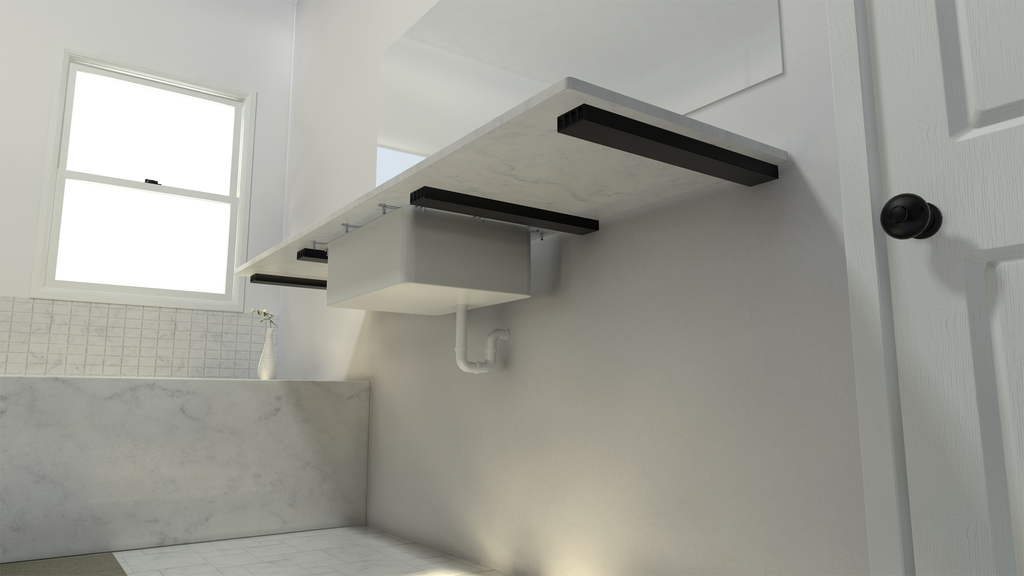

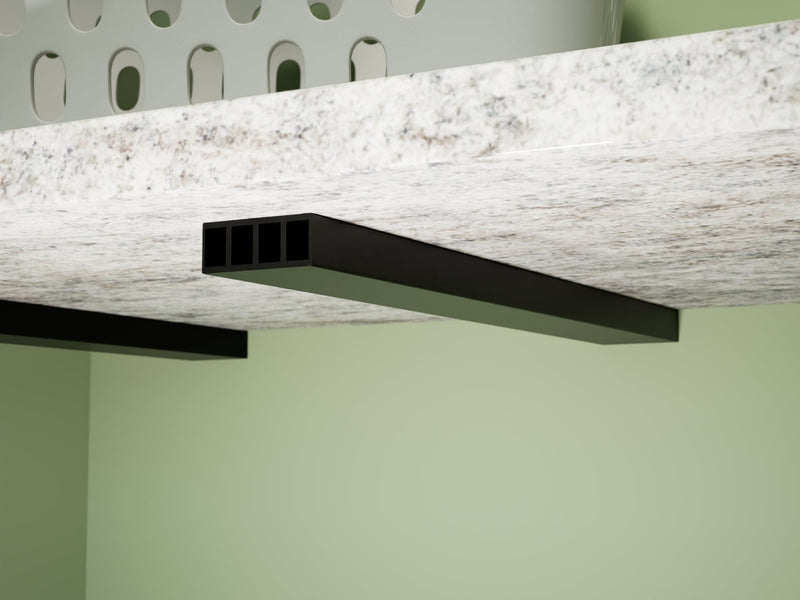

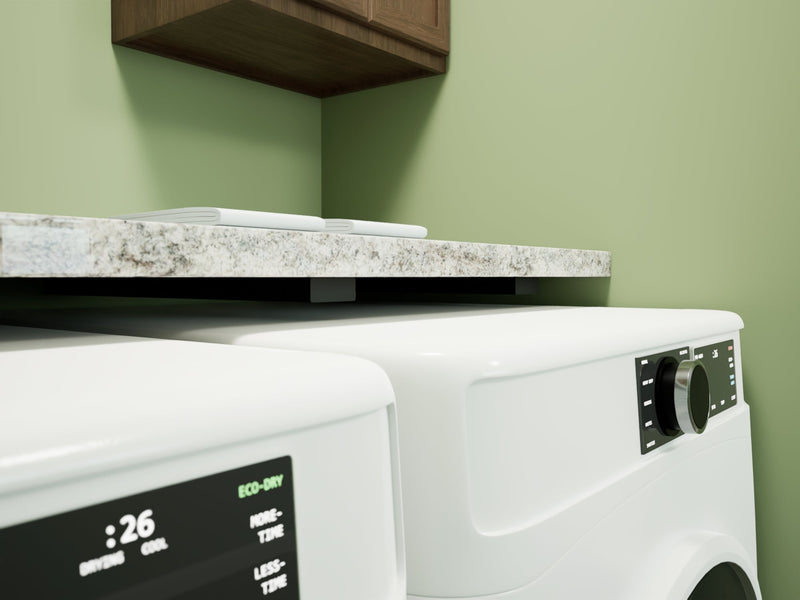

Floating shelves, floating bathroom vanities, floating mantels or hearths, floating desks, and floating shower seats/benches are all supported by the Industrial Free Hanging Shelf Bracket®. This bracket is the perfect concealed support for a floating vanity or shelf. Made from Industrial Ribbed Aluminum, it's suitable for both indoor and outdoor applications.

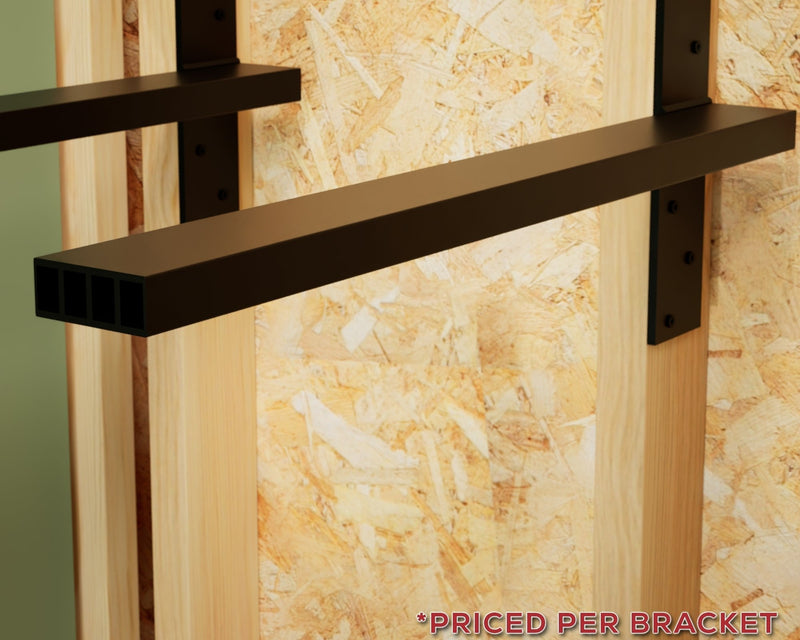

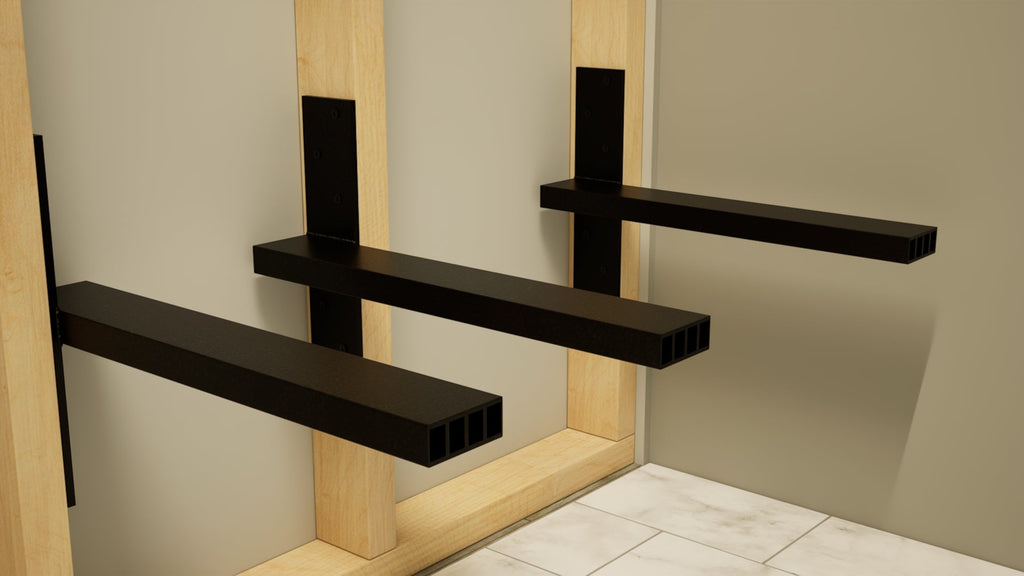

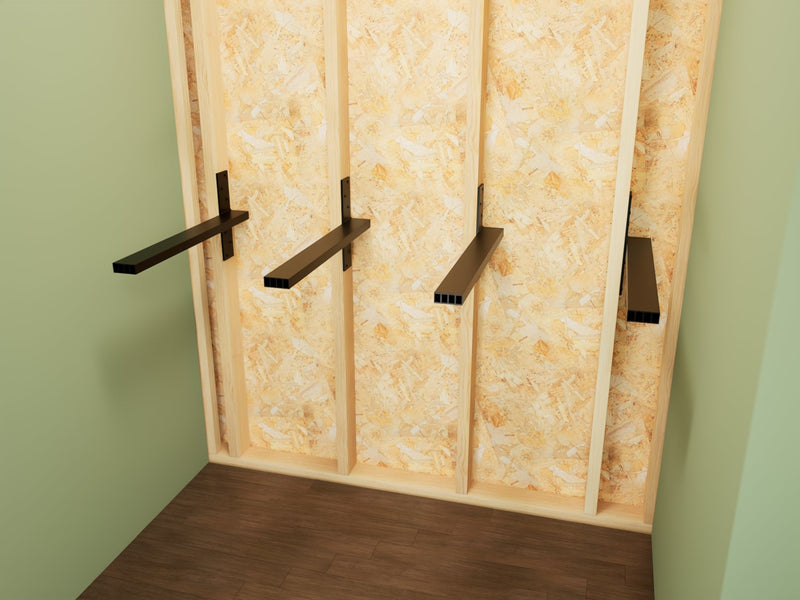

This bracket mounts directly to 2x4 wood studs inside your wall before the sheetrock is installed. (If your studs are metal, special instructions apply.) The bracket must be mounted into wood studs to support the weight of the shelf. For maximum support, it's recommended to mount into each available 2x4 stud.
Mounting both above and below the horizontal piece prevents twisting. After the bracket is secured, cover the wall with your desired finish board.

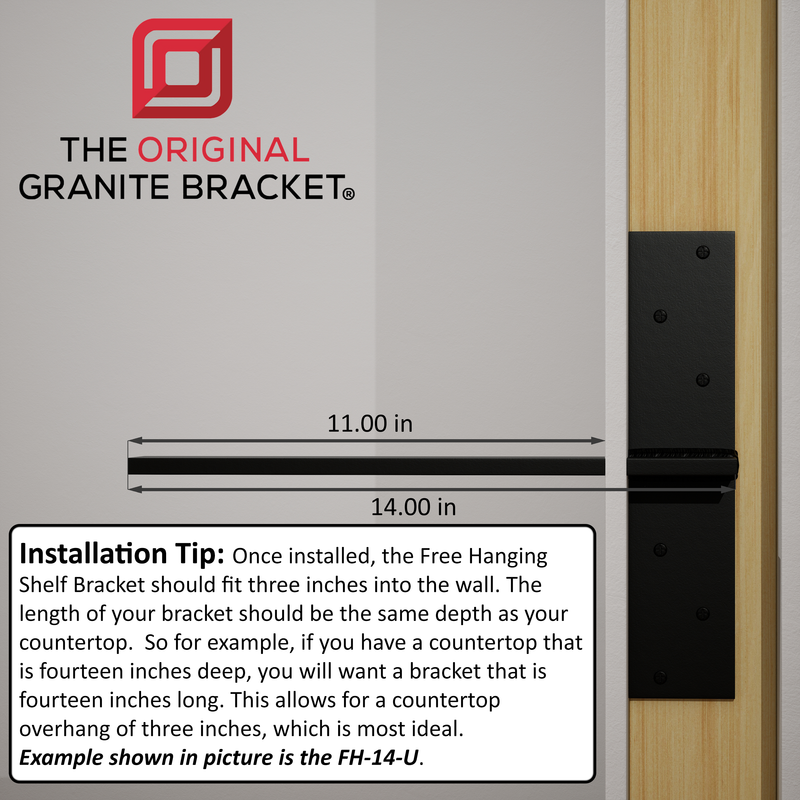

How to Determine the Size Bracket You Will Need:

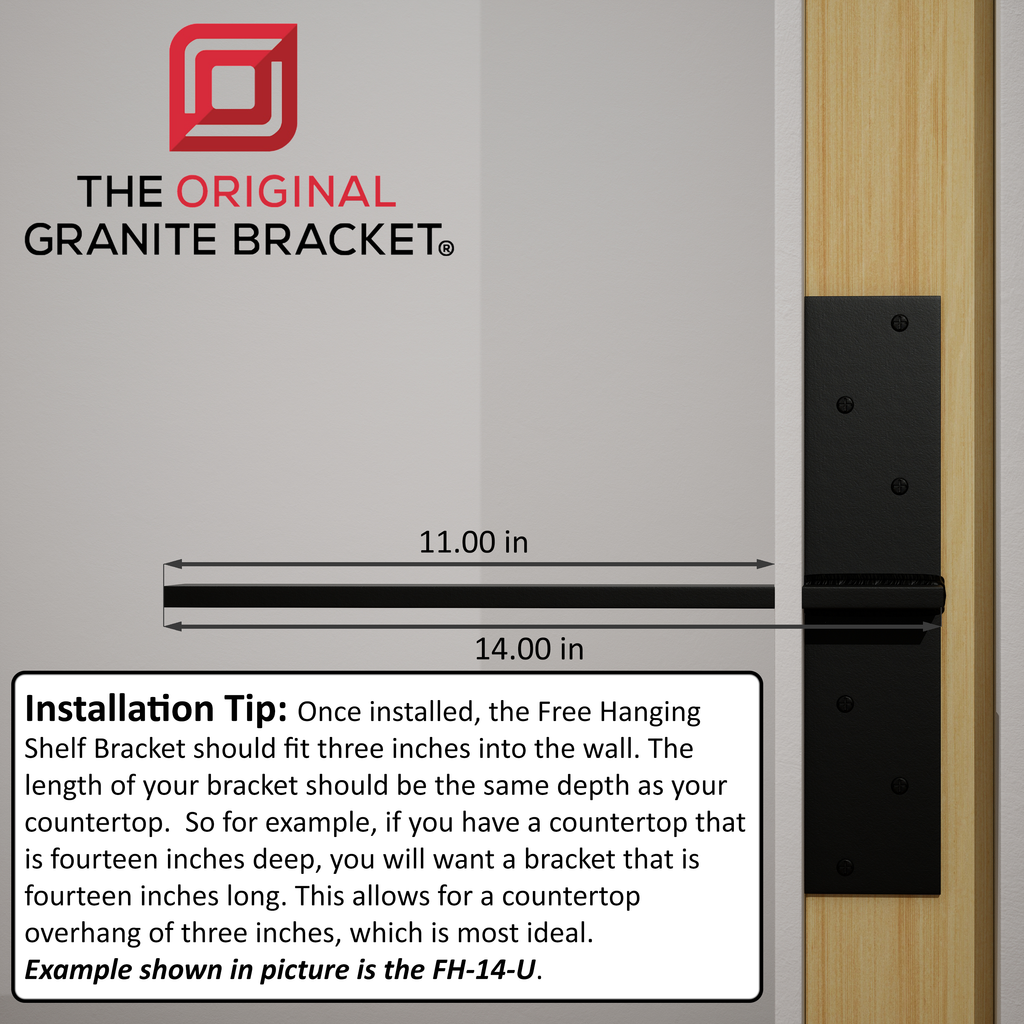

When measuring for length, note that the horizontal piece is measured from tip to tip. Approximately 3 inches of this piece will go inside the wall.
Example: For a 24-inch vanity, order a 24-inch bracket — 3 inches will be inside the wall, leaving 21 inches to support the vanity with a 3-inch overhang.

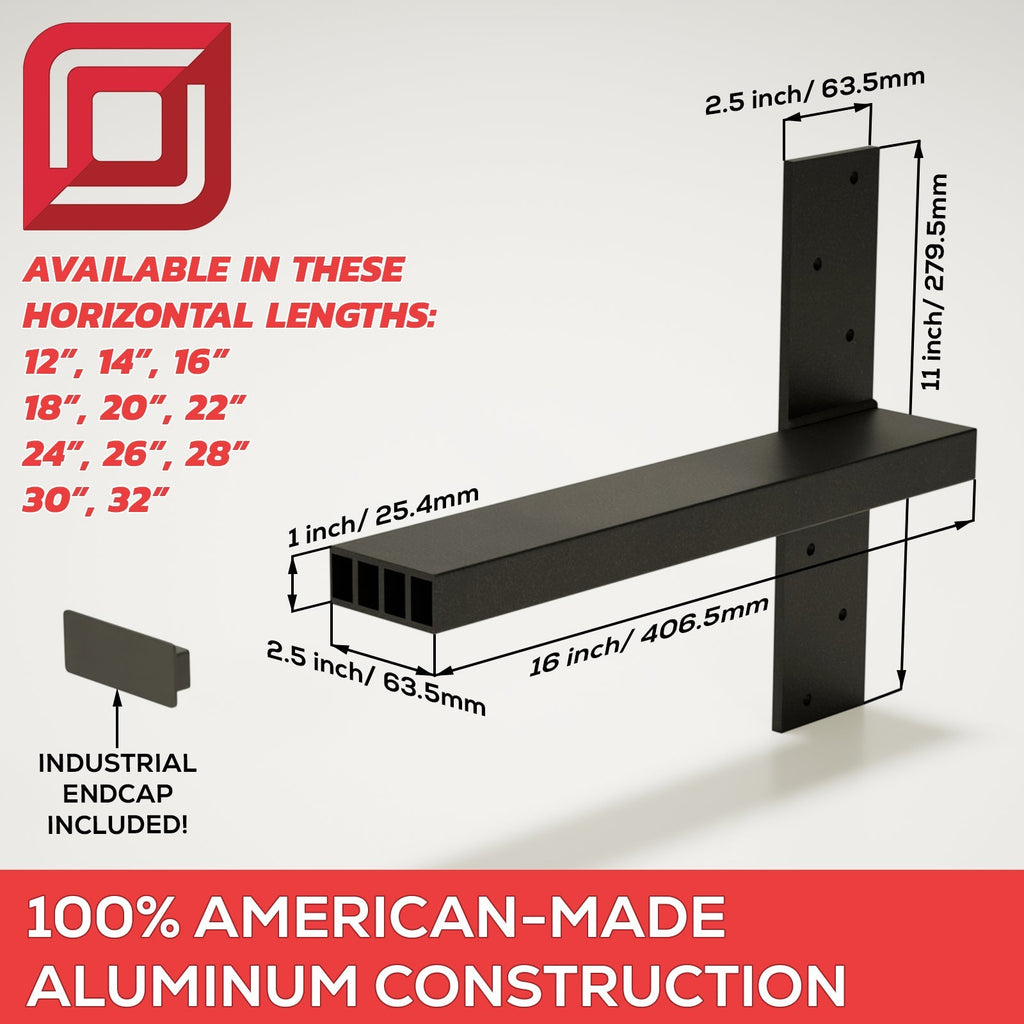

Dimensions:

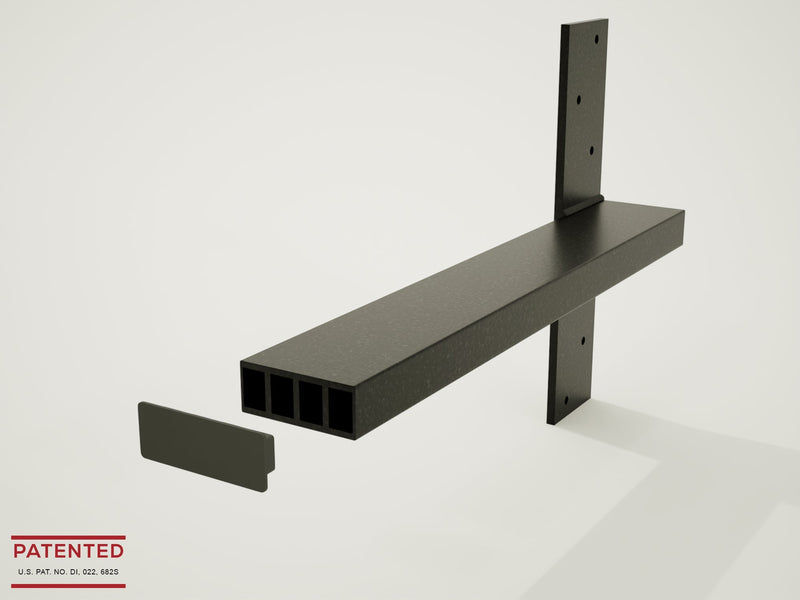

Bracket (Horizontal Piece):
- Length: [You Choose]
- Width: 2-1/2 inches
- Thickness: 1 inch
Vertical Tang:
- Vertical Length: 11 inches (5.25 inches above and below the horizontal piece)
- Width: 2-1/2 inches
- Thickness: 1/4 inch
- Hole Size: 1/4 inch (3 holes above and 3 holes below the horizontal piece)
Exceptional Features:
- Hardware Included
- Made from Industrial Ribbed Aluminum
- Ideal for floating shower seats and benches (aluminum will never rust)

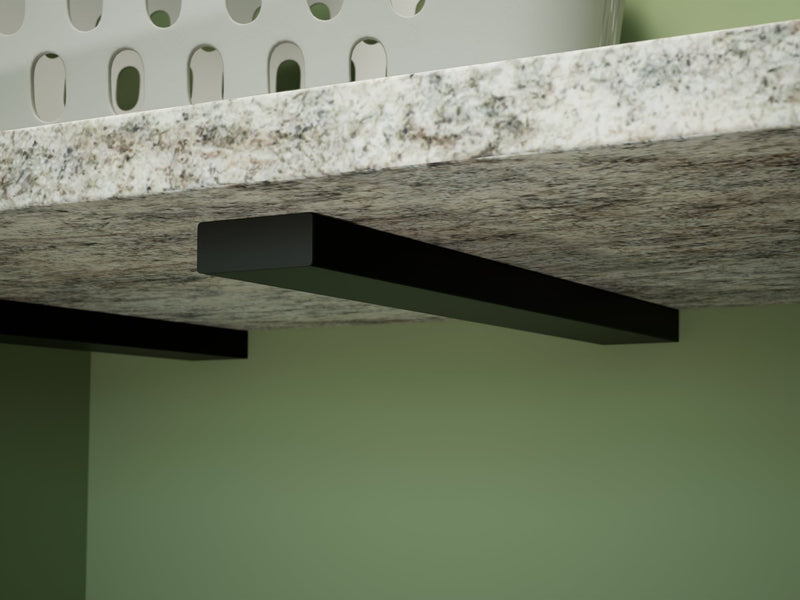

- Concealed design makes shelves, countertops, desks, vanities, and mantels appear to float
- Perfect for both interior and exterior use
- Easy to install
- Top and bottom screw holes on vertical piece
- Welded for added strength
- Matte black finish
- Paintable with anti-rust spray paint
- Made in the USA
- Limited Lifetime Warranty
Shipping:
Free Ground Shipping to the lower 48 states and Canada.
For large orders (20+ brackets) or custom sizing, contact customer service.
Each price listed is for a single bracket. Images may show multiple brackets for illustration purposes.
