Description

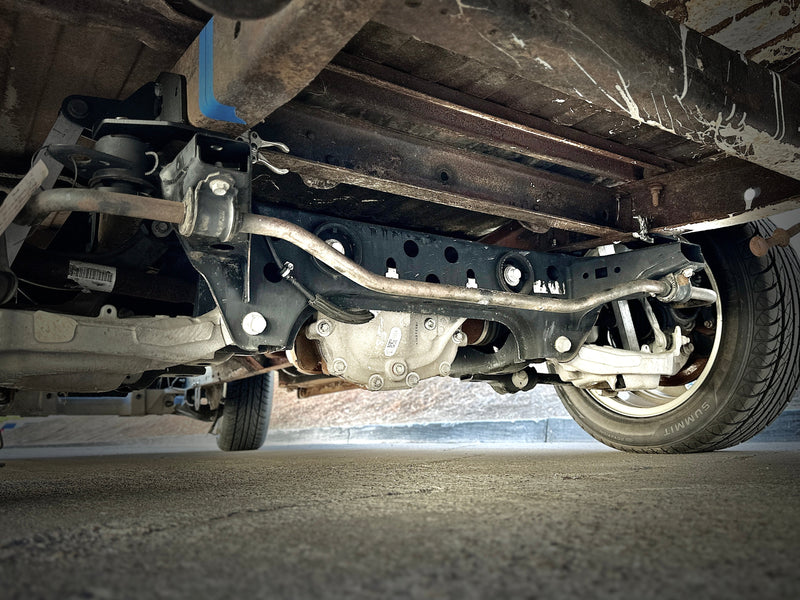

This kit is designed to allow the S-550 / S-650 suspension to bolt to a F-100 using the factory subframe mounts on the 2015-2023 Mustang S-550 and 2024+ S-650 rear suspension. It also integrates mounts for a 12” coil-over. This setup allows for an unmodified bed and much lower than stock ride height, as well as modern, brakes, suspension, and a limited slip differential. The kit uses the leaf spring bracket holes to locate the assembly (be careful not to mangle the holes when you are removing the factory rivets!) and bolts to the side and bottom of the frame rails. You will need to drill some holes for installation, but the brackets act as templates to keep the install simple and straight forward.

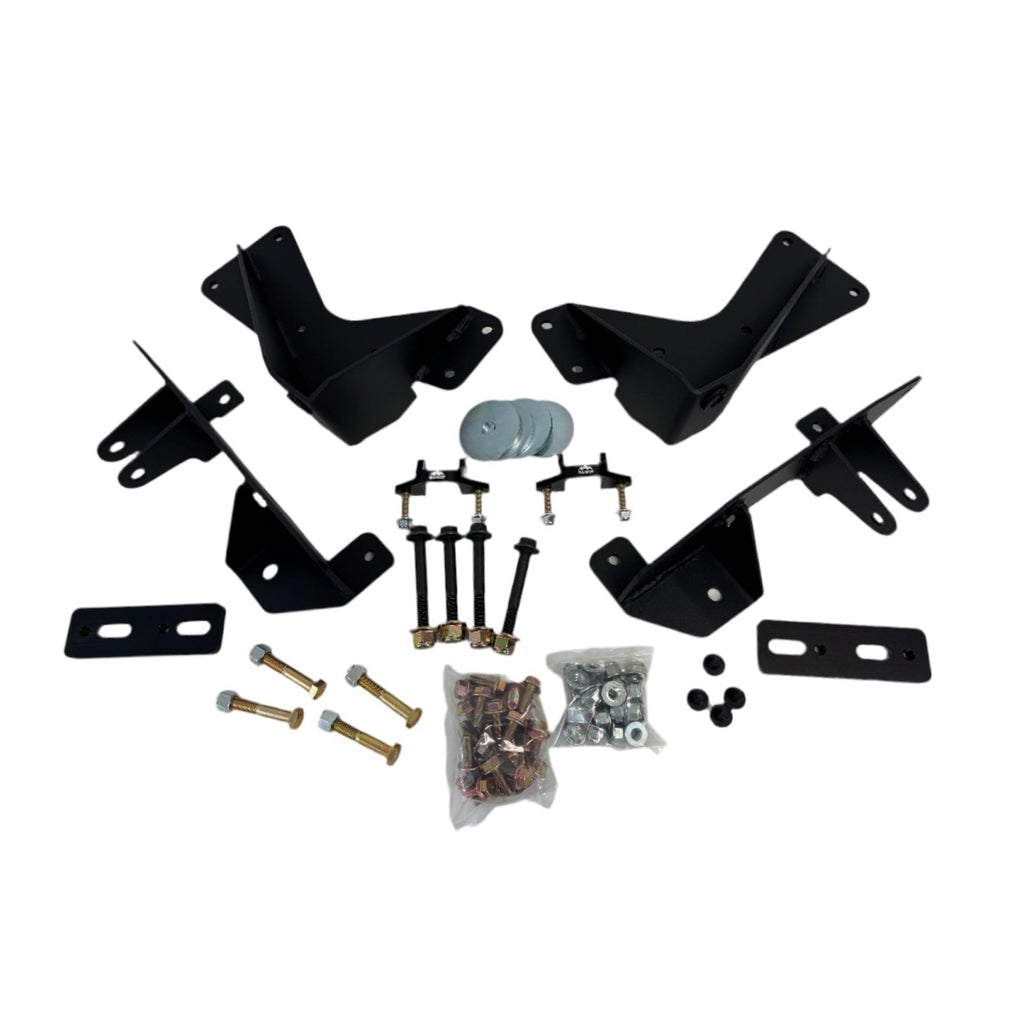

Kit contains all mounting brackets and hardware required to mount the 2014-2023 Mustang S-550 and 2024+ S-650 rear subframe to your F-100 frame. Coil-overs not included in kit.
NOTES:
- 17" wheel minimum required for brake clearance. Modern offset wheels, such as Mustang, are suggested
- Wheel Mounting Surface for S550 subframe width 67.5" (rotor face to rotor face).
- GT350 / GT500 Subframes utilize a different shock mount requiring a different bar pin adapter. Contact us via email on our contact us page for this product!
Need a yoke to run a normal driveshaft with the S550 Rear Suspension? Click the link below!
- Range Industries S550 Driveshaft Yoke -
Install Overview:

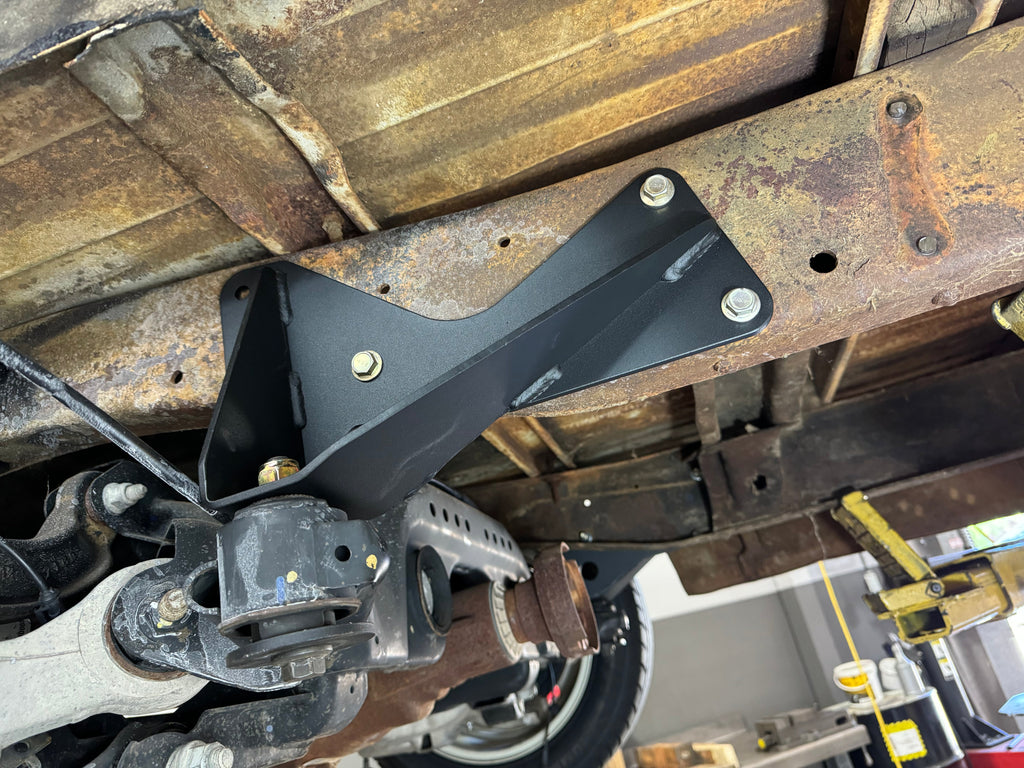

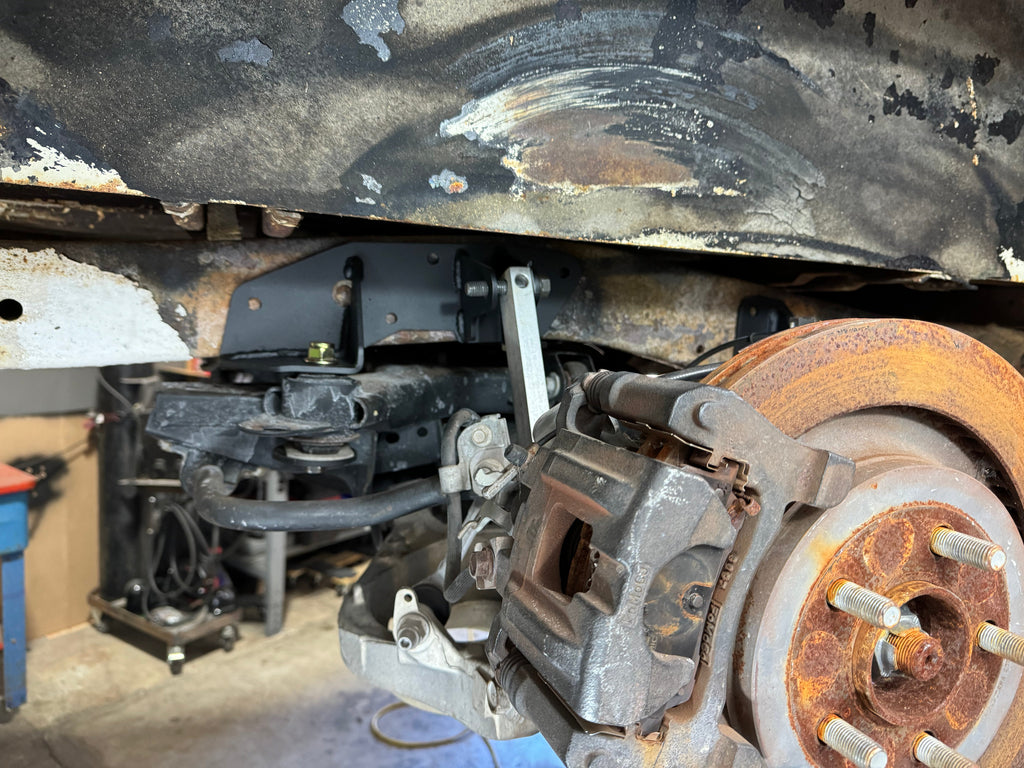

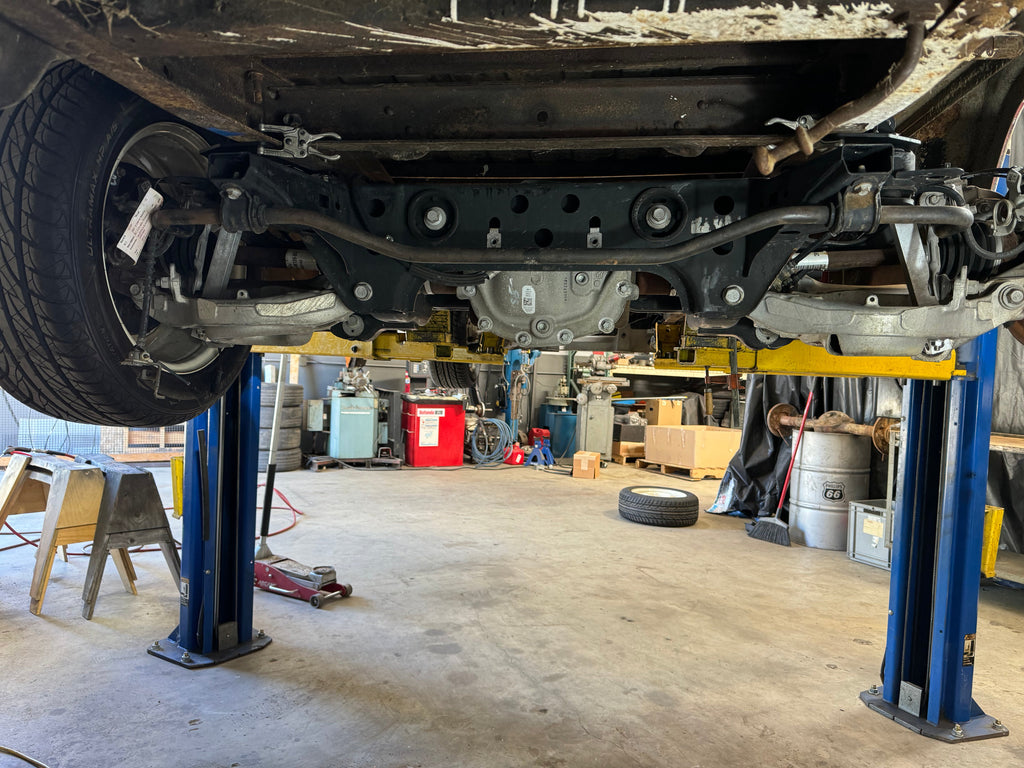

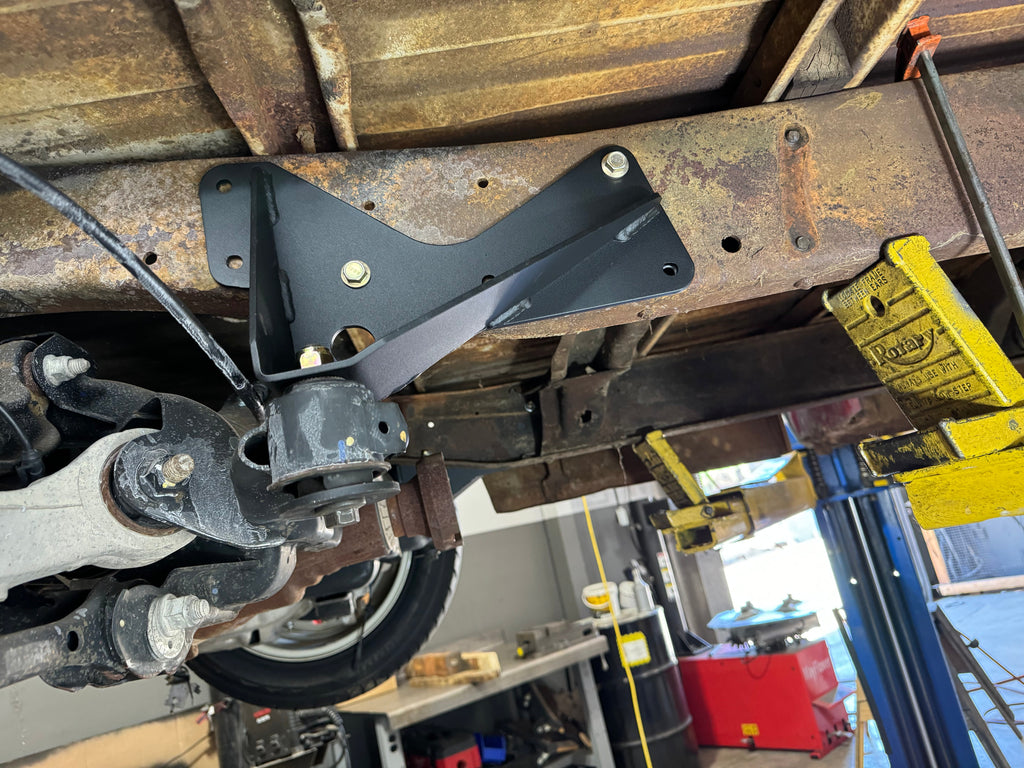

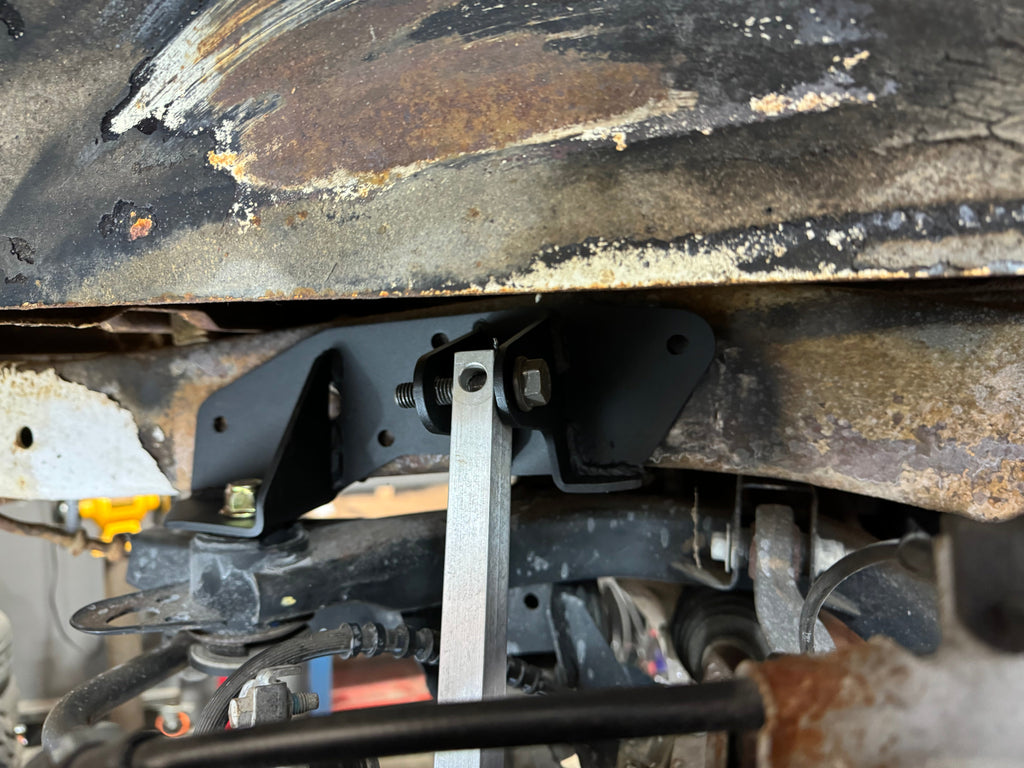

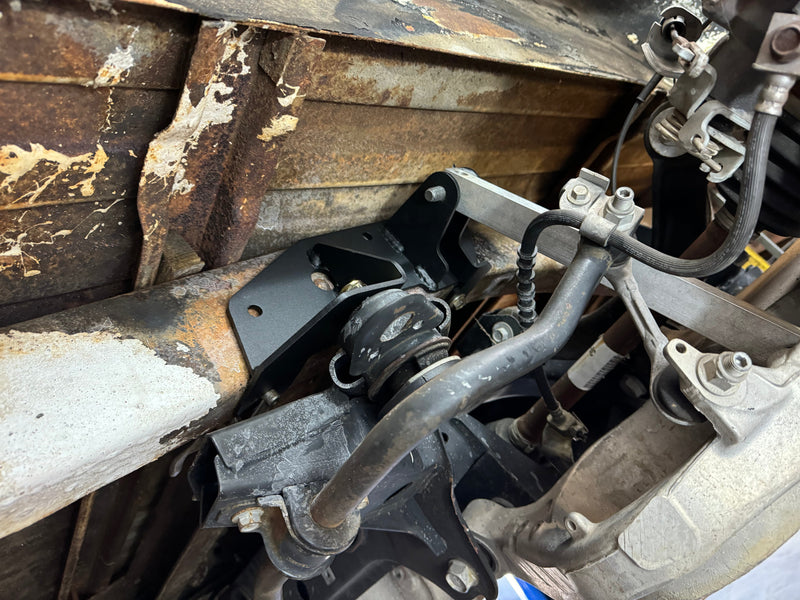

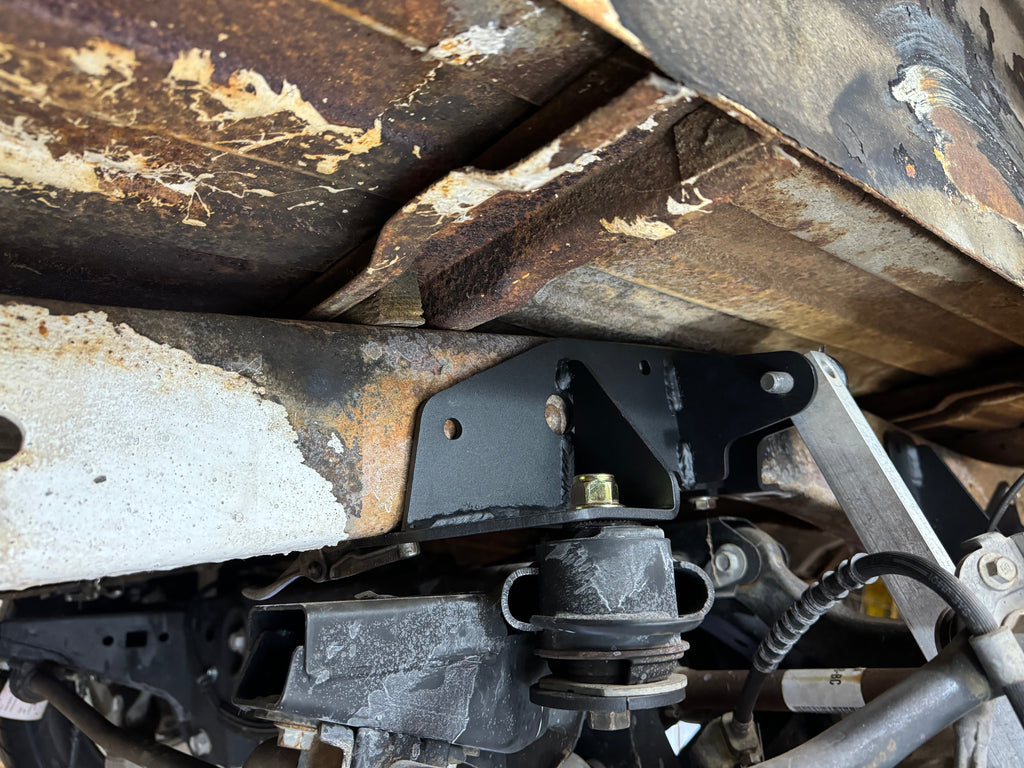

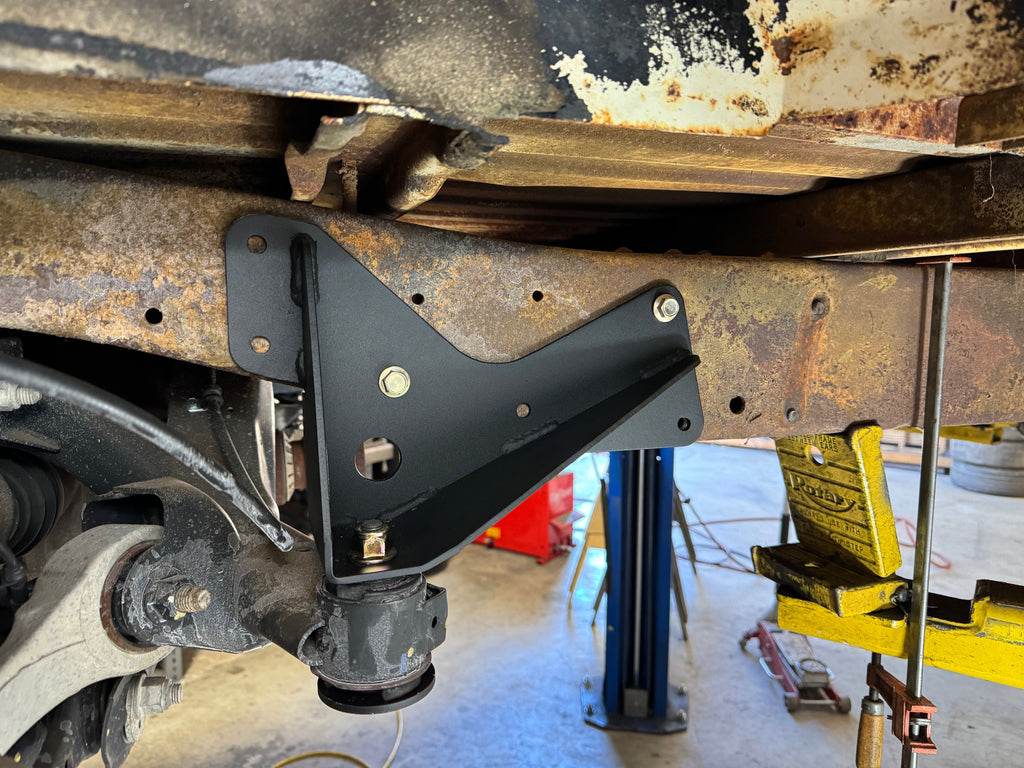

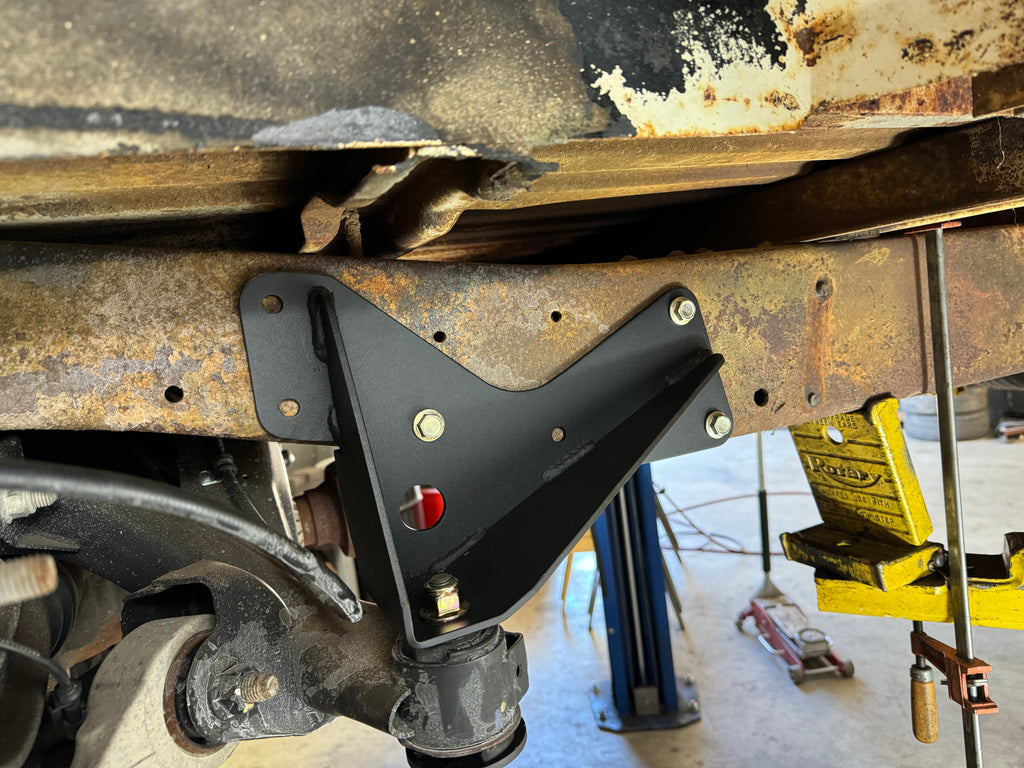

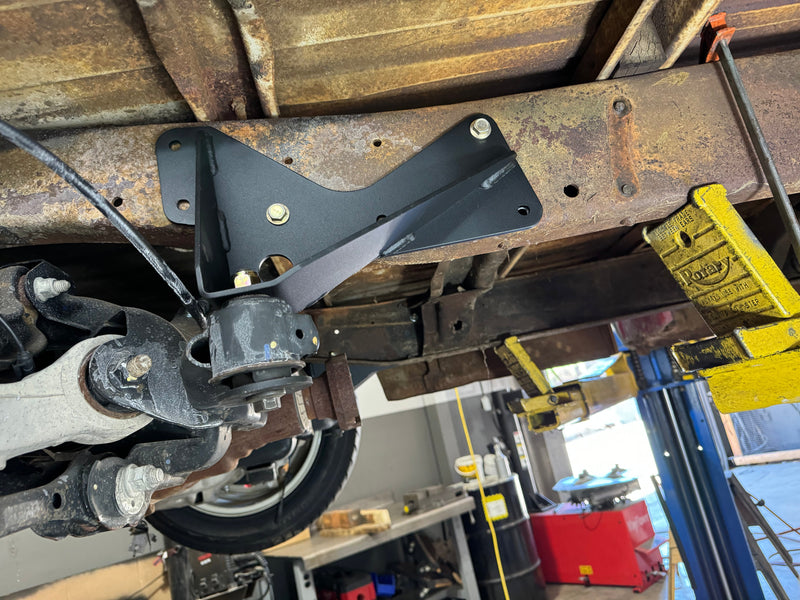

Install this kit by first removing the old suspension, including the leaf spring hangers. Then bolt in the front brackets using 2 of the leaf spring hanger bolt holes. Install the rear brackets to the s-550 and 2024+ S-650 subframe and clamp them tight against the bottom and side of the frame rails. Drill and install bolts to hold it in place, then remove the subframe to allow you to finish drilling and bolting the brackets in.

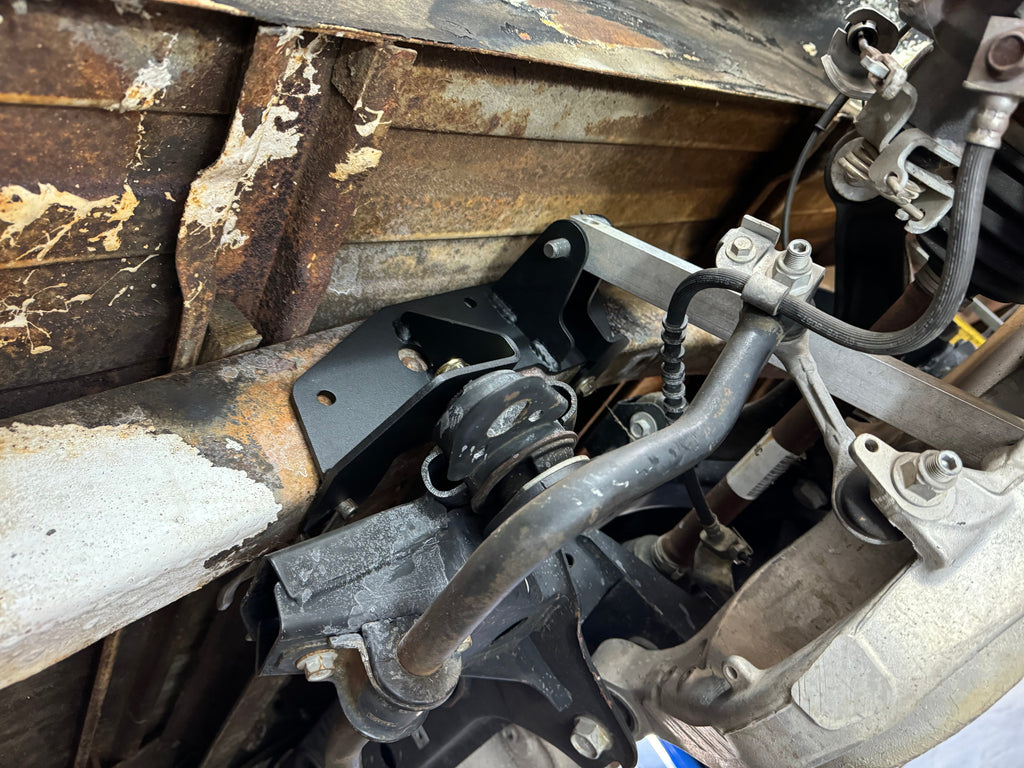

A machined shock adapter is provided for the lower arm to allow a standard coil-over to bolt in place. A bracket is also included to slide the sway bar backwards if needed to clear your coil-over. The kit is designed to fit a 12” coil over (~12” eye to eye at ride height). We recommend a 300-350 lbs./in spring. Please note, coil-overs are not included.
Enjoy your modern suspension, brakes, and limited slip!
