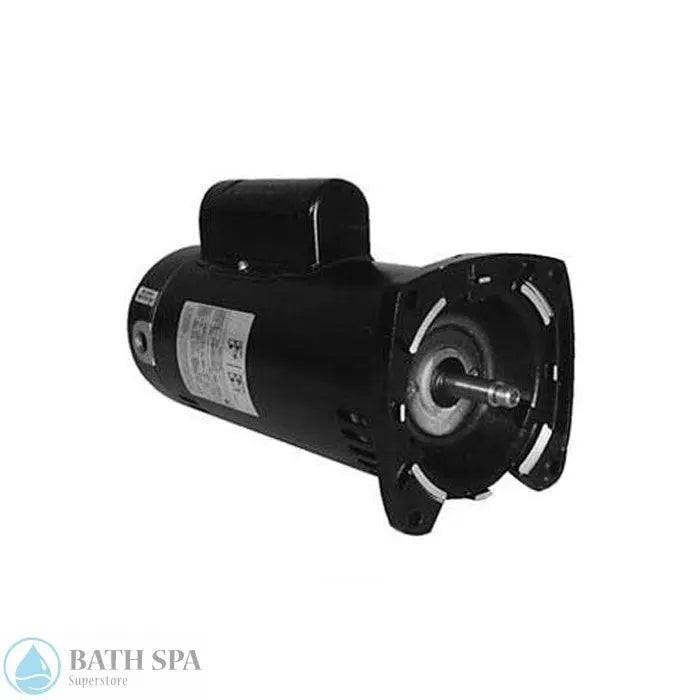

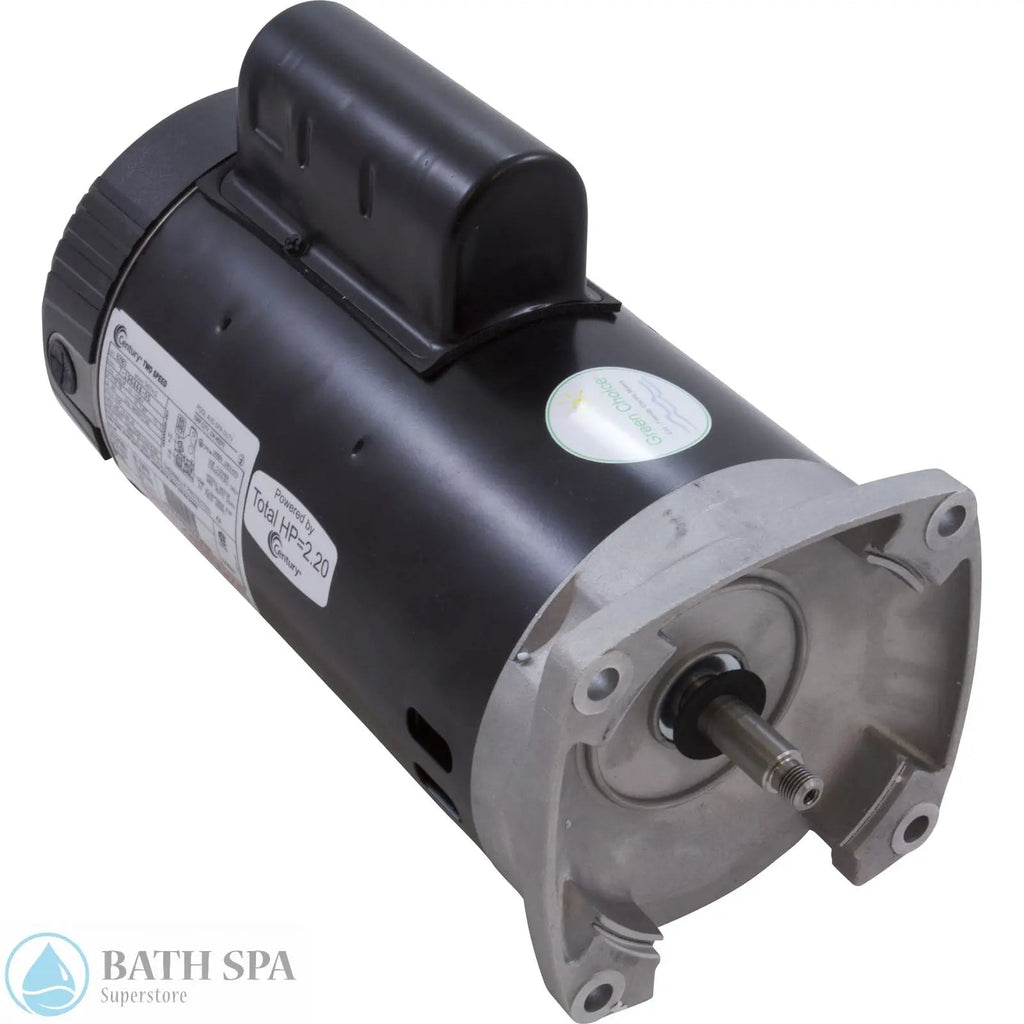

A.O. Smith (AOS) Century 1.5hp, 230v, 2-Spd, 56Y fr, SQFL, EE (SQS1152R) [B2983]
Motor, Century, 1.5hp, 230v, 2-Spd, 56Yfr, SQFL, EE
| Motor Type | Pool |
| Motor Amperage | 10.0A/1.6A |
| Voltage | 230v |
| Phase | 1 Phase (1ph) |
| Frame Type | 56Y |
| Speed | 2 Speed (2-Spd) |
| Horsepower | 1.5hp |
| Total Horsepower | 2.2thp |
| Motor Shaft Type | Threaded |
| Motor Style |
Square Flange |
| Capacitor On Top | Yes |
| Manufacturer | AO Smith/Century/Regal Beloit |
|
CAT: B2983 MODEL: 196444 TYPE: CXCP FR: Y56Y HP: 1.5/.19 SF: 1.47 PH: 1 HZ: 60 RPM: 3450/1725 ROT: CCWPE |
VOLTS: 230 AMPS: MAX AMPS: SF AMPS: 10.0/1.6 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: J INSUL CLASS: F AMB.: 50°C |
- Ball Bearing
- 50°C Ambient
- Rotation: CCW Pump End
- Class B Insulation
- 303 Stainless Steel Shafts
- High Efficient High and Low Speed
- Open Drip proof
- Permanent Split Capacitor
- Single Phase
| WHY USE A.O. SMITH (AOS)/CENTURY PRODUCTS? |
||
|
Regal Beloit America, Inc. (Century Electric Motors / A.O. Smith Electric Motors) is a leading supplier of electric motors for residential, commercial, and industrial applications. With operations in the United States, Mexico, China, and Europe, Regal Beloit America, Inc. has the ability to serve its customers electric motor needs on a global basis. We offer a comprehensive line of hermetic motors (used in air conditioning compressors), fractional horsepower A/C and D/C motors, and integral horsepower motors. We sell our products directly to original equipment manufacturers (OEMs), and replacement motors to HVAC and pool/pump distributors. |
||
