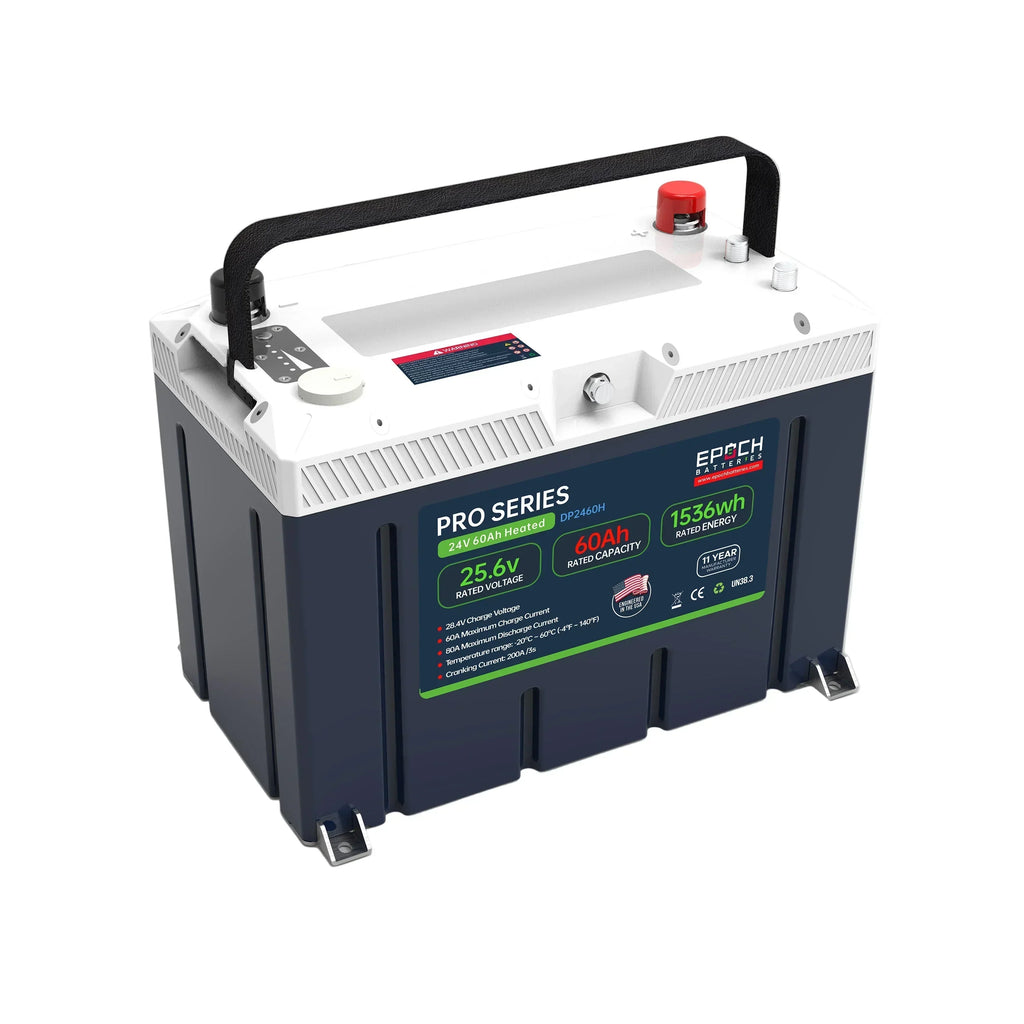

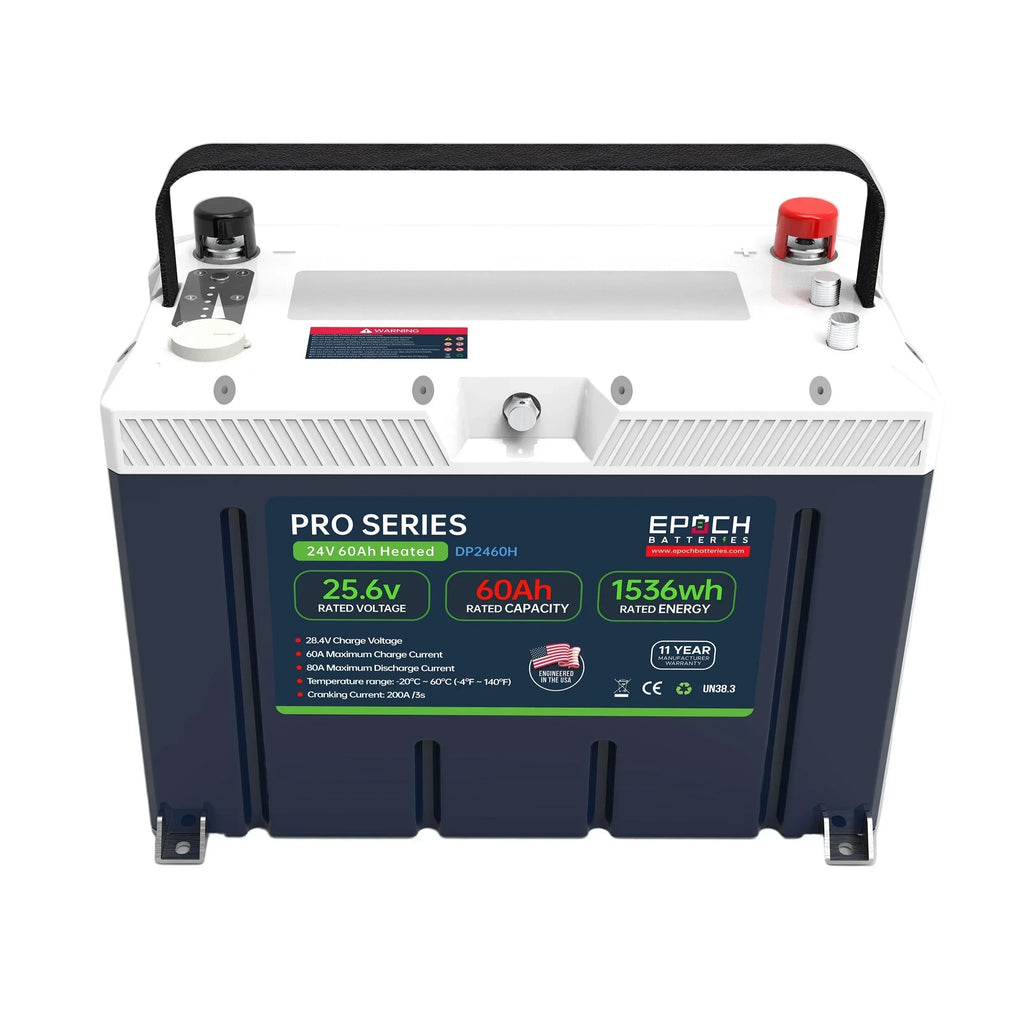

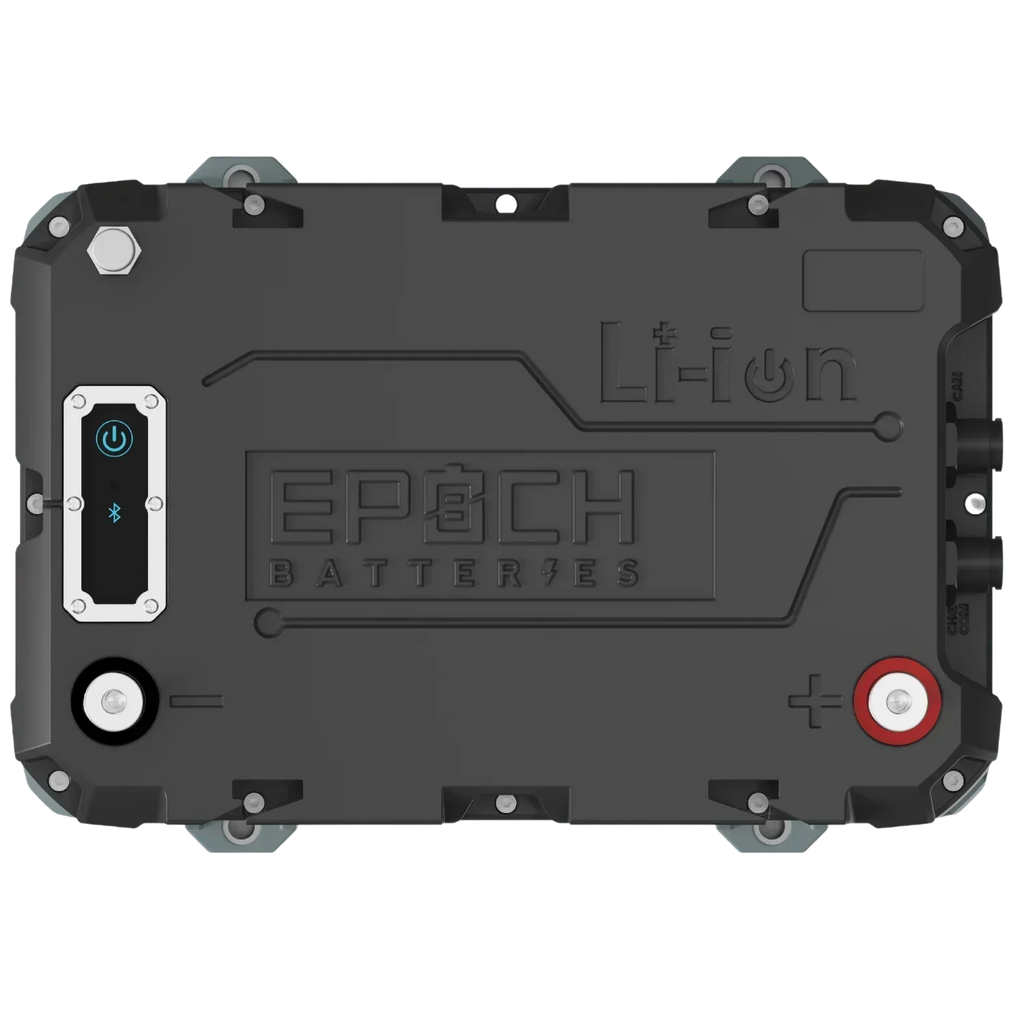

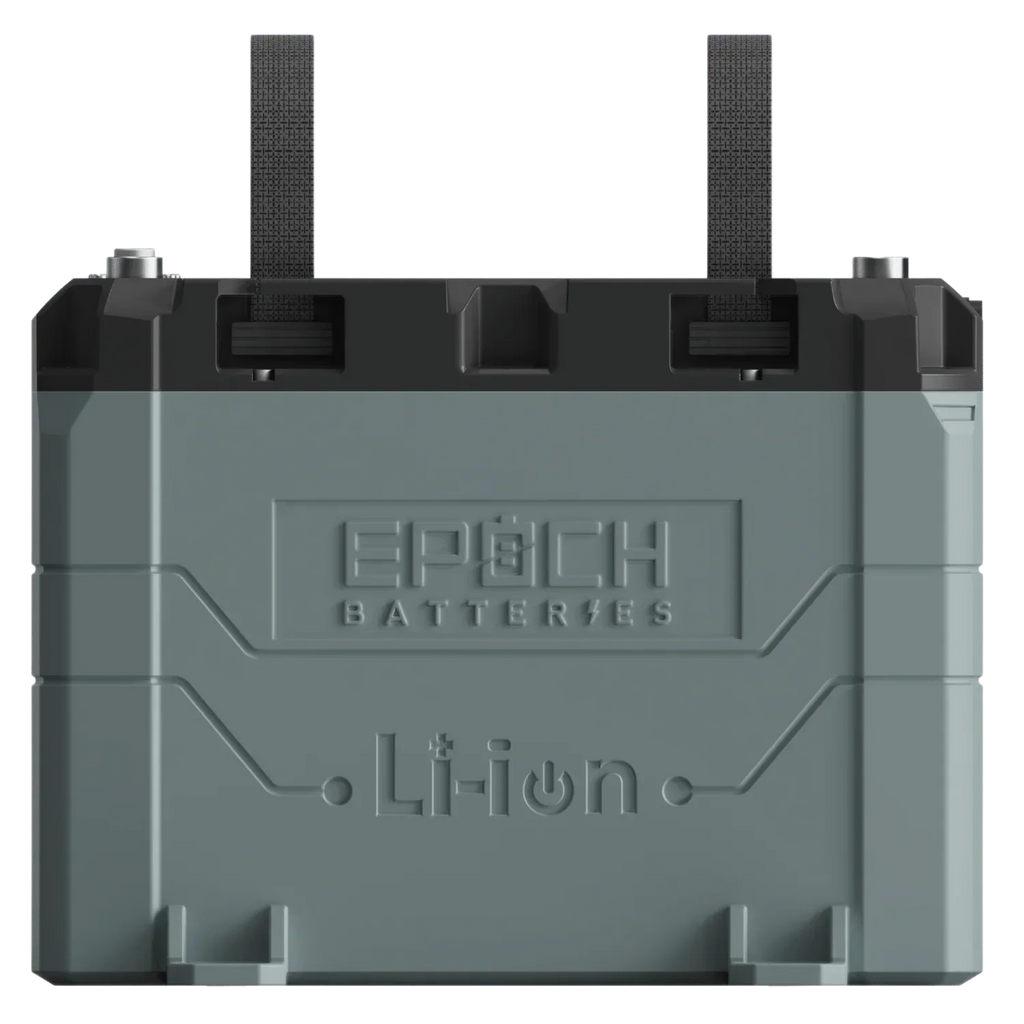

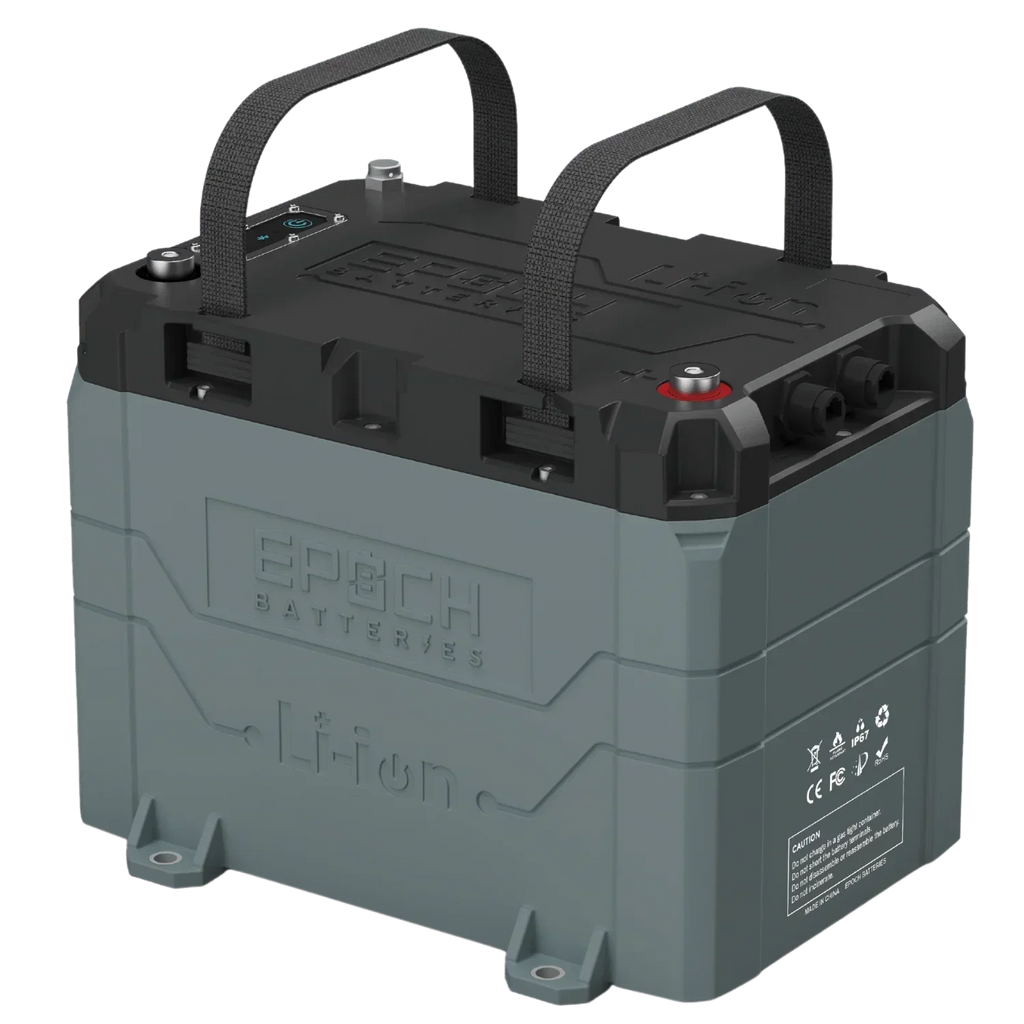

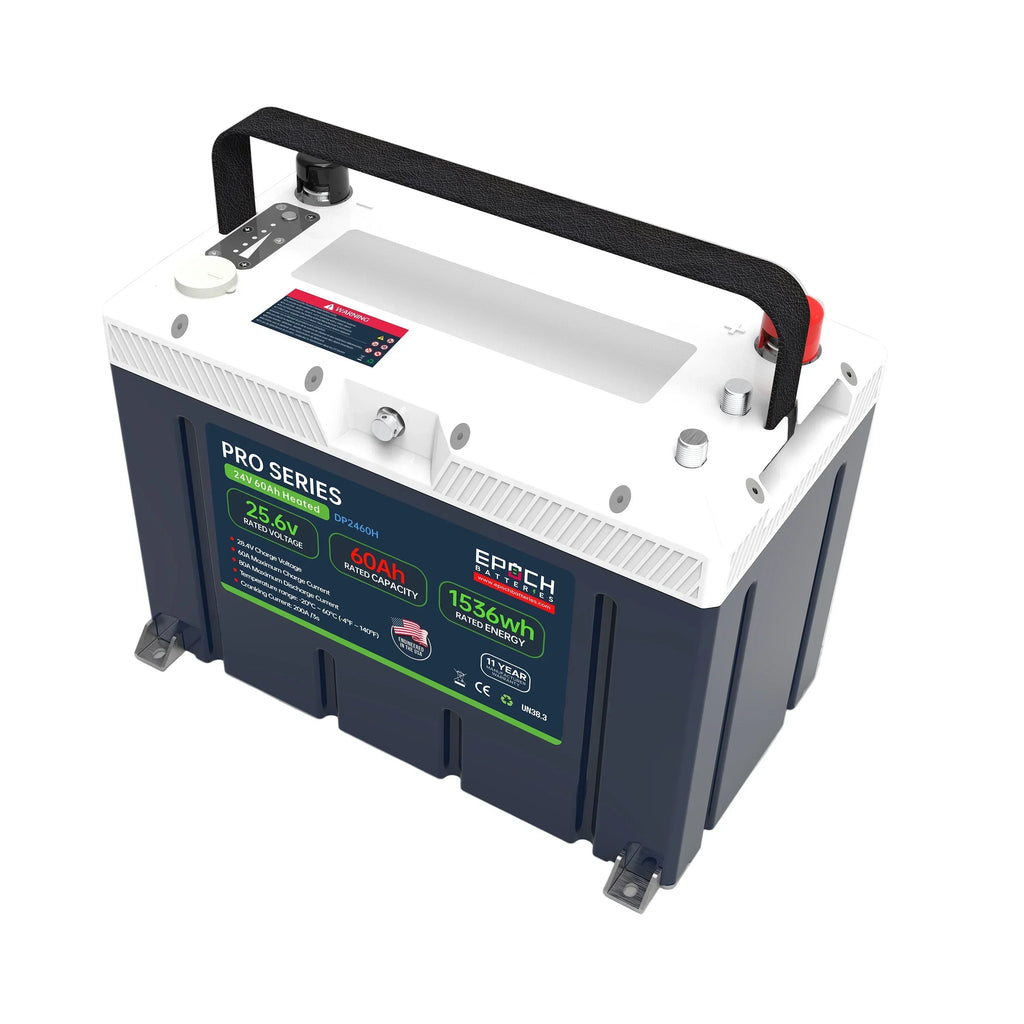

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery
Description:
- LiFePO4 Chemistry - GROUP 27 SIZE
- 80A Max Continuous Discharge
- 200A 3s Peak Discharge Current
- HEATED - Internal heating allows for charging in sub-zero conditions

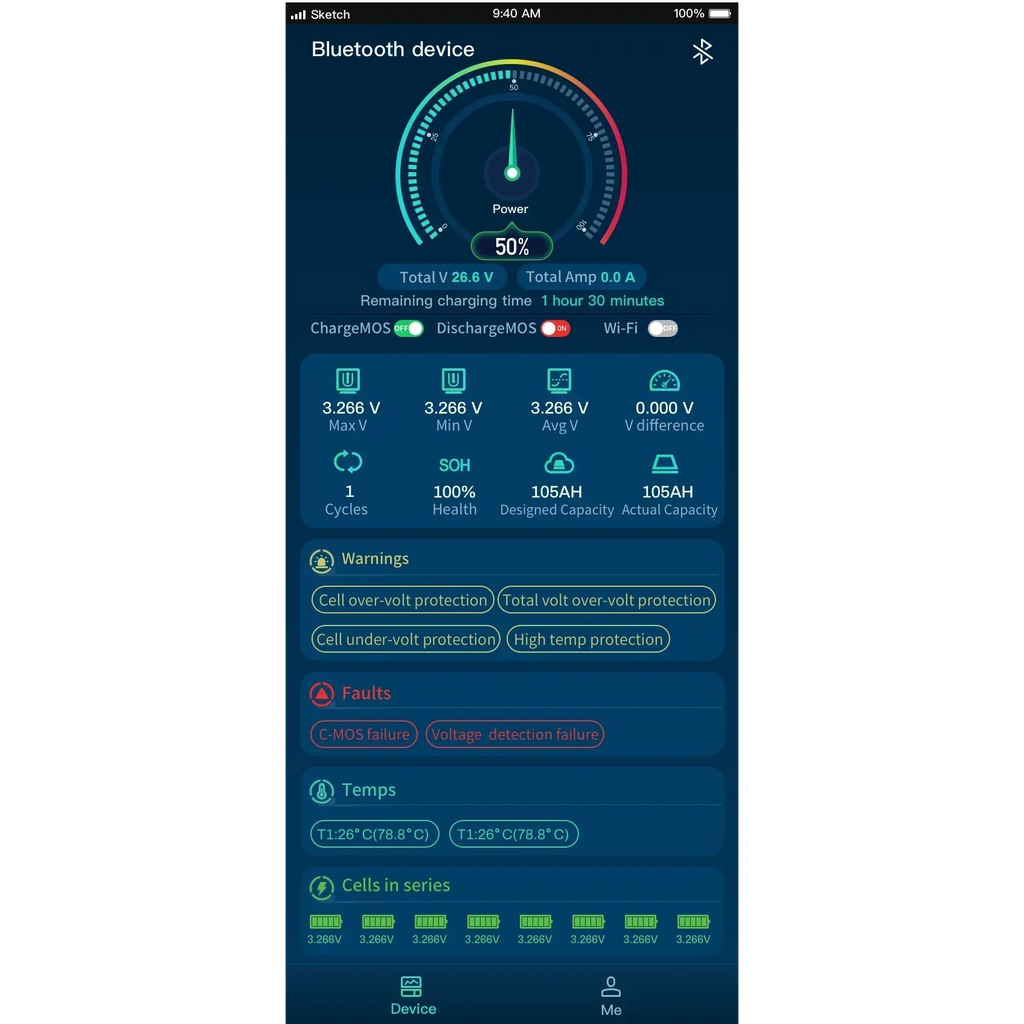

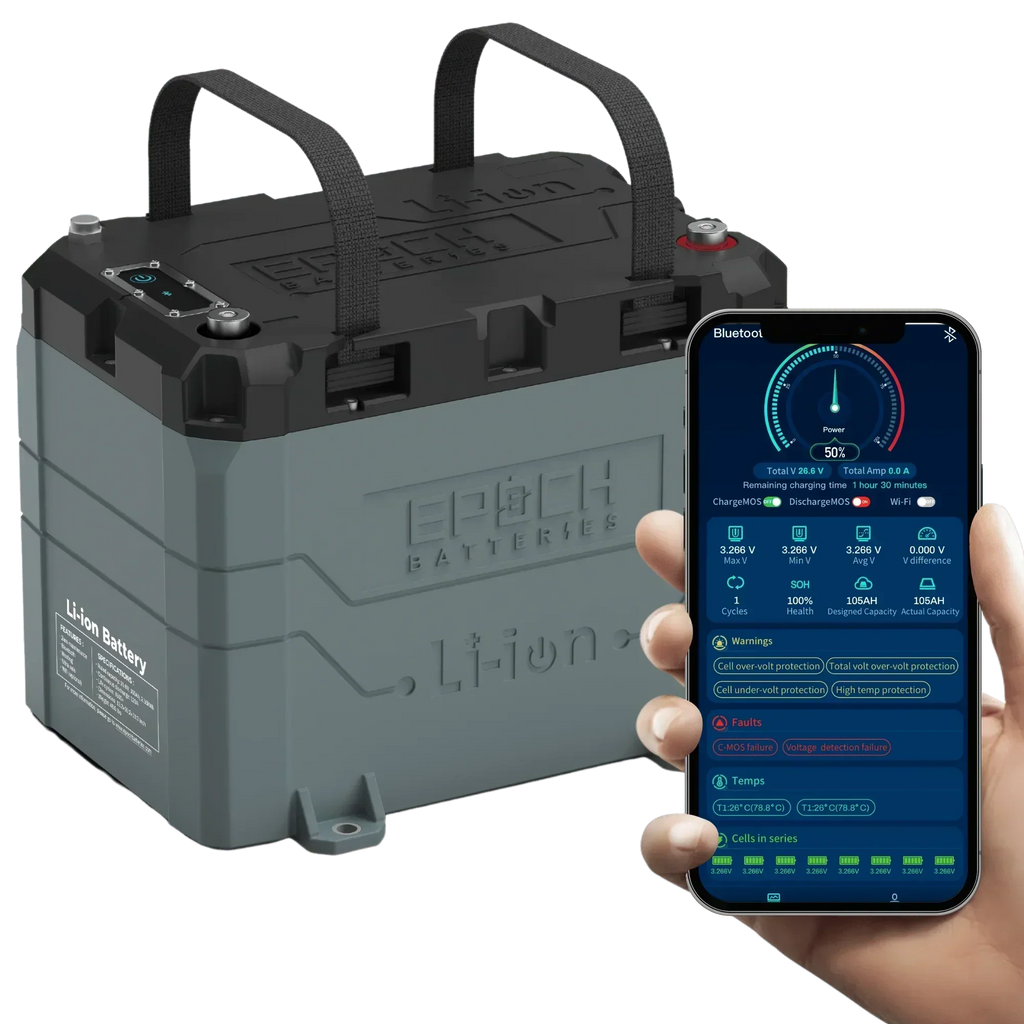

- BLUETOOTH - iOS and Android Apps
- BLUETOOTH - Over the air Firmware update via the app
- Victron Comms - Communicate all battery information directly to the Victron Ecosystem
- IP67 Rated, Dust and WATERPROOF

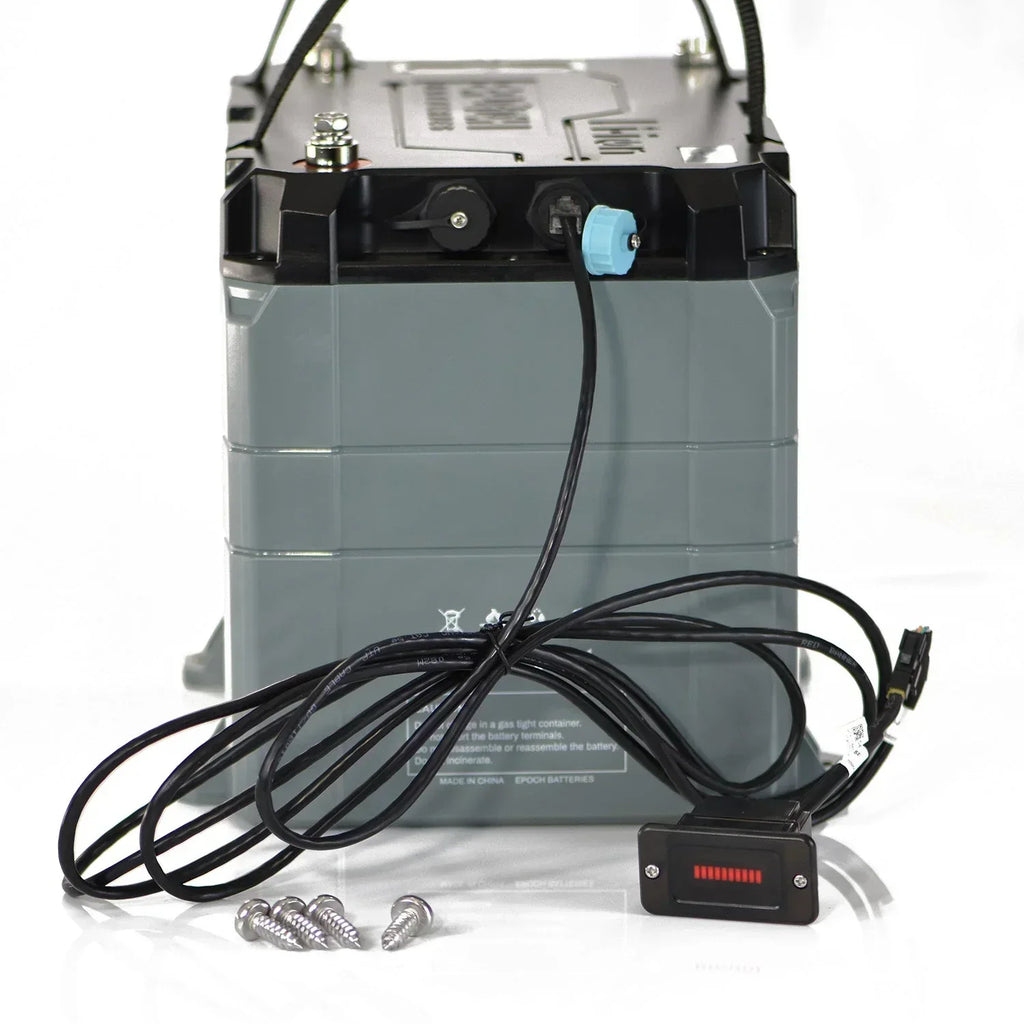

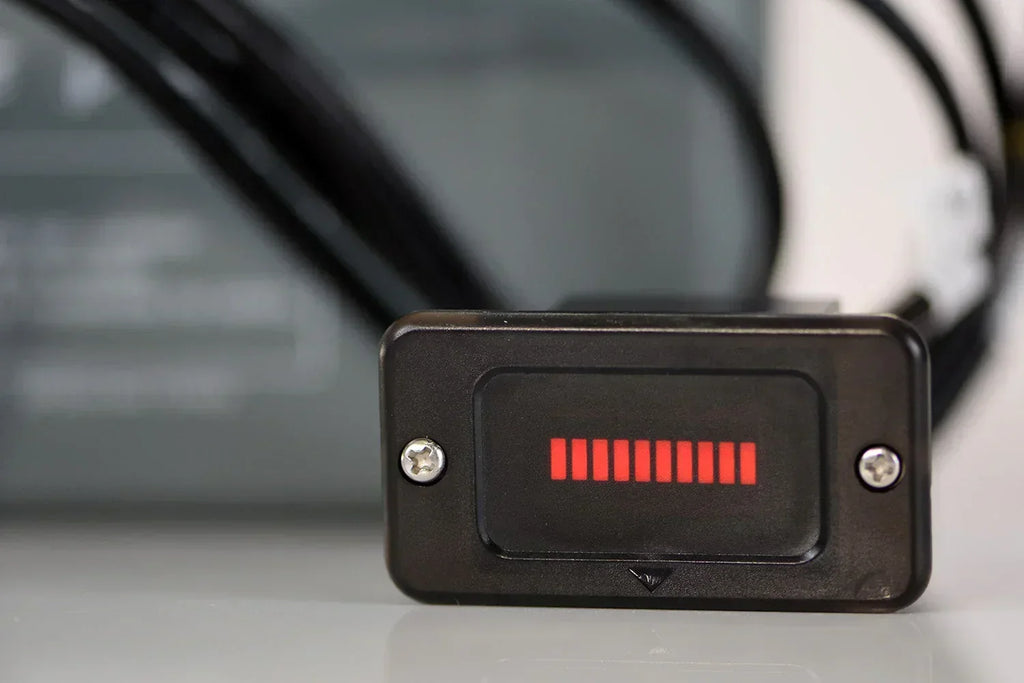

- 5" Touch Screen Battery Gauge (Optional)
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (16) in Parallel
- 6000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Specifications:
Configuration
Chemistry: LiFePO4
Current
Ah Capacity: 60Ah
Max Continuous Discharge Amps: 80A
Max Charge Current Amps: 60A
Max Discharge Peak Current Amps: 200A 3 seconds
Series | Parallel: Max (16) in Parallel
Voltage
Voltage: 25.6V
Max Charge Voltage: 29.2V
Operating Voltage Range: 20 - 29.2V
Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weights & Dimensions:
Weight: 30
Dimensions
Length: 12.25 (inches)
Width: 6.75 (inches)
Height: 9 (inches)
Recommended Charging Settings:
Maximum Continuous Charge Current: 60A
Bulk/Absorption: 28.4V-28.8V
Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
Float Voltage: Disabled (preferred) or 26.6V-27.2V
Re-bulk: 26.4V
Temperature Compensation: 0 mV/°C (none)
Equalization: Disabled
Battery Charge Temperature Range: -20°C (-4°F) / 55°C (131°F) (with self-heating)
BMS High Voltage Cutoff: 29.2V
SoC Recalibration: 29.2V
