Description
BULLET POINTS
- Specifications- With low resistance and good conductivity of high precision oxygen-free copper so that your light can be used further away without worrying about voltage reduction and overheating.

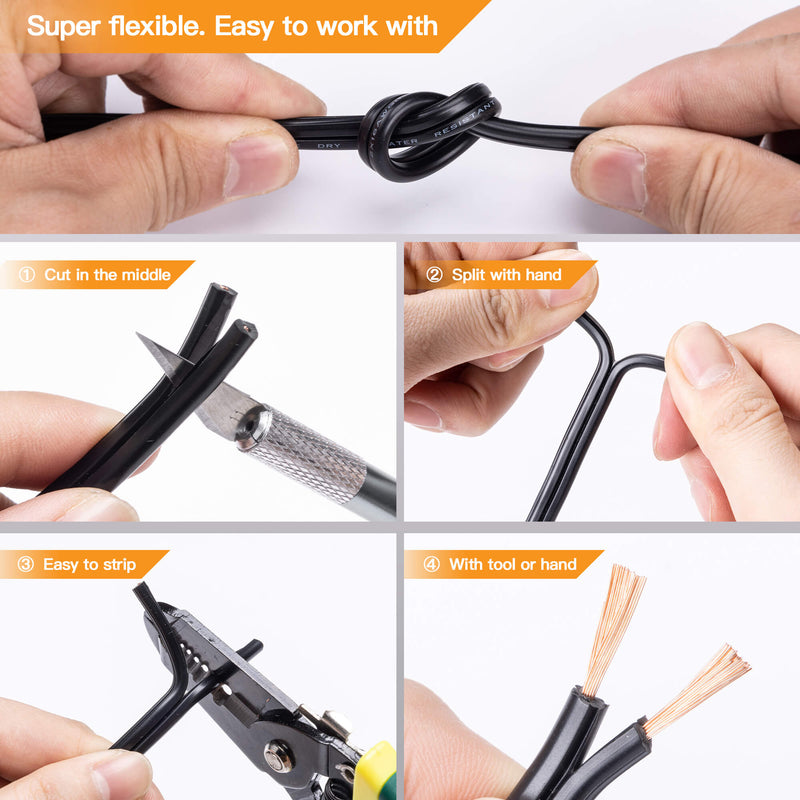

- Easy to use - The wire is soft and easy to solder, and you can easily peel off the insulation to expose the copper wire and connect it to lamps, transformers, and other cables without much effort.

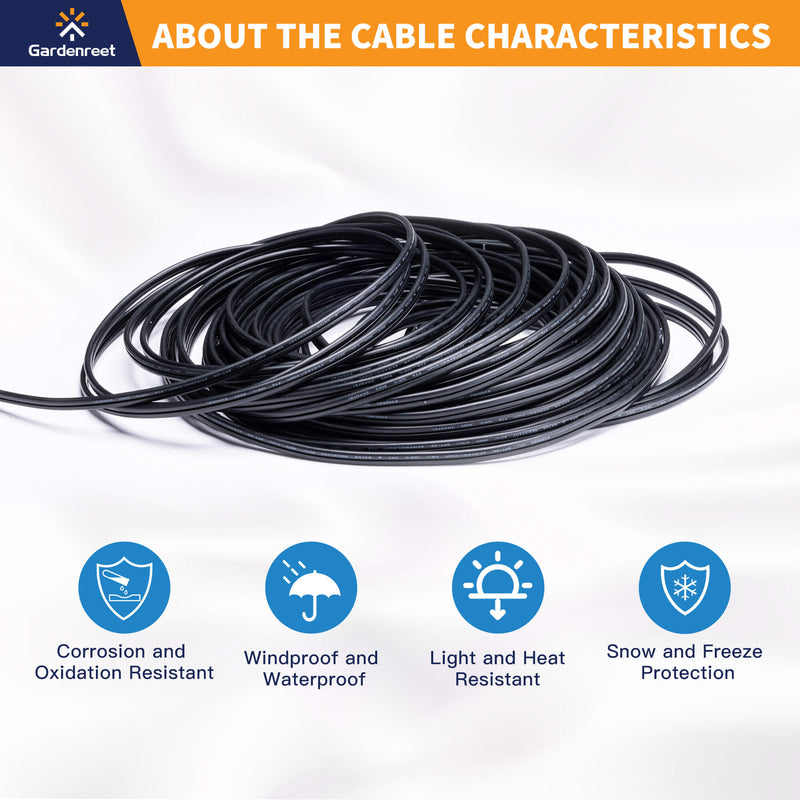

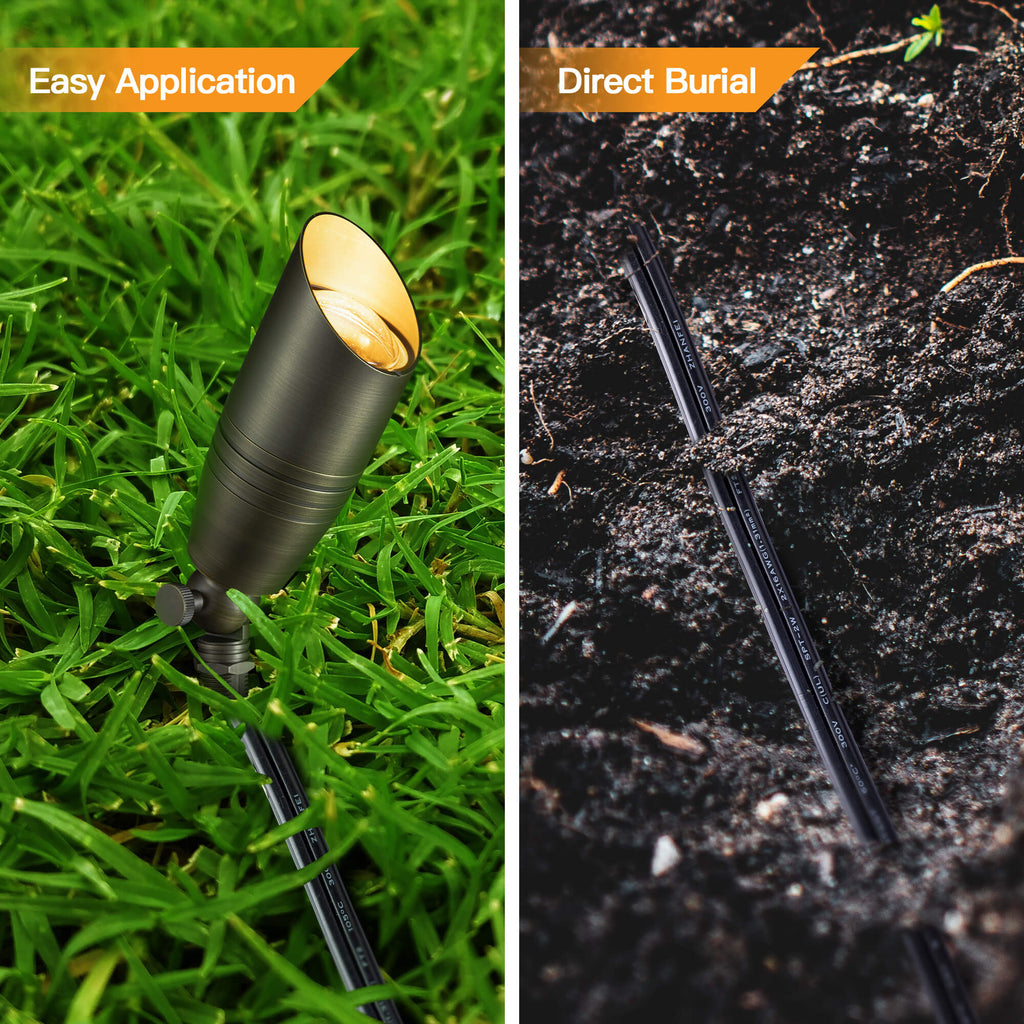

- Durable material - PVC insulation material, working temperature up to -30 ° C to 105 ° C, you can rest assured that the wire is buried deep in the soil, pool, or house roof without worrying about corrosion, water, sun, UV damage, and other problems.
- Widely used - It is suitable for devices with a voltage less than 300V; you can use it to connect your spotlights, path lights, step lights, deck lights, and underwater lights, and it can used to light up your beautiful home.
- Quality and Safety - With UL safety certification, and reliable quality, you can rest assured that with the VW-1 fire rating, you do not have to worry about circuit overload leading to wire fire.
Difference
Gauge | Strands | Copper wire Diameter | Copper ring Diameter | Cable Diameter |
12/2 | 65 | 0.25±0.008mm | 2.32mm | 4.70±0.25mm |
14/2 | 41 | 0.25±0.008mm | 1.84mm | 4.30±0.20mm |
16/2 | 26 | 0.25±0.008mm | 1.48mm | 3.90±0.15mm |
Specifications
Color: Black
Material: Copper
No. of Conductor: 2
Power Source: Ac/Dc
Voltage: 30V
UL Listed
Applicable equipment: Lighting equipment with voltage below 300V
