Description

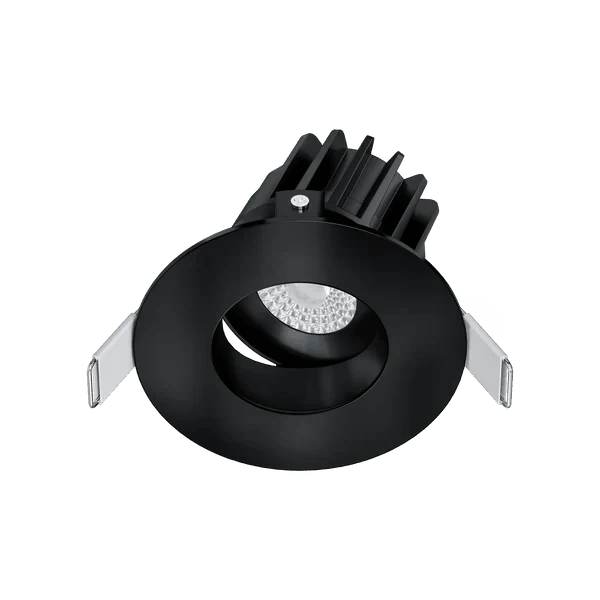

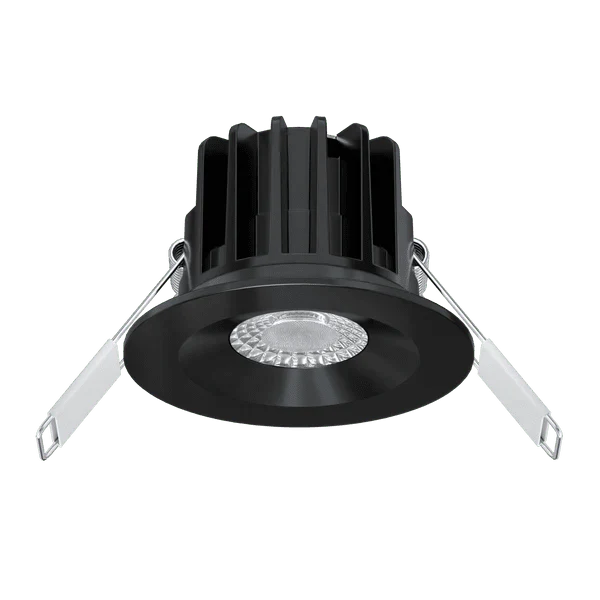

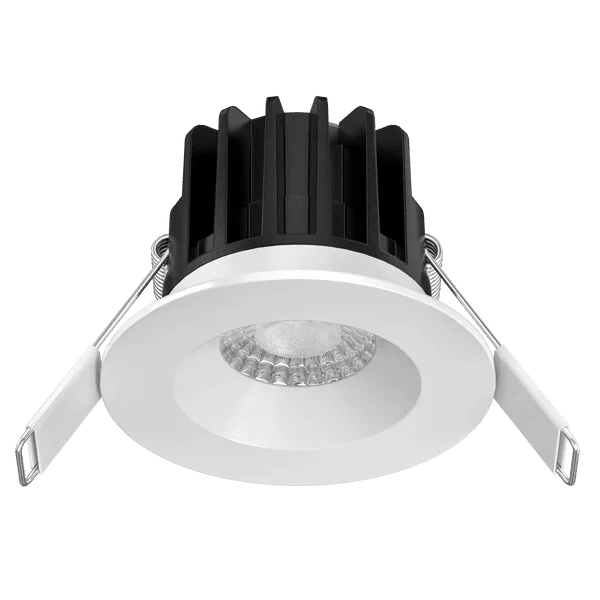

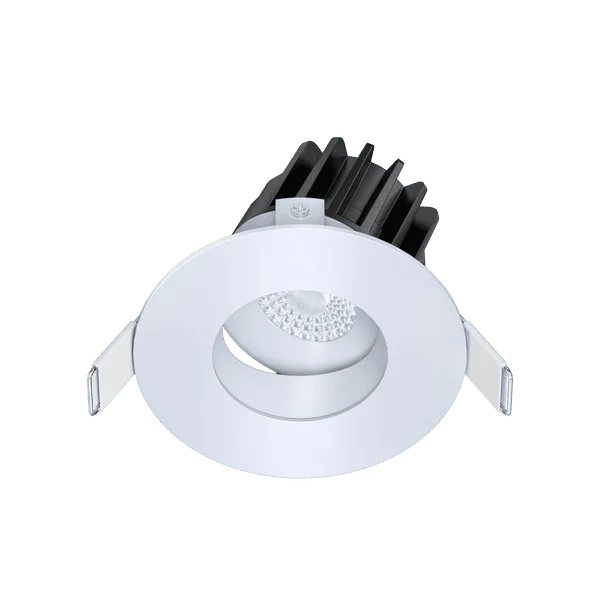

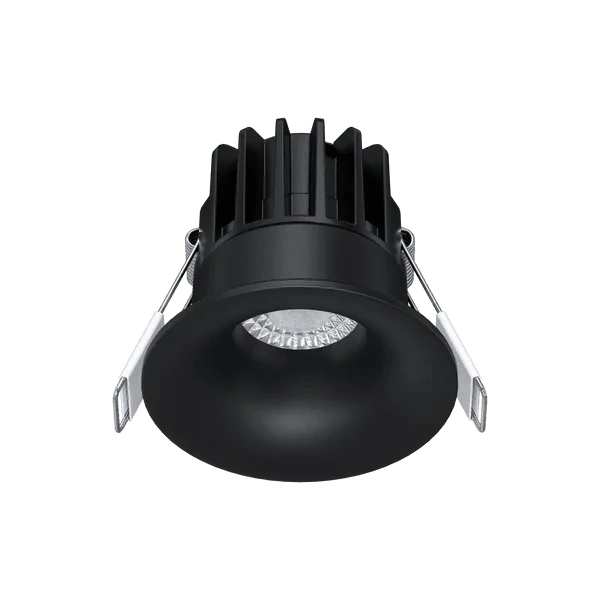

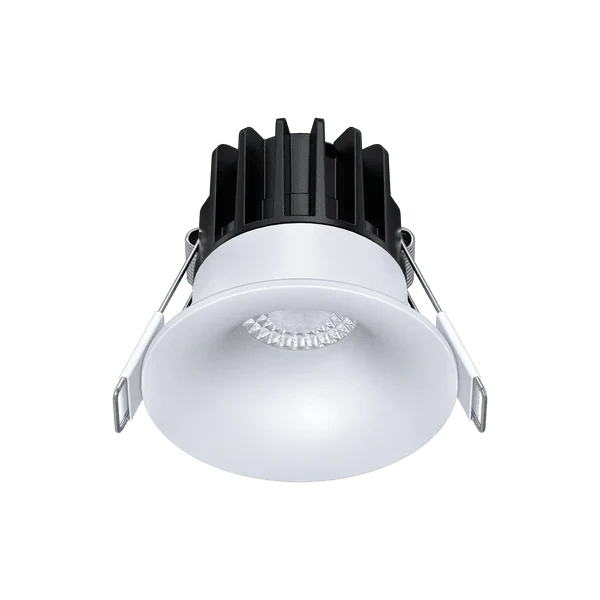

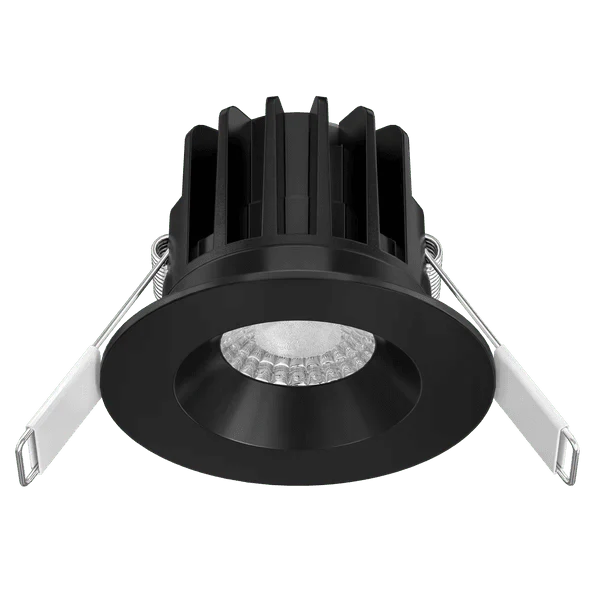

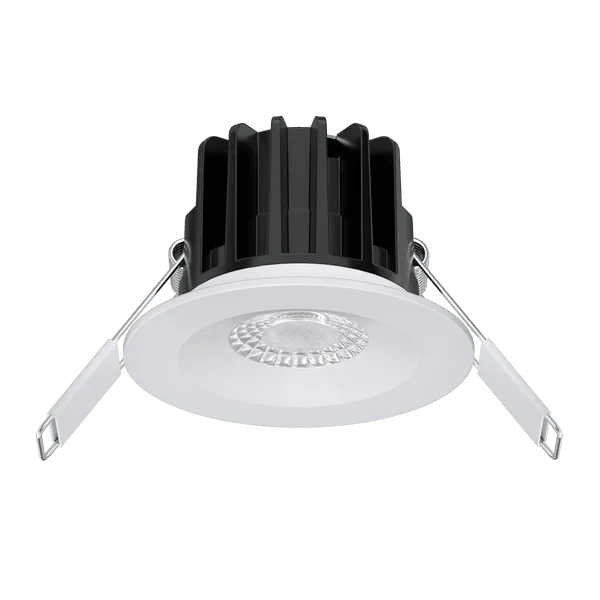

Changeable Trim for 2" Regress Luminaire
Compatible with
- G-48420 (Shallow) 7W
- G-48340 8W
- G-20215 14W
- G-20213 20W
M2/7W-8W-14W-20W/LED/5CCT
2 Inch 7-20W Module, High Output,
Selectable Color temperature,
Trim: Selectable
- Wattage : 7W/8W/14W/20W
- Output Lumen : 600/700/1200/1700
- Dimmable: Yes
Click Here for 7W (Shallow) Luminaire
Click Here for 8W Luminaire
Click Here for 14W Luminaire
Click Here for 20W Luminaire
Spec Sheet
Spec Sheet
Sell Sheet
Info
| Technology | LED |
| Wattage | 7/8/14/20W |
| Lumen | 600/1000/1700 |
| CCT (Kelvin) | 27K-50K |
| Color Temp. | Selectable Color |
| CRI | >90 |
| Voltage | 120V |
| Rated Hours | 50000 |
| Dimmable | Yes-Dimmable |
| Weight (lb.) | 1.00/1.80 lbs |
Dimensions
| Trim Type | Height | Width | Cutout |
| Standard Trim | Reg 2.85” / HO 5.50” | 3.15” | 2.50" |

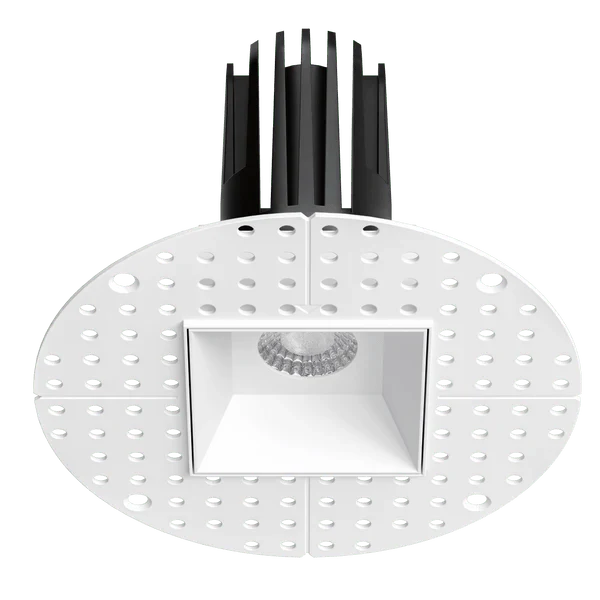

| Trimless Round | Reg 2.89" / HO 5.47" | 4.53" | 2.30" |
| Trimless Square | Reg 3.68" / HO 6.26" | 6.50" | Sq 3.10” Rd 4.32" |
| Millwork | Reg 2.89" / HO 5.47" | 2.91" | 2.76" |
