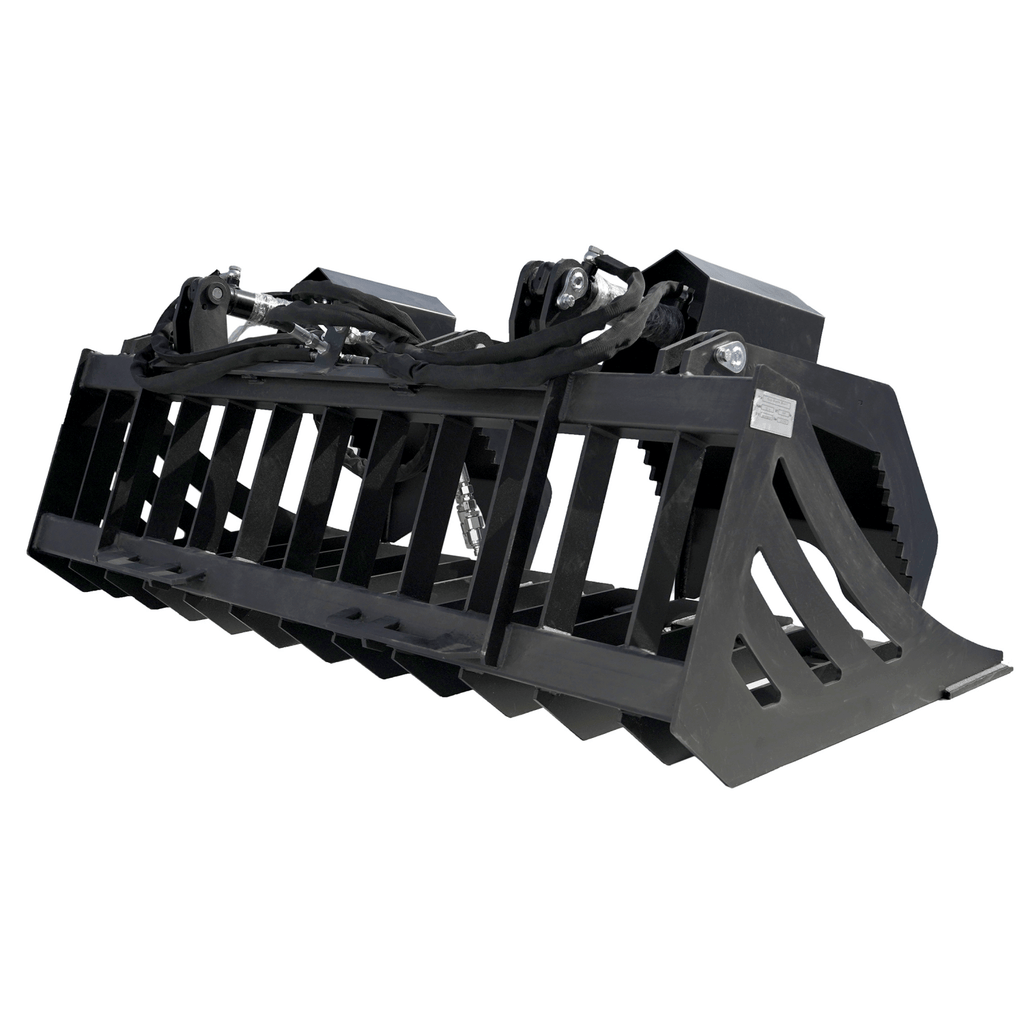

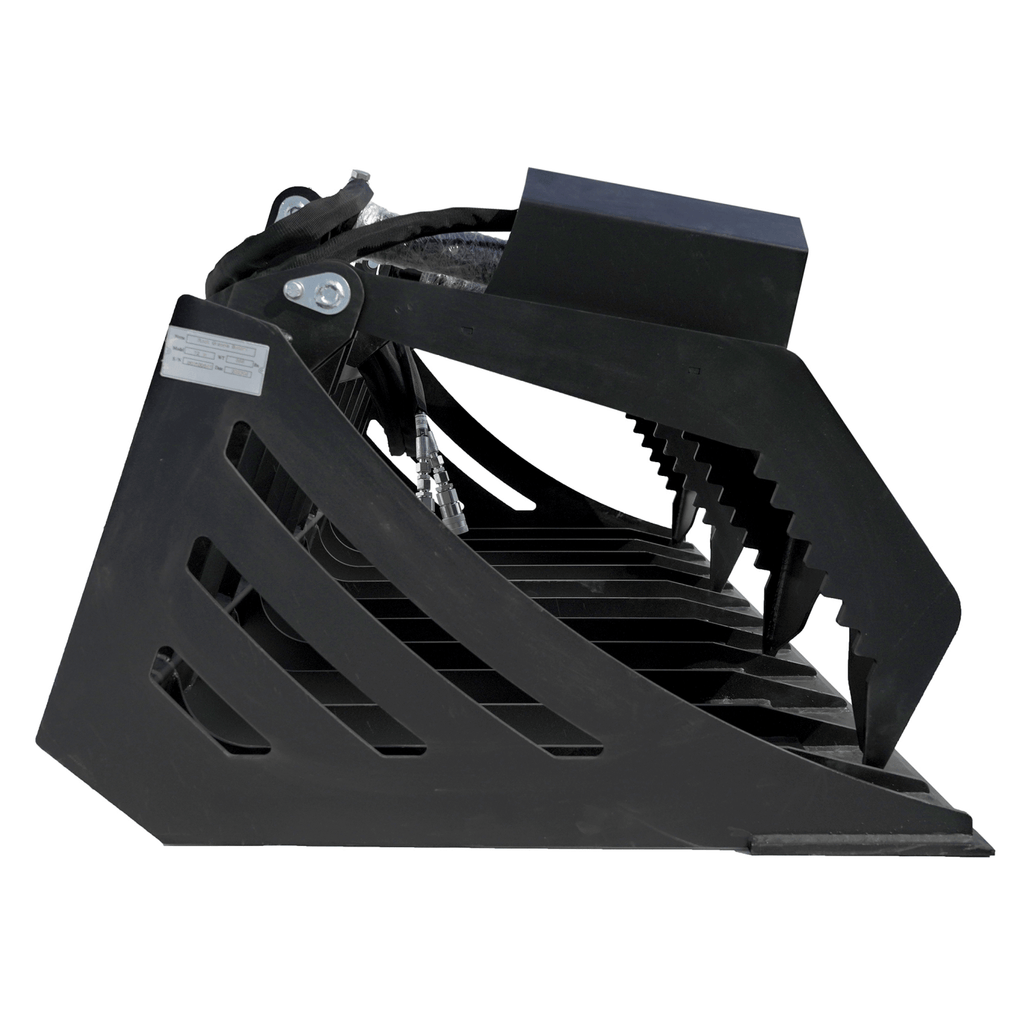

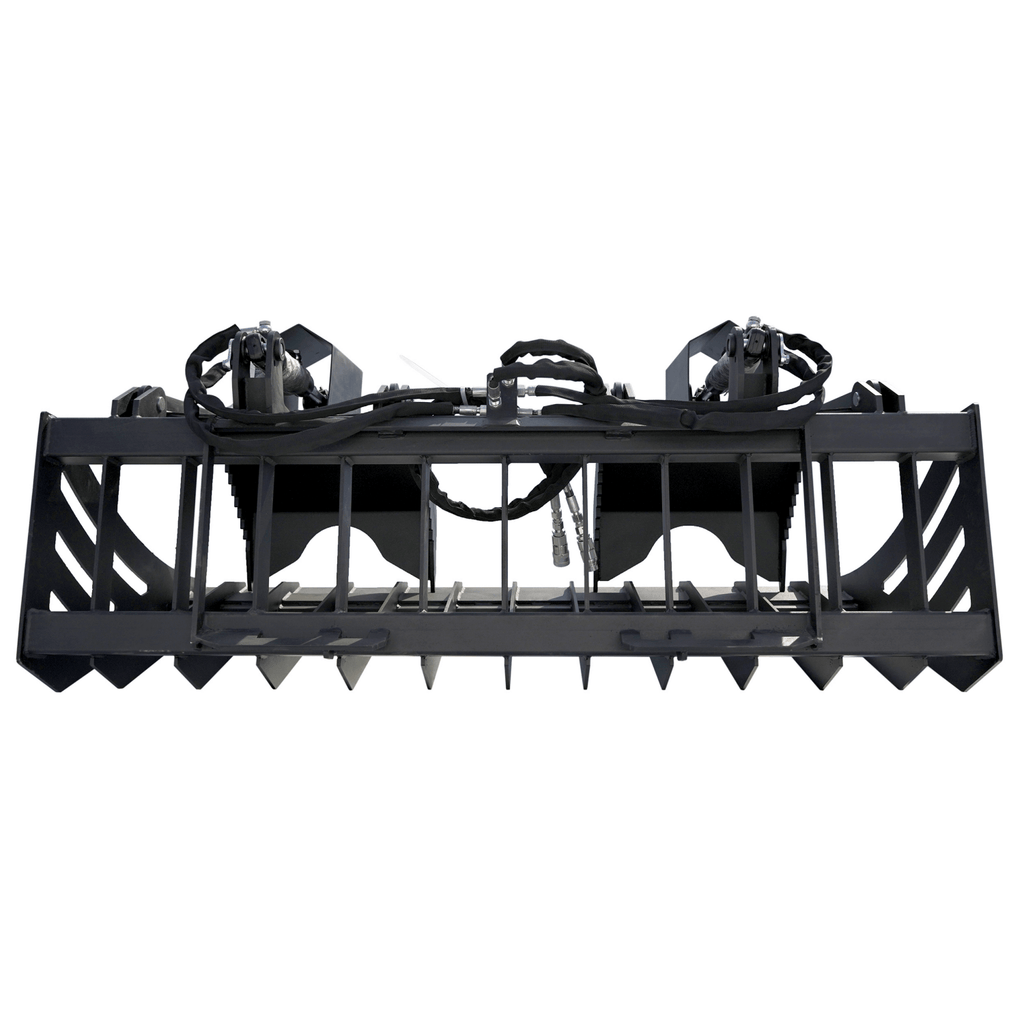

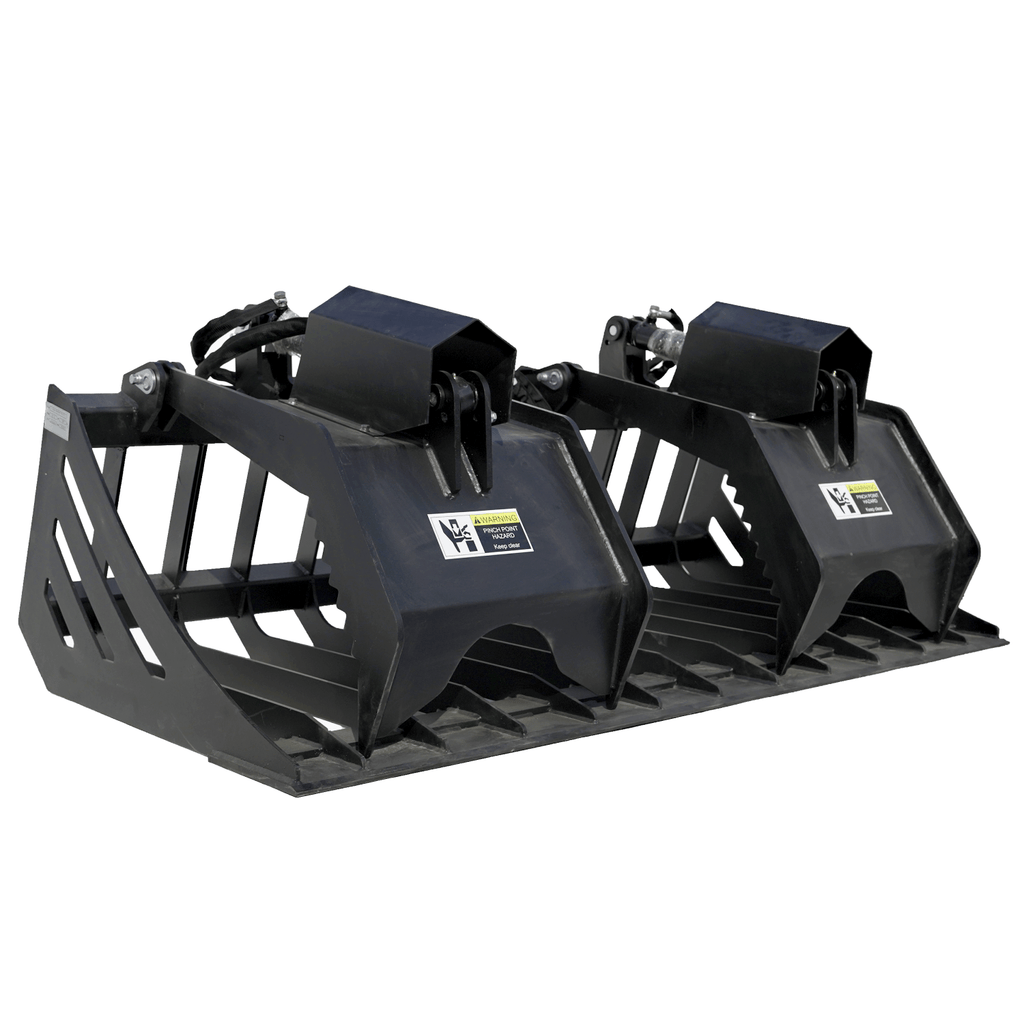

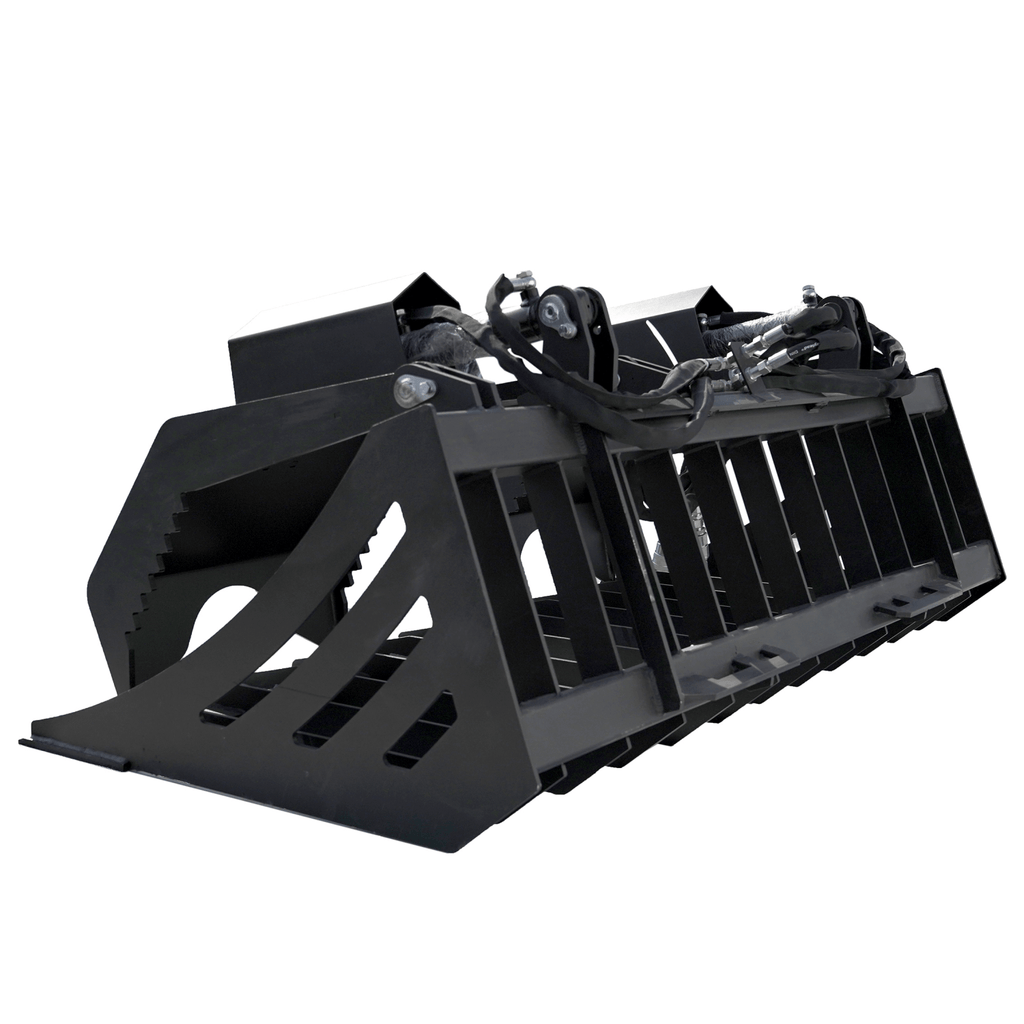

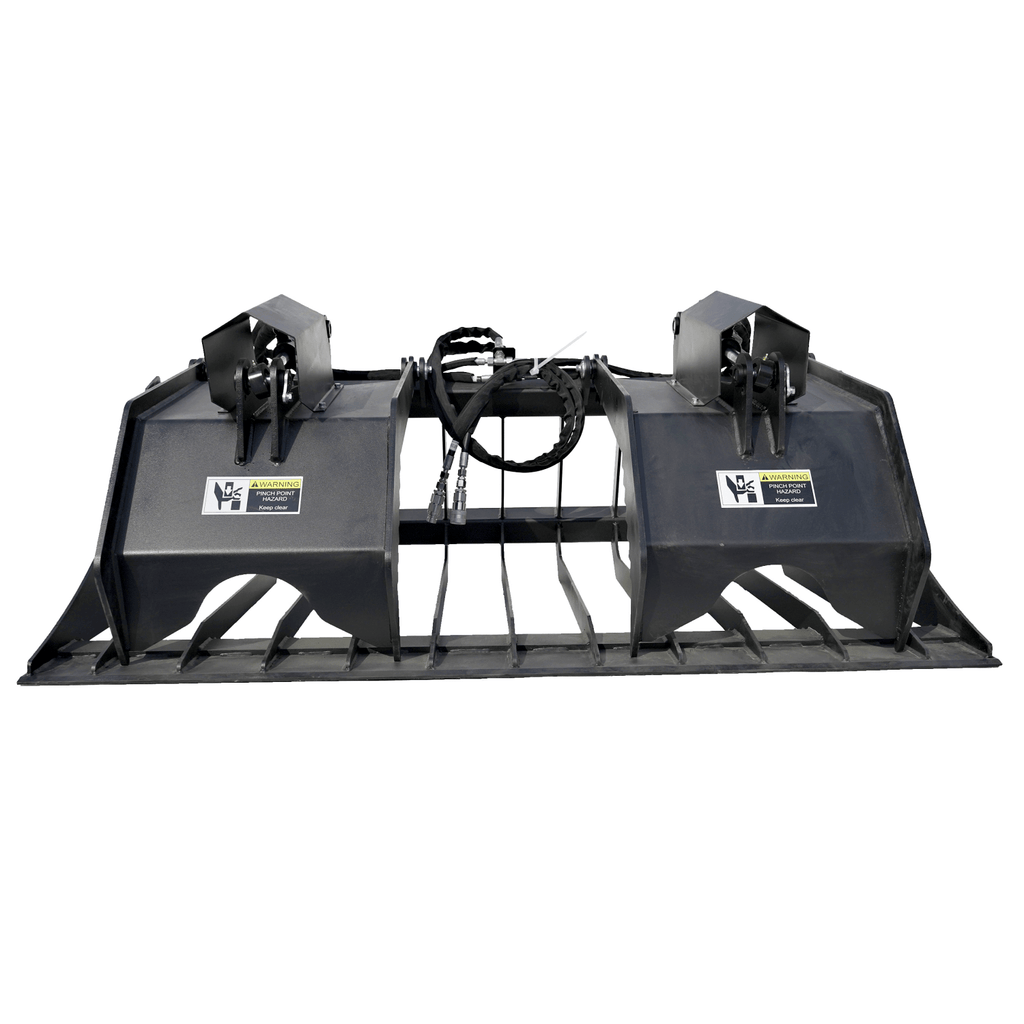

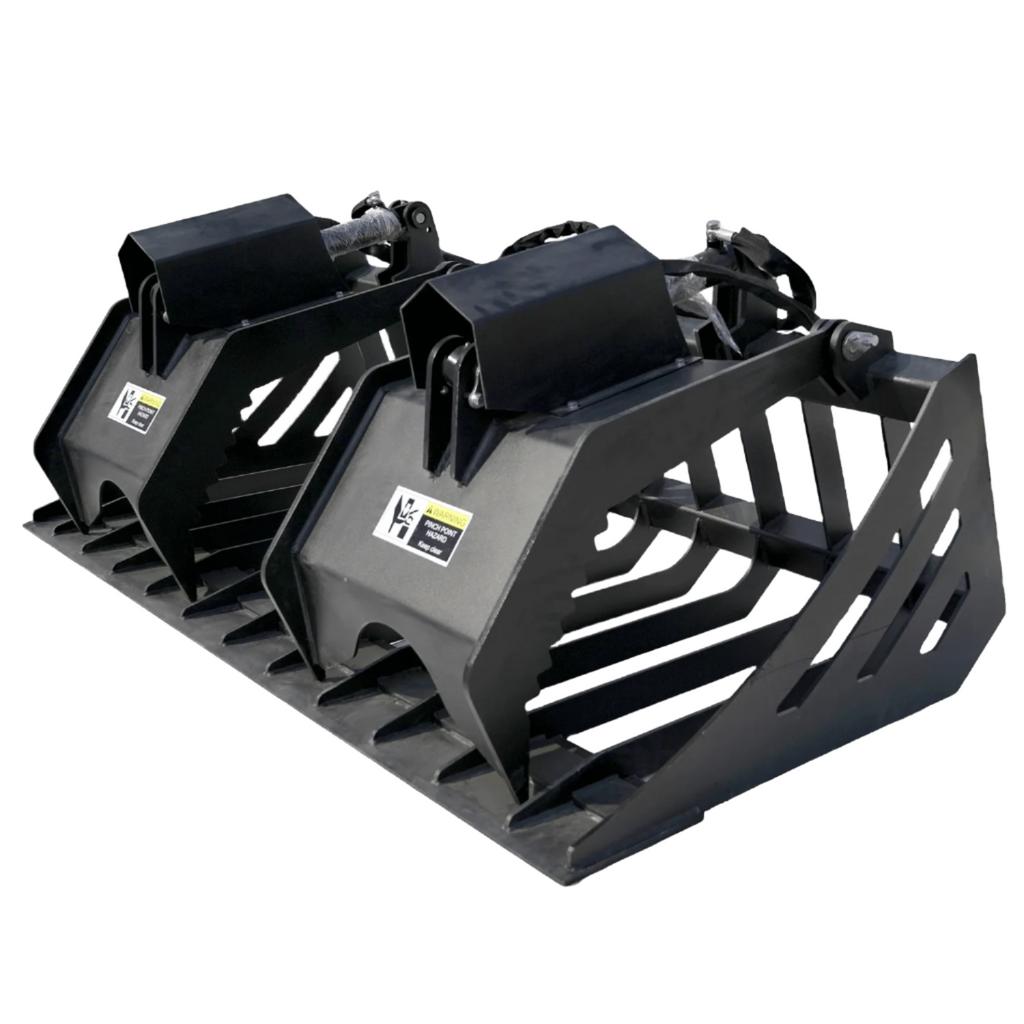

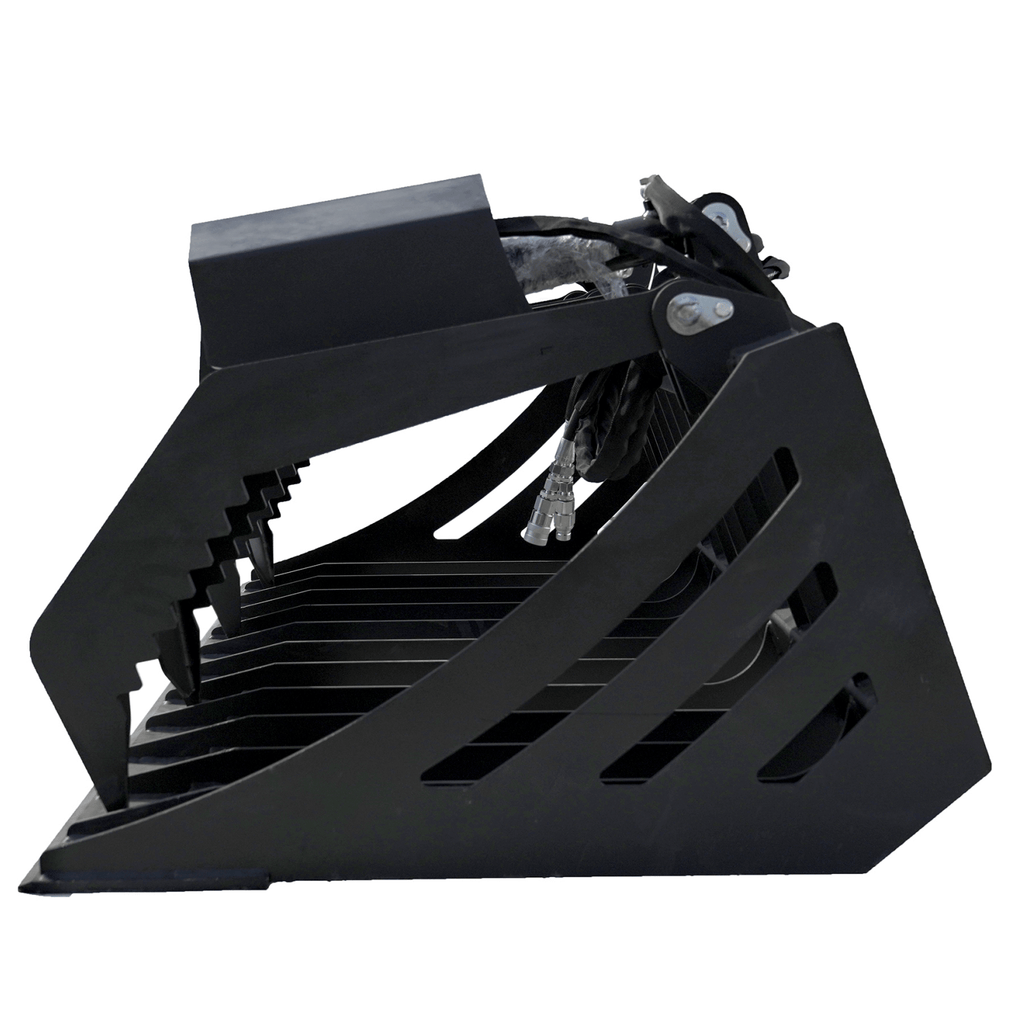

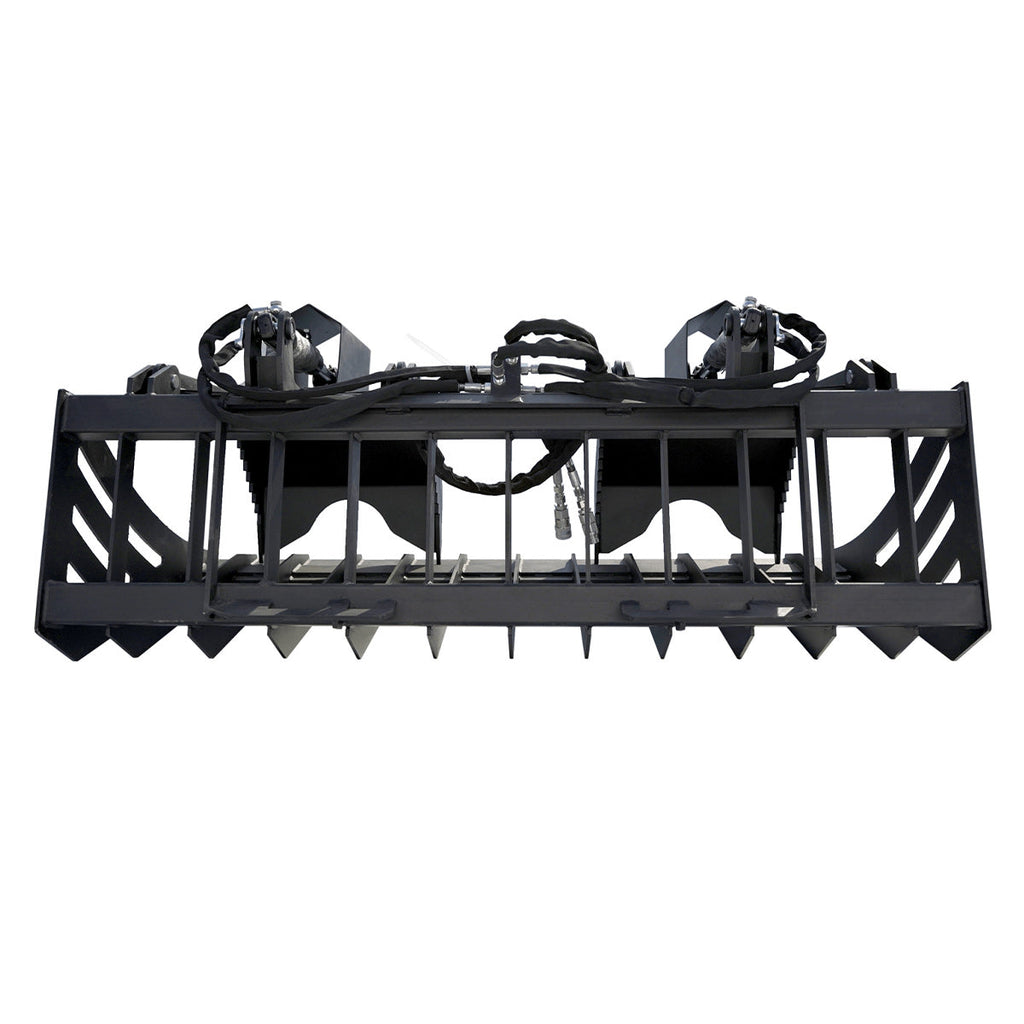

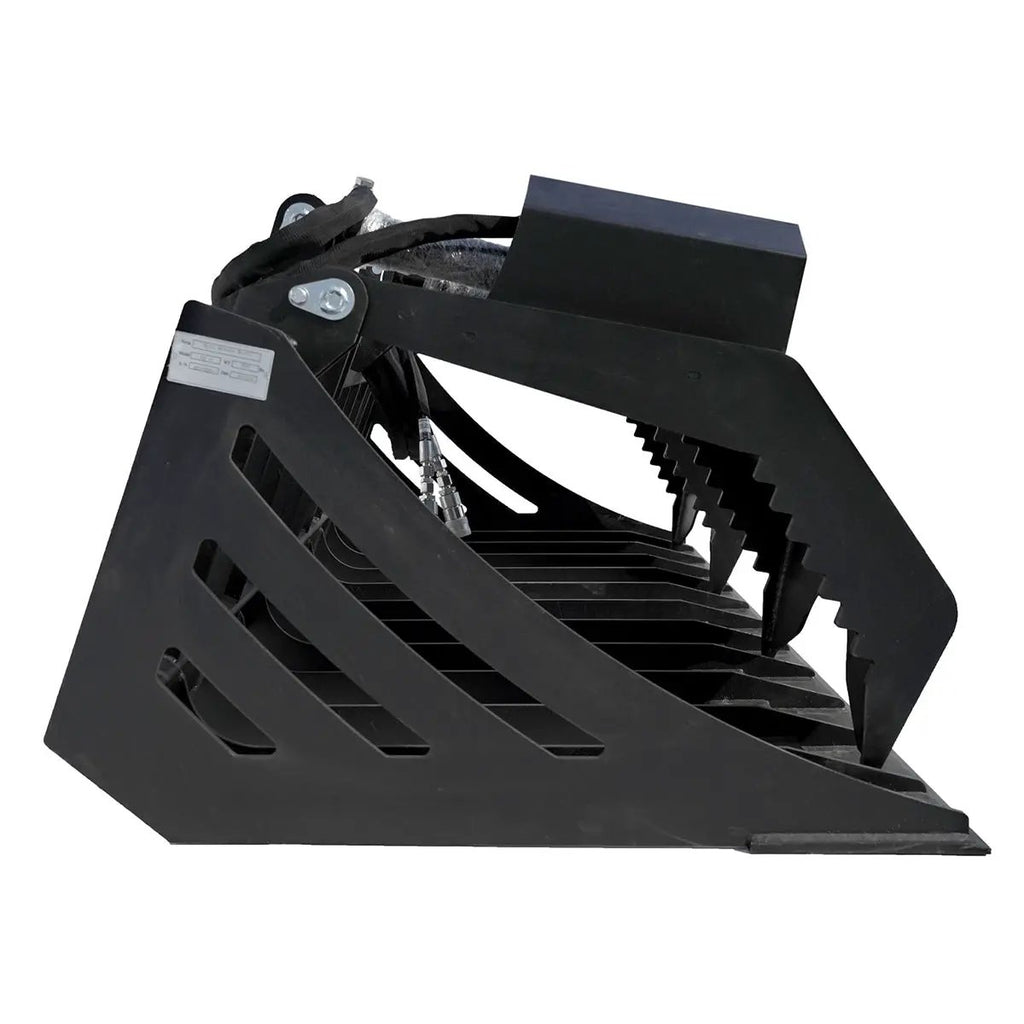

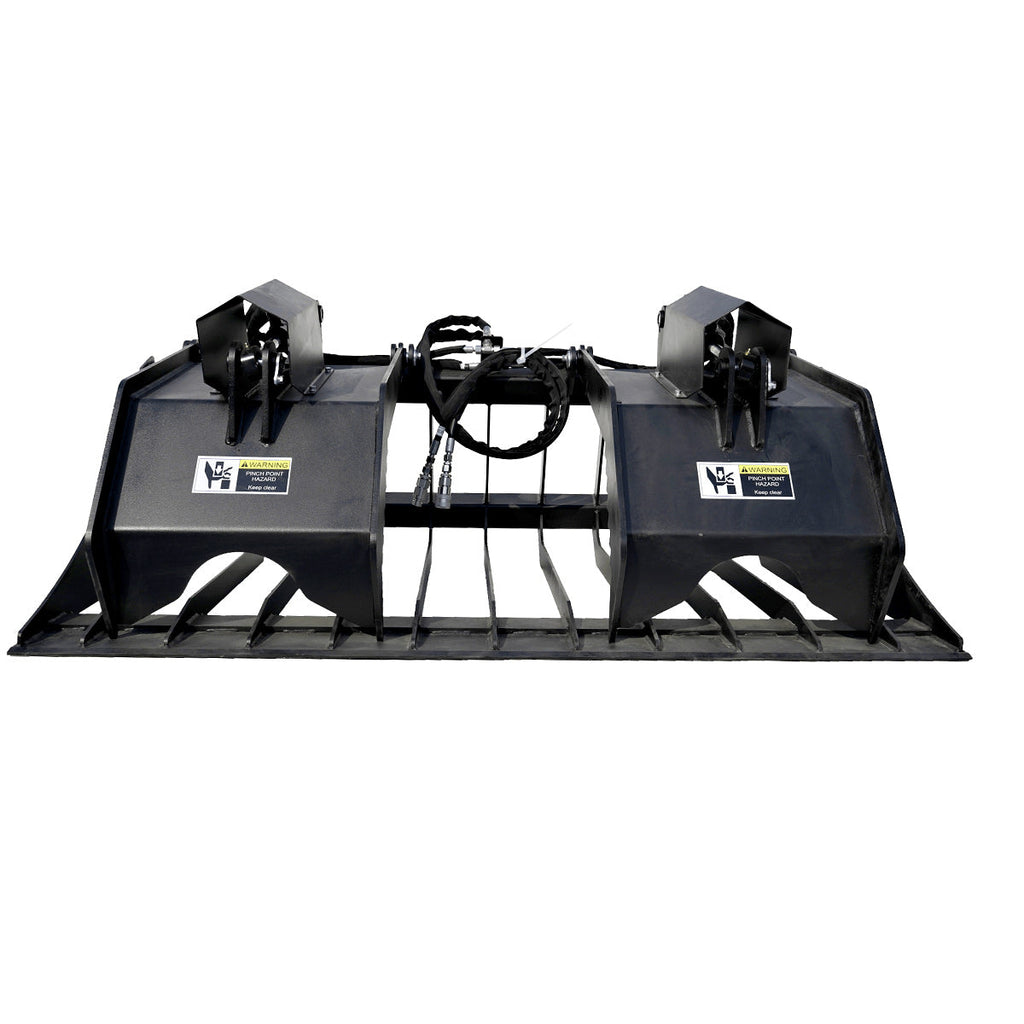

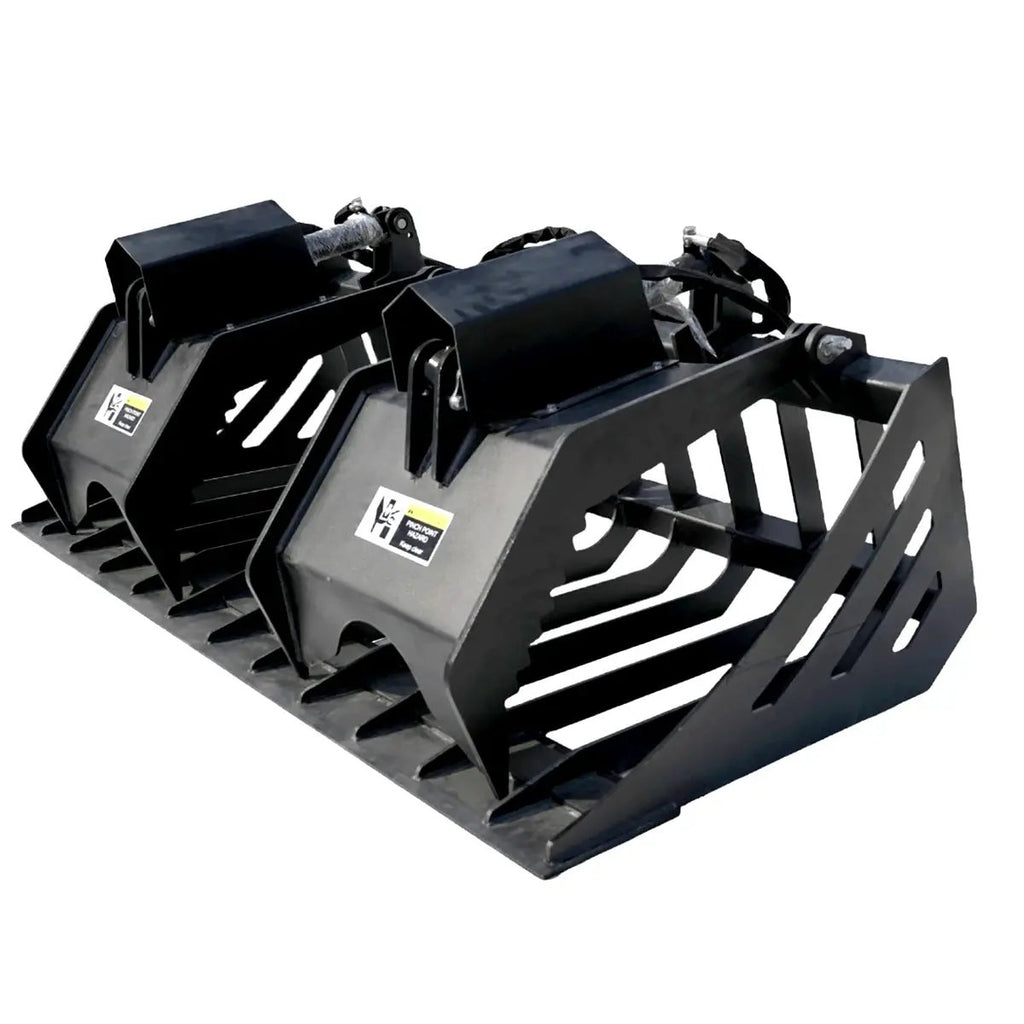

Greatbear Rock Grapple Bucket

SKU: AS000016
$2,199.00 $3,999.00 / Piece
45% OFF
5OFFSALE (5% OFF)
Ships within 10-20 business days.

Description

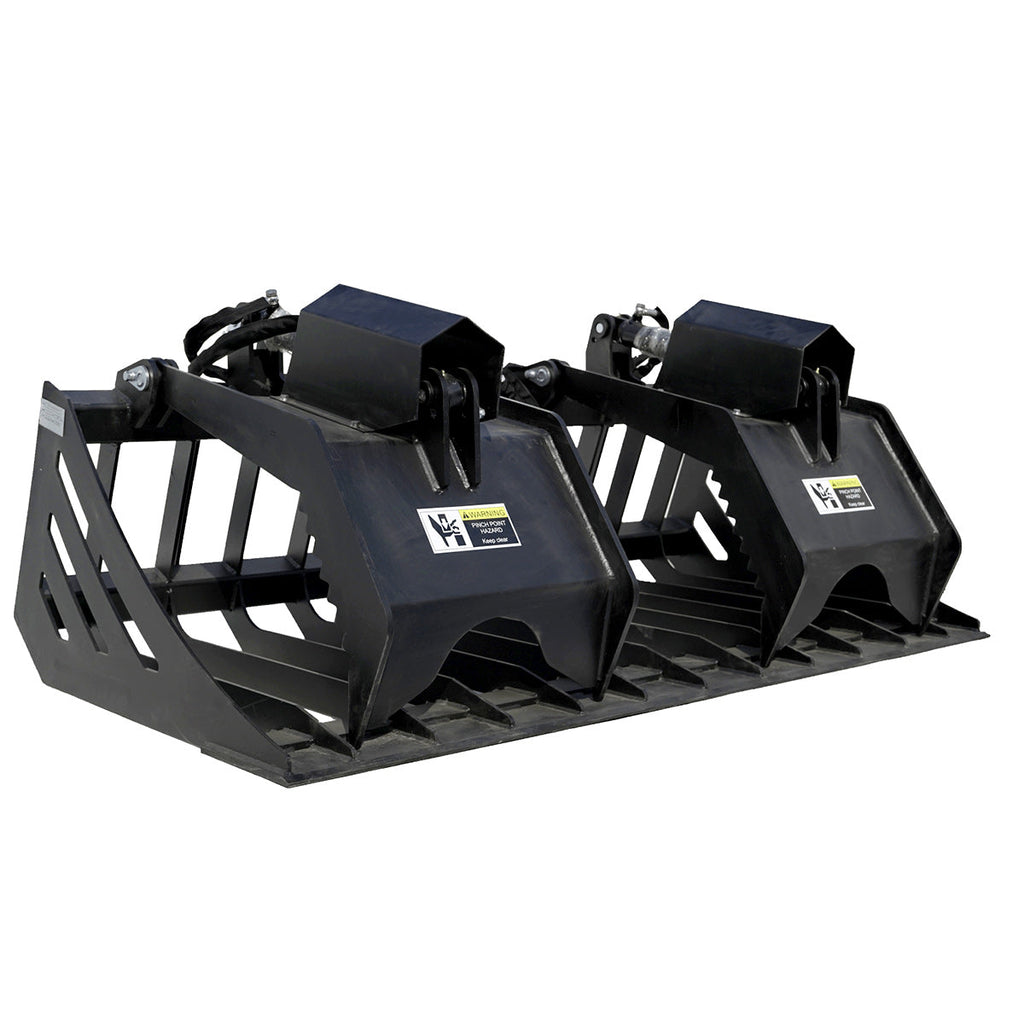

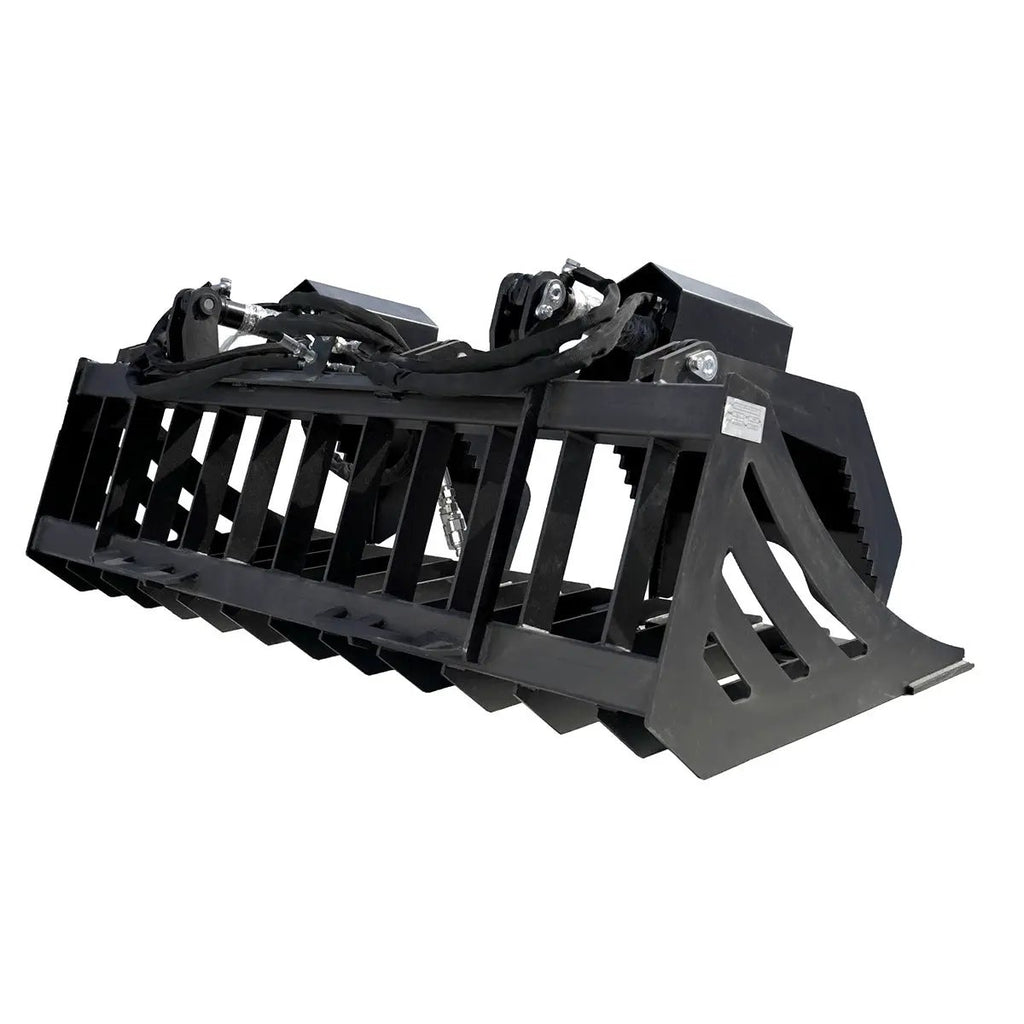

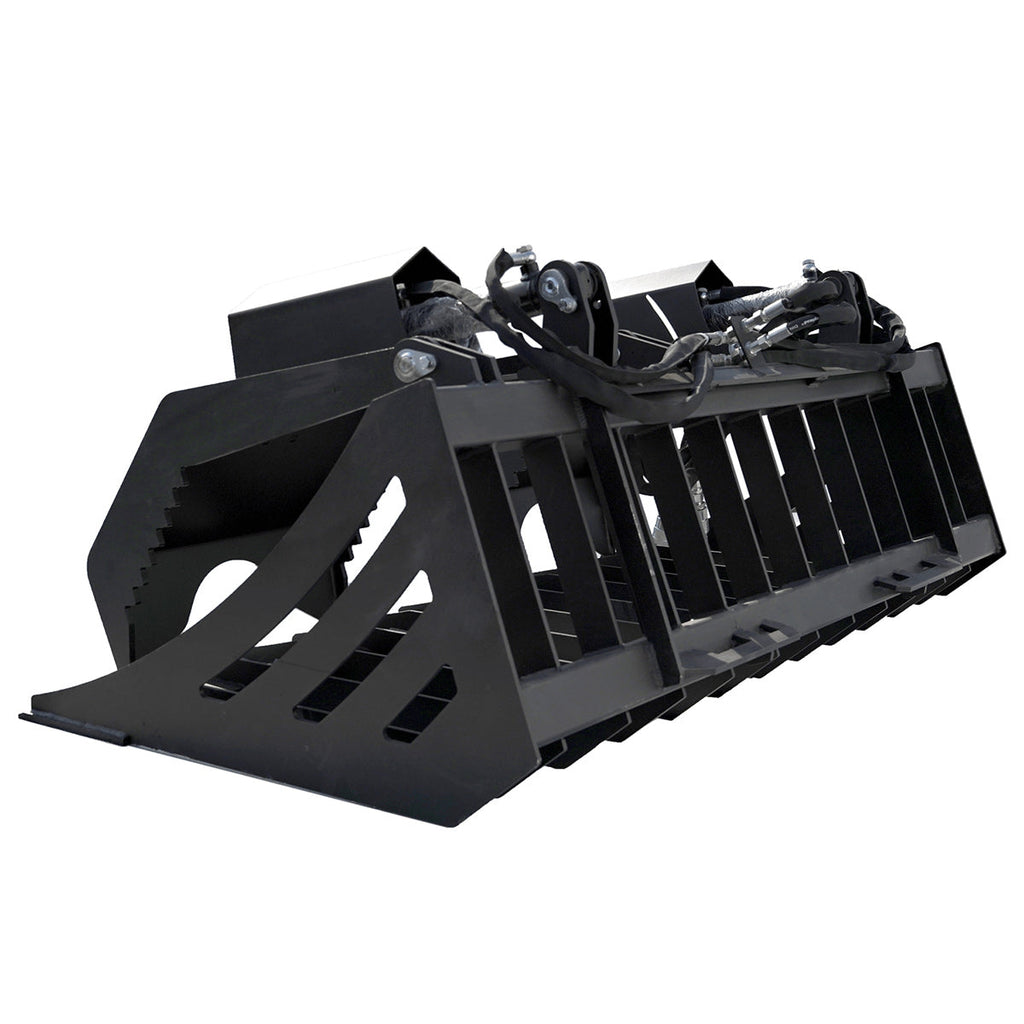

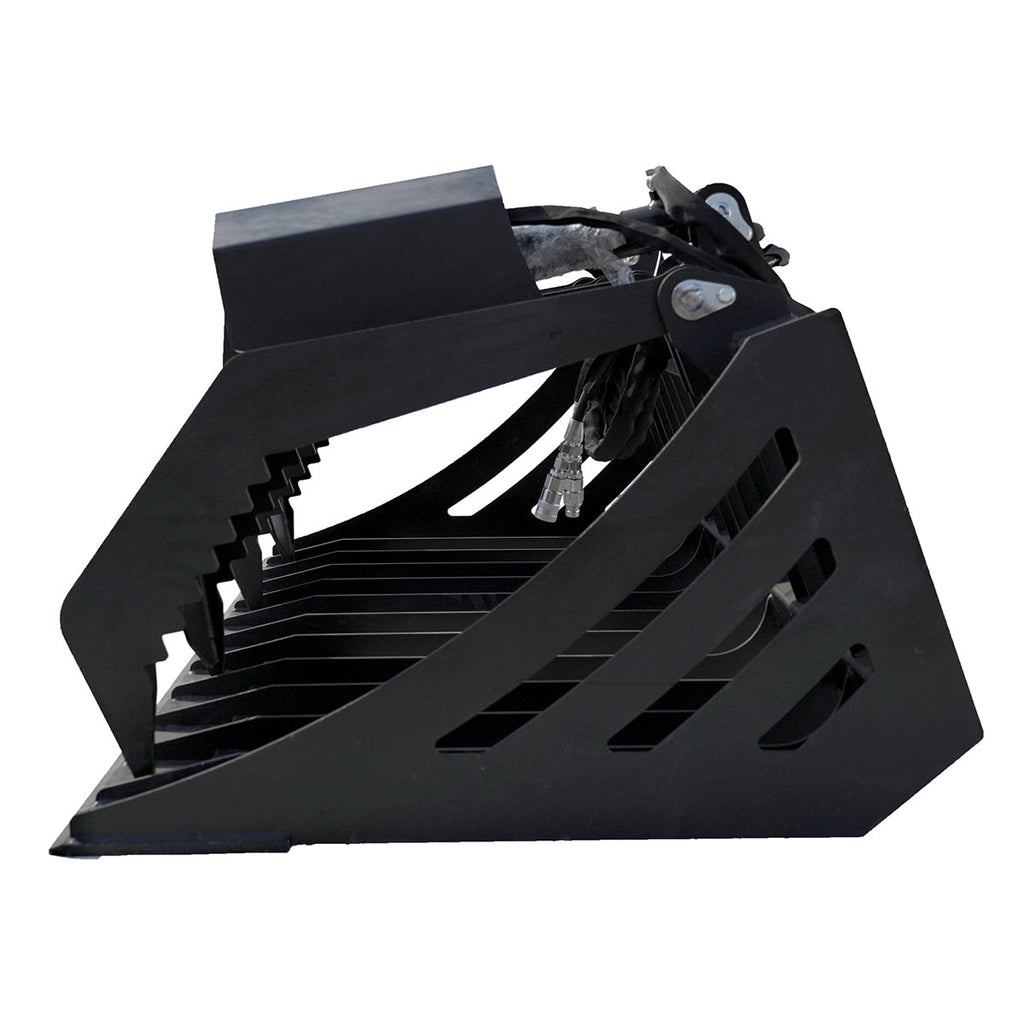

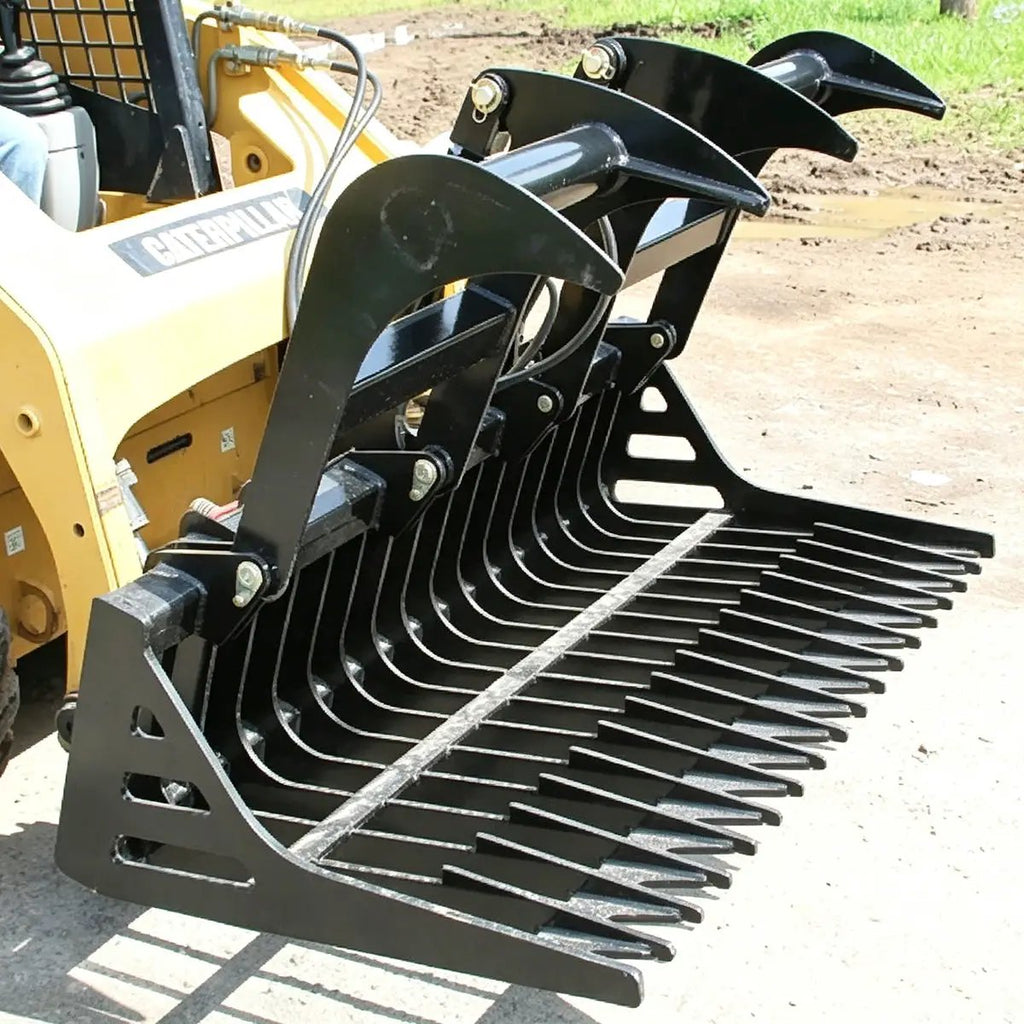

This Greatbear rock grapple bucket with tines is designed to sift or rake material on your job site. The gap between tines allows the loose soil off the bucket and keeps the bigger rocks inside, so you can move the rocks aside. The easiest and cleanest way to clear rock on your construction site is to use this Greatbear rock grapple bucket. This attachment can easily rip into the earth and lift, filtering out the soil and retaining the rock.


User Manual



Specification

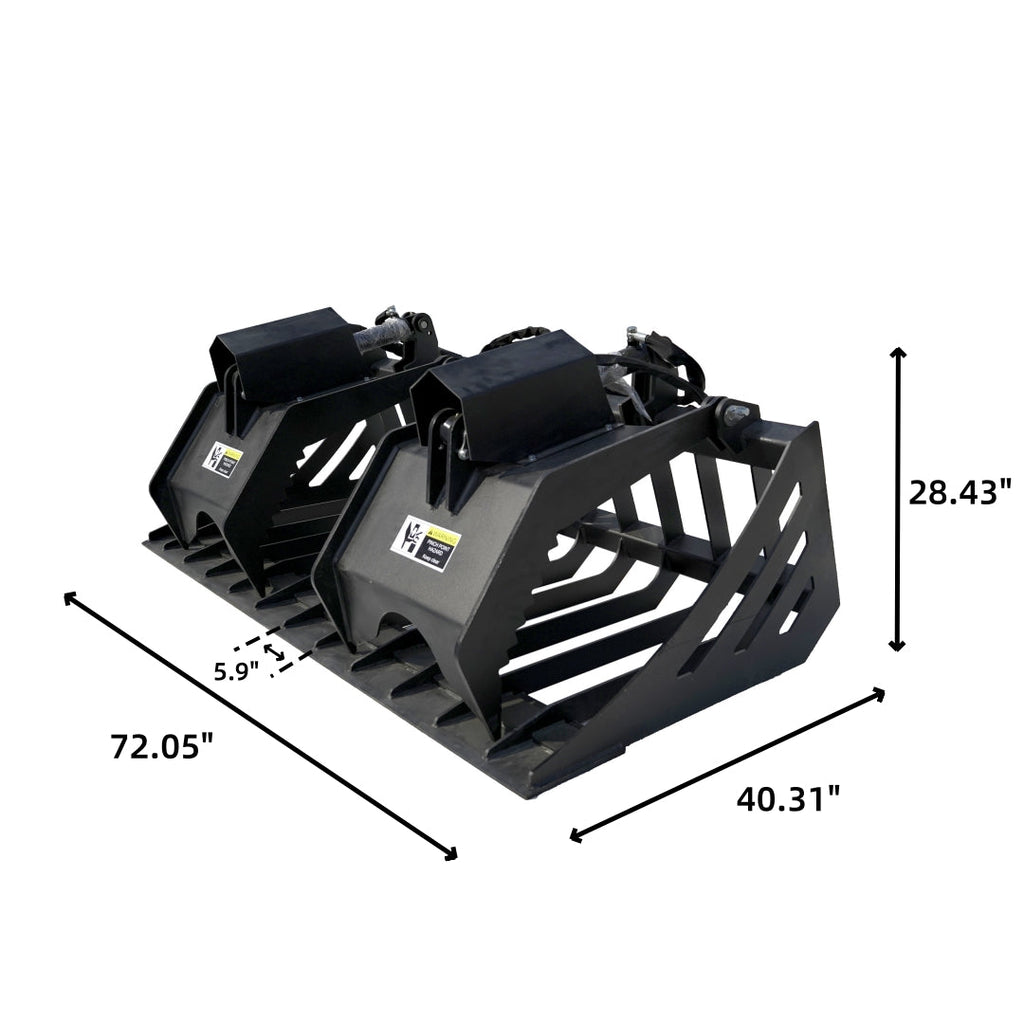

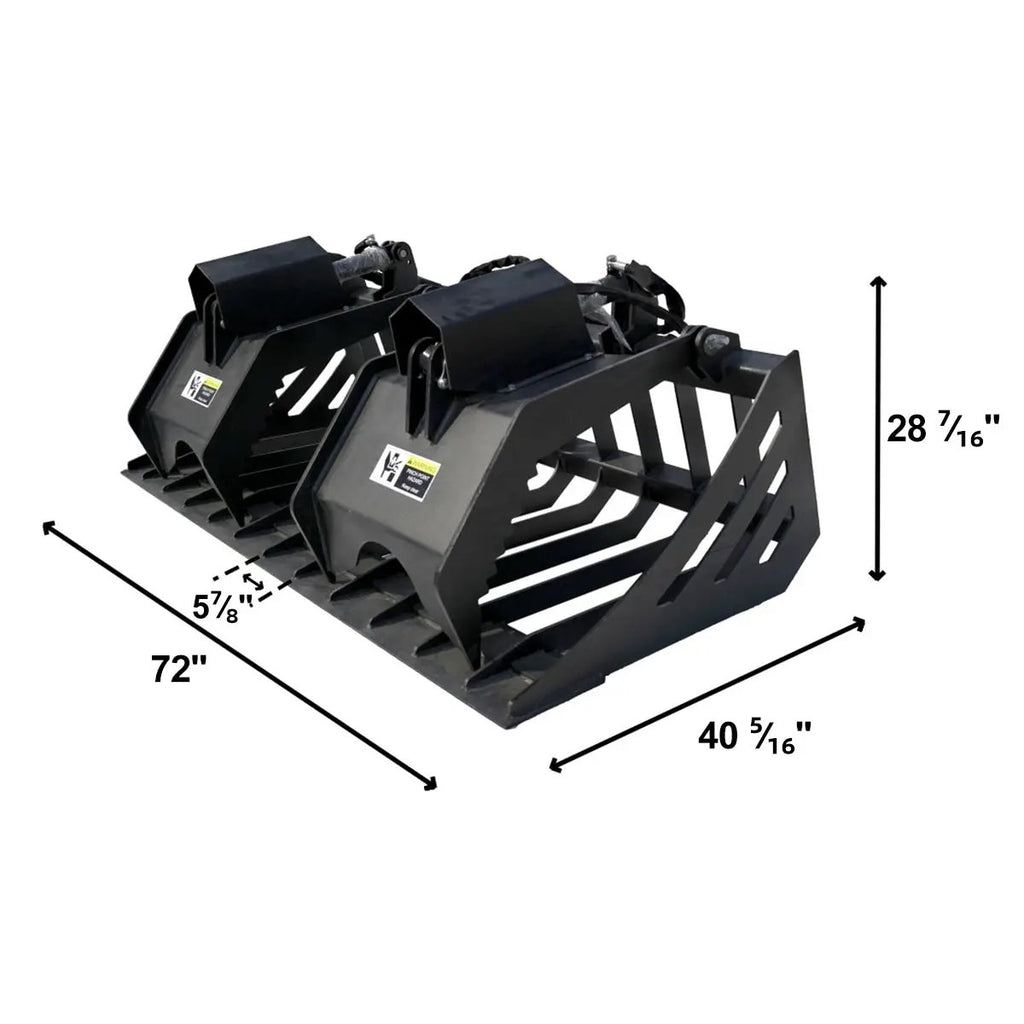

Product Width 75.98''
Product Length 40.31''
Product Height 28.42''

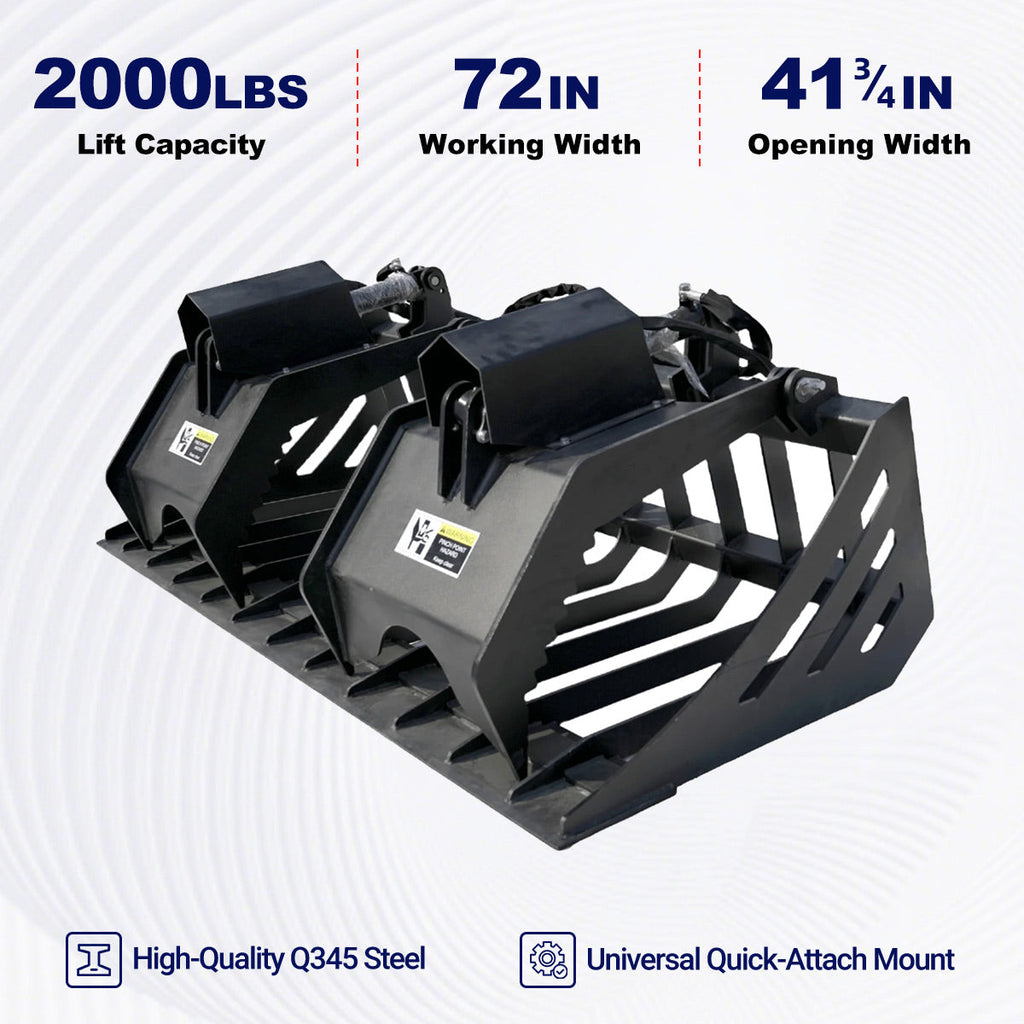

Working Width 72''
Grapple Widths 20" (I.D.)
Operating pressure 17-21 Mpa

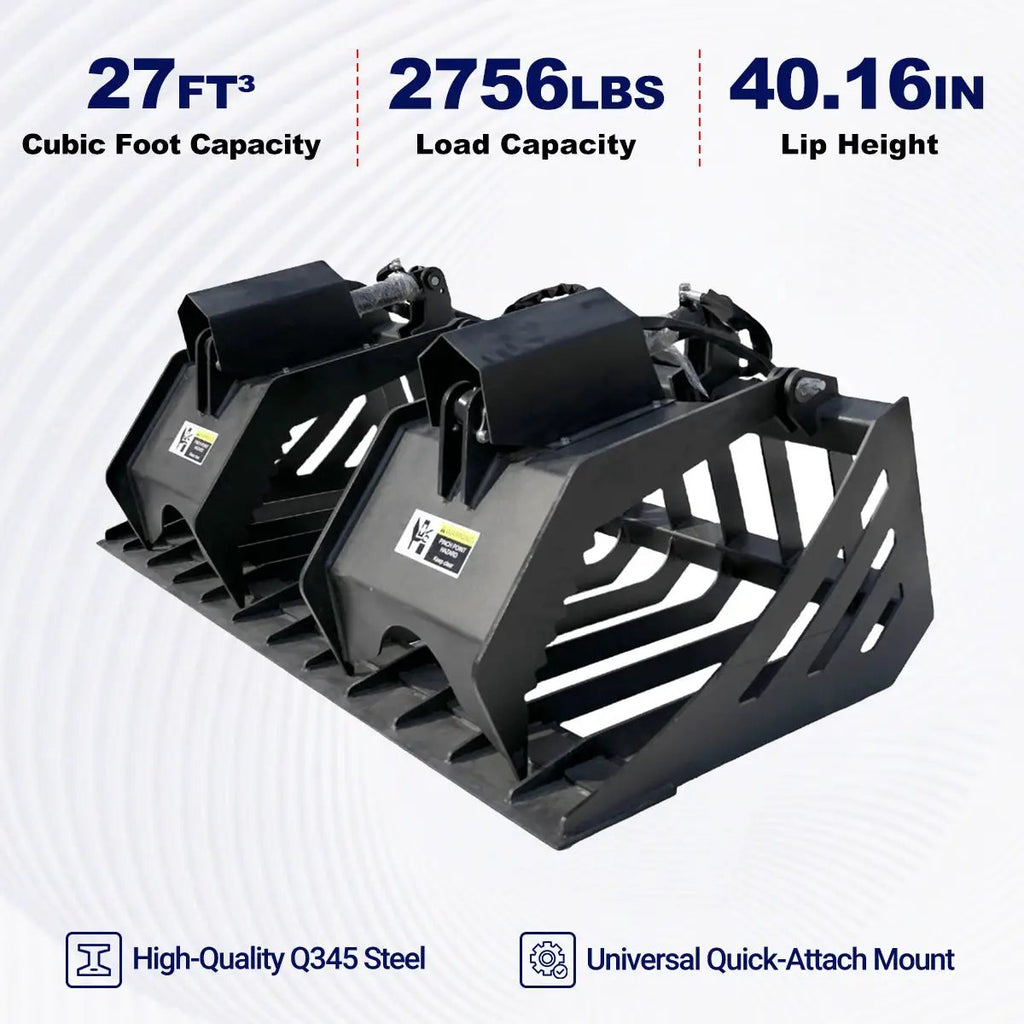

Working capacity 0.5 m3
Opening distance 41.73''
Weight 692.25 lbs
Hydraulic cylinder stroke 6.50''
Hydraulic installation distance 17''
Max lifting capacity 2000 lbs
Gripping force 3000psi


Features

  • Connection: Universal Skid Steer Hookup
  • Surface: Durable Powder Coated finish


Package Size

  • LxWxH (inch): 76x44x30
  • Weight (lb): 827
  • Forklift or equivalent is required for unloading
