Description

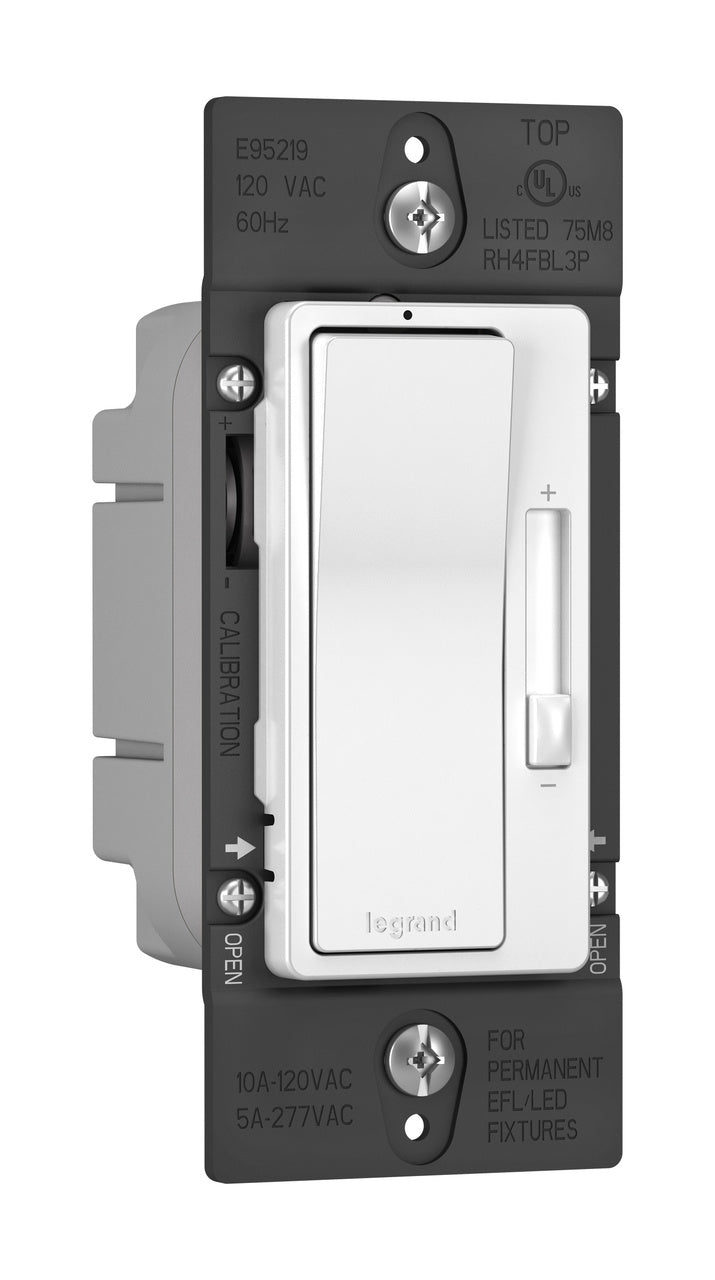

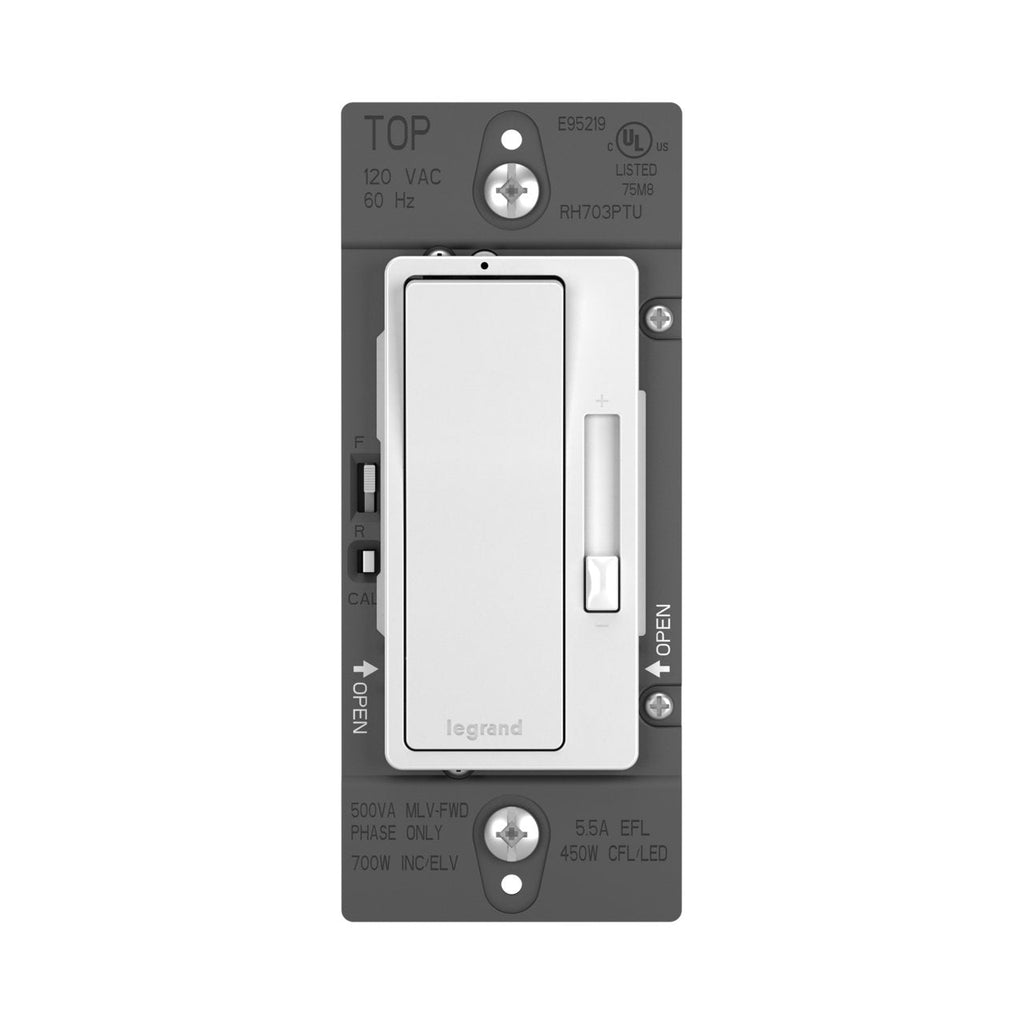

radiant® CFL/LED Dimmer
Upgrade your space with precise dimming control and exceptional style. The radiant® 0-10V Dimmer works with low-voltage fluorescent and LED fixtures, allowing you to set the perfect light level for your space with efficiency and ease. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. For use with 0-10V, 4-wire, 120V 10A/277V 5A LED and fluorescent lighting.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- No derating* required for 2-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.

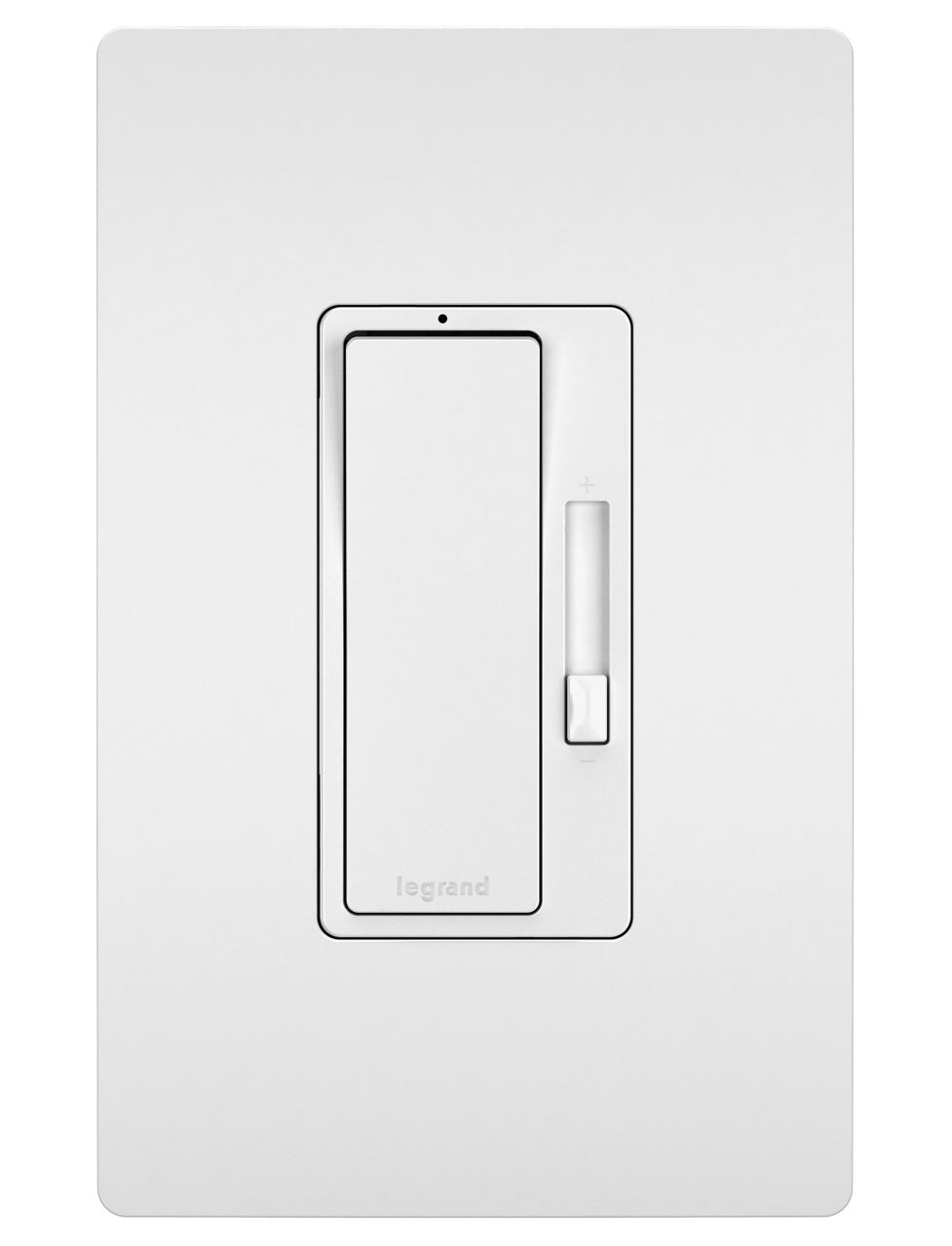

- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
| Width (In.) | 1.75 in |
| Depth (In.) | 1.25 in |
| Height (In.) | 4.25 in |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Product Line | Pass & Seymour |
| Color | White |
| Switch Type | Paddle |
| Number of Switches | 1 |
| Application Sector | Residential |
| Standard | CSA Listed, cULus, UL Listed |
| Warranty Type | Limited Lifetime Warranty |
| Type | Dimmer |
Additional Info
| Frequency Rating | 120VAC 60Hz Hz |
| Connection | Screw Terminals |
| Number of Gangs | 1 |
| Amperage | 15 A |
| Bulb Compatibility | LED, Fluorescent |
| Number of Poles | Single Pole, 3-Way |
| Mounting Type | Box |
| Voltage | 0 V, 10 V |
| Load | Fluorescent |
| Environmental Conditions | Humidity: Less than 95% non condensing |
