Description

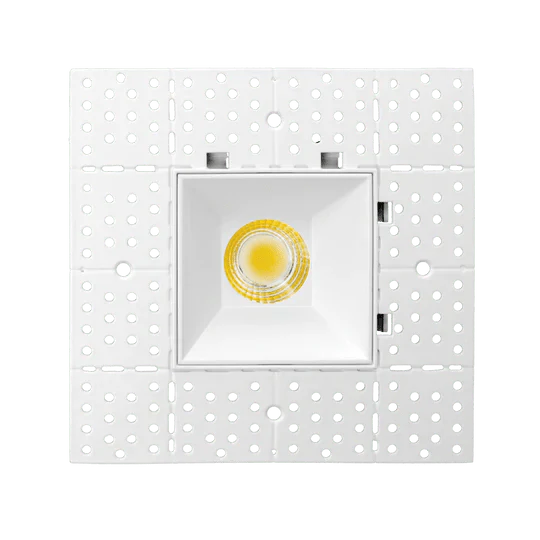

8W 2" LED TrimLux Interlocking Module Selectable CCT
LED/ITLMD2/5CCT/SQ/WT/D

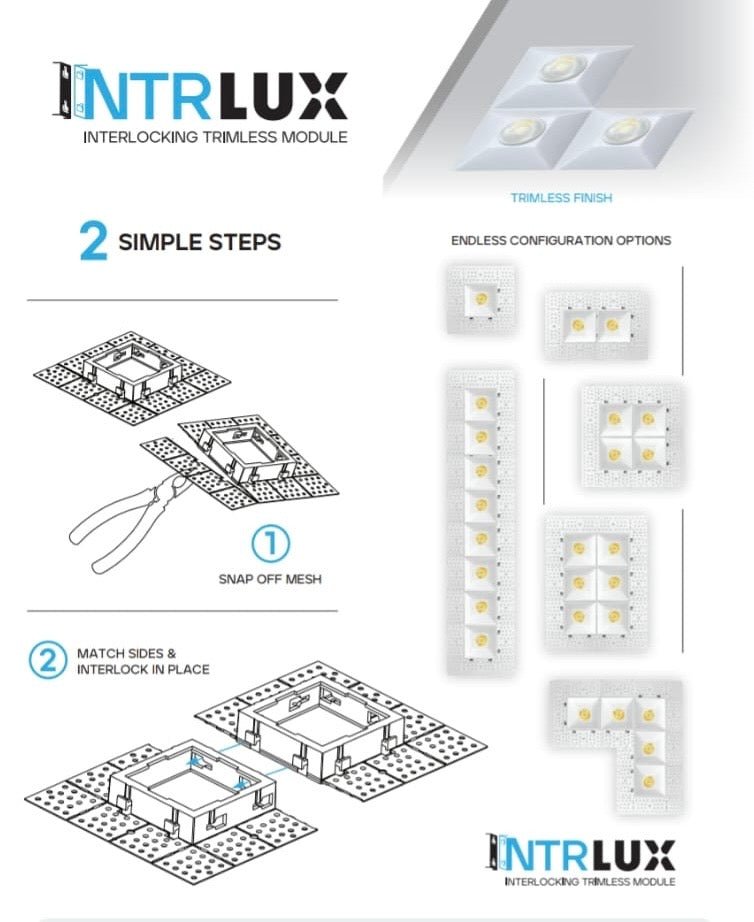

Introducing Luxrite's latest innovation: the 2" 8W LED Square Trimless Interlocking Downlight. Take your LED lighting game to the next level with our groundbreaking interlocking design. Create stunning linear, right angle, and square layouts - the options are limitless! With Selectable CCT and an impressive CRI of 90, these downlights offer endless possibilities for designing any room.
| Fixture Type | Trimless Downlight |
| Finish | White |
| Wattage | 8W |
| Lumen Output | 600L |
| CCT (Kelvin) | 27K-50K |
| Temperature | Selectable |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Wattage | 8W |
| Lumen | 600L |
| CCT (Kelvin) | 27K-50K |
| Color Temp. | Selectable |
| CRI | >90 |
| Voltage | 120V |
| Rated Hours | 50000 |
| Dimmable | TRIAC |
| Weight (lb.) | .70 |

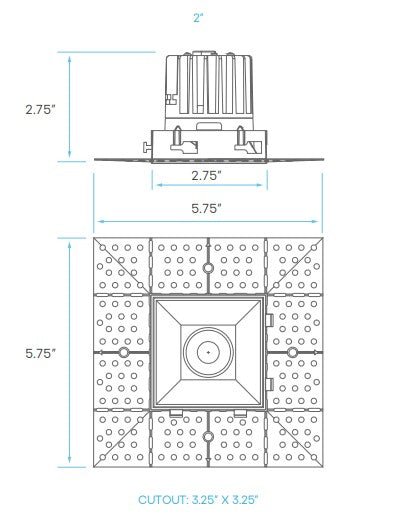

Dimensions
| Width (in.) | 5.75" |
| Width (in.) | 5.75" |
| Cutout (in.) | 3.25" X 3.25" |
|
Height (in.) |
2.75" |
Additional Info
| SKU | LR25475 |
| Safety Listing | cETLus Listed |
| Location Rating | IP65 - Wet |
| Energy Star | Yes |
| Warranty | 3 Years |
