Description

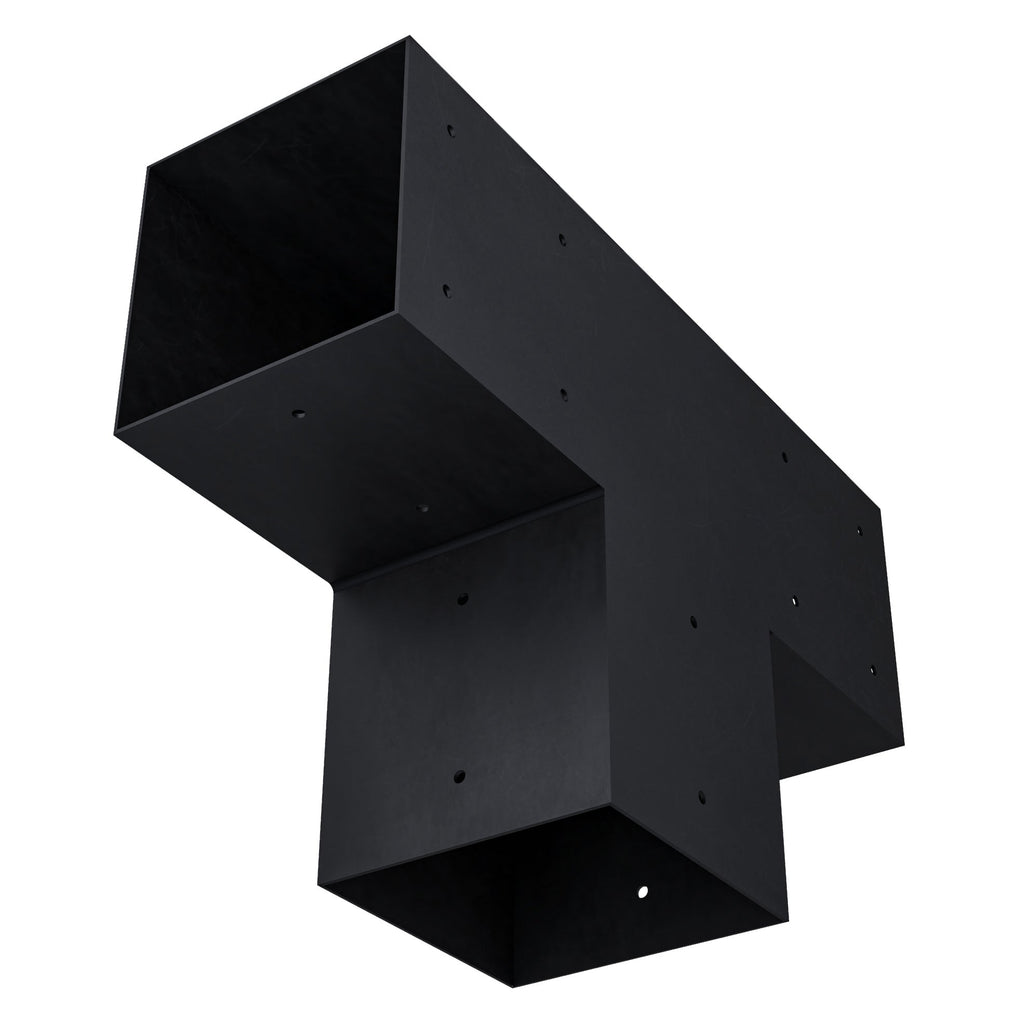

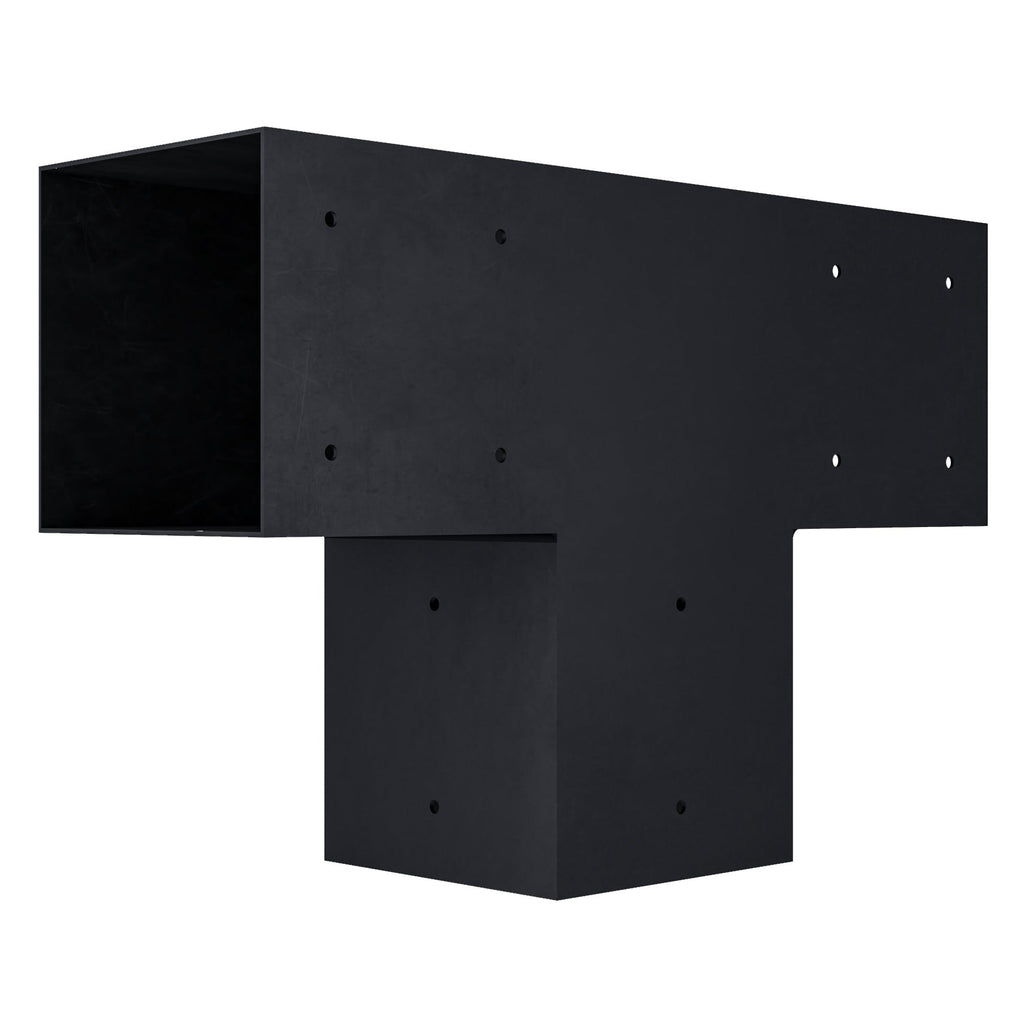

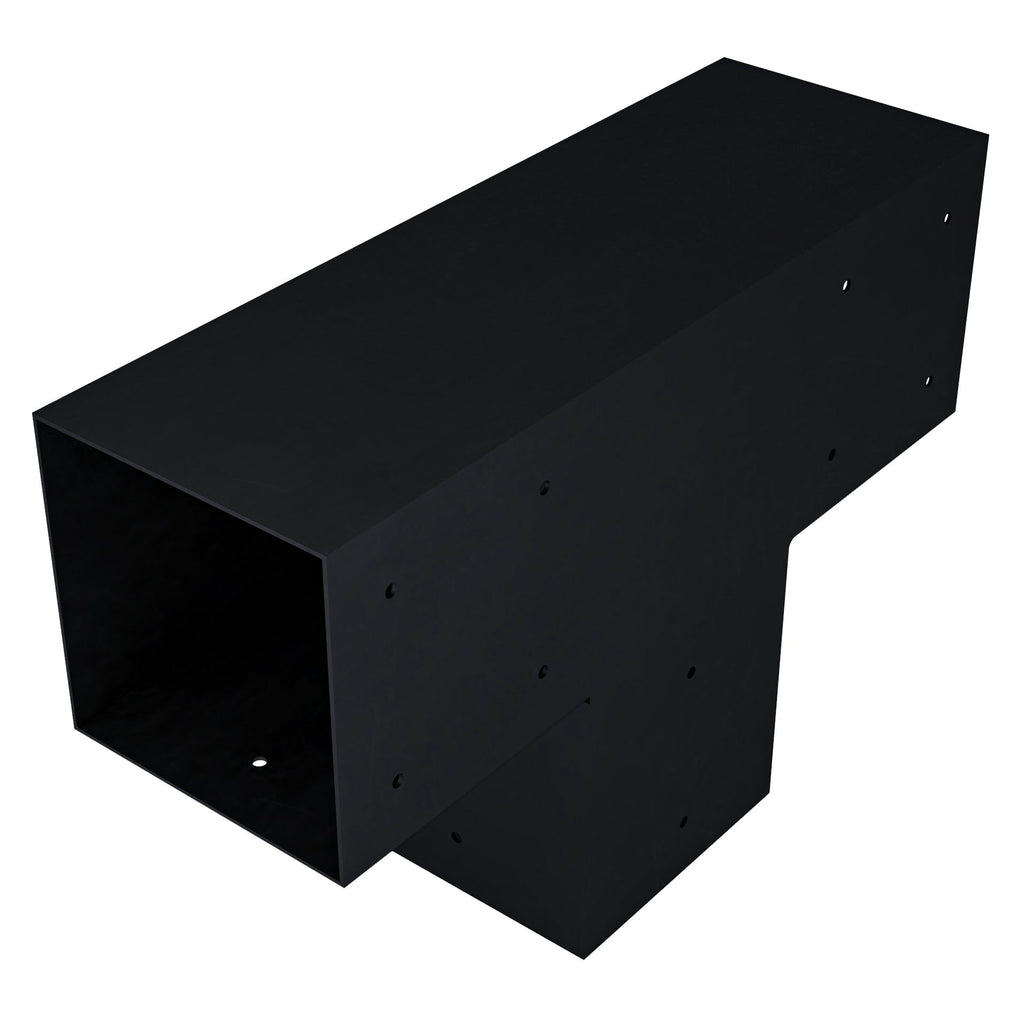

3-Arm T Bracket Usage
3-arm "T" brackets are typically used to split one wall of a pergola into two sections, either to a) decrease the distance each privacy wall slat spans (to prevent sagging) or b) create a "doorway" in the wall (i.e. one section of the wall has a privacy wall but the other side doesn't).
6x6 Pergola Bracket Features
- Made with premium quality steel
- 12-gauge steel (~2.6mm thick)
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width: 17.5 inches (444 mm)
- Depth: 5.8 inches (148 mm)
- Height: 11.65 inches (296 mm)
- Number of arms: 3 (1 vertical + 2 horizontal)
- Inner dimensions of each arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 11.25 pounds
- Not included: wood posts
