Description
Usage

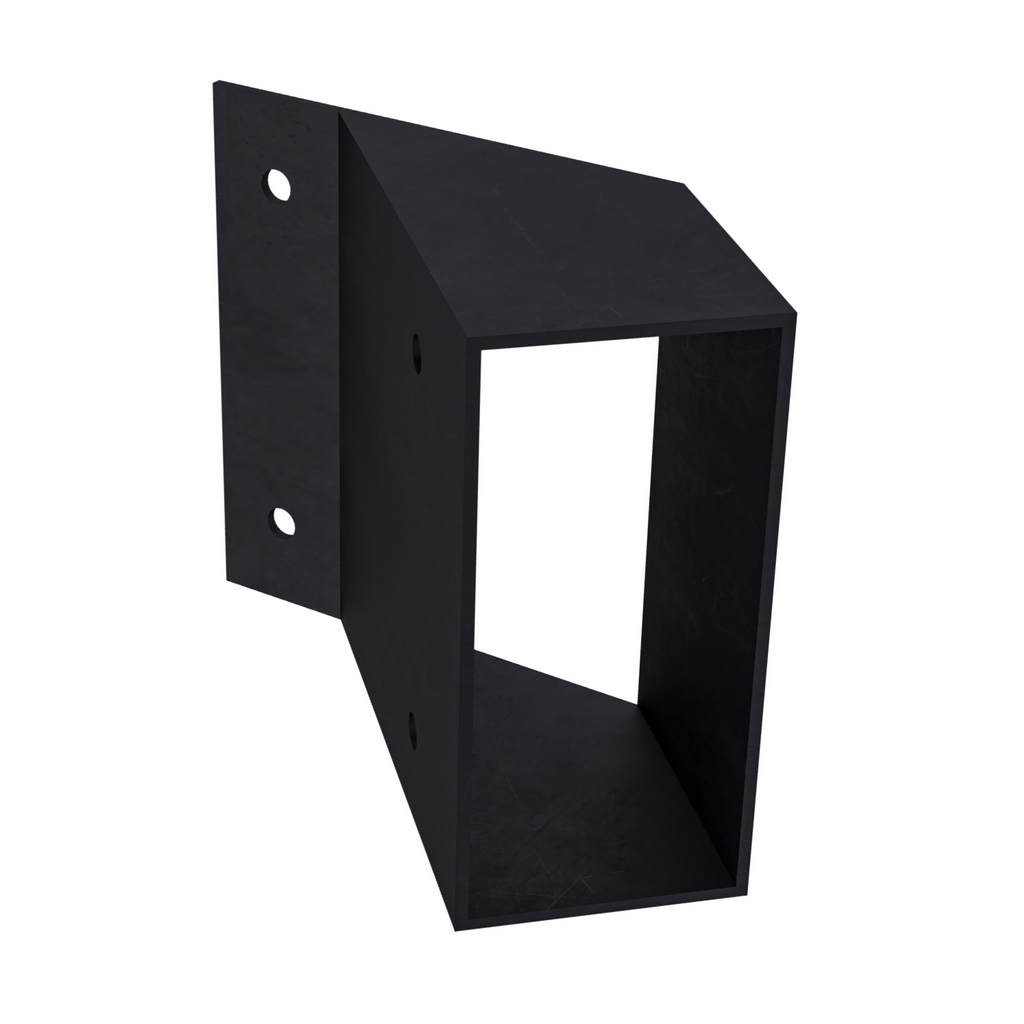

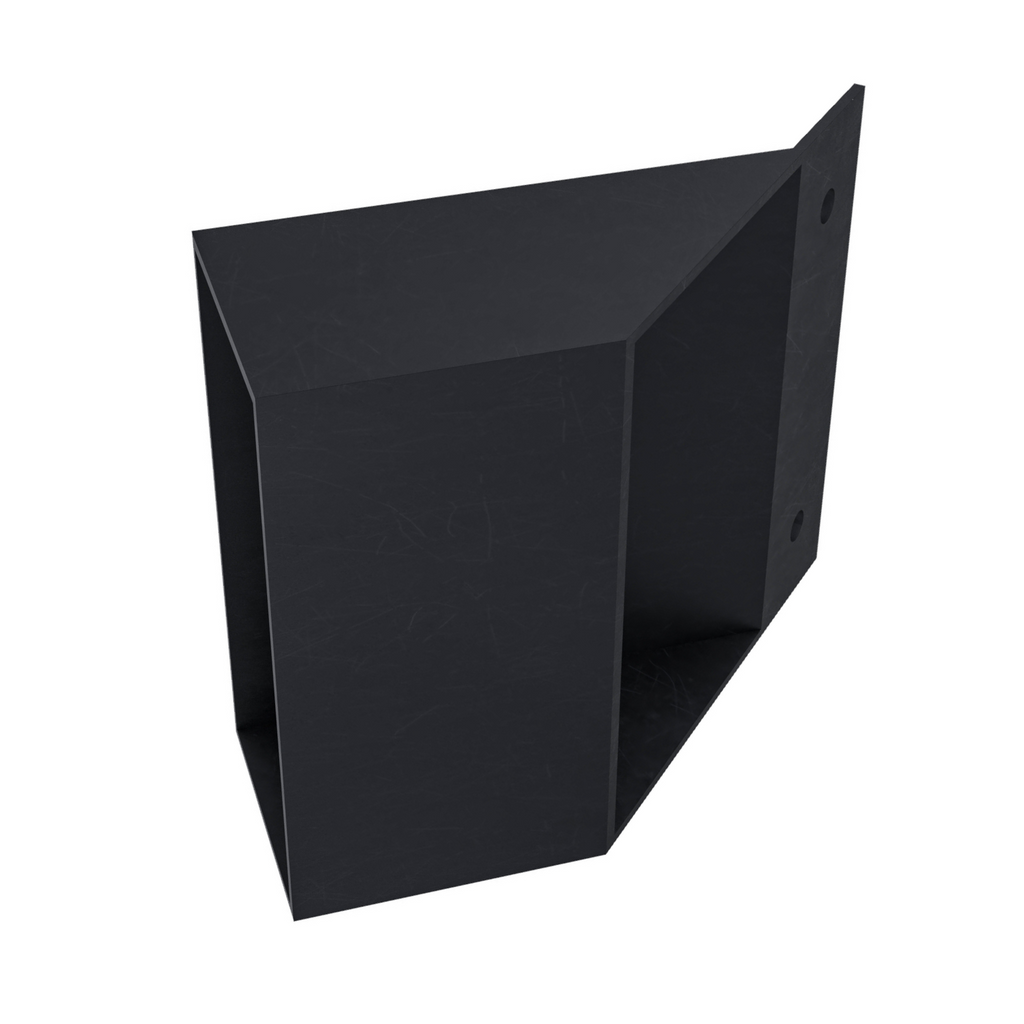

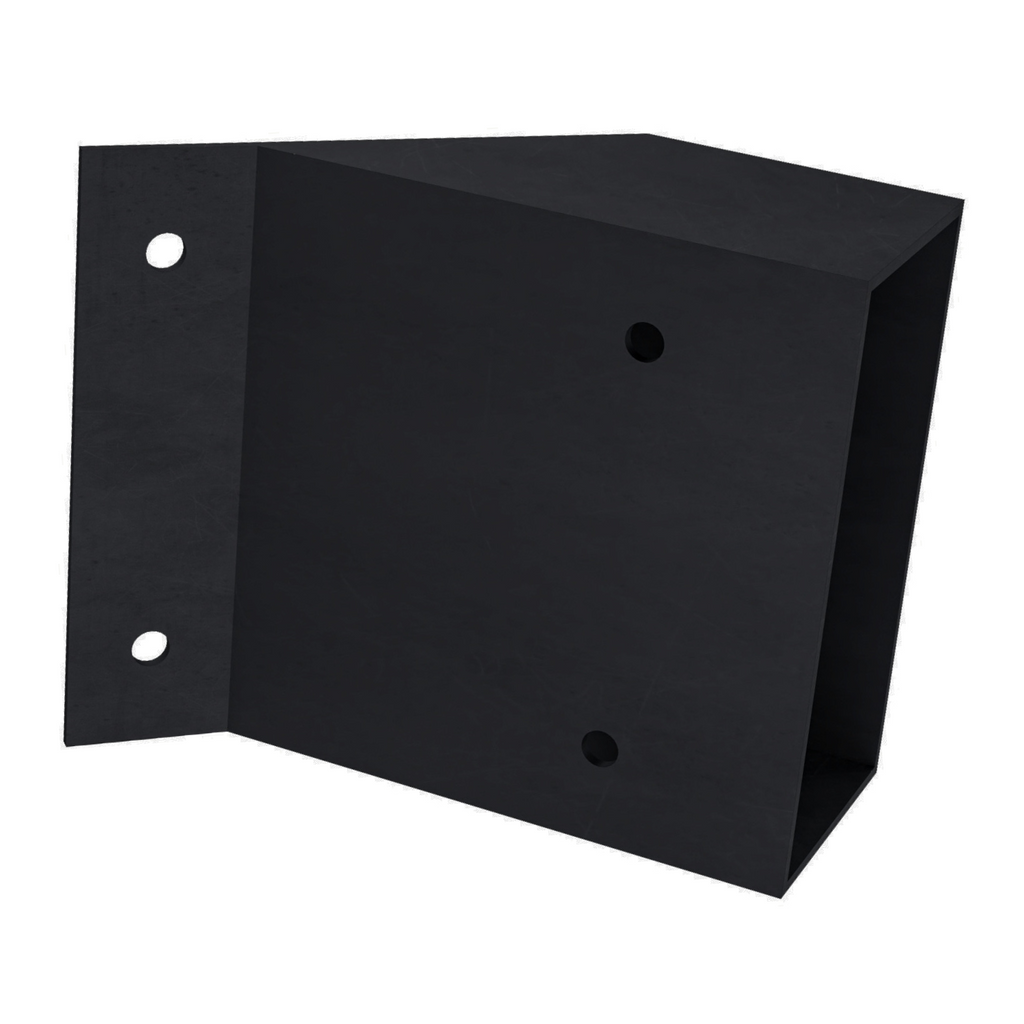

These 45° angle 2x4 rafter brackets are used to insert 2x4 wood slats at a 45-degree angle (i.e. diagonally) between two perpendicular pergola beams. Most commonly, these 45° angle rafter brackets are used with triangle-shaped corner pergolas and other irregular-shaped pergolas.
Steel Pergola Bracket Features
- Made with premium 14-gauge steel (~2.0mm thick)
- Made for dressed lumber commonly called 2x4s (actual dimensions are 1.5” x 3.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width: 3.82 inches (97 mm)
- Inside dimensions of channel: 1.65 x 3.66 inches (42 x 93 mm) - made for 2x4 wood slats (which measure 1.5 x 3.5 inches)
- Length of end plate: 1 inch (26 mm)
- Holes on end plate (secured to roof beam): 2
- Holes on inside wall: 2
- Holes on outside wall: 0
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 0.75 pound
- Not included: wood posts
