Description
Usage
Roof rafter brackets are used to create a traditional-style roof on top of the pergola beams (adding an upper 2nd layer to the pergola roof). The rafters inserted into and secured to these rafter brackets typically (but don't necessarily have to) extend 6-12 inches beyond the beams to create overhangs. Rafter brackets can be used with both freestanding pergolas and attached pergolas.

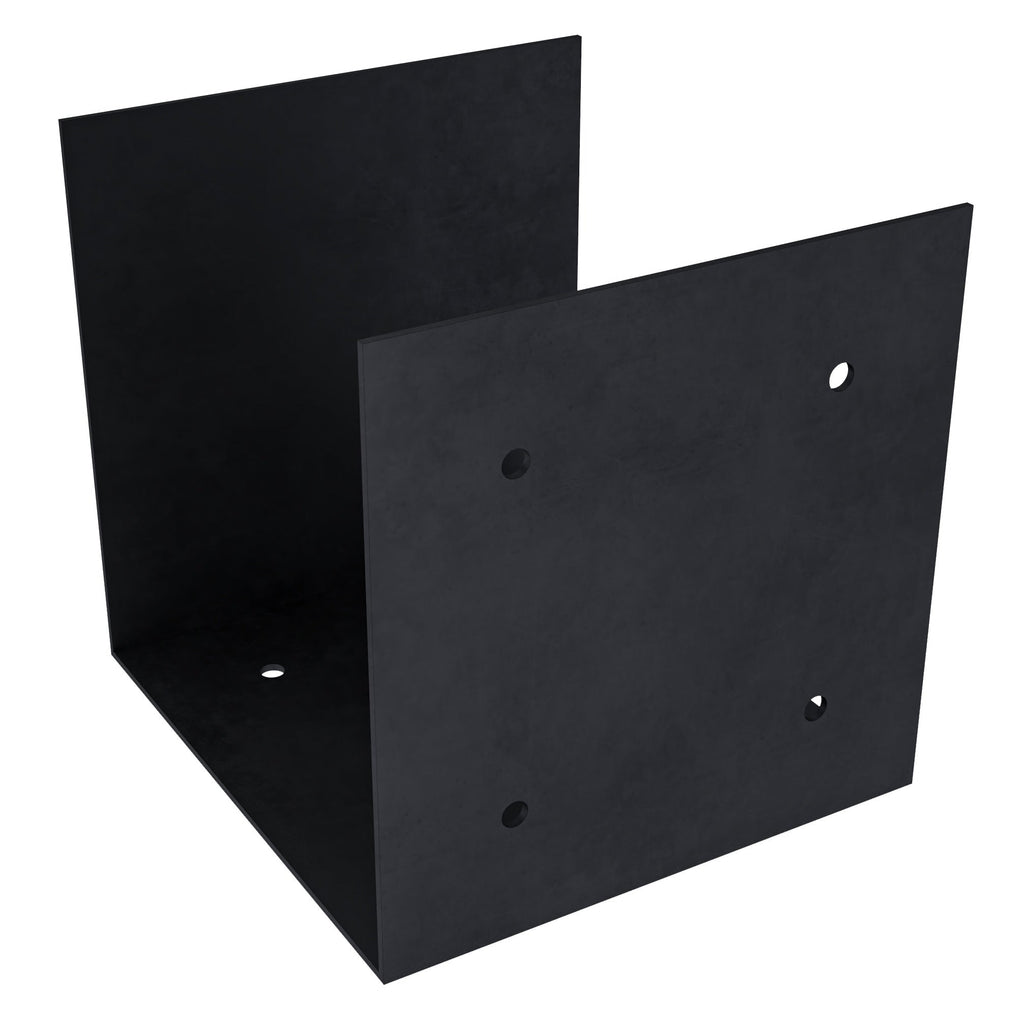

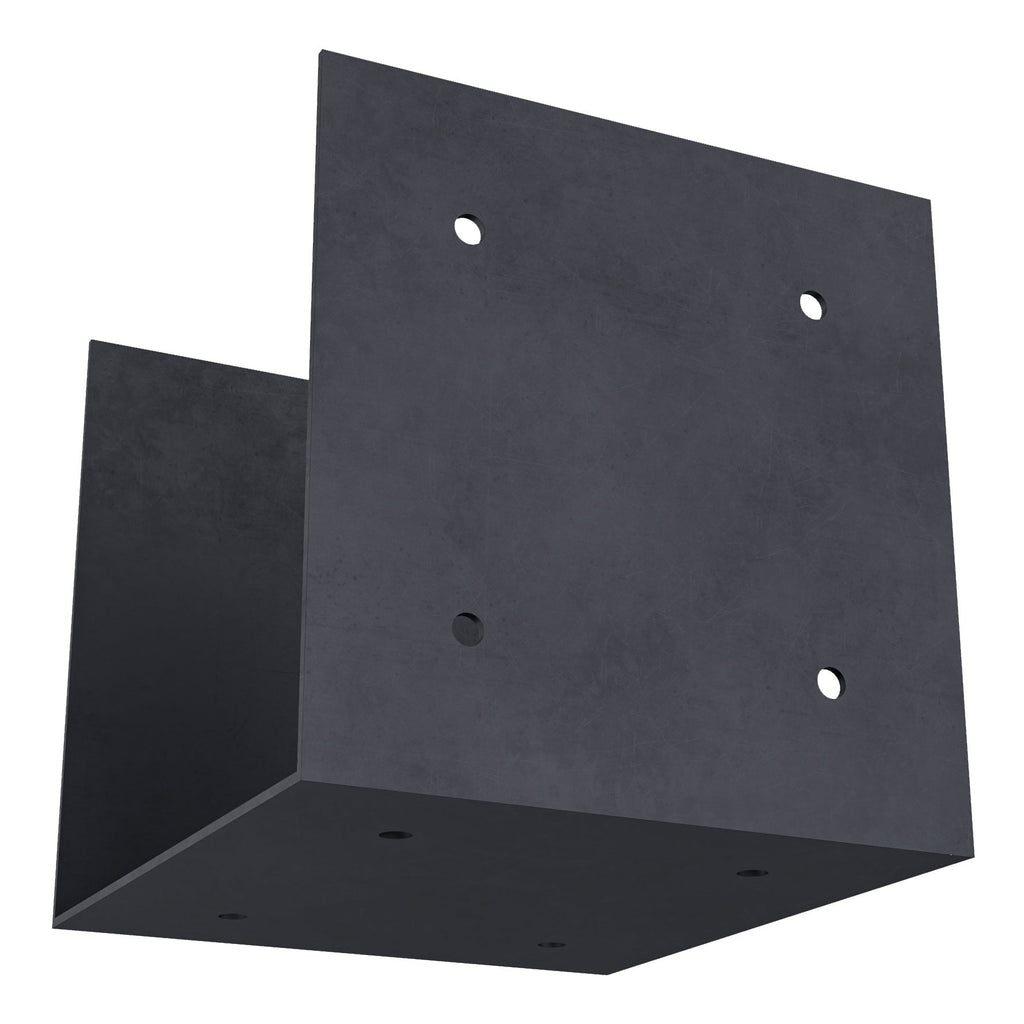

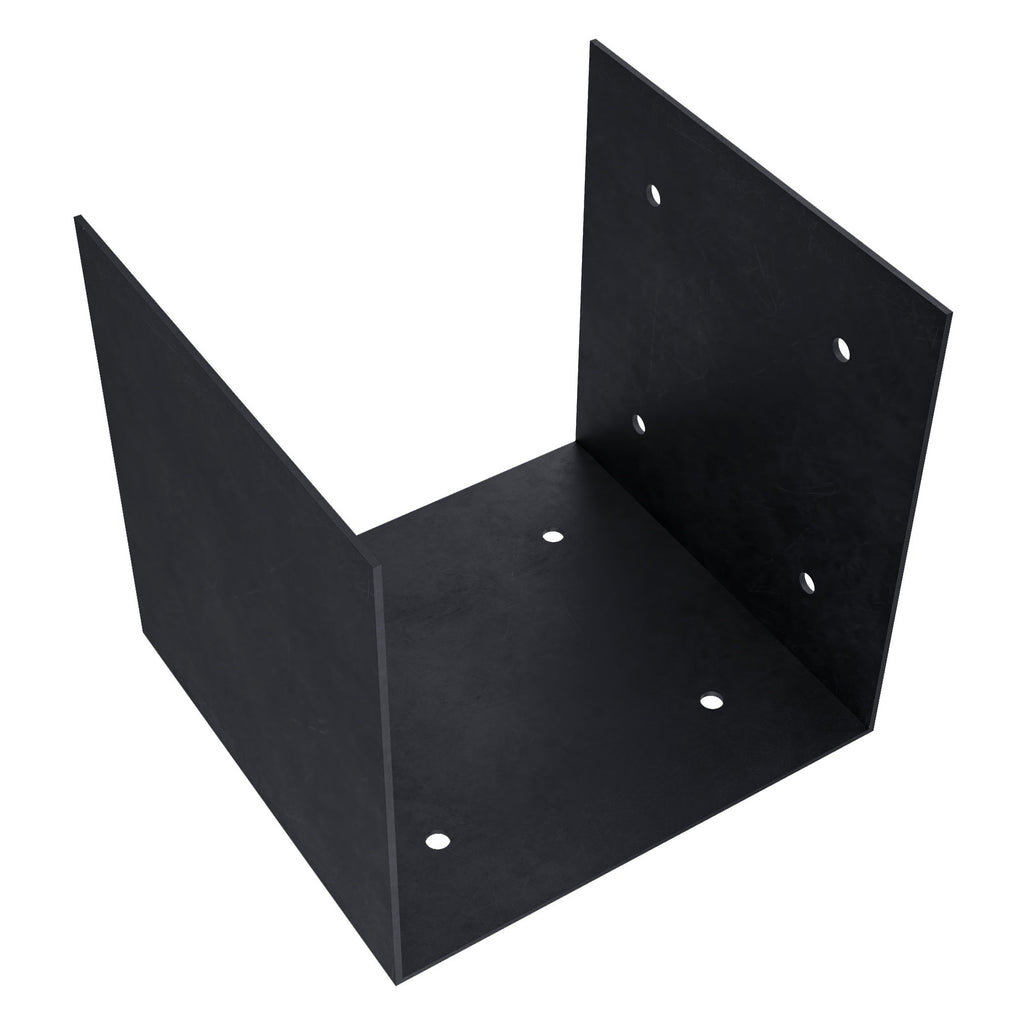

Steel Pergola Bracket Features
- Made with premium 12-gauge steel (~2.6mm thick)
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width: 5.83 inches (148 mm)
- Depth: 5.5 inches (139.5 mm)
- Height: 5.5 inches (139.5 mm)
- Inner dimensions of sleeve (open at top): 5.63 x 5.5 inches (143 x 139.5 mm) - made for 6x6 wood post (which measure 5.5 x 5.5 inches)
- Holes on bottom plate (secured to beam): 4 (two on each end)
- Holes on one side wall: 4 (2x2 grid)
- Holes on opposite side wall: 0
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 5.25 pounds
- Not included: wood posts
