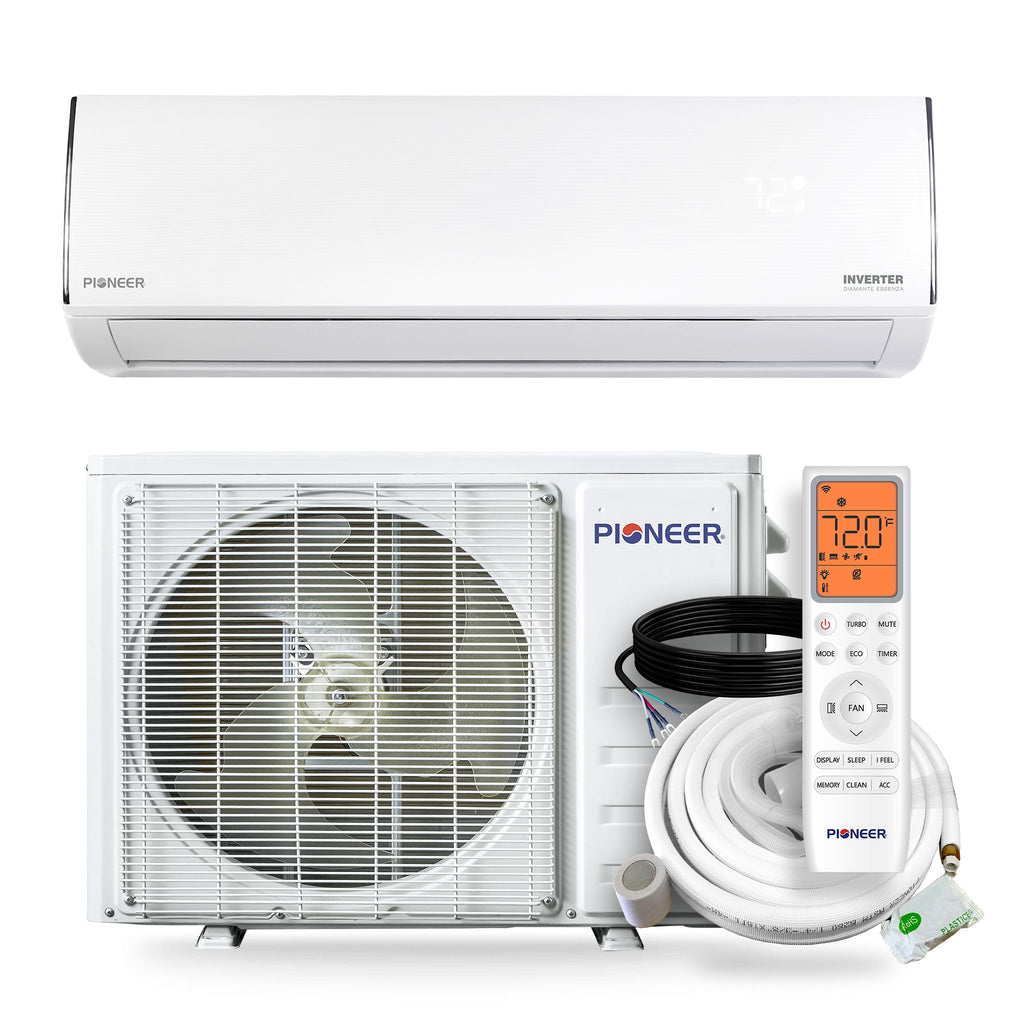

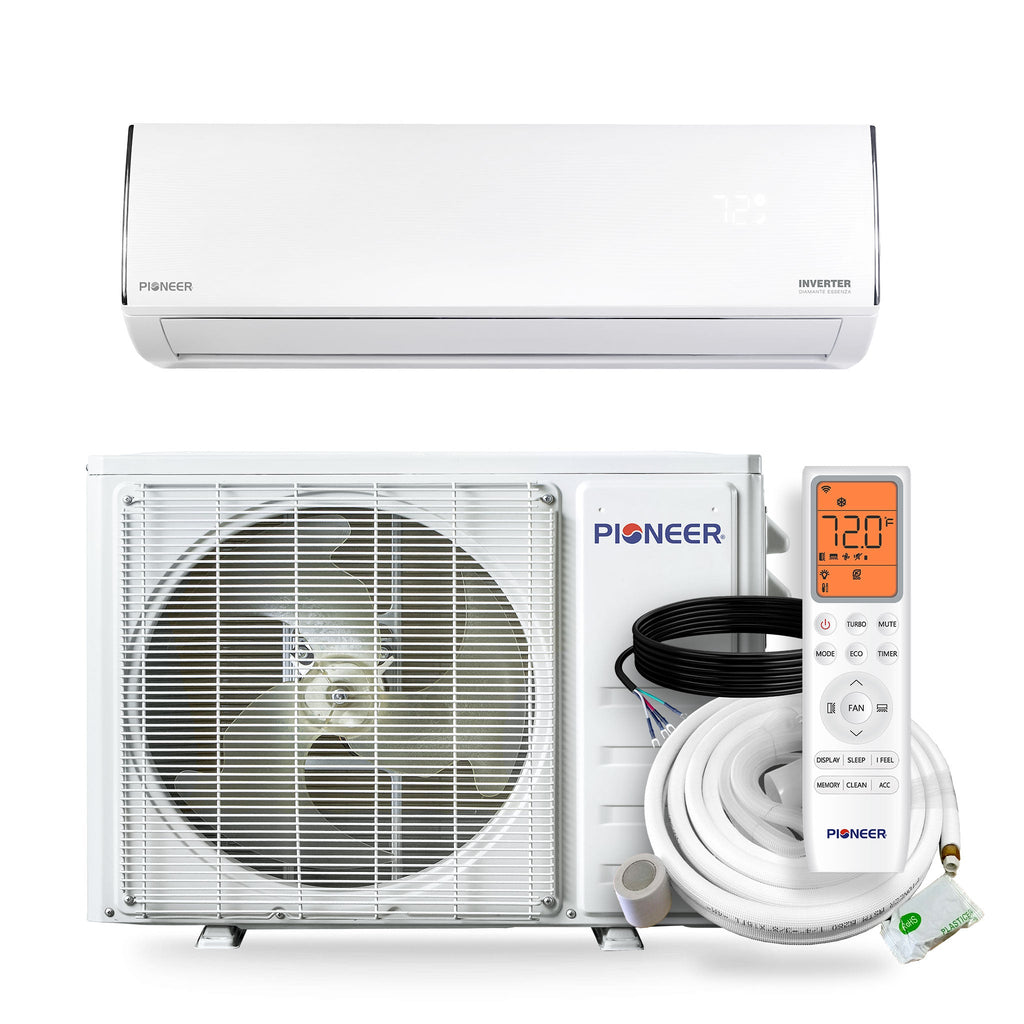

Pioneer® Diamante Essenza™ 17,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

SKU: WYT018GLUI17RL
$998.00 $1,429.00 / Piece
30% OFF
5OFFSALE (5% OFF)

Description

Summary

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 17,000 BTU/H with 17.0 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 16,500 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance

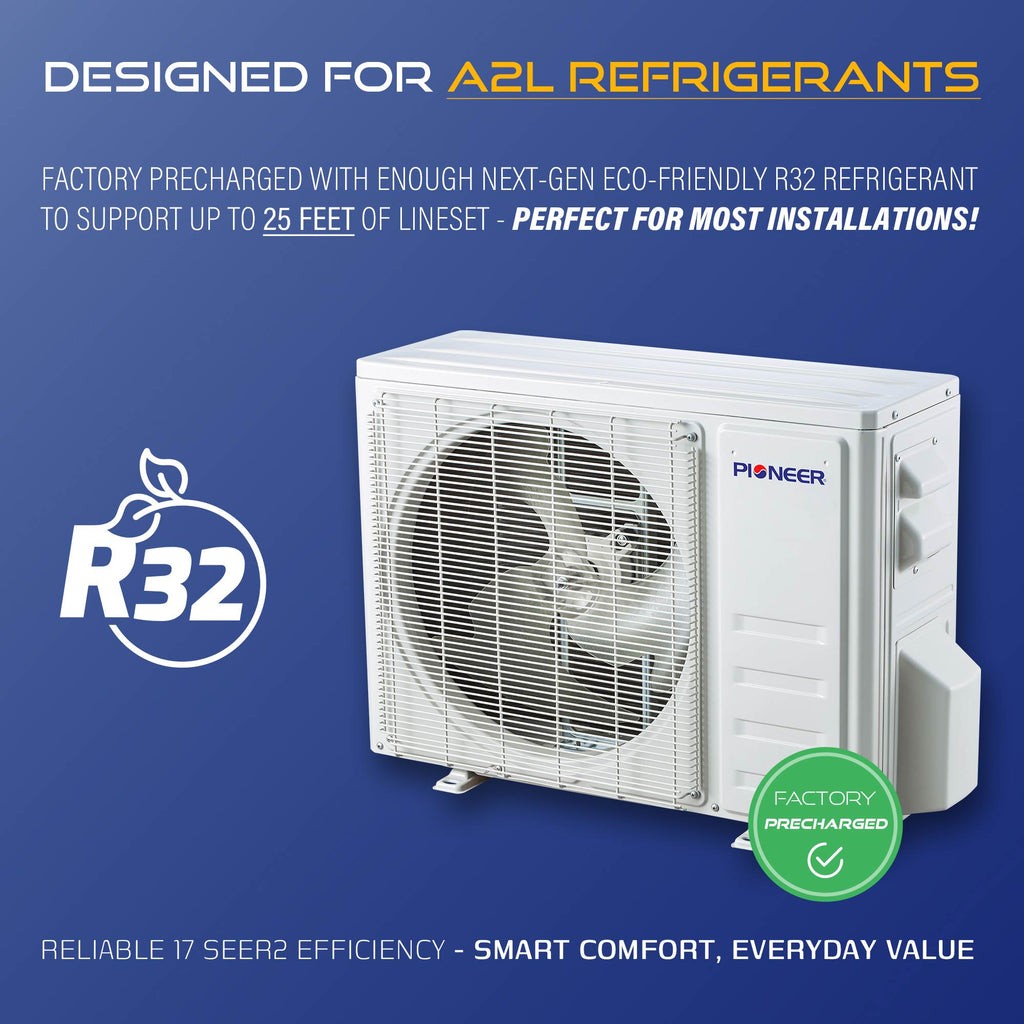

  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 17,000 BTU/h
    • Cooling Capacity Range: 4,095~17,700 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 9.5 BTU/W.h
    • Heating Rated Capacity: 16,500 BTU/h
    • Heating Capacity Range: 4,095~17,700 BTU/h
    • Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
    • Refrigerant Type: R-32
    • Recommended Room Size: 500~750 sq ft
    • Minimum Room Size: 27 sq ft
    • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048736
  • Indoor Unit
    • Part Number: WT018GLUI17HLD
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 412 / 364 / 294 / 235 / 208 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 45 / 40 / 34 / 32 dB(A)
    • Product Dimensions (WDH): 35"-3/4 x 8"-1/8 x 11"-1/2 Inches
    • Carton Dimensions (WDH): 38"-1/8  x 10"-7/8 x 14"-5/8 Inches
    • Net / Gross Weight: 20.9 / 27.6 lbs
  • Outdoor Unit
    • Part Number: YN018GLUI17RPD
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 57 dB(A)
    • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
    • Carton Dimensions (WDH): 33"-1/2 x 14"-1/4 x 25"-1/8 Inches
    • Net / Gross Weight: 57.3 / 68.8 lbs

Dimension Chart

35¾ 8⅛ 11½ 31⅞ 12 21⅝ ¾
