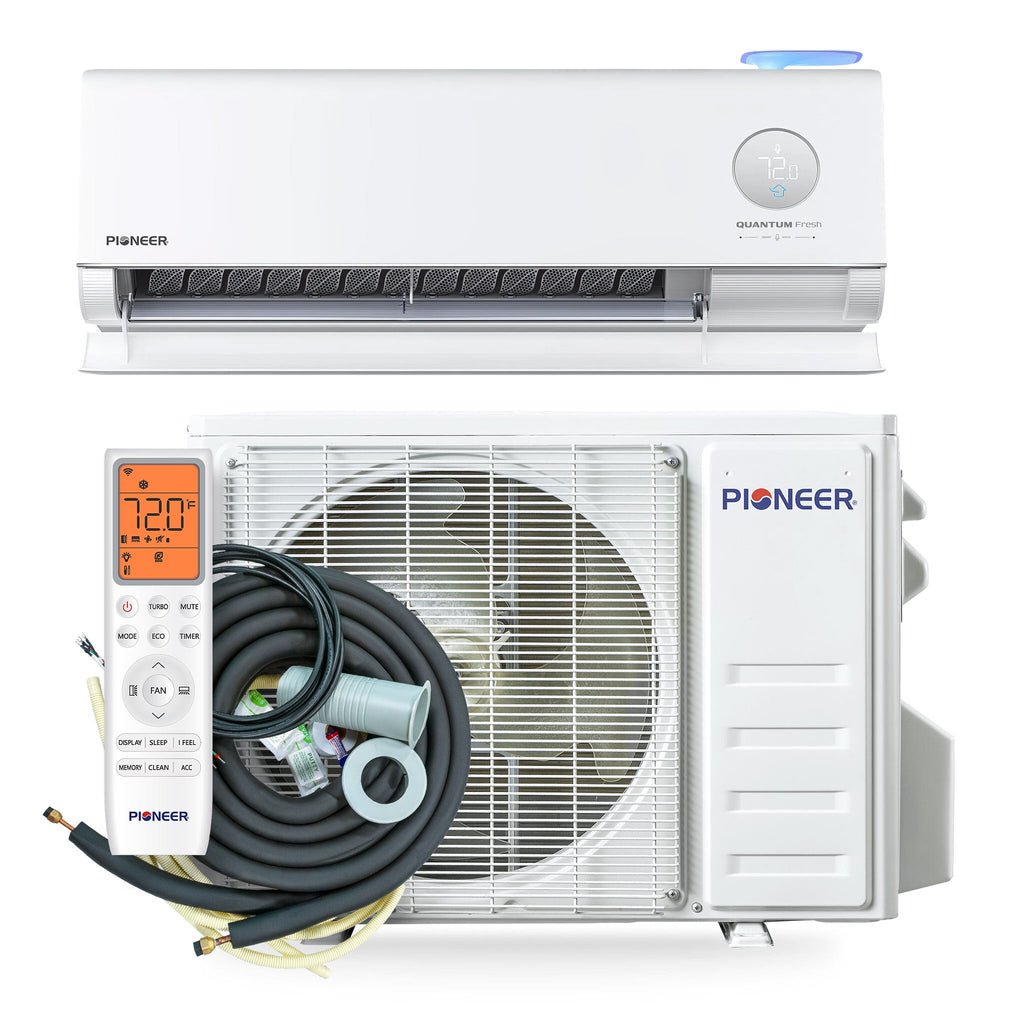

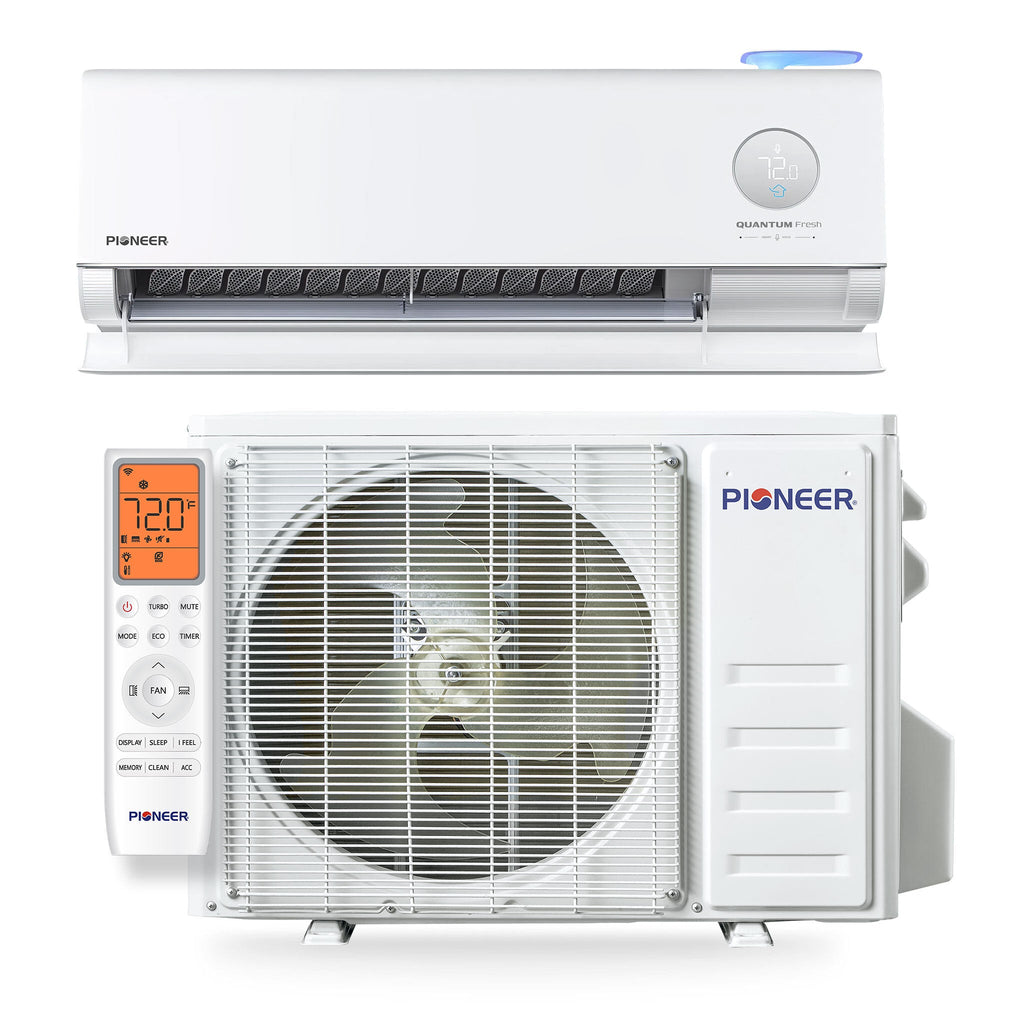

Pioneer® Quantum Fresh™ 12,000 BTU 24 SEER2 High-Wall Ductless Mini-Split Fresh Air Conditioner Inverter Heat Pump Full Set

SKU: WYT012GLUI25FV

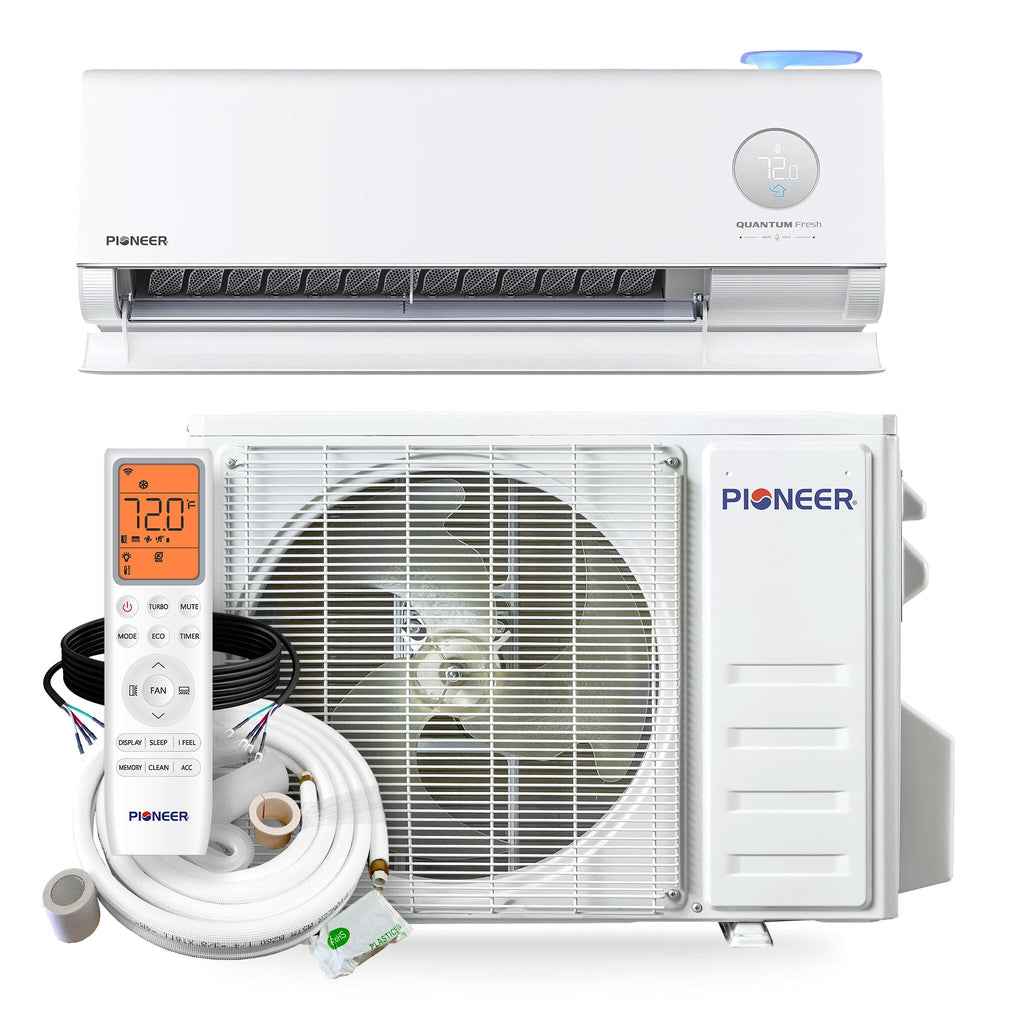

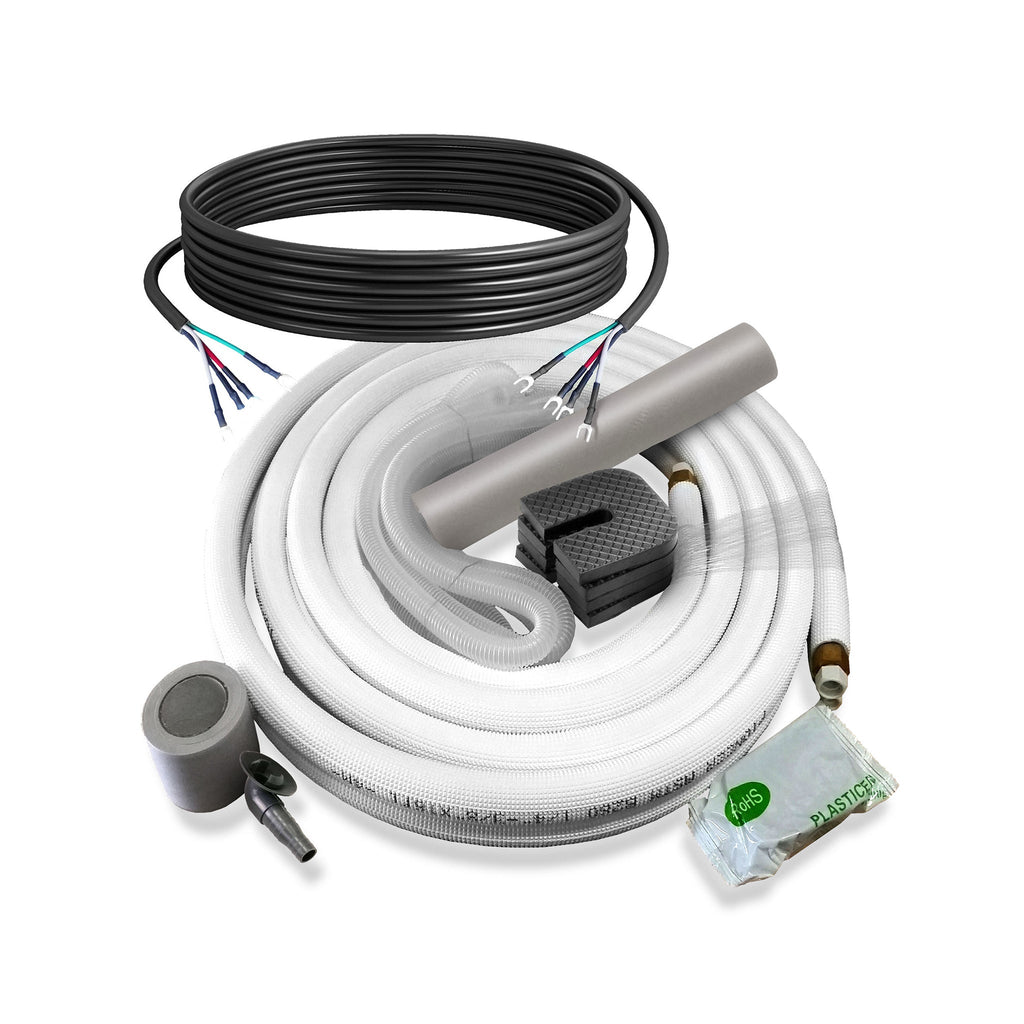

Include System Installation Kit: Add Standard Copper Lineset
Installation Kit Length: 10 Ft.
All deliveries are carbon neutral
Powered by Shopify Planet
$1,258.00 $1,799.00 / Piece
26% OFF
5OFFSALE (5% OFF)

Description

Summary

  • High Efficiency Quantum Fresh Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 24.0 SEER2 / 13.0 EER2 efficiency
  • Heating capacity: 13,100 BTU/H with 9.5 HSPF2 / 4.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R32 Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Fresh Air Infusion System - Brings in, Filters, and Mixes Outdoor Air to Replenish Indoor Oxygen
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

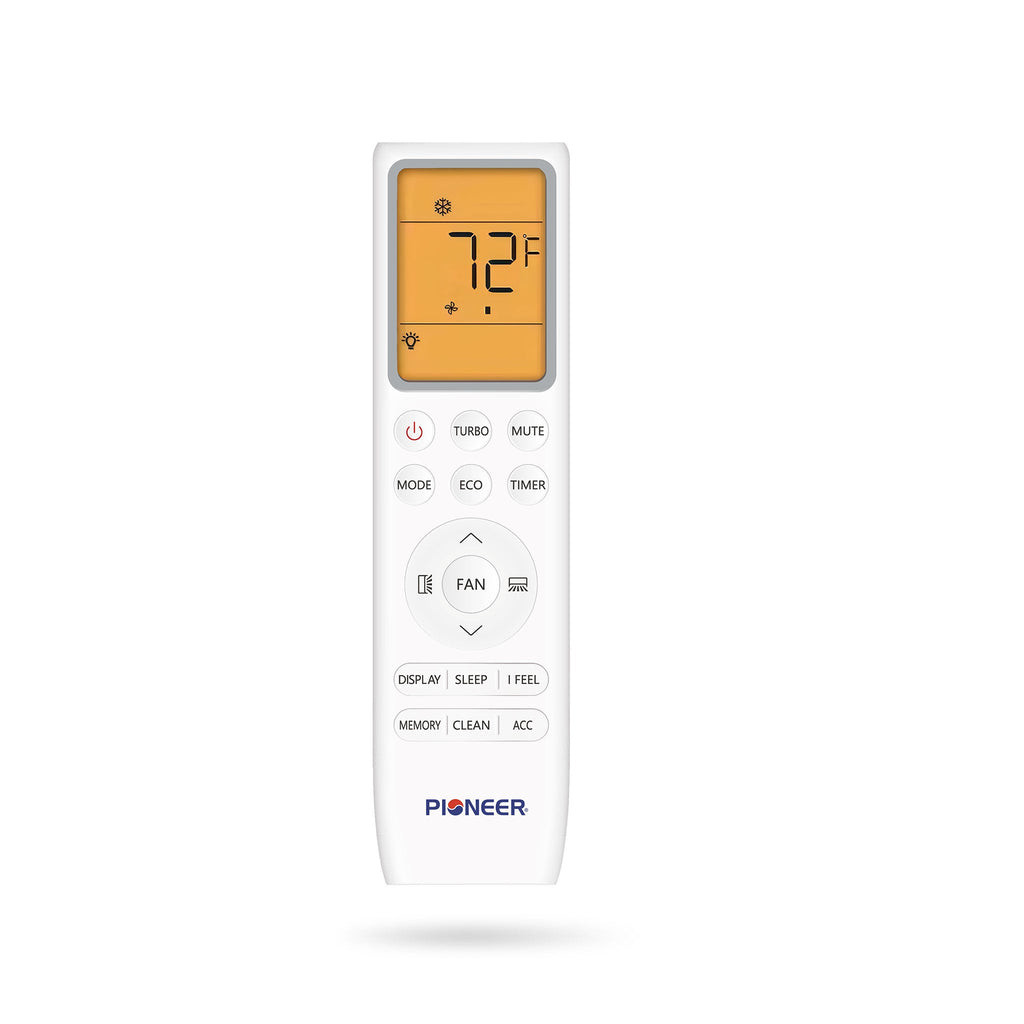

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 12,000 BTU/h
    • Cooling Capacity Range: 3,000~15,000 BTU/h
    • Cooling SEER2: 24.0 BTU/W.h
    • Cooling EER2: 13.0 BTU/W.h
    • Heating Rated Capacity: 13,100 BTU/h
    • Heating Capacity Range: 3,000~13,600 BTU/h
    • Heating HSPF2 (Region IV/V): 9.5 / 8.5 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 4.2 / 2.0 W/W
    • Refrigerant Type: R32
    • Recommended Room Size: 350~500 sq ft
    • Minimum Room Size: 25 sq ft
    • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048739

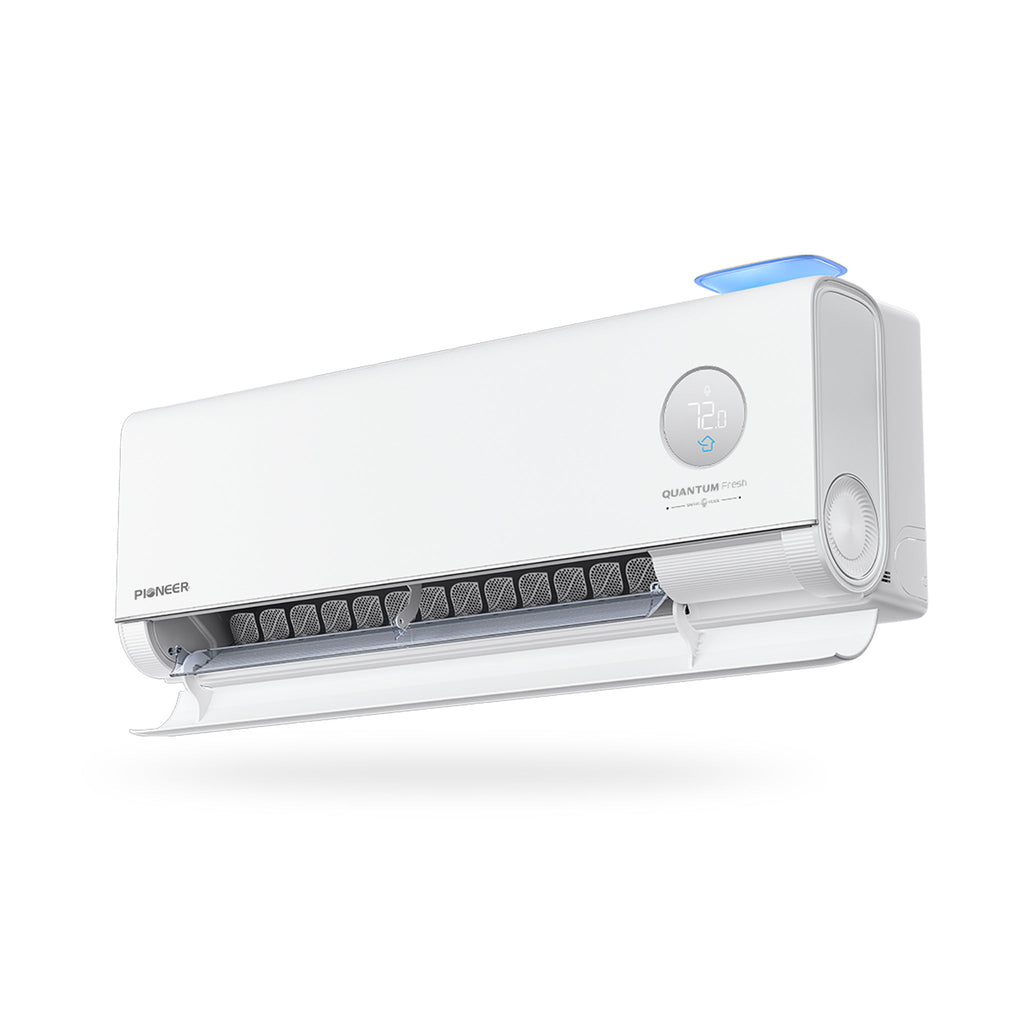

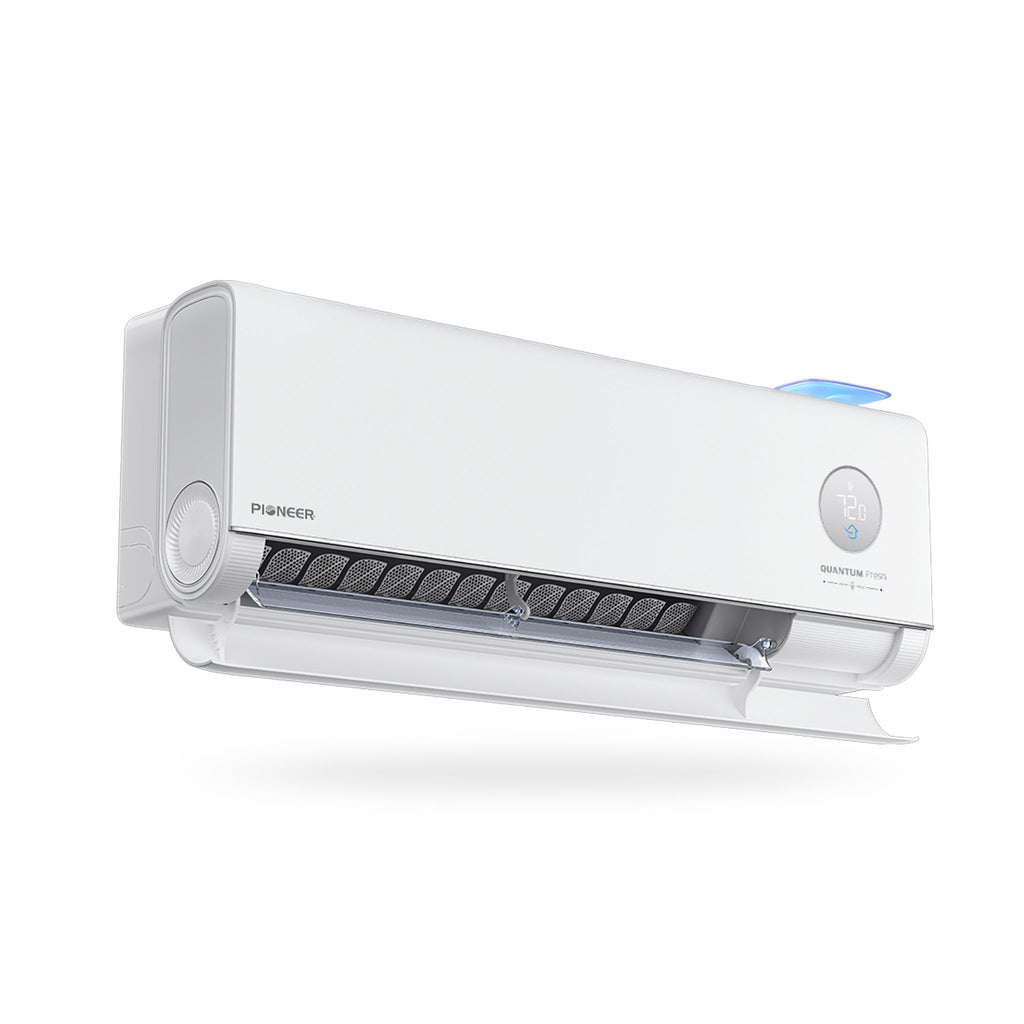

  • Indoor Unit
    • Part Number: WT012GLUI25FVQ
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 440 / 410 / 380 / 230 / 150 CFM
    • Fresh Air Volume: 18 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 44 / 43 / 37 / 32 / 30 dB(A)
    • Product Dimensions (WDH): 36"-1/4 x 8"-1/8 x 12"-1/4 Inches
    • Carton Dimensions (WDH): 39"-1/4 x 12"-1/4 x 15"-1/4 Inches
    • Net / Gross Weight: 25.4 / 32.2 lbs

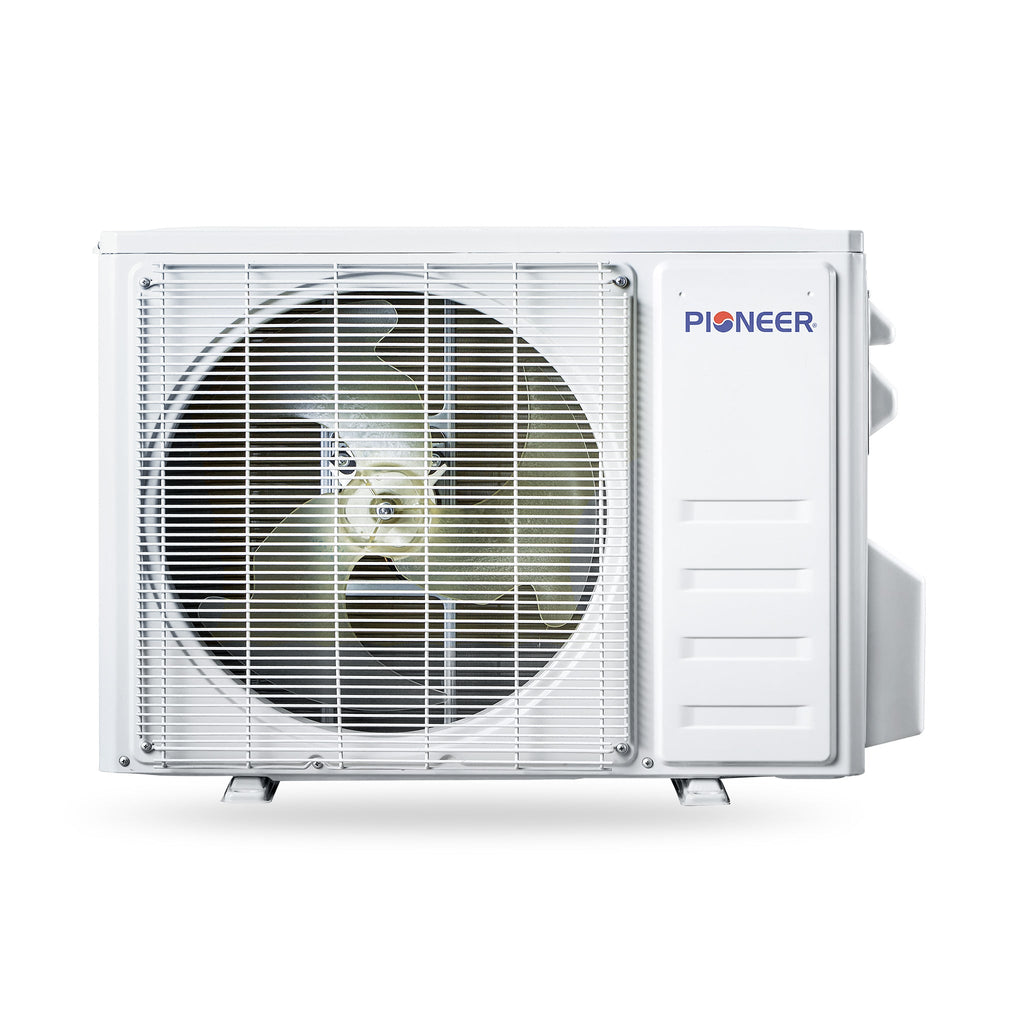

  • Outdoor Unit
    • Part Number: YN012GLUI25RPQ
    • Breaker Needed: 15A (double-pole)
    • Sound Level: 53 dB(A)
    • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
    • Carton Dimensions (WDH): 33"-1/2 x 14"-1/8 x 23"-5/8 Inches
    • Net / Gross Weight: 55.1 / 61.7 lbs

Dimension Chart

36¼ 8⅛ 12¼ 31⅞ 12 21⅝ ¾
