Pioneer® Quantum Ultra™ 16,000 BTU 23.8 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

SKU: FYB018GMSI24RL

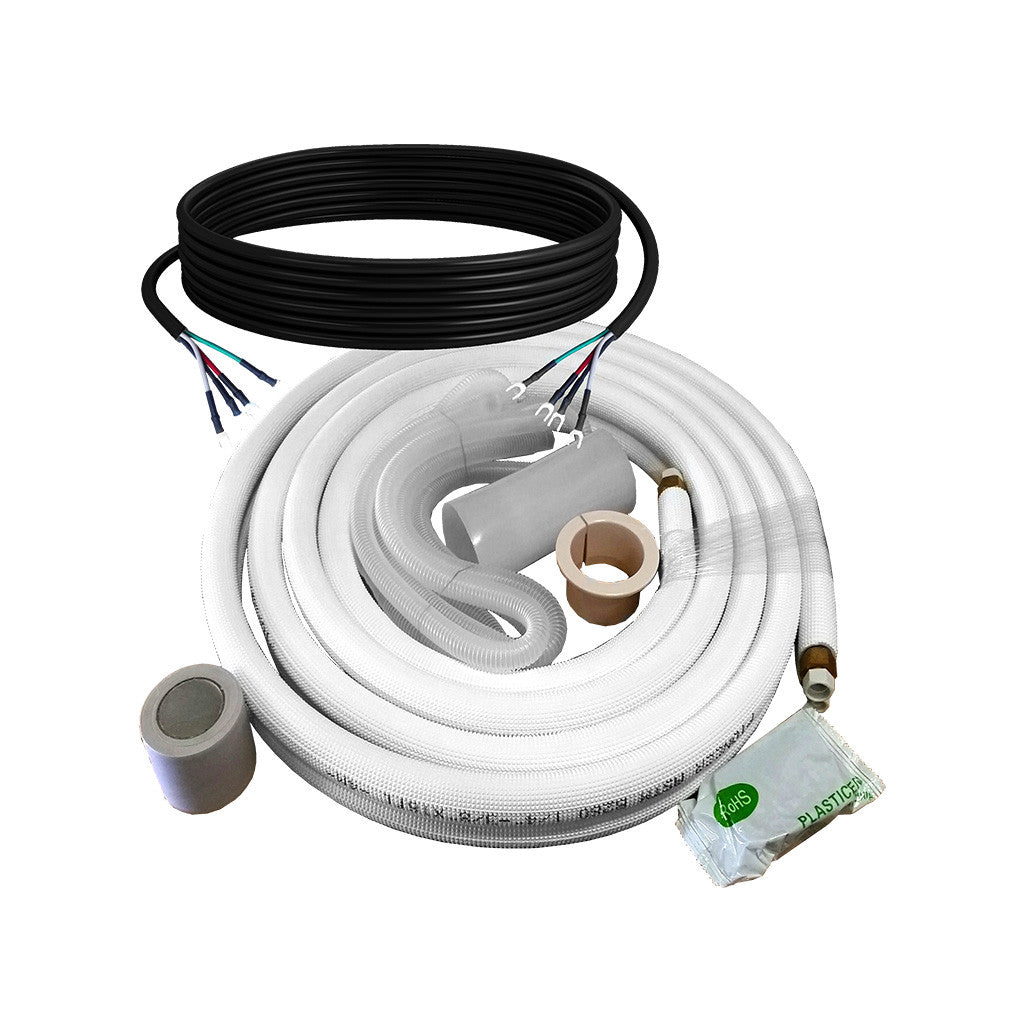

Include System Installation Kit: Add Standard Copper Lineset
Installation Kit Length: 10 Ft.
All deliveries are carbon neutral
Powered by Shopify Planet
$1,978.00 $2,829.00 / Piece
30% OFF
5OFFSALE (5% OFF)
Ships within 3-5 business days.

Description

Summary

  • High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
  • Cooling capacity: 16,000 BTU/H with 23.8 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 17,000 BTU/H with 13.5 HSPF2 / 3.4 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

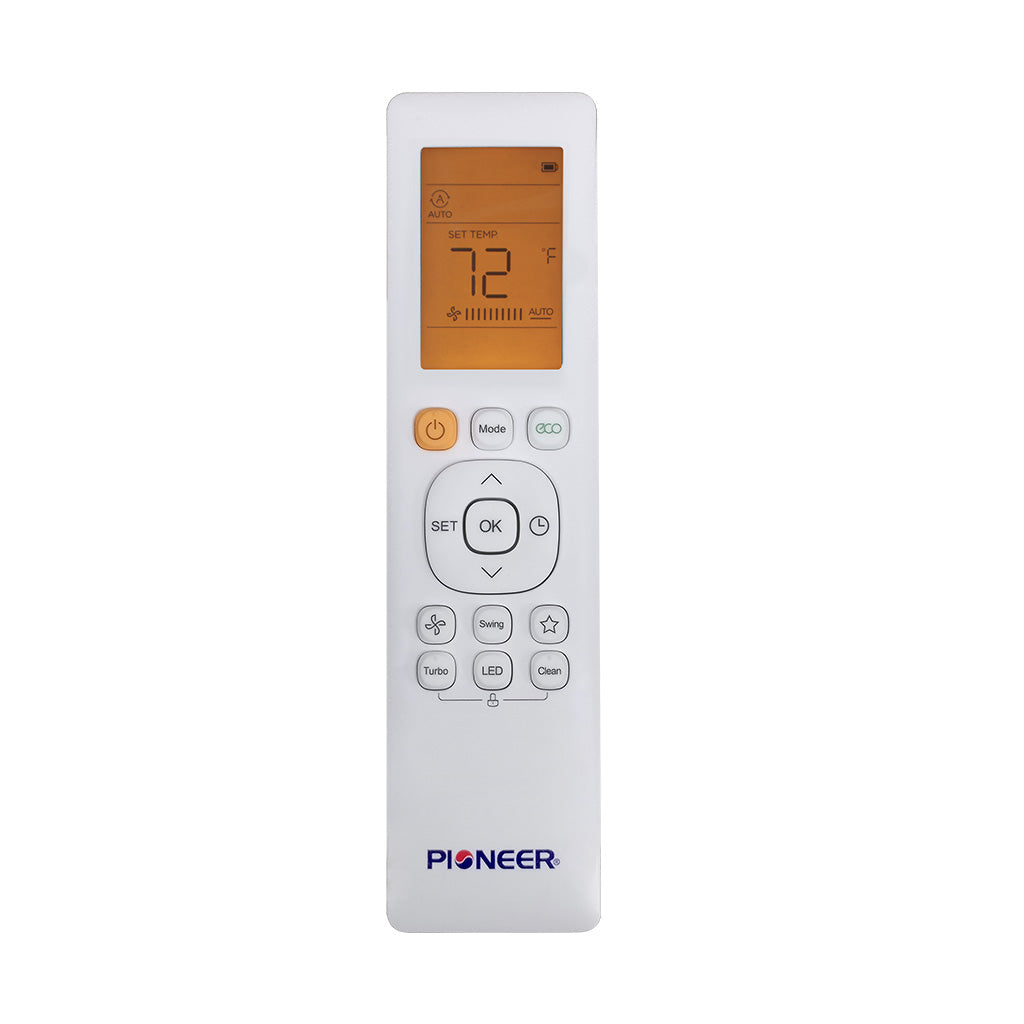

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

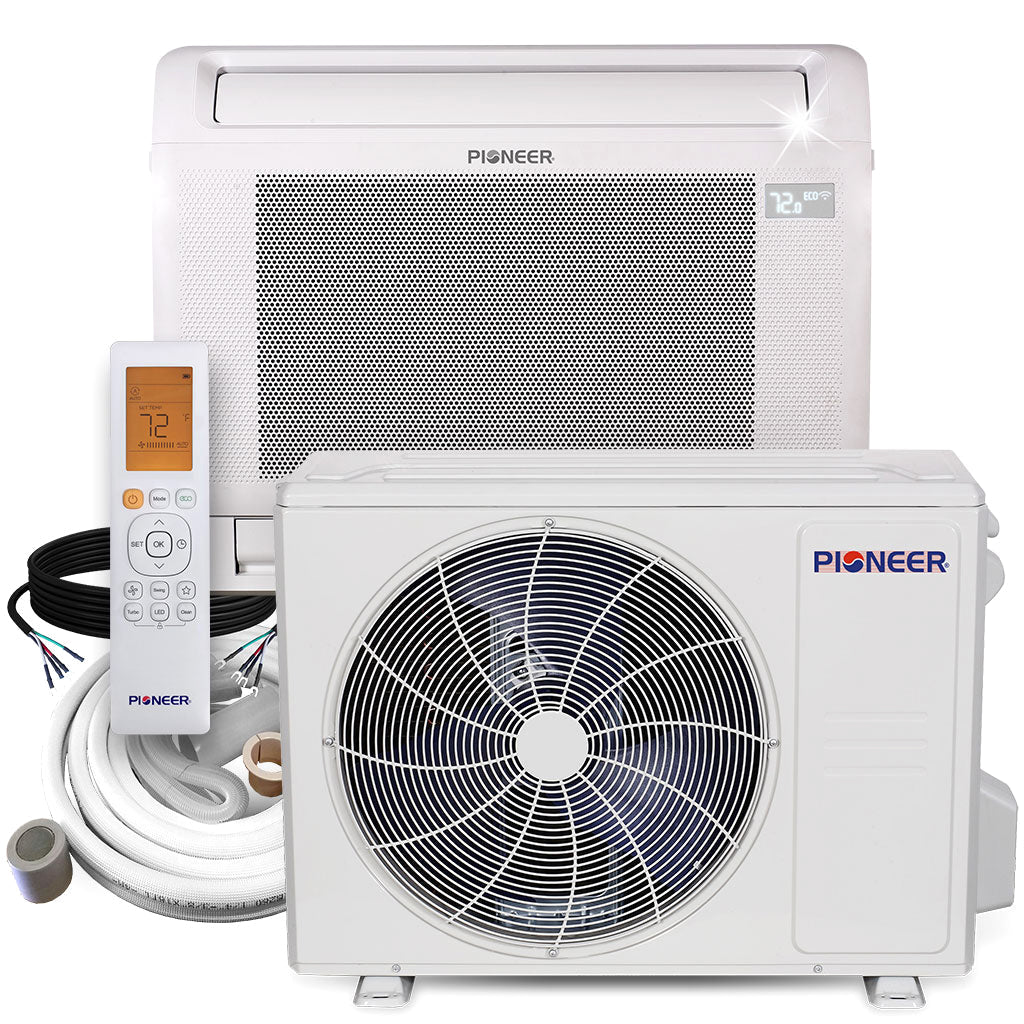

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 16,000 BTU/h
    • Cooling Capacity Range: 4,700~18,000 BTU/h
    • Cooling SEER2: 23.8 BTU/W.h
    • Cooling EER2: 12.5 BTU/W.h
    • Heating Rated Capacity: 17,000 BTU/h
    • Heating Capacity Range: 7,300~22,900 BTU/h
    • Heating HSPF2 (Region IV/V): 13.5 / 9.4 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.4 / 2.16 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 500~750 sq ft
    • Minimum Room Size: 227 sq ft
    • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 218010990

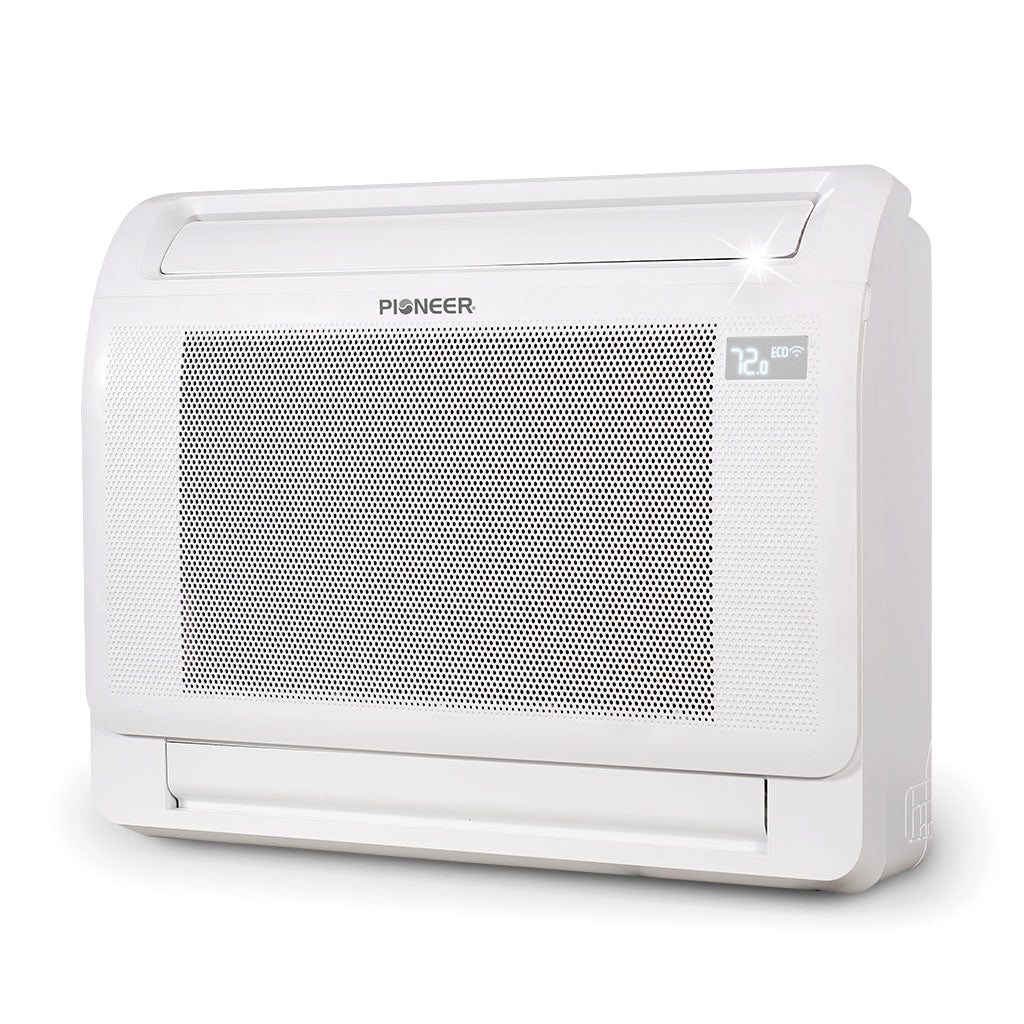

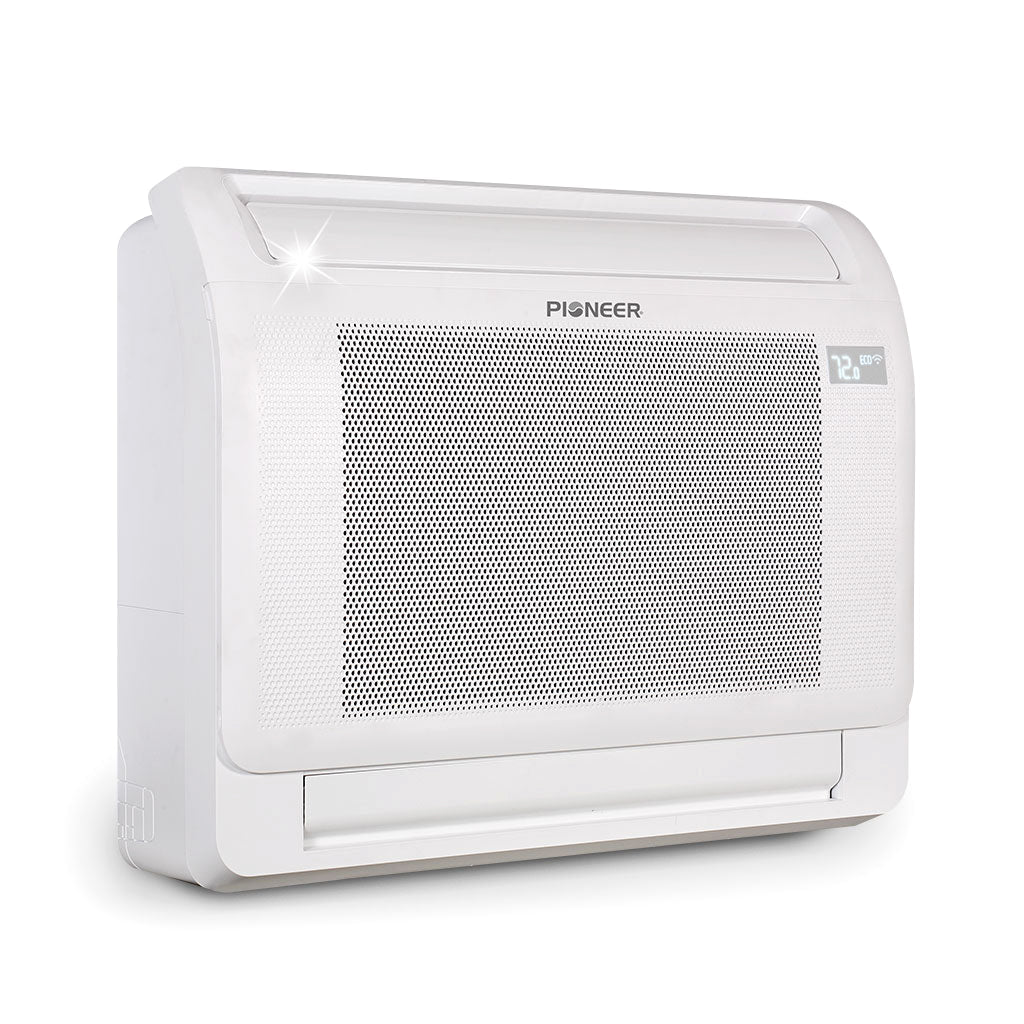

  • Indoor Unit
    • Part Number: FB018GMSILDFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 441 / 382 / 324 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 41.5 / 39 / 28.5 dB(A)
    • Product Dimensions (WDH): 31"-1/4 x 7"-7/8 x 24"-1/2 Inches
    • Carton Dimensions (WDH): 34"-1/8 x 11" x 28"-3/8 Inches
    • Net / Gross Weight: 32.9 / 41.9 lbs

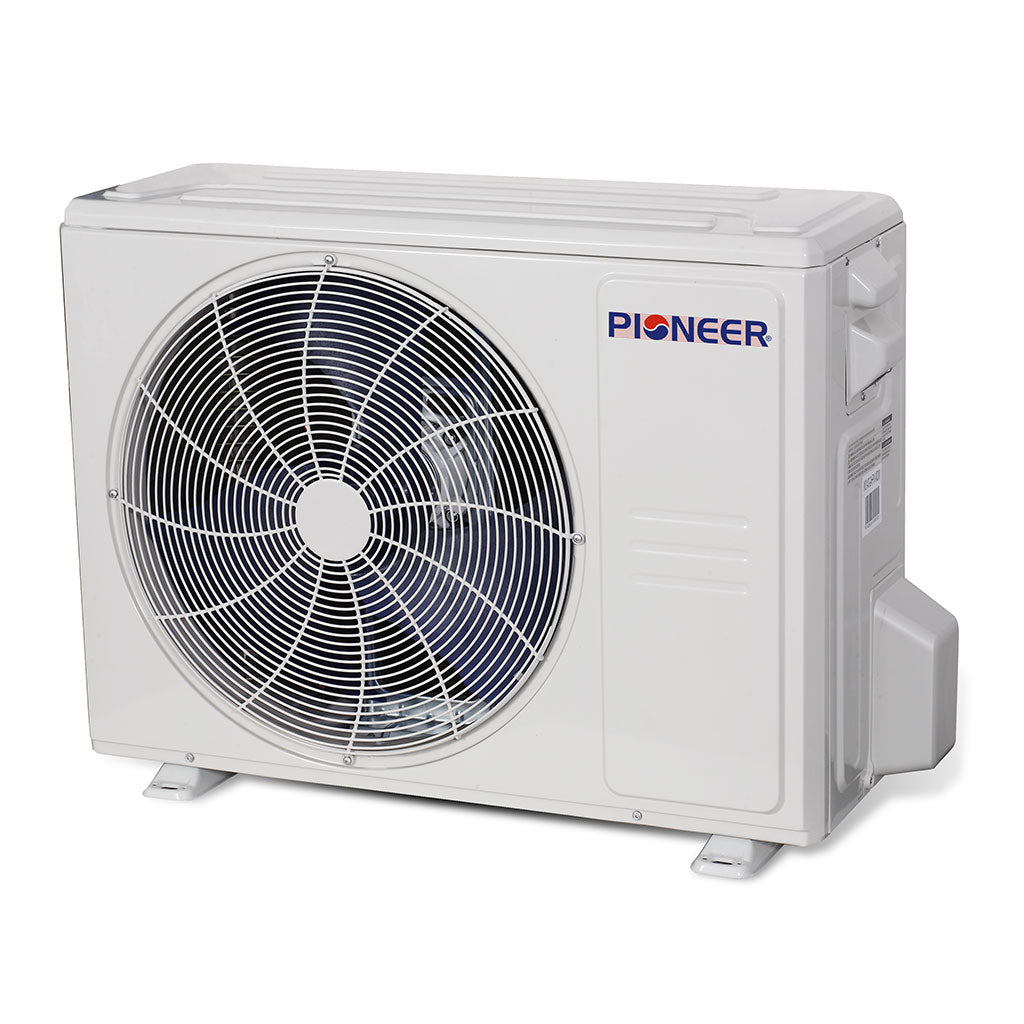

  • Outdoor Unit
    • Part Number: YN018GMSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 57 dB(A)
    • Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
    • Carton Dimensions (WDH): 39"-1/4 x 15"-5/8 x 29"-1/8 Inches
    • Net / Gross Weight: 92.6 / 100.3 lbs

Dimension Chart

31¼ 7⅞ 24½ 35 13½ 26½ ¾
