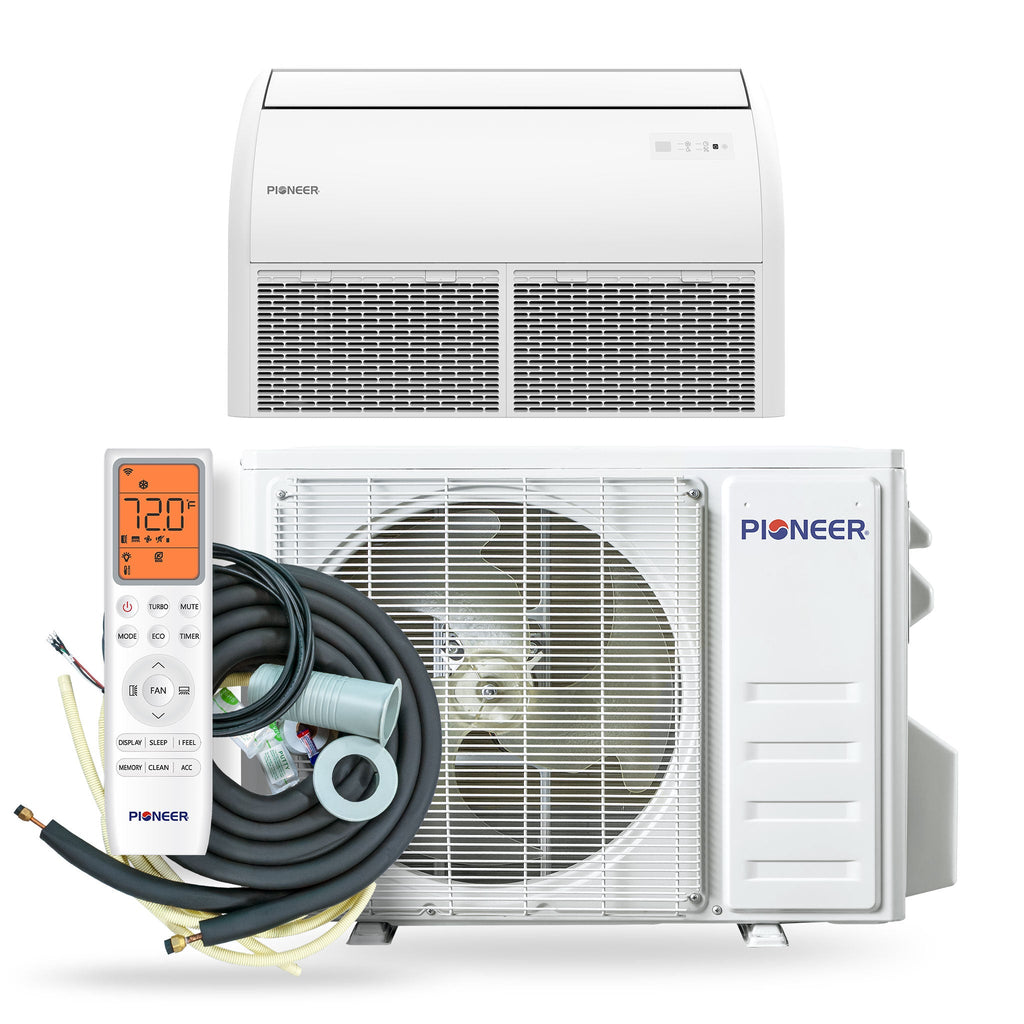

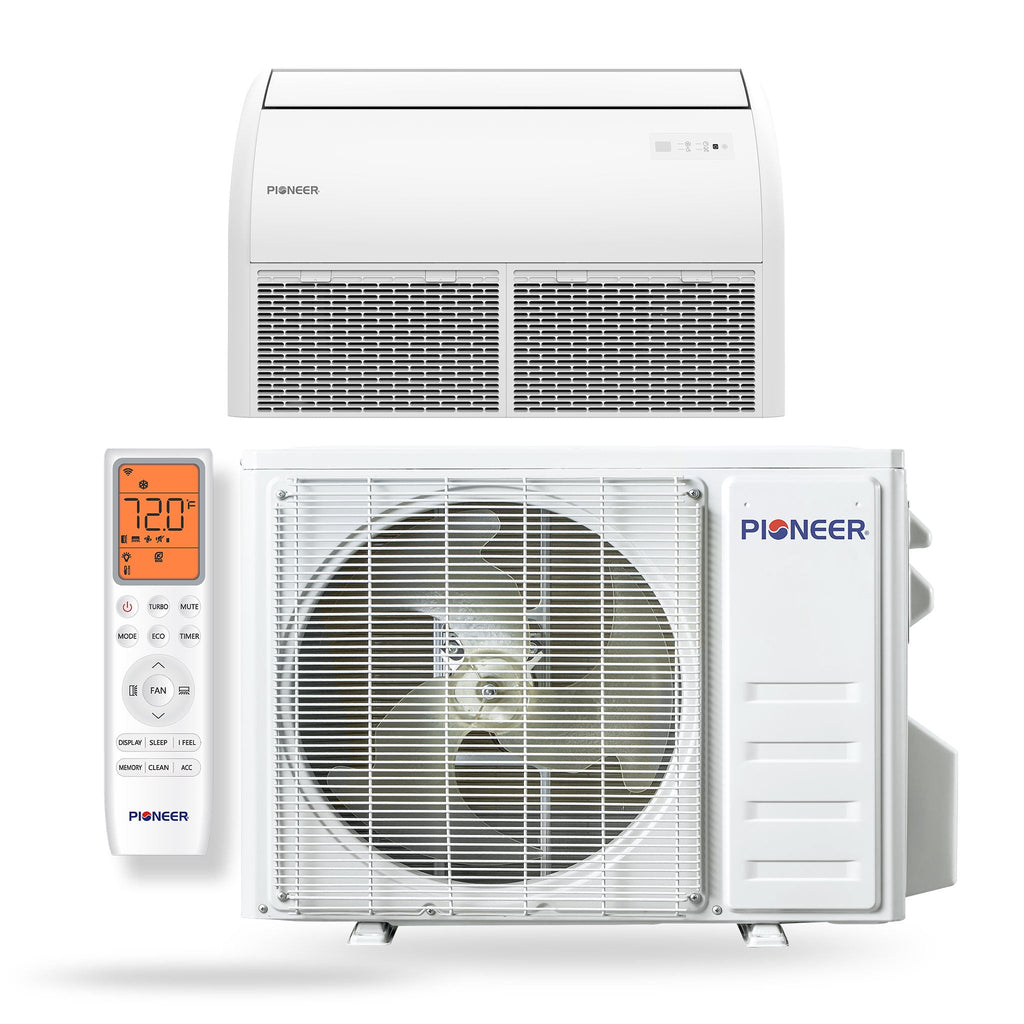

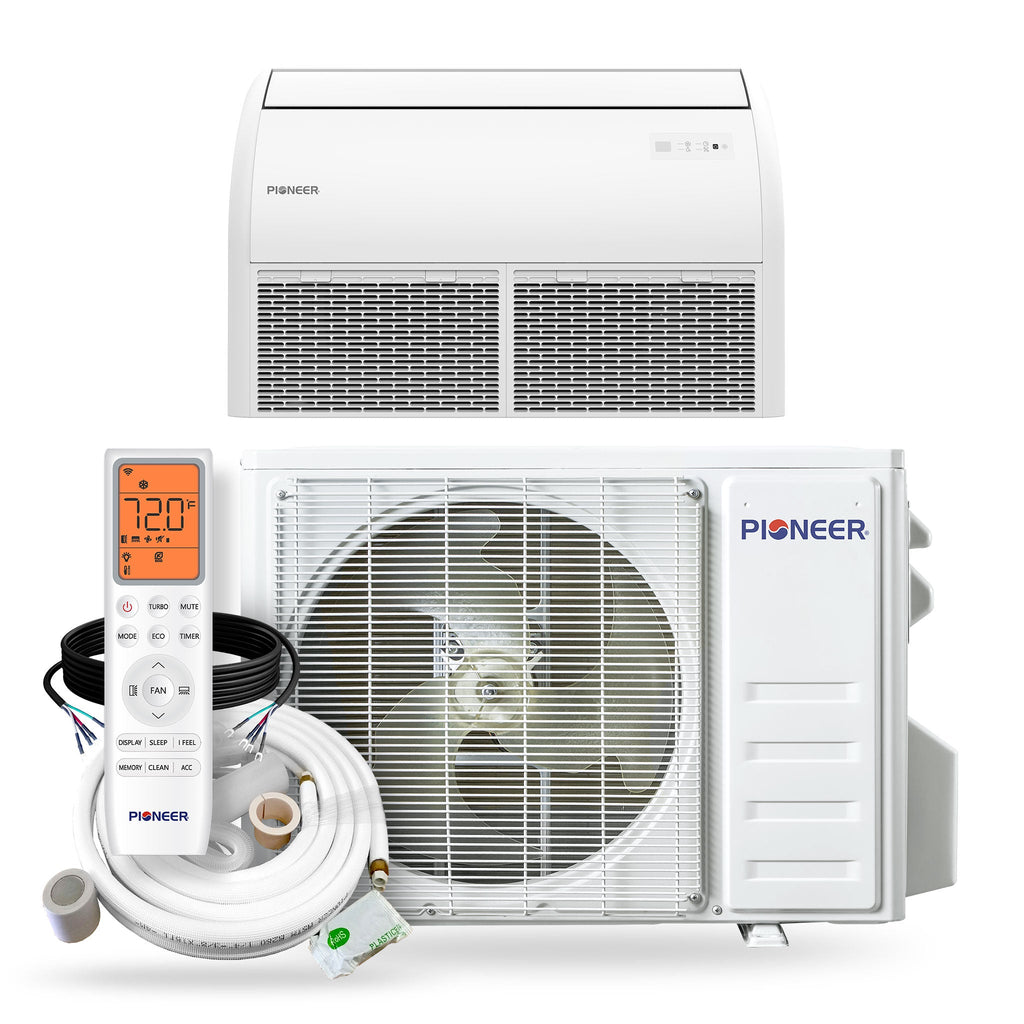

Pioneer® Quantum Ultra™ 18,000 BTU 20.5 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

SKU: UYT018GLSI24RL

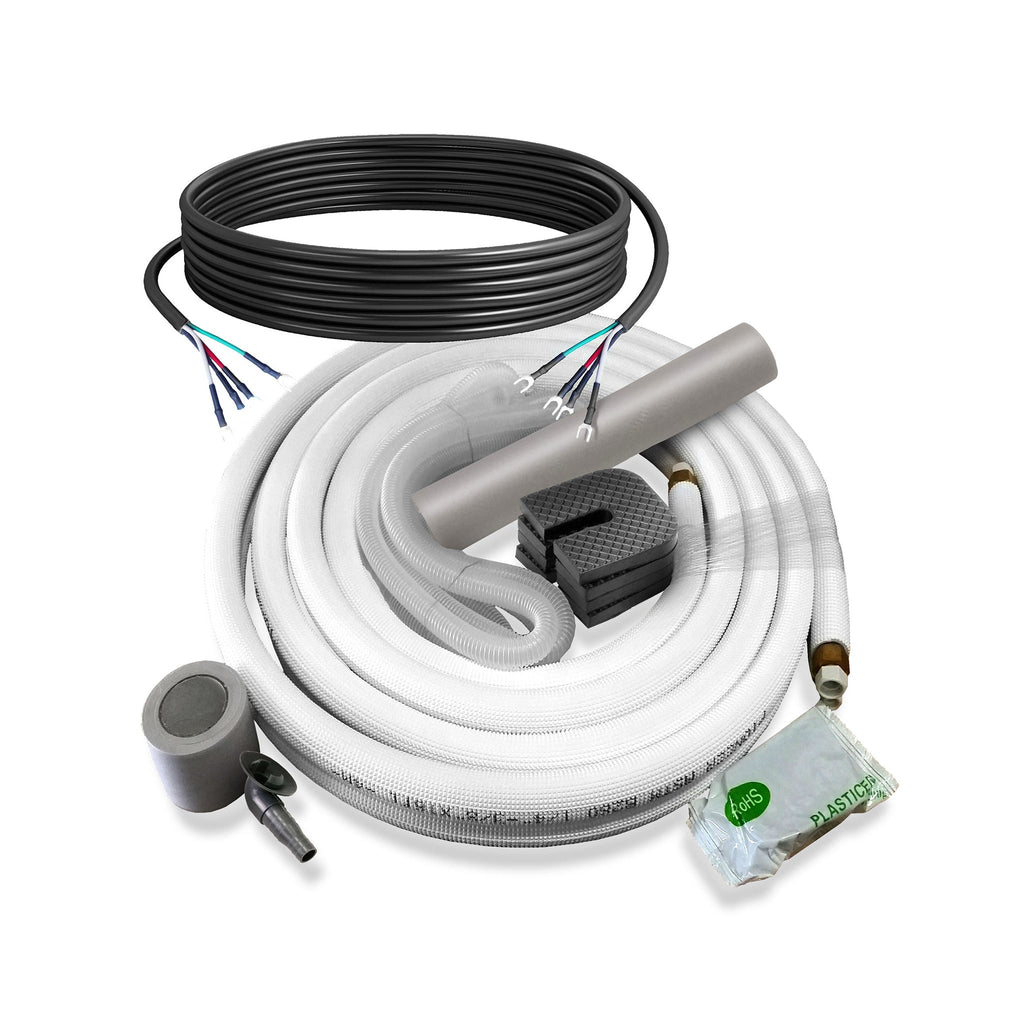

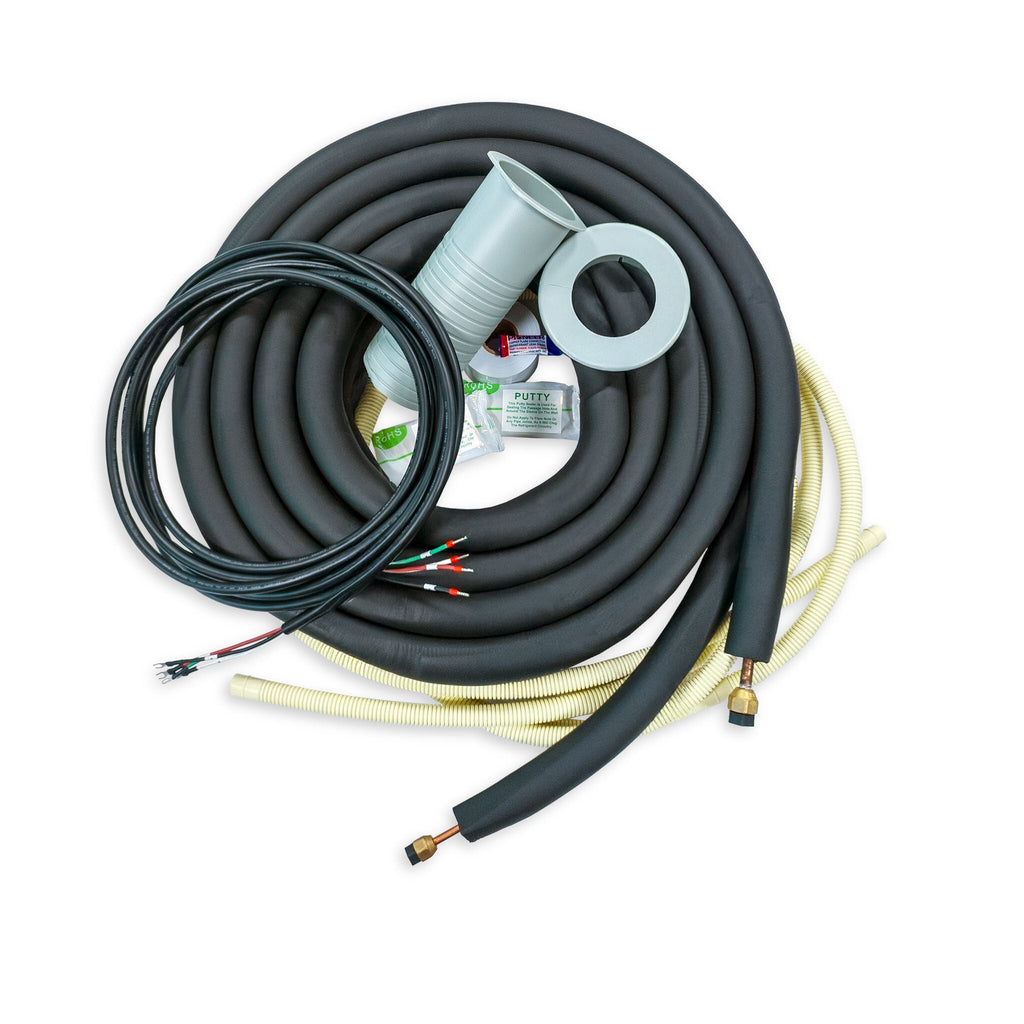

Include System Installation Kit: Add Standard Copper Lineset
Installation Kit Length: 10 Ft.
All deliveries are carbon neutral
Powered by Shopify Planet
$1,728.00 $2,469.00 / Piece
27% OFF
5OFFSALE (5% OFF)
Ships within 3-5 business days.

Description

Summary

  • High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
  • Cooling capacity: 18,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 2.8 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

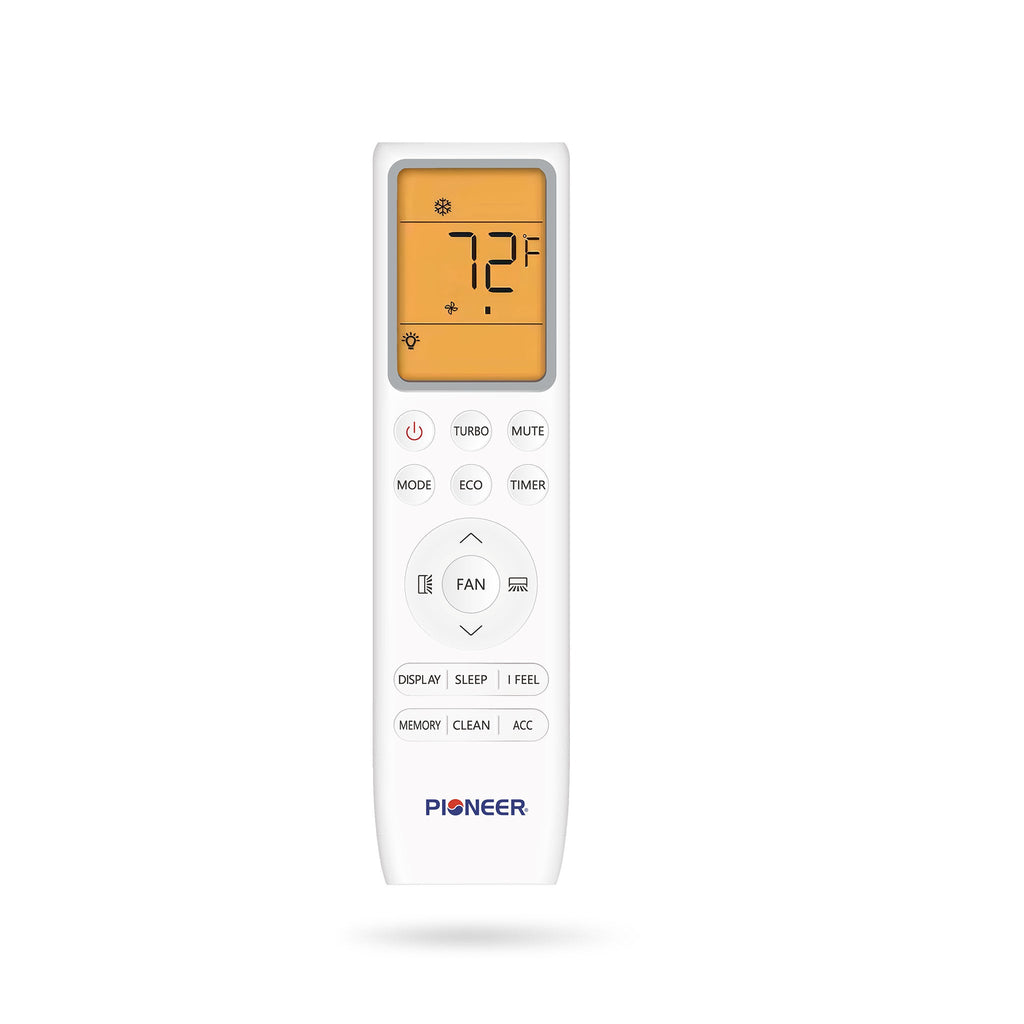

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 18,000 BTU/h
    • Cooling Capacity Range: 4,550~20,200 BTU/h
    • Cooling SEER2: 20.5 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 18,000 BTU/h
    • Heating Capacity Range: 2,910~22,840 BTU/h
    • Heating HSPF2 (Region IV/V): 9.0 / 8.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 2.8 / 1.85 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 500~750 sq ft
    • Minimum Room Size (Ceiling Suspended): 51 sq ft
    • Minimum Room Size (Floor/Low Wall): 195 sq ft
    • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048766

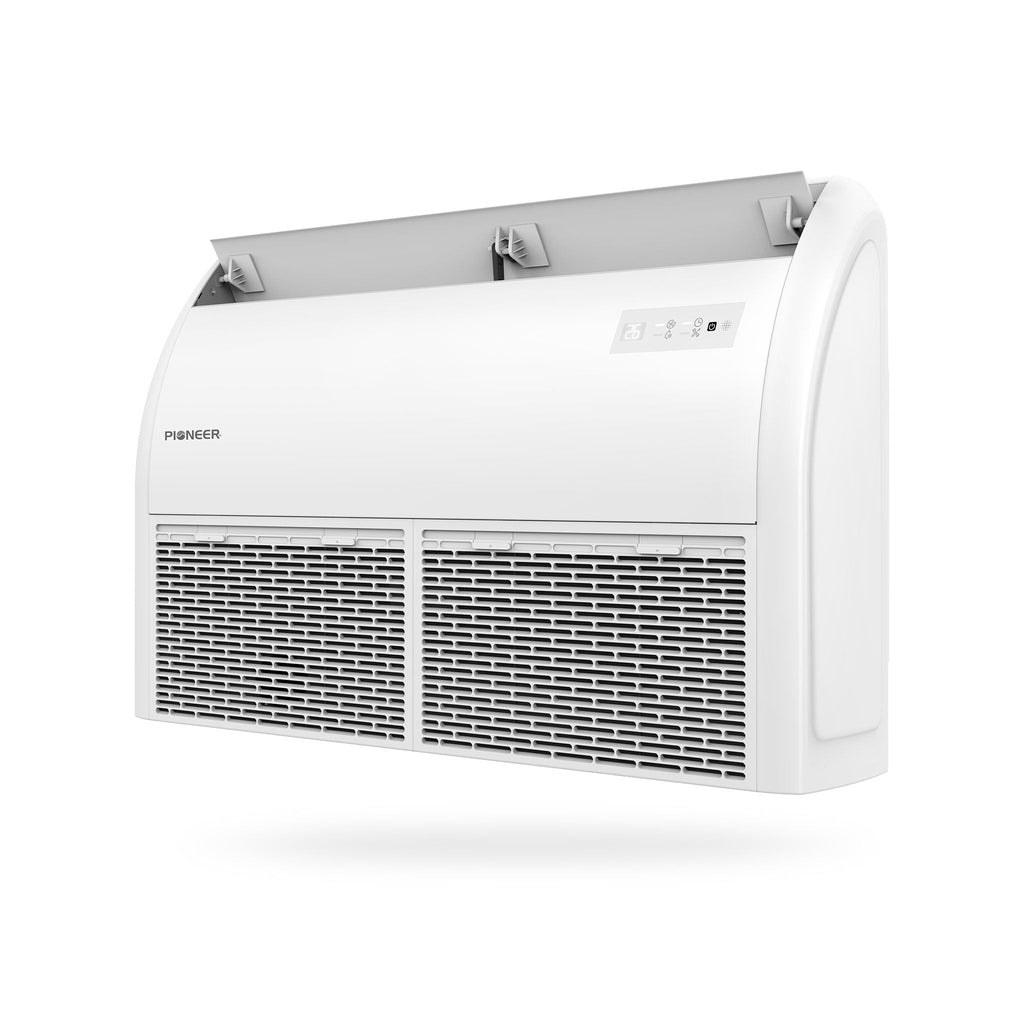

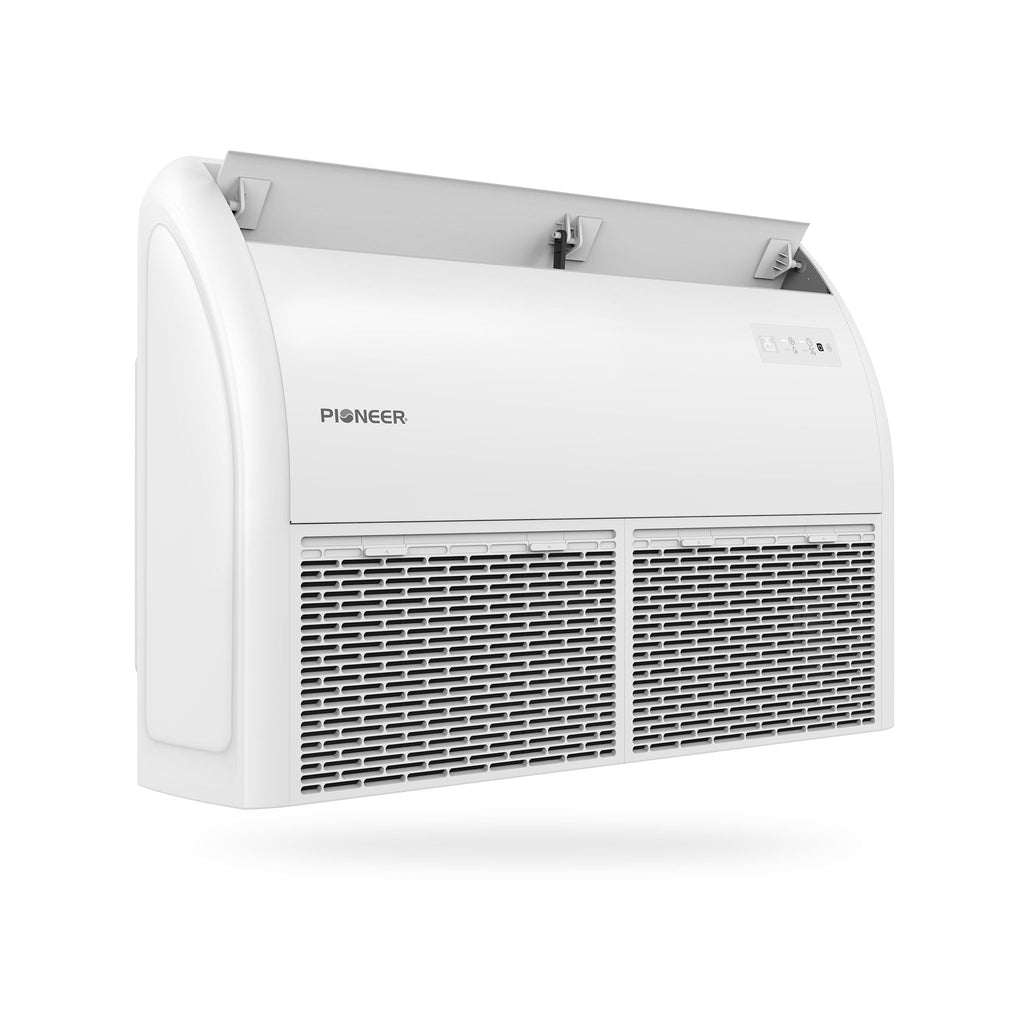

  • Indoor Unit
    • Part Number: UT018GLSILCFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 588 / 512 / 453 / 353 / 265 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 46 / 44 / 40 / 36 dB(A)
    • Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
    • Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
    • Net / Gross Weight: 52.9 / 63.9 lbs

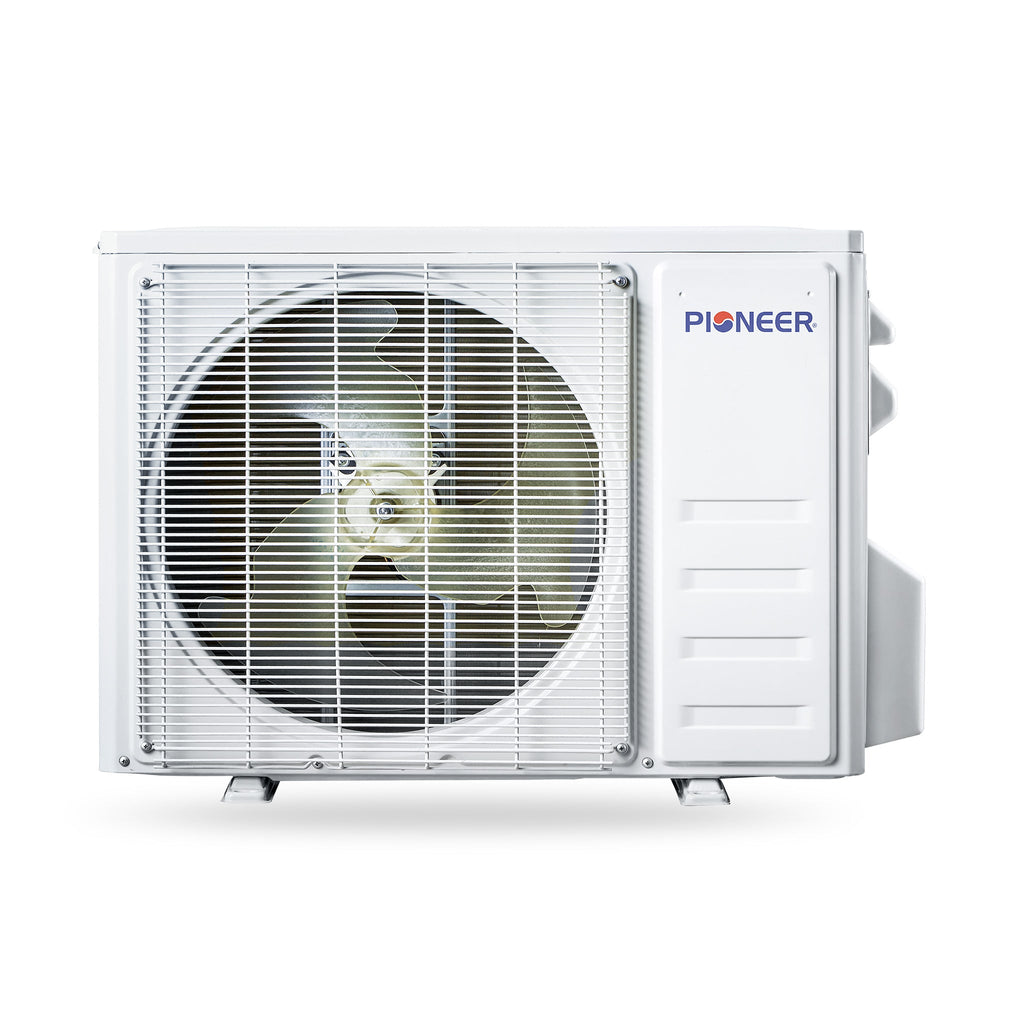

  • Outdoor Unit
    • Part Number: YN018GLSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 53 dB(A)
    • Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
    • Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
    • Net / Gross Weight: 90.4 / 97.0 lbs

Dimension Chart

41½ 26½ 36½ 15 27½ ¾
