Description
This 30v 10A Precision Variable Voltage Power Supply DC Converter High Quality multiple protections functions, such as over voltage, over temperature and short-circuits protection which can protect the testing load and power supply from damage. It can be used both as constant voltage and constant current dc power supply. Its constant voltage and constant current operation mode can be automatic converted. It is widely used in LED testing and aging, motor manufacturing, PCB manufacturing, battery, dc fan, etc. It is the first choice for workshop, laboratory and production line.
High Quality:
- Power supply features constant voltage and constant current operation mode for automatic conversion

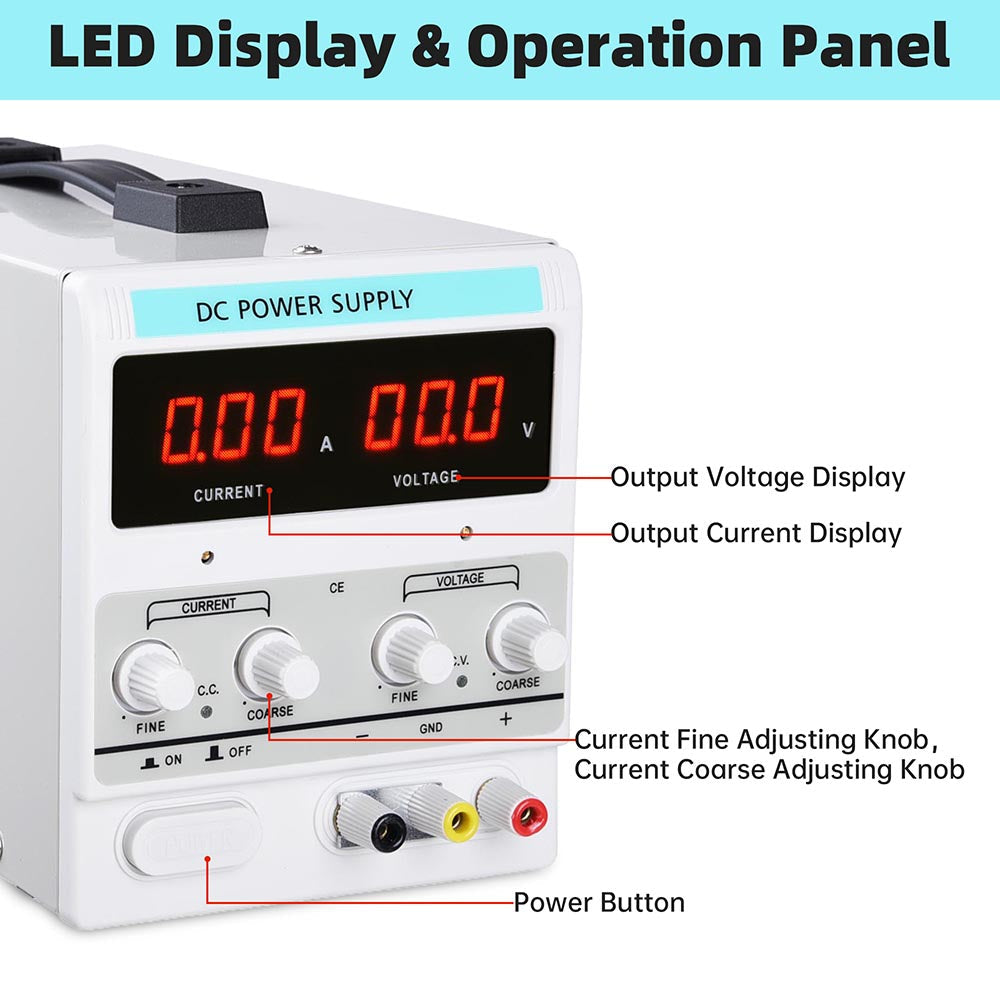

- LED digital display for displaying voltage up to 30V and current up to 10A with precise accuracy
- Over voltage, open circuit and over temperature protection for avoiding short-circuit and damage

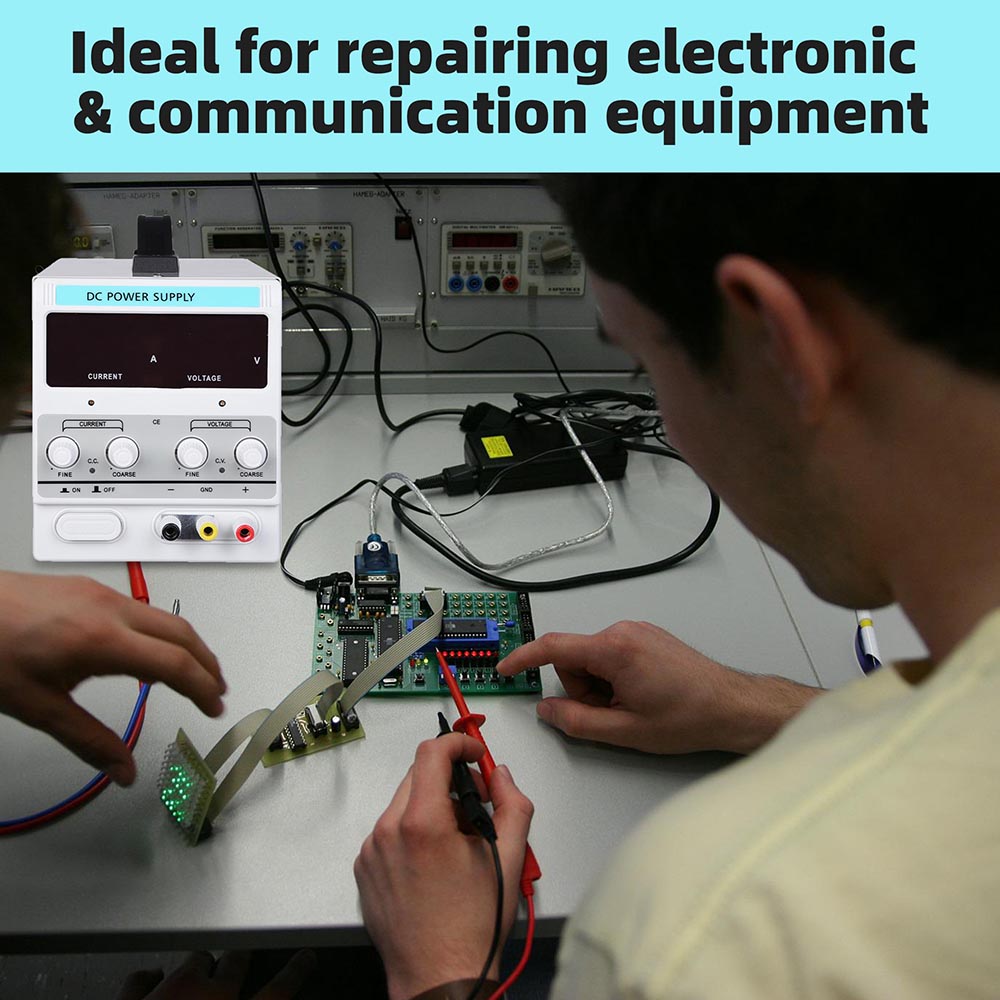

- Used for lab experiment, factory and home to test and repair electronic & communication equipment
- Sturdy steel construction for durability and rust resistance; elastic handle for easy carrying
Product Details:
- Overall Dimension(LxWxH): 10 5/8" x 4 15/16" x 6 1/8" (27 x 12.5 x 15.5 cm)
- Input voltage: AC 110V, 60Hz
- Output voltage: DC 0 to 30V
- Output current: DC 0 to 10A
- Display resolution: Voltage: 0.1V, current 0.01A.
- Display precision: ±1% ±1digit
- Current stabilization: CV 0.05% + 1mV CC 0.05% + 10mA
- Load stabilization: CV 0.1% +5mV / CC 0.1% +10mA
- Ripples and noises: CV10mV(RMS)/ CC20mA(RMS)
- Cooling way: Intelligent temperature control fan, if the temperature is higher than 40 degrees Fahrenheit, the fan is started, if less than 95 degrees Fahrenheit, the fan will stop which can reduce noise
- Working conditions: Temperature 14 to 104 degrees Fahrenheit (-10 to 40 degrees Celsius), Relative humidity < 80%
- Storage conditions: Temperature -4 to 176 degrees Fahrenheit (-20 to 80 degrees Celsius), Relative humidity < 80%
- Net Weight: 4.96 Lbs (2.25 kg)
Also In The Box:
- 1x DC power supply
- 1x Power Cord
- 1x Test Lead Set
- 1x Manual
