Description

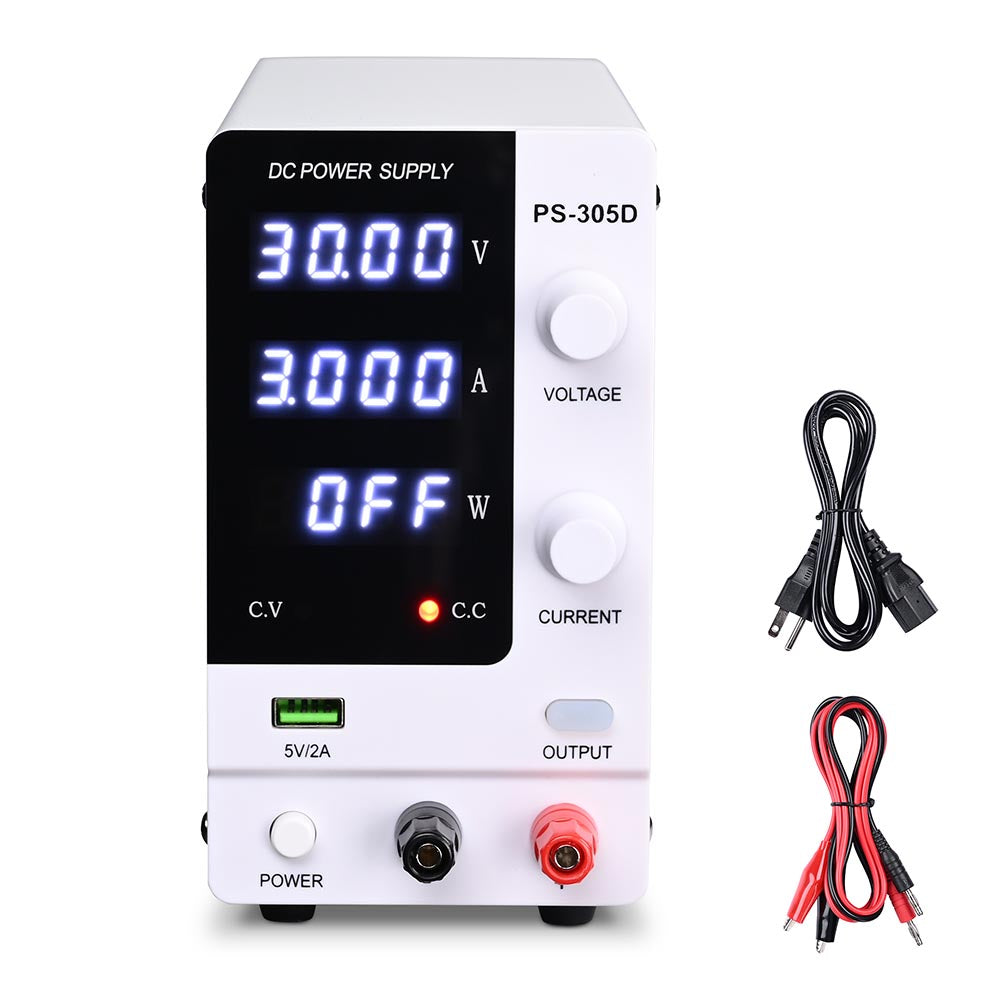

Lab Precision DC Power Supply is specialized for scientific research, product modification, mobile computer repair and widely used by laboratories, universities, etc. This DC Power Supply High Quality variable output current 0-30v and 0-5a. High reliability, low noise and circuit overload protection, excellent choice for business.
High Quality:
- Power supply features constant voltage and constant current operation mode for automatic conversion

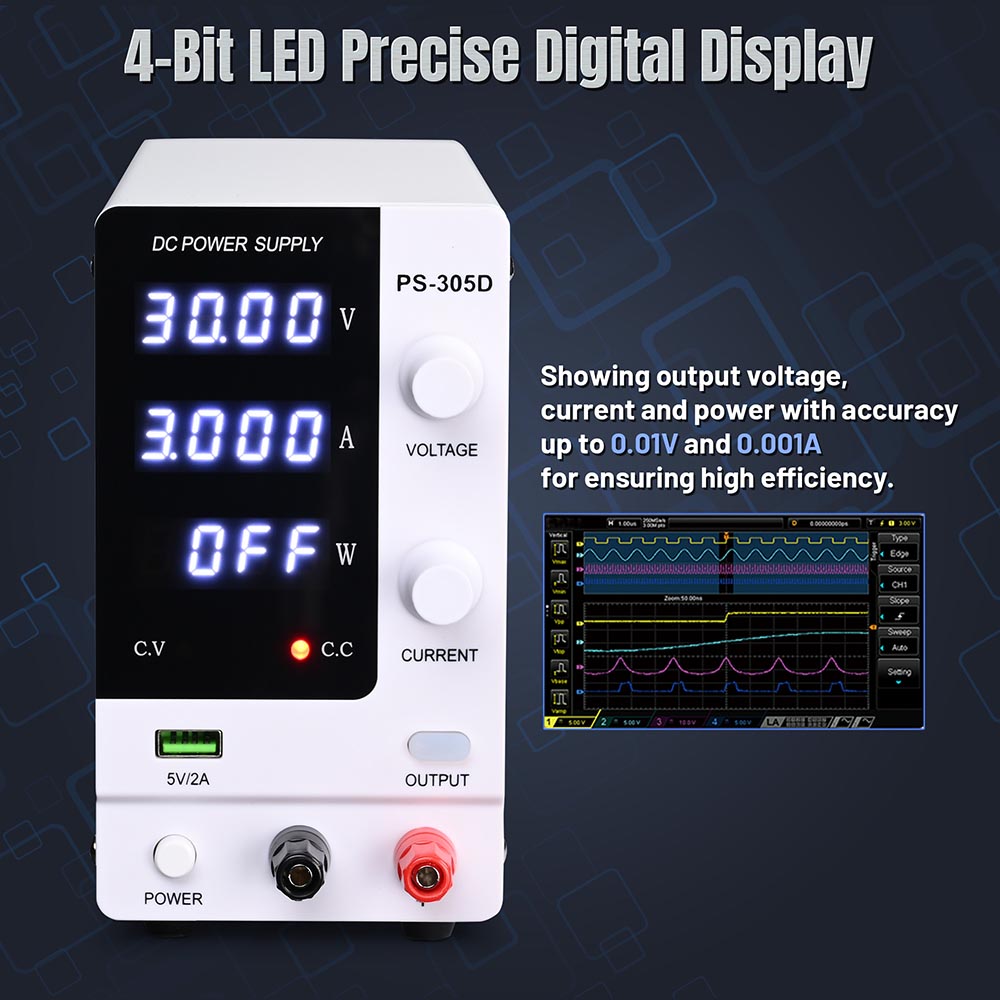

- LED digital display for displaying voltage up to 30V and current up to 5A with precise accuracy

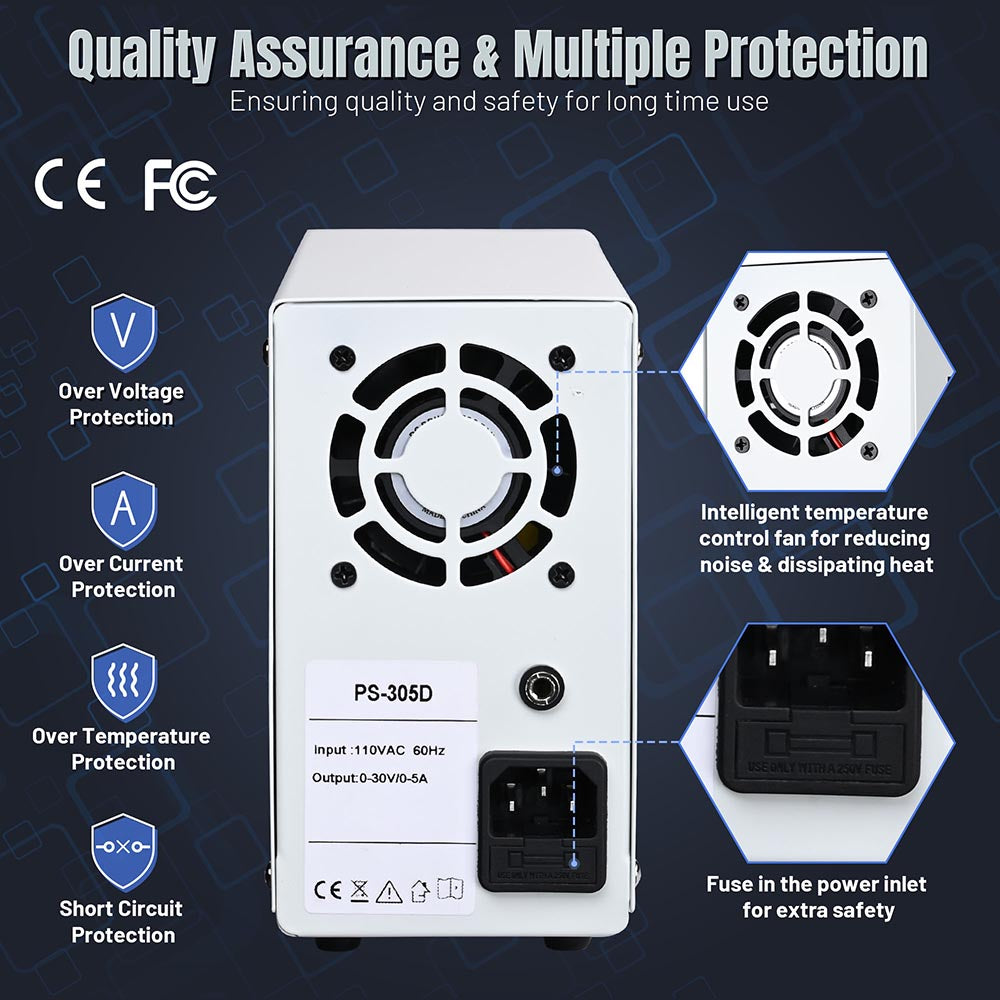

- Over voltage, open circuit and over temperature protection for avoiding short-circuit and damage
- Intelligent temperature control fan adjusts speed to reduce noise & dissipate heat for long-term use
- Used for lab experiment, factory and home to test and repair electronic & communication equipment

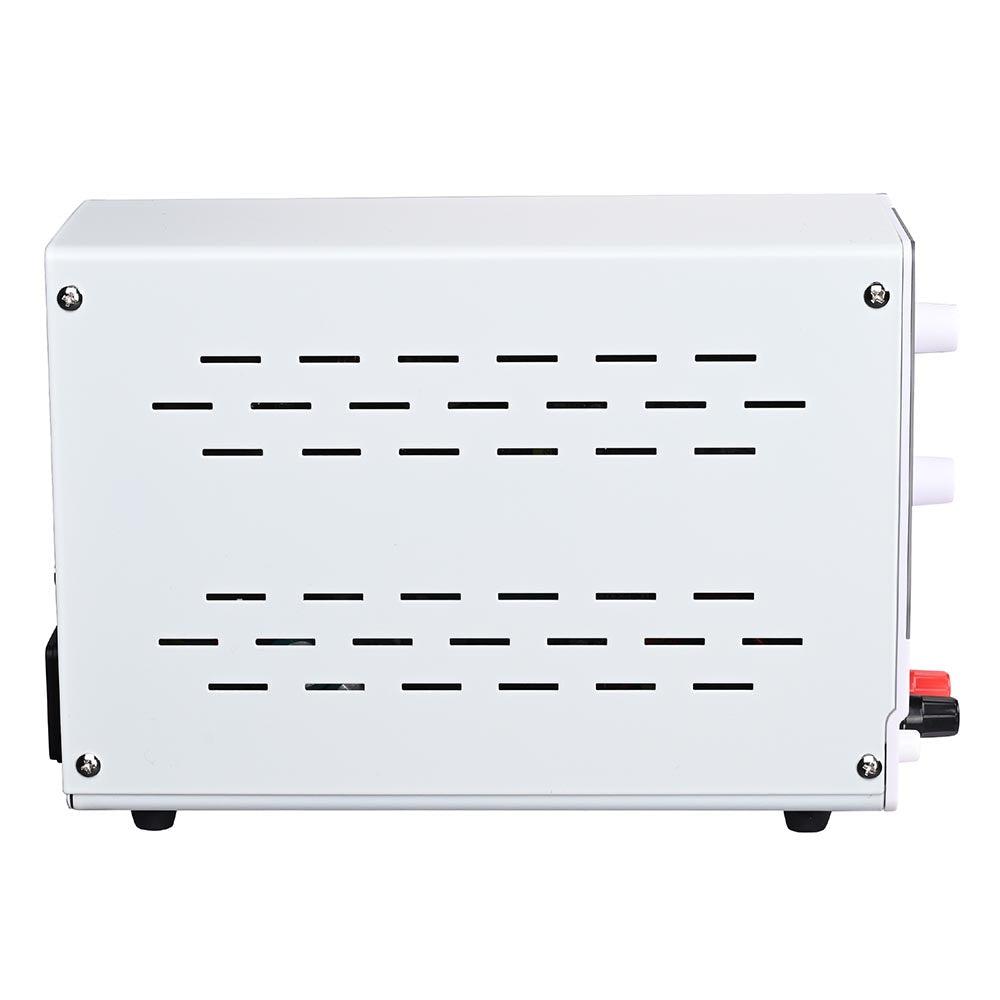

- Sturdy metal construction for durability and rust resistance; with USB port to charge electronic devices
Product Details:

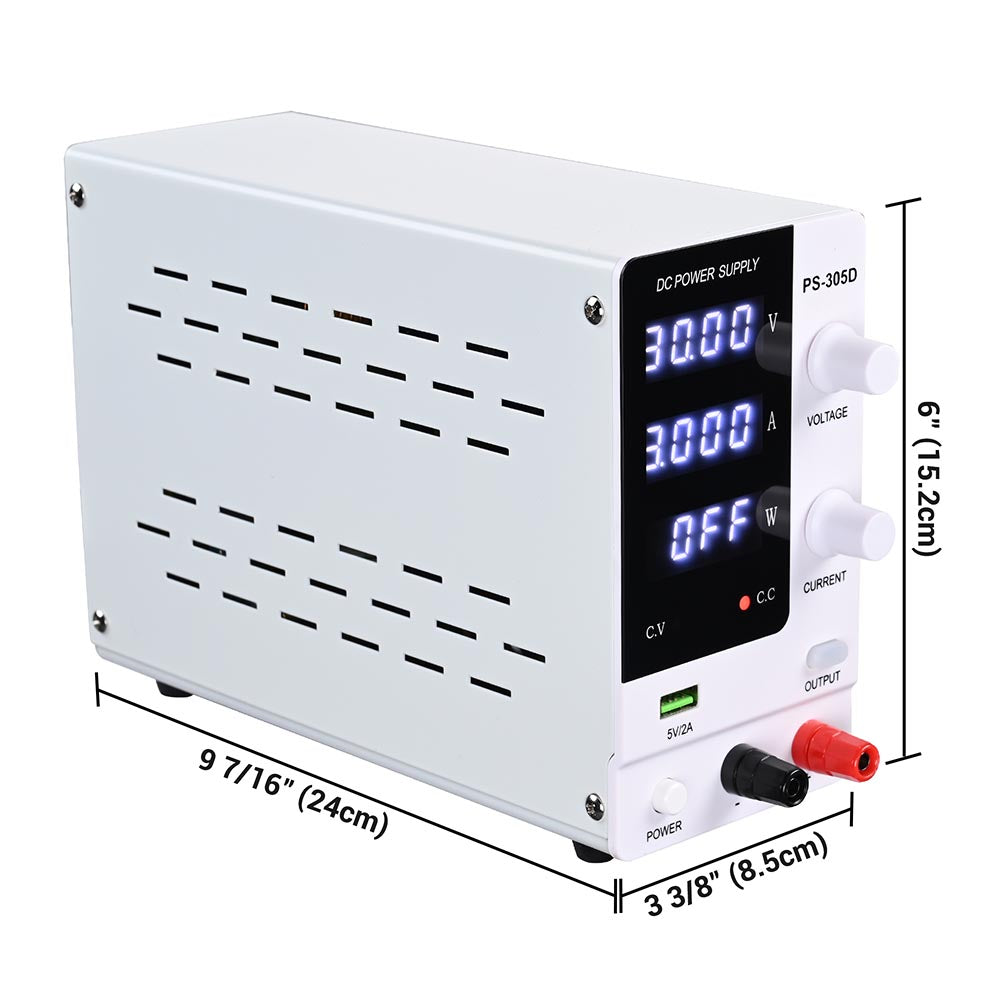

- Overall Dimension(LxWxH): 3 3/8" x 9 7/16" x 6" (8.5 x 24 x 15.2 cm)
- Power Cord Length: 47 1/4” (120 cm)

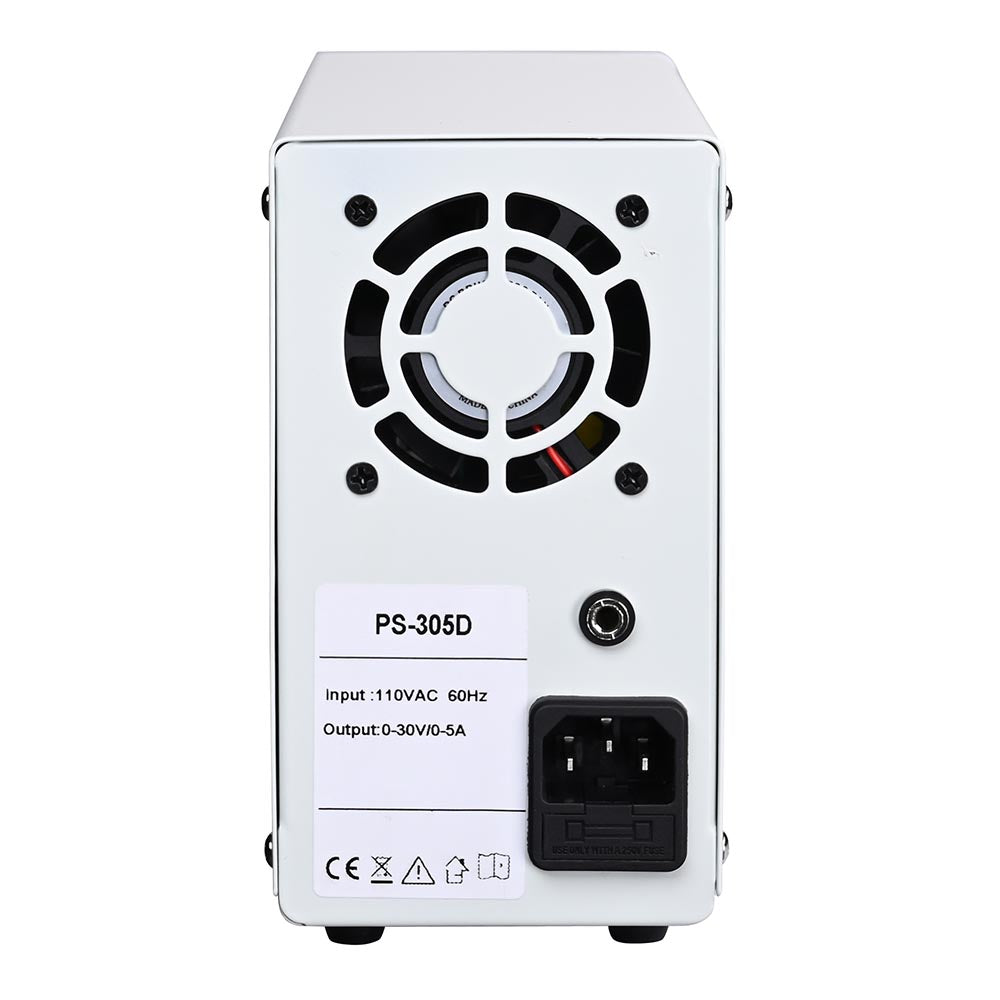

- Input Voltage: AC 110V, 60Hz
- Output Voltage: DC 0 to 30V
- Output Current: DC 0 to 5A
- Display Resolution: Voltage: 0.01V, current 0.001A
- Display Precision: 0.5%±2digits
- Voltage Stability: CV 0.1%±3mV, low voltage 0.2 to 0.3%±3mV
- Current Stability: CC 0.2%±3mA
- Load Stability: CV 0.5%±3mV, CC 0.2%±3mA
- Ripples Noise: CV 30mV(RMS), CC 20mA(RMS)

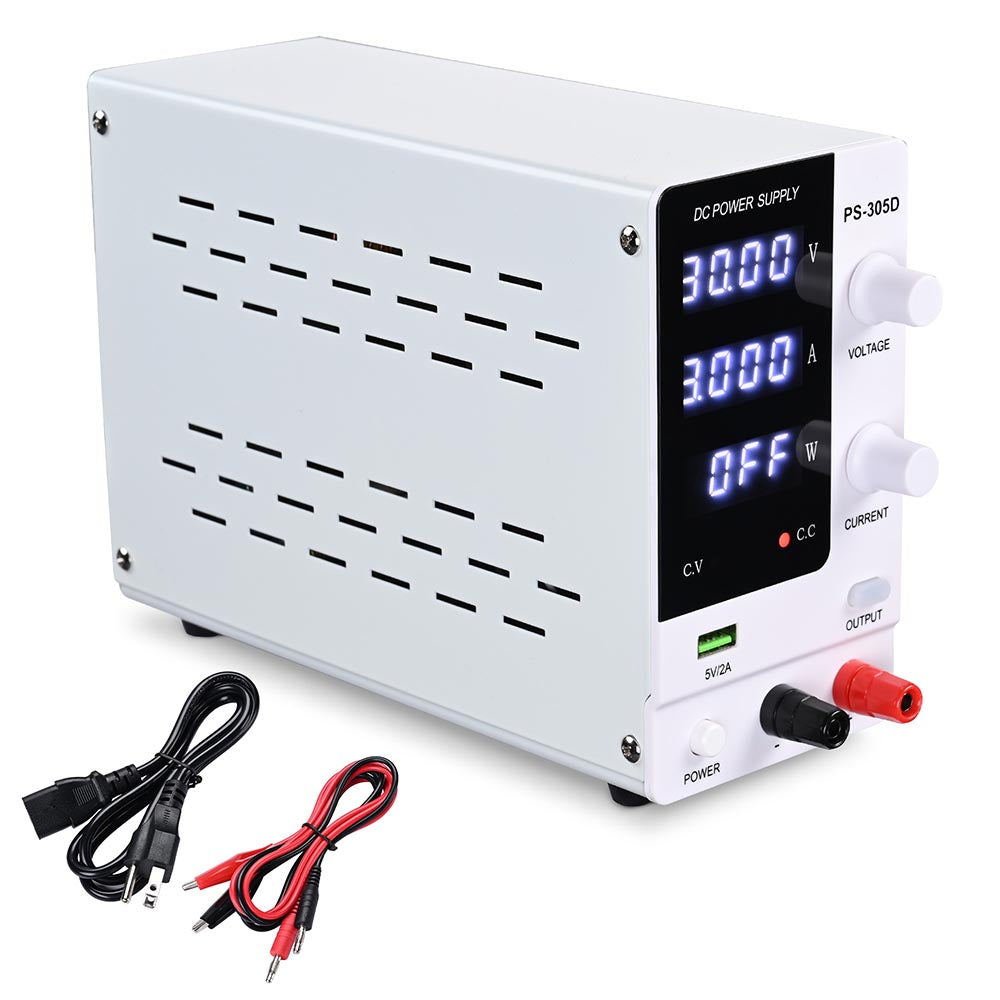

Also In The Box:
- 1x DC Power Supply

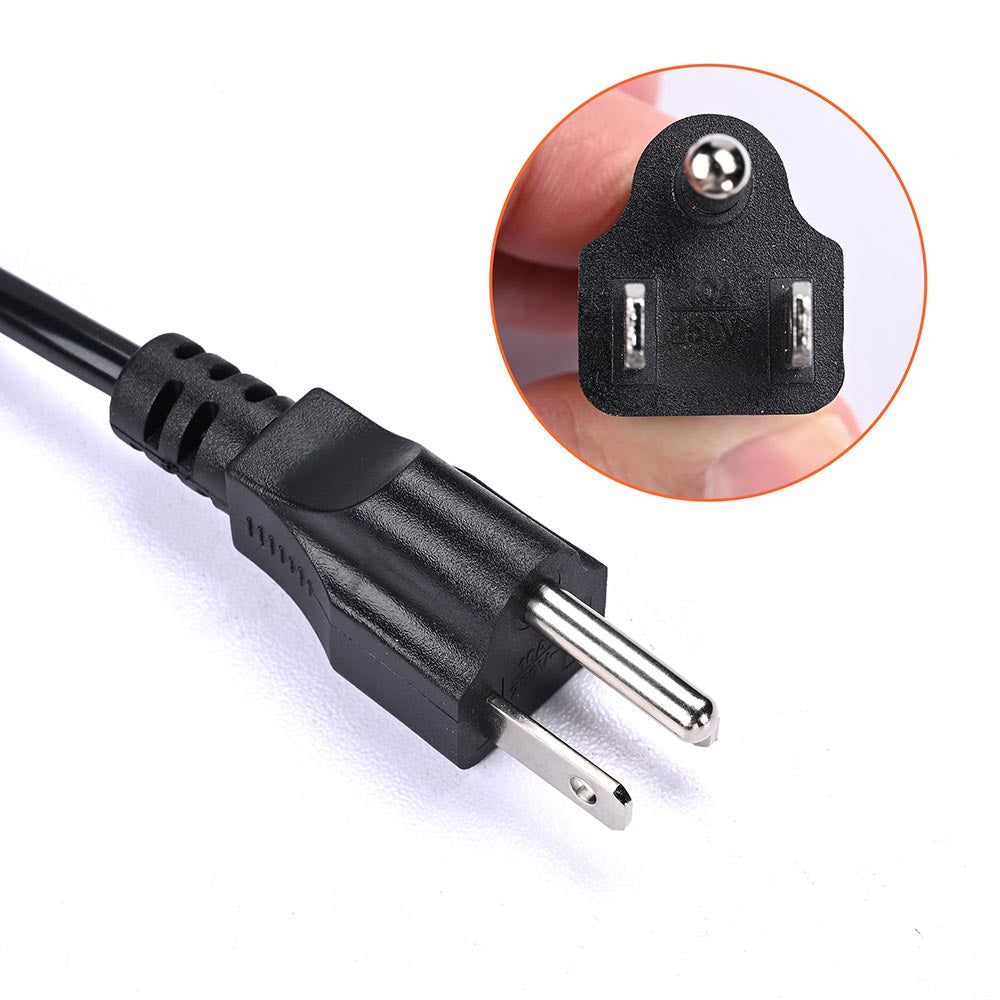

- 1x Power Cord

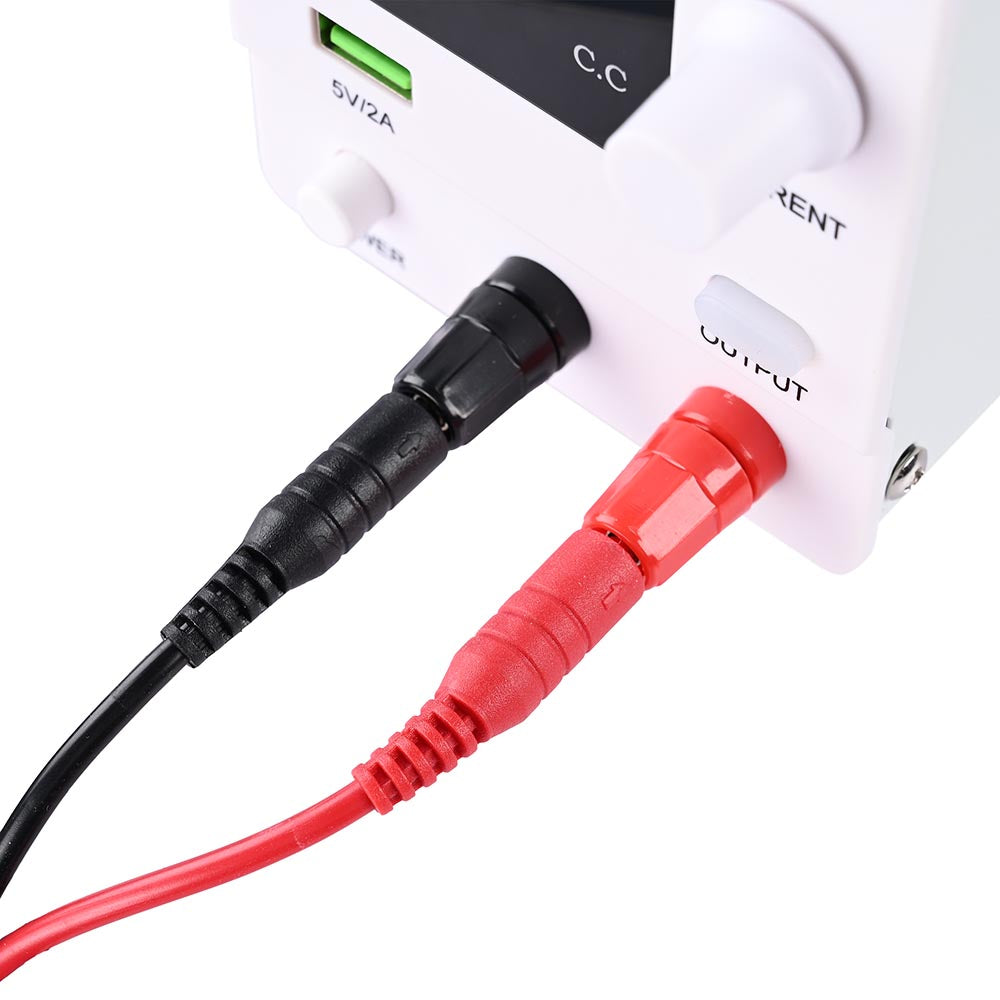

- 1x Red Test Lead
- 1x Black Test Lead
- 1x Manual
